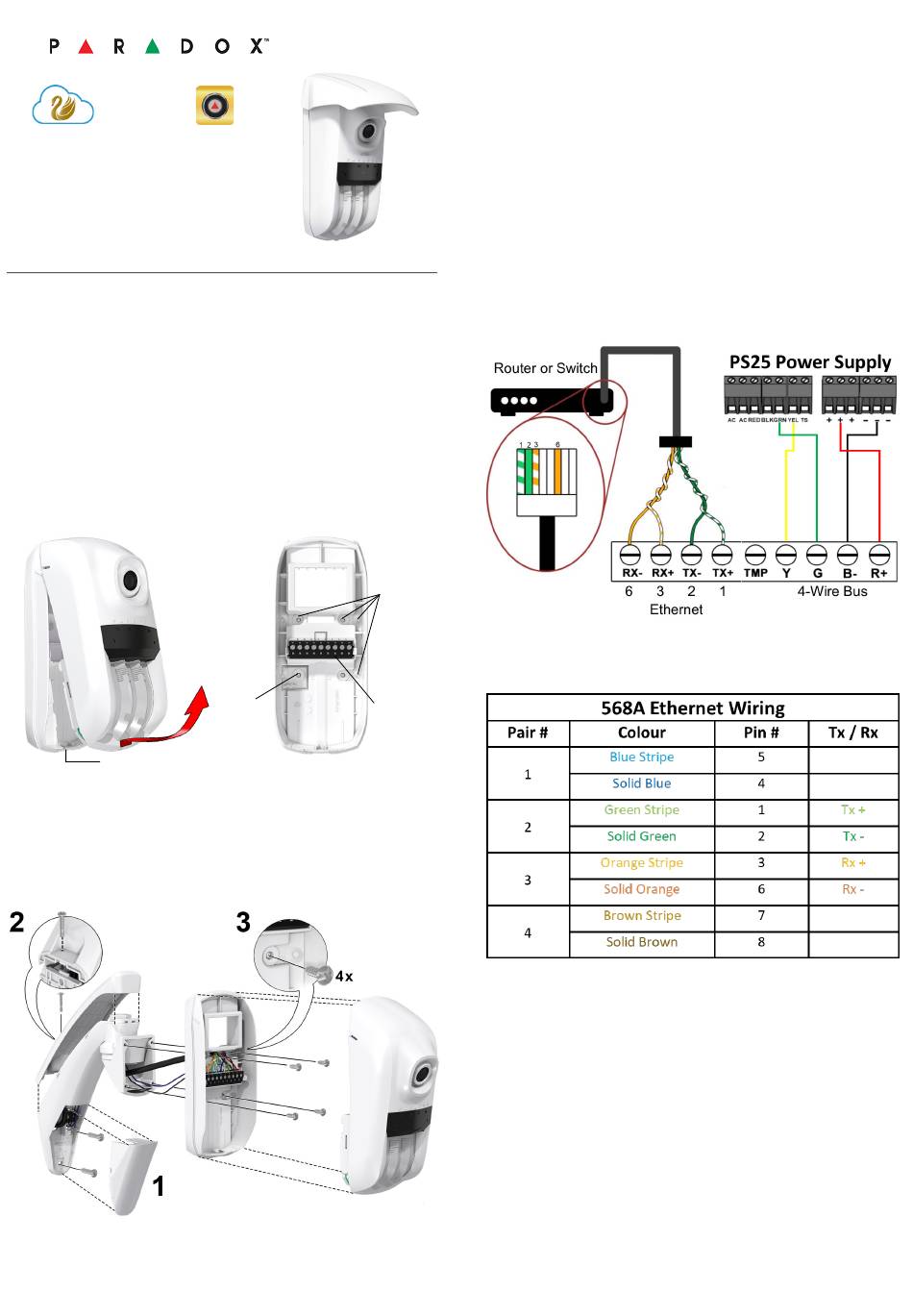

HD88
720P HD Outdoor Camera
Installation Manual
**Compatible with Insite
GOLD and SWAN Server**
Introduction
The HD88 is an IPX4 outdoor 720P HD camera with built-in
audio, pet immune security motion detector, with Ethernet and
Wi-Fi. It provides up to 30 minutes of internal recording and
comes with a removable rain hood. The BR88 wall bracket is
an optional accessory.
Installing the HD88
Unscrew and
remove cover
Lock and Tamper
If you are installing the HD88 near any reflecting surface, please
note that it may affect the quality of the night vision due to the IR
reflection.
BR88 Wall Bracket Installation
If wall bracket tamper is connected, tamper will automatically be
detected by the camera. Tamper will follow recognition settings set
in the panel.
Mount back on wall
or bracket
Drill Out
Holes
Anti-
Terminal
Block
Tamper
Power Requirements
It is recommended to use the PS25 power supply module that is
capable of powering a maximum of 5 x HD88's.
HD88 Ethernet Wiring
Connect the HD88 camera with a CAT5e or better cable using
pairs 2 & 3 (pins 1,2,3,6). The maximum cable length is 50 meters.
HD88 Bus Wiring
Connect the PIR with a 4-core 14/0.20 cable or better.
- 1 -
