HD88
720P HD Outdoor Camera
Installation Manual
**Compatible with Insite
GOLD and SWAN Server**
Introduction

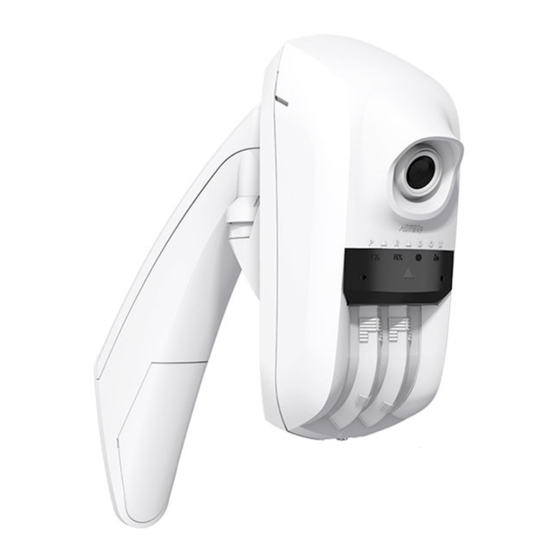

The HD88 is an outdoor 720P HD camera with built-in sound, pet
immune security motion detector, with Ethernet and WiFi. It
provides up to 30 minutes of internal Recording on Trigger memory
space, or 16GB to 256Gb SD card that can be added for additional
recording space.
Installing the HD88
Unscrew and
remove cover
Lock and Tamper
If you are installing the HD88 near any reflecting surface, please
note that it may affect the quality of the night vision due to the IR
reflection.
Bracket Installation
If wall bracket tamper is connected, tamper will automatically be
detected by the camera. Tamper will follow recognition settings set
in the panel.
HD88-EI01 12/2018
Mount back on wall
or bracket
Drill Out
Holes
Anti-
Terminal
Block
Tamper
HD88 Bus / Ethernet Wiring
Wire the HD88 camera with a CAT5e or higher cable. Connect the two
twisted pairs to the Green (Data) and Clock (Y) of the panel bus and
two twisted pairs for the Ethernet lines. The maximum CAT5e cable
length is 50 meters. When using Ethernet do NOT use Green (Data)
and Yellow (Clock) in one twisted pair, but rather separate them into
different twisted pairs as shown below.
Use a separate minimum 18 gauge wire for the power. If your power is
not coming from the panel or a bus power supply then you will also
need to connect the solid blue of the CAT5e cable to the negative (-) of
the camera to have a common ground.
Router or Switch
12345678
Ethernet
CAT5E Connection
Note: Green (Data) and Yellow (Clock) need to be on
separate pairs otherwise bus errors will occur.
HD88 WiFi Wiring
Wire the HD88 camera with a standard 4-wire bus cable. Connect the
Yellow and Green to the Green (Data) and Yellow (Clock) of the panel
bus.
Use a separate 18 gauge (minimum) wire for the power. If your power
is not coming from the panel or a bus power supply then you will also
need to connect the Black of the 4-wire bus cable to the negative (-) of
the camera to have a common ground.
18
AWG
4-Wire
Spectra/EVO bus
18 AWG
paradox.com
