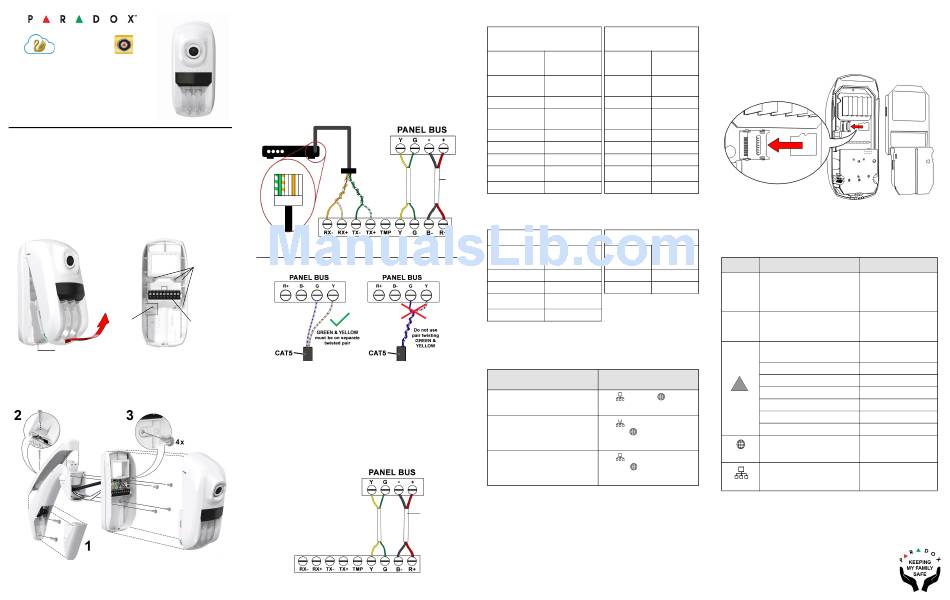

Paradox HD88 Installation Manual

HD88
720P HD Outdoor Camera
Installation Manual
**Compatible with Insite
GOLD and SWAN Server**
Introduction

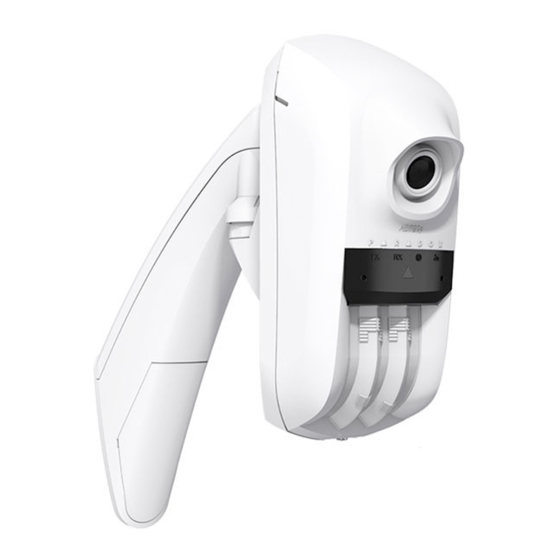

The HD88 is an outdoor 720P HD camera with built-in sound, pet
immune security motion detector, with Ethernet and WiFi. It provides
up to 30 minutes of internal Recording on Trigger memory space, or
16GB to 256Gb SD card that can be added for additional recording
space.
Installing the HD88
Unscrew and Mount back on wall
remove cover or bracket
Anti-
Tamper
Lock and Tamper
If you are installing the HD88 near any reflecting surface, please
note that it may affect the quality of the night vision due to the IR
reflection.
Bracket Installation
If wall bracket tamper is connected, tamper will automatically be
detected by the camera. Tamper will follow recognition settings set in
the panel.
HD88-EI00 05/2018
HD88 Bus / Ethernet Wiring
Wire the HD88 camera with a CAT5e or higher cable. Connect the two
twisted pairs to the Green (Data) and Clock (Y) of the panel bus and two
twisted pairs for the Ethernet lines. The maximum CAT5e cable length is
50 meters. When using Ethernet do NOT use Green (Data) and Yellow
(Clock) in one twisted pair, but rather separate them into different twisted
pairs as shown below.
Use a separate minimum 18 gauge wire for the power. If your power is
not coming from the panel or a bus power supply then you will also need
to connect the solid blue of the CAT5e cable to the negative (-) of the
camera to have a common ground.
Router or Switch
12345678
Ethernet
Drill Out
CAT5E Connection
Holes
Terminal
Block
Note: Green (Data) and Yellow (Clock) need to be on
separate pairs otherwise bus errors will occur.
HD88 WiFi Wiring
Wire the HD88 camera with a standard 4-wire bus cable. Connect the
Yellow and Green to the Green (Data) and Yellow (Clock) of the panel
bus.
Use a separate 18 gauge (minimum) wire for the power. If your power is
not coming from the panel or a bus power supply then you will also need
to connect the Black of the 4-wire bus cable to the negative (-) of the
camera to have a common ground.
HD88 Wiring Table
Recommended Wire
Assignment
Bus Label Wire Color
RX- Orange
RX+ Orange striped
TX- Green
TX+ Green striped
Y Brown striped
G Blue striped
B-
Black (18 AWG)
18
AWG R+ Red (18 AWG)
WiFi Wire Assignment
4-Wire
Spectra/EVO bus
4-Wire Bus
Wire Color
Label
Y Yellow
G Green
B- Black (18 AWG)
R+ Red (18 AWG)
Registration LED Status Indicators
Network Status
HD88 is not connected to a local
WiFi network
HD88 is connected to a local
network but failed to poll the
SWAN Server
HD88 is connected to a local
network and succeeded in
polling the SWAN Server
18 AWG
SD Card Installation
An SD card can be inserted into the HD88 in order to provide
additional recording time. Please note that if using Record On
Ethernet Connector
Trigger, an SD card must be inserted into the camera as shown.
Ethernet
Wire Color
Connector
1 Green
striped
2 Green
3 Orange
striped
4
5
6 Orange
7
8
LED Status Indicators
Bracket Wire Assignment Other than PIR detection, LEDs are active when lock mechanism is
open.
Bus Label Wire Color
LED
TMP Blue
B- Black
TX Digiplex/Spectra Data TX
RX Digiplex/Spectra Data RX
Firmware upgrade in
progress.
VOD*
LED Functionality
Power-up
Locate mode
LED and LED will flash
No connection to panel bus
intermittently
Bus low power
LED is set to On
PIR detection
and LED is Flashing
Active Wi-Fi
LED is set to On
and LED is set to On
LAN 10/100Mb link
Functionality LED Display
Flashing green: Data
transmission
Off: No data
transmission
Flashing green: Data
reception
Off: No data reception
Flashing purple
Blue on
Flashing blue
Flashing blue
Flashing red
Flashing red
Red on for 3 seconds
Green on
Green on: LAN active
