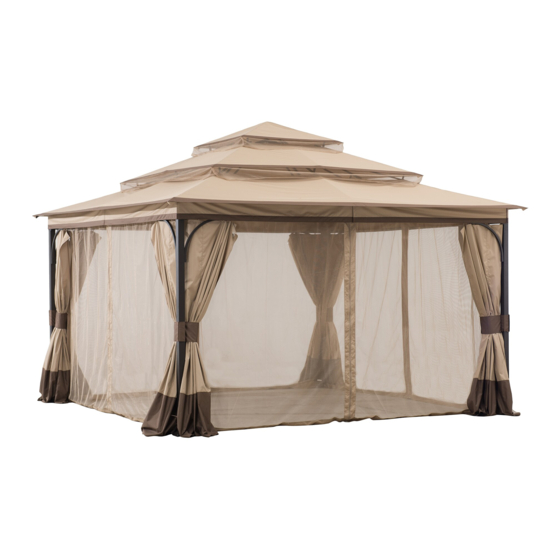

Summary of Contents for Sunjoy A101012300
- Page 1 A101012300 ITEM NO.： WE HAVE YOU IN MIND, LET US SERVE YOU! Questions? Issues? CONTACT US 24 hours / 7 days a week www.sunjoyonline.com customer.care@sunjoygroup.com 1-(866)-578-6569 Country of Origin: China Production Number: xxxxxxxxxx ...
-
Page 2: Parts List
2 / 8 Parts List Description Label Part# Image Post A1 P000200454 4 B1 P000400886 4 Long screen C1 P000400887 Short screen 4 Mid beam D3 P000501164 4 connector E1 P005800001 1 Hook Slanting beam P000601329 F1 4 upper bar Slanting beam P000601331 ... -
Page 3: Hardware Pack
3 / 8 Mosquito P001200207 netting Hardware Pack 1 Label Description Part# Image M6X20 Bolt H010020012 32PCS M6 Flat washer H050010057 72PCS M6X30 bolt H010020023 40 PCS M6 wrench H090010002 2 PC Fig.2‐2： Attach middle Fig.1：Put stake cover (M1)through ... - Page 4 4 / 8 Fig.3‐1：Insert the assembled Fig.3‐2：then fix assemble Fig.4 ： attach netting bar(N1)to screen(B1/C1) to post（A1）. screen（B1、C1） to post long side screen and (B1) and short （A1）by using bolt (CC)、 side screen (C1), by using bolt washer(BB). (AA)、washer(BB). Fig.5： Attach arc support（O1）to post（A1）and across screen（B1、 C1） ； by using bolt(CC)、 Washer(BB) Hardware Pack 2 Label Description Part# Image M6 flat washer H050010057 16 PCS...
- Page 5 5 / 8 Fig.6 ： Insert slanting beam Fig.7 ： Insert slanting beam(F) Fig.8：By using bolt (EE)、washer (BB)、 lower bar （F2） into slanting into big top connector（H1） ； nut(DD), attach slanting beam lower beam upper bar（F1） bar(F2) to post (A1)； Fig.10 ： By using bolt (EE) 、 Fig.9：Insert middle beam Fig.11：Insert small top slanting bar ...
- Page 6 6 / 8 Hardware Pack 3 Label Description Part# Image Φ6*230 floor stake H070010008 8 PCS FF R079990135 112PCS GG Ring Fig.13：Fix small canopy four Fig.14： Fix middle canlpy Fig.15 ： Fix big canopy four corner(P1) to four corner (Q1) to big corner(Q1) ...
- Page 7 7 / 8 Fig.16 ： By using ring(GG) Fig.17 ： By using hang mosquito netting(T) stake(FF) fix assembled on netting bar（N1）; by gazebo on ground. using ring (GG) hang curtain (S) on screen lower tube （B1、C1） 。 Country of Origin: China...
-
Page 8: Care And Maintenance
If necessary, wash with a mild solution of soap and water; rinse thoroughly and dry completely. Periodically check and ensure that all bolts are well‐tighten during use Limited Manufacturer’s Warranty Sunjoy Group warrants to the original purchaser that this item is free from defects in workmanship and materials for a period of 1 year from the date of purchase, provided the item was factory‐sealed at the time of purchase and is maintained with care and used only for personal, residential purposes. Should any manufacturing defect arise within this warranty period, Sunjoy Group will replace (at our option) any defective merchandise or parts upon proof of purchase; however, transportation and ...
