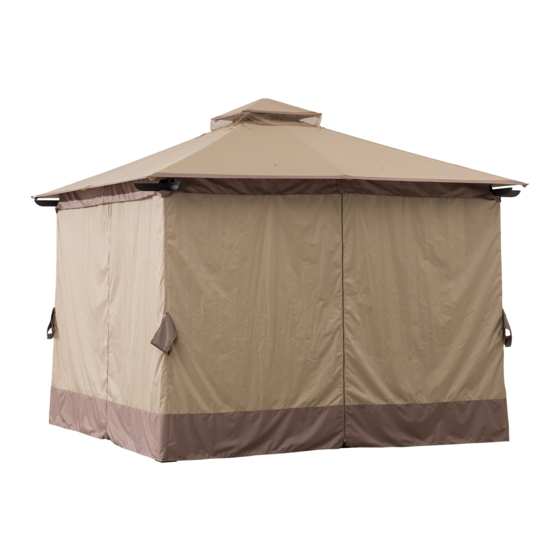

- Page 1 ITEM No.: A101011700 WE HAVE YOU IN MIND, LET US SERVE YOU! Questions? Issues? CONTACT US 24 hours / 7 days a week www.sunjoyonline.com customer.care@sunjoygroup.com 1-(866)-578-6569 Country of Origin: China Production Number: xxxxxxxxxx...
-
Page 2: Safety Information
2 / 10 Safety Information Two people are required for this assembly. This unit is heavy! Do not assemble DANGER: Some parts may contain sharp edges. Wear this item alone. protective gloves. When assembling and using this product, Do not leave the gazebo where there WARNING: basic safety precautions should always be... -
Page 3: Parts List
3 / 10 Parts List Part Description Label Part Image Number Top connector P000501261 Hook P005800001 Slant beam for big P000601481 roof Pipe under for P000601483 slant beam Middle beam P000601482 Long beam 1 P000400945 Long beam 2 P000400944 Short beam 1 P000400943 Short beam 2 P000400942... - Page 4 4 / 10 Base P000100347 Base cover P006100184 Small canopy P001100581 Big canopy P001100582 Mosquito netting P001200228 P001300110 Curtain Hardware Pack Part Label Description Part Image Number M6*15 bolt H010110016 M6 flat washer H050010023 M6*20 bolt H010020012 M6*35 bolt H010020013 M6 Nut H040010011 Ring...
- Page 5 5 / 10 Fig.1: Put Base cover （ O） through Post and lift up base cover， then attch base （N） to bottom of post by using bolt(AA)、 washer (BB). Fig.2:Insert beam 2（F2/E2）to beam 1（F1/E1）by using bolt（CC）, washer (BB). Fig.3:Attach long beam（E1/E2）to Post（K）by using bolt（CC）, washer (BB). Country of Origin: China...
- Page 6 6 / 10 Fig.4: Attach short beam (F1/F2)to long beam(E1/E2) by using bolt（CC）, washer (BB). Fig.5: Insert Decorative tube(G) to long beam（E1/E2）by using bolt（CC）, washer (BB). Fig.6: Attach Netting bar（H）to beam（F1/F2/E1/E2）by using bolt（CC）, washer (BB). Fig.7: Insert Pipe under for middle beam（I）to beam（F2/E2）. Fig.8: Attach Pipe under for slant beam（J）to beam（F1/F2/E1/E2）by using bolt（CC）, washer (BB).
- Page 7 7 / 10 Fig.10: Insert Pipe under for slant beam（C2）to Slant beam for big roof（C1） 。 Fig.11: Insert Slant beam for big roof（C1）to Top connector（A）. Fig.12: Attach Pipe under for slant beam（C2）to Pipe under for slant beam（J）by using bolt（DD）, washer (BB) and nut(EE). Fig.13: Insert Middle beam（D）to Top connector（A）.
- Page 8 8 / 10 Fig.16-1: Put small canopy（P）to small top ,then button up the corner to adjust tube. Fig.16-2: Adjust the adjust tube（M）to tightly. Fig.17-1: Put big canopy（Q）to big top ,then button up the corner to adjust tube. Fig.17-2: Adjust the adjust tube（M）to tightly. Country of Origin: China...
- Page 9 9 / 10 Fig.18: Hang Mosquito netting（R）to Netting bar（H）by using ring(FF). Fig.19: Hang Curtain(S)to beam（F1、F2、E1、E2）by using ring(FF). Fig.20: Screw hook (B) to Top connector (A).。 Fig.21: using stake(GG) assembled gazebo on ground. Country of Origin: China...
-
Page 10: Care And Maintenance
Periodically check and ensure that all bolts are well‐tighten during use Limited Manufacturer’s Warranty Sunjoy Group warrants to the original purchaser that this item is free from defects in workmanship and materials for a period of 1 year from the date of purchase, provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
