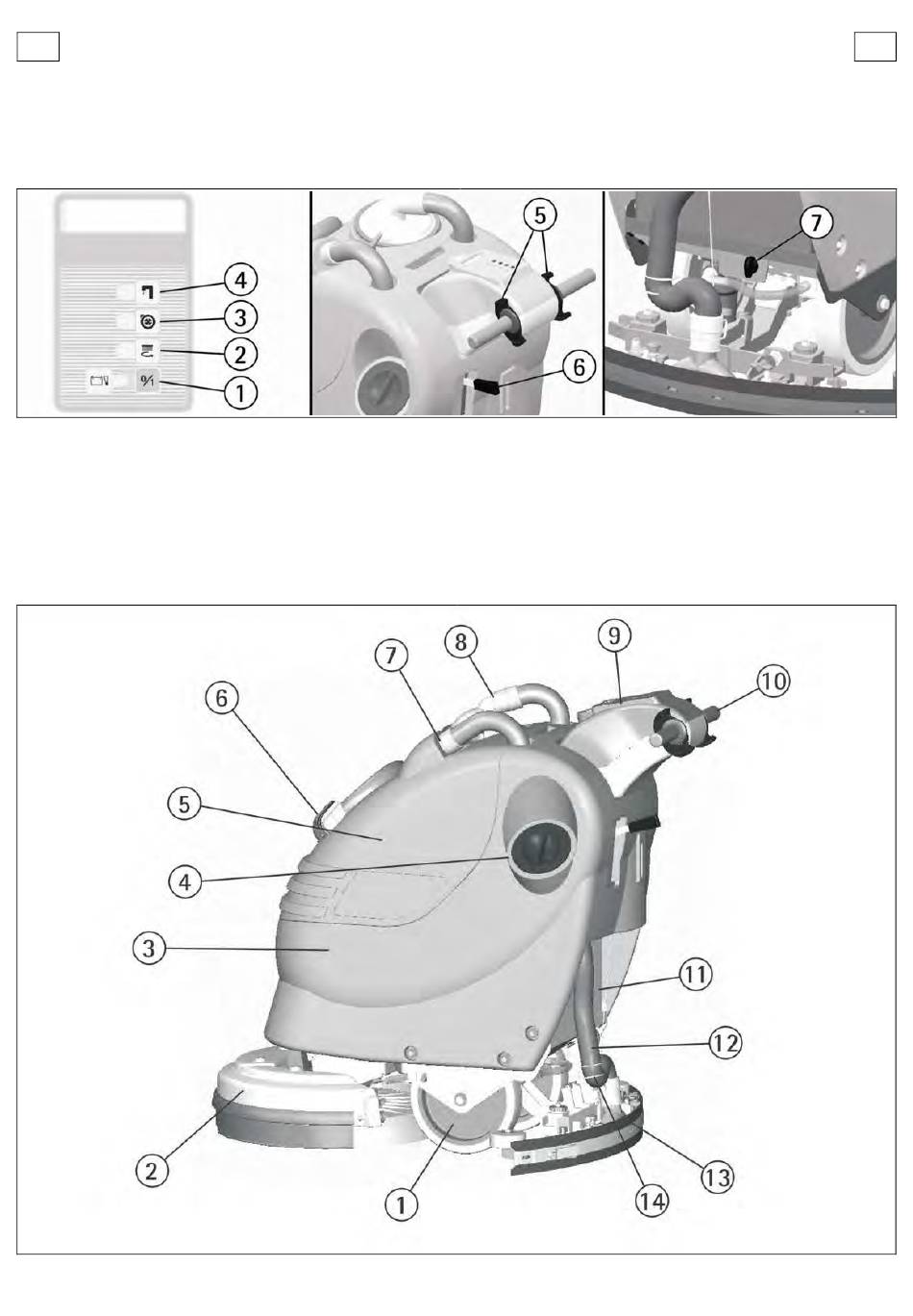

LEGEND INSTRUMENT BOARD AND CONTROLS

1. ON/OFF SWITCH WITH SIGNAL SIGNAL LAMP
2. BRUSH MOTOR SWITCH WITH SIGNAL LAMP
3. SUCTION MOTOR SWITCH WITH SIGNAL LAMP
4. SOLENOID VALVE SWITCH WITH SIGNAL LAMP

LEGEND MACHINE

1. WHEELS
2. BRUSH BASE GROUP
3. SOLUTION TANK
4. SCREW CAP FOR INLET DETERGENT SOLUTION
5. RECOVERY TANK
6. PLUG EXHAUST HOSE RECOVERY TANK
7. INLET OPENING SQUEEGEE HOSE
5. LEVERS FOR PRESENCE
6. LEVER SQUEEGEE LIFTING
7. KNOB SOLUTION VALVE
8. SUCTION COVER
9. INSTRUMENT BOARD
10. HANDLE BARS
11. BATTERIES
12. SQUEEGEE HOSE
13. SQUEEGEE ASSEMBLY
14. GUIDE SPRING SQUEEGEE HOSE
