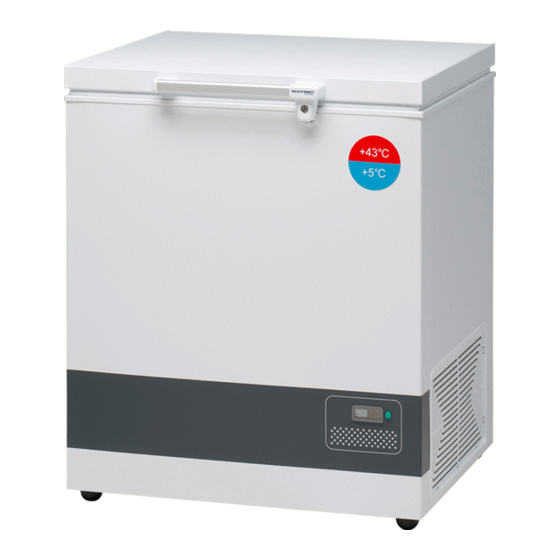

- Page 1 Vestfrost Solutions Instructions VLS054 SDD Corrective and Preventive Service CORPORATE PRESENTATION...
- Page 2 Warning! Before any repair job be aware of following! WARNING: Before servicing or cleaning the appliance, disconnect it from power source. WARNING: Danger risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained personnel. (R600a) CORPORATE PRESENTATION...
- Page 3 Repair and preventive action in the field Use below order when performing the service upgrade 1. Thermostat repositioning 2. Sealing of cable guide – rubber grommet After service has been completet, make sure the appliance is cleaned inside the vaccine compartment and outside. CORPORATE PRESENTATION...
- Page 4 Thermostat Repositioining How to get acces to the motor compartment. Use a screwdriver to remowe grill Unluck all 4 clamps Pull the compressor grill CORPORATE PRESENTATION...
- Page 5 Thermostat Repositioining The thermostat is placed in the left corner of the compressor compartment on the terminal bracket Side Back Front/Screen CORPORATE PRESENTATION...
- Page 6 Thermostat Repositioining Use a nose plier 1: Dismount 5 wires to grab the wire from ECU socket and gently pull 2: Loosen 4 screws for thermostat/fan bracket Use the flexible socket wrench size 7mm CORPORATE PRESENTATION...
- Page 7 Thermostat Repositioining 3: Gently pull out the thermostat bracket, by tilting out from bottom 4: Push clip on left and right side and pull out thermostat CORPORATE PRESENTATION...
- Page 8 Thermostat Repositioining 6: Use a small 5: Unplug connector screwdriver to loosen for temperature ONLY red and black probe power cables from thermostat socket. 6: Bend the bracket for thermostat to the right CORPORATE PRESENTATION...
- Page 9 Thermostat Repositioining 7: Use the black + red wire and the plug & play cable joint, in order to extend the power wires 8: Open cable joint socket and connect red wire to red extension and black wire to black extension. CORPORATE PRESENTATION...
- Page 10 Thermostat Repositioining 9: Exchange the wires 2x purple wires and the 2x black sensor wires incl. socket 1/1 to new thermostat 11: Place 10: Enter the wires thermostat in into the bracket slot thermometer bracket CORPORATE PRESENTATION...
- Page 11 Thermostat Repositioining 14: Re‐mount the 12: Mount the 2x fan/thermostat bracket clips using 4xscrews 13: Connect cable joint for 15: Re‐install the power, fan temperature + signal wires in the ECU sensor according wiring diagram CORPORATE PRESENTATION...
- Page 12 Thermostat Repositioining Wiring Diagram Thermostat/ECU (Electronic Control Unit) CORPORATE PRESENTATION...
-
Page 13: Complete Wiring Diagram
Complete wiring diagram CORPORATE PRESENTATION... - Page 14 Thermostat Programming Mangler CORPORATE PRESENTATION...
- Page 15 Mounting of rubber grommet CORPORATE PRESENTATION...
- Page 16 Mounting of rubber grommet CORPORATE PRESENTATION...
- Page 17 Mounting of rubber grommet CORPORATE PRESENTATION...
- Page 18 Mounting of rubber grommet CORPORATE PRESENTATION...
- Page 19 Installing rubber grommet CORPORATE PRESENTATION...
