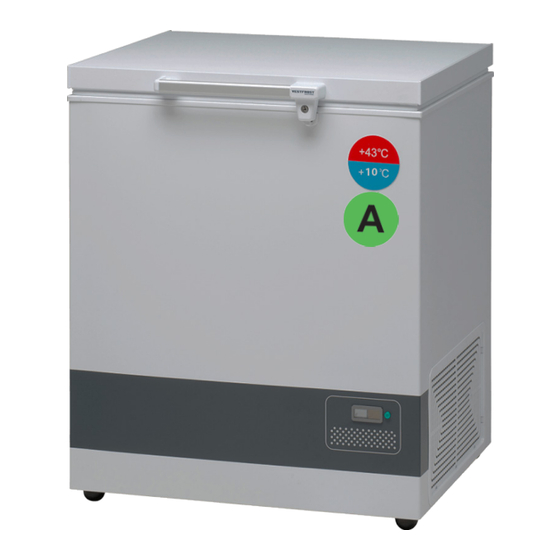

Technical manual VLS 064A RF AC
+43ºC
+10ºC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLS 064A RF AC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vestfrost VLS 064A RF AC

Summary of Contents for Vestfrost VLS 064A RF AC

  • Page 1 +43ºC +10ºC Vestfrost Solutions is working towards reaching the UN - Global Sustainable Development Goals by 2030. The Sustainable Development Goals are the blueprint to achieve a better and more sustainable future for all. In order to implement Goal no 12 ”Responsible Consumption and Production”, this manual has been printed on recycled paper.

  • Page 2: Warning

    WARNING WARNING: As the appliance contains flam- mable refrigerant, as stated Do not damage the refrigerant on nameplate, it is essential to system. ensure that the refrigerant pipes are not damaged. WARNING: Do not use electrical appli- The quantity and type of the ances inside the refrigerated refrigerant used in your appli- storage compartment, unless...
  • Page 3 WARNING: WARNING: Children must not clean the The condenser on the back of appliance or carry out general the appliance will in some cases maintenance unless they are at have a hot surface. Please be least 8 years old and are being aware to avoid injury.

  • Page 4: Table Of Contents

    Contents WARNING ..........2 Periodic preventive maintenance checks ...5 Complete spare part list VLS 064A RF AC 230V .......6 Complete spare part list VLS 064A RF AC 115V .......8 Vital components ........10 Health and safety guidance – Warning! ..11 Required basic tools .........12 Wire diagram 230V ........13...

  • Page 5: Periodic Preventive Maintenance Checks

    Periodic preventive maintenance checks Daily Check: Monitor Temperature Internal lid is placed properly Lid fits and lock tight to cabinet Lid gasket not faulty. Condensation build up in vaccine compart- ment. Weekly maintenance: Remove any water at the bottom of the refrigerator with a cloth.

  • Page 6: Complete Spare Part List Vls 064A Rf Ac 230V

    Complete spare part list VLS 064A RF AC 230V VLS 064A RF AC Position Item number Item name 0070 A921001 Cover + wirring clamp 0071 A921115 Starting device, 103N0021 0087 0-6038175 Base plate fittings, complete 0127 7060107 Relay 0129 8-036038255...
  • Page 7 5705 � � � .i,, 5605 5057 � 5606 °® � �5926 °'{ � � � � ' , , 5013--0 7 - - - - 1 - - - - - - - - - - - 1 - l_ _ - - - - , - - I_ - - -L - - - - - - - - - - - ..L - - - - - - - - - '1;;\...

  • Page 8: Vls 064A Rf Ac 115V

    Complete spare part list VLS 064A RF AC 115V VLS 064A RF 115V Position Item number Item name 0087 0-6038175 Base plate fittings, complete 0127 7060106 Relay 0129 8-036510308 Compressor - Embraco EMX3113Y 0153 7535400 Mains lead 0550 6520507 Run capacitor...

  • Page 10: Vital Components

    Vital components Position Item no Description 0129 8-036038255(230V) Compressor 0129 8-036510308(115V) Compressor 5712a 7095229 ERC 112C for Cooling 5712b 7095209 ERC 112C for Freezing 5713 7020961 Sensor NTC Cool 0898b 7020974 Sensor NTC Freeze 0550 6520317 (230V) Run capacitor 0550 6520507 (115V) Run capacitor (230V)

  • Page 11: Health And Safety Guidance - Warning

    Health and safety guidance – Warning! Before any repair job be aware of following! WARNING: Before servicing or cleaning the appliance, disconnect it from power source. WARNING: Danger risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained personnel.

  • Page 12: Required Basic Tools

    Required basic tools 1. Flexible socket wrench 2 Socket wrench - size 7mm 3. Nose plier 4. Phillips screwdriver 5. Torx screwdriver - size t10+t20 6. Screwdriver - size 1,0x6,0 7. Screwdriver – size 0,6x3,5 8. Multimeter Proposed additional service kit/items Sealing kit Tar tape Extra self-tapping screws...

  • Page 13: Wire Diagram 230V

    Wire diagram 230V � El-box VLS064 R600a 230V Supply 100-240V ..7095278 "" .1/i 7020961 (..) sensor � 0---t:5: DO3 2A � ,Vo- @: ..- ..- DO2 BA N J:: +---+ ::z: DO110A �0--- � 7511463 Solar � Thermomet er Supply 100-240V ..

  • Page 14: Wire Diagram 115V

    Wire diagram 115V...
  • Page 15 Motor compartment How to get access to the motor compartment. 1. Use a screwdriver to unlock all 7 clamps. 2. Unlock all 7 clamps 3.Gently pull the compressor grille.

  • Page 16: Thermostat Replacement

    2 x Danfoss controllers One for refrigerator Electric junctionbox compartment one for freezer compartment. Placed at the rear of VLS 064A RF AC Appliance socket for power coard. Danfoss controller: Back with electrical sockets Front with display and adjustments buttons...
  • Page 17 1. Access to electrical components Dismount 6 x Torx 20 screws and umount the junction box lid 2. Remove grounding cable from junction box by unscrewing bolt with a wrench 6mm.
  • Page 18 3. Remove power wires 4. Pull the power wire plug from the socket 5. Remove sensor wires 6. Pull out sensor wire from the socket 7.Remove 2 fixing clamps from thermostat Fixing clamp body...
  • Page 19 9. Push out the thermostat 8. Slide the fixing clamps backwards 11. Use your finger to press and slide the 10. Put the thermostat back in place upper clamp back in place to secure fixture of the thermostat 12. Use your finger to press and slide the upper clamp back in place to secure fixture of the thermostat...

  • Page 20: Thermostat Adjustment

    Thermostat adjustment Thermostats are default factory set at: Refrigerator: 3.7⁰C Freezer: -7.0⁰C QR codes to tutorial videos 1. Press < > ”up/down” and hold 5 seconds to access the menu. 2. Press on/off button x 2 times till you see numbers flashing. 3.

  • Page 21: Thermostat Sensor Replacement

    Thermostat sensor replacement The thermostat sensor is placed inside the 1. Dismount the sensor cover by loosen the compartment of the appliance. 2 x torx screws – size 10. 3. Remove sealing kit 2. Open the 3x clamps fixing the tempera- ture sensors 5.
  • Page 22 • Probe • Wire • Cable sockets 7: The thermostat sensor comes with 9: IMPORTANT! 8: IMPORTANT! When re-mounting the new thermostat When re-mounting the new thermostat remember to properly seal the wire feedt- remember to properly seal the wire feedt- hrough in vaccine compartment hrough in compressor compartment...

  • Page 23: Relay Replacement

    Relay replacement Relay 1 Relay 2 1. The two relays are placed inside the junction box. 3. Only loosen the right relay 2. Unscrew the left relay fixing fixing bolt with an 8mm bolt with an 8mm socket socket wrench. wrench.
  • Page 24 4. Turn the relay out from the 5. The relay is now loose. left fixing bracket.Then slide it out from the right fixing bracket. 6. Place the new relay next 7. Use a plier to unmount and to the one that needs to be remount the lugs in the new replaced.

  • Page 25: Starting Device Replacement

    Starting device replacement Back with connection plug. Front with terminals. Side view. The starting device is mounted on the left side of the compressor.
  • Page 26 2. Push the plastic cover up. 1. Dismount the cover for starting device by loosen the phillips screw. 4. Use a screw driver and gently remowe 3. Pull the cover back to loosen. the starter from the socket of compressor. 6.
  • Page 27 8. Use a nose plier to unmount the wire 7. Push the plastic bracket up. sockets from starting device. 9. Exchange the wires 1/1 from the old starting device to the new one.

  • Page 28: Run Capacitor Replacement

    Run capacitor replacement The run capacitor is placed in the left side of the compressor compartment, on the bottom frame. 2. The run capasitor is loose 1. Loosen the bolt that secures the capasi- tor from the bottom of appliance by using a wrench or a socket wrench M13.

  • Page 29: Thermometer Replacement

    Thermometer replacement Thermometer display The thermometer is placed in at the front of the appliance The temperature probe is placed inside the 1.Dismount the temperature sensor cover compartment of the appliance. by loosen the 2xtorx screws – size 10 3. Remove sealing kit 2.
  • Page 30 5. Gently pull the wire down 4. Remove sealing kit 6. Temperature sensor is loose from 7. Use a screw driver to gently push refrigeration compartment the socket ofo the thermometer 8. Temperature monitor is loose from 9. Thermometer comes with wire, PV solar cabinet cell, display and sensor...
  • Page 31 11. Push untill display is fixed to cabinet 10. Installation of thermometer display 12. Thermometer display is in place 13. IMPORTANT! When re-mounting the new thermometer remember to properly seal the wire feedt- hrough with sealing kit Inside vaccine- as well as in compressor compartment.

  • Page 32: Magnetic Valve Replacement

    Magnetic valve replacement Valve to be replaed Valve to be replaed � El-box VLS064 R600a 230V Supply 100-240V ..7095278 "" .1/i 7020961 (..) sensor � 0---t:5: DO3 2A � ..- ..- ,Vo- @: DO2 BA N J:: +---+ ::z: DO110A �0--- �...

  • Page 33: Diode Replacement

    Diode replacement 2. Two diodes are placed on connection board Diodes to be replaced! 3. Use a nose plier to pull off 2 x diode 1. Junction Box and connection board spade connectors from the connection board...
  • Page 34 5. Remount the new diode with a nose plier 4. The diode is loose from the connection by pushing the 2 x spade connectors on board to the spades on the connection board (D2) (D1) 6. IMPORTANT! 7. IMPORTANT! Make sure the legs of the diodes are not Make sure diode 2 (D2) is connected to the touching each other, risking short circuit.
  • Page 35 Compressor replacement Procedure of compressor switch. 1: WARNING! Drain coolant R600a from refrigeration system by vacuum suction. 2: IMPORTANT! Blow refrigeration system with NO/Nitrogen 3: Cut A: Suction and pressure tube B: Capillary tube C: Dry filter 4: Dismount starting device 5: Dismount old compressor 6: Insert new compressor 7: Solder...

  • Page 36: On-Site Checklist

    On-site checklist ● Is the green diode in the control panel on (Power check) ● Is the internal temperature inside the acceptable range of +2° to +8° ● Is the vaccine compartment clean and without condensation (water) ● Is the Compressor running ●...

  • Page 37: Trouble Shooting

    Trouble shooting Fault Possible cause Remedy Compressor is not Be patient, it is most likely that If this is not the case, check the running. the compressor will start within a following: few minutes. - If the above is OK, call techni- cal supervisor.

  • Page 38: Technical Support

    Technical support When contacting Vestfrost Solutions technical support please supply below information: 1. Model 2. Serial number 3. What is the issue Rating plate Model Serial no. Contact: Vestfrost Solutions Tel. +45 75142250 cce-service@vestfrostsolutions.com Or visit our service-center webpage: http://www.vestfrostsolutions.com/service-center/...

  • Page 39: Recycling Procedures

    Recycling procedures Information for Users on Collection and Disposal Old Equipment and used Batteries This symbol on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2012/19/EU and 2006/66/EC.
  • Page 40 8195 087 rev 02...
