The means of the fields are:
If the field "Enable" is checked,
the Modbus request is enabled;
In the field "Slave
address of the Modbus device
that you have to write is defined;
In the field "Type" the data type
of the register to write is
defined. It is possible to choose
between the following:
Coil Status;
o
Holding Register.
o
In the field "Address" the start address of the register to be written is defined;
In the field "NPoint" the number of consecutive registers to be written is defined;
In the field "Poll Time" the delay time to make the request is defined;
If the field "On Change" is checked, the converter sends the writing request when the data from LoRaWAN side change value;
If the field "On CMD" is checked, the converter sends the writing request when the data from LoRaWAN is received;
In the field "Max Error" the number of consecutive errors that the converter waits before suspending the request is defined;
In the field "Position" the address of the internal array where taking the information is defined;
In the field "Start Bit" the starting bit of the first byte of the field "Position" is defined;
If the field "Swap" is checked, the data written the Modbus registers are swapped;
If the field "Swap Word" is checked, the Modbus words are swapped;
In the field "Mnemonic" the description for the request is defined.
ADFweb.com S.r.l.
ID" the
User Manual LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000

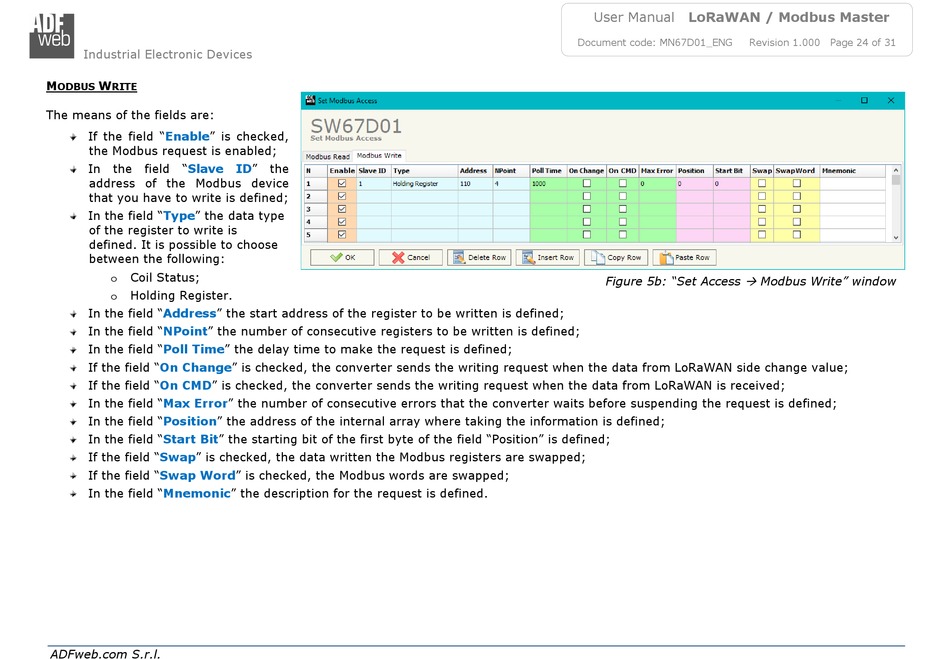

Figure 5b: "Set Access

