User Manual

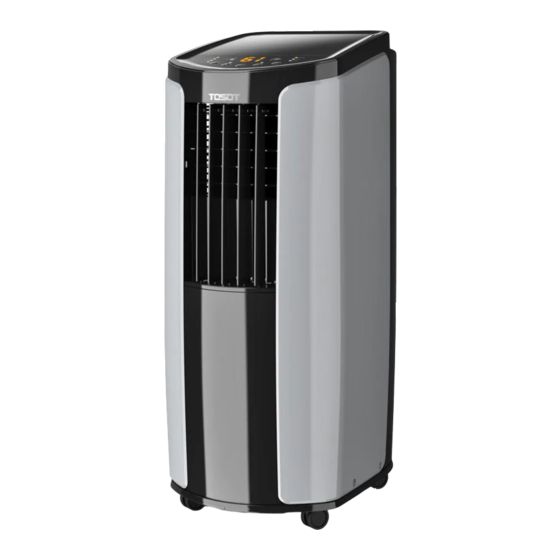

Portable Air Conditioner
Before using your TOSOT Portable Air Conditioner
please read this user manual in its entirety.
MO DEL NUMBERS
5,000 BTU-GPC05AK-A3NNA1C
6,000 BTU-GPC06AK-A3NNA1C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5,000 BTU-GPC05AK-A3NNA1C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tosot 5,000 BTU-GPC05AK-A3NNA1C

  • Page 1 User Manual Portable Air Conditioner Before using your TOSOT Portable Air Conditioner please read this user manual in its entirety. MO DEL NUMBERS 5,000 BTU-GPC05AK-A3NNA1C 6,000 BTU-GPC06AK-A3NNA1C...
  • Page 2 Welcome to the TOSOT Direct Family! We’re extremely happy to welcome you as a new member of our family! Please read the tips below before using your product for the first time. Tips for First-Time Use 1. The portable air conditioner is a heavy object, which needs two or more people to lift and install.
  • Page 3: Table Of Contents

    Table of Contents ------------------------------------------- Safety and Instructions ------------------------------------------- Installation and Setup --------------------------------------- Electrical Safety Warning --------------------------------------------------- Parts Description ------------------------------------------------------------ Operation ----------------------------------------------------- Control Panel -------------------------------------------------- Remote Control ------------------------------------------- Combination Buttons ----------------------------------------- Replacing the Batteries ----------------------------------------------------------- Installation ---------------------------------------------------- Tools Required ---------------------------------------------------------- Parts List ------------------------------------------------ Installing Your AC ------------------------------------...
  • Page 4: Safety And Instructions

    This includes exposed wiring on a damaged cord or electrical plugin. All repairs and servicing must be performed by qualified service personnel. Use only authorized TOSOT factory OEM parts. ● Keep the product away from fire. Do not store or use flammable gases or materials near the appliance.
  • Page 5: Electrical Safety Warning

    ● Only use the appliance in an upright position. Make sure the angle of inclination <10°. Always place the appliance on a stable, flat, level surface to prevent the air conditioner from overturning. Electrical Safety Warning ● If the power cable is damaged, it must be replaced by the manufacturer or an authorized technical service center in order to avoid all risk.
  • Page 6 LCDI Power Plug (Leakage Current Detection and Interruption) The power cord used with this air conditioner contains a current detection device designed to reduce the risk of fire. In the event that the power supply cord is damaged, it cannot be repaired. The power supply cord must be replaced with a replacement cord received from the manufacturer by a trained service technician.
  • Page 7 ● Open space around the air conditioner should be at least 12 inches (30cm) to ensure airflow. ● Please keep the air inlet and air outlet clean and free from obstacles. ● During operation, close doors and windows to improve the cooling effect in the room.
  • Page 8: Parts Description

    Parts Description Control Panel Vertical Airflow Louver Horizontal Airflow Louver Caster Wheels Air Intake Joint Exhaust Hose Rear Clip Power Cord Power Cord Hooks Remote Control This picture is only for reference. Please refer to the actual product for the appearance.
  • Page 9: Operation

    Operation Control Panel +/- Button ON/OFF Button Fan Button Timer Button Sleep Button Mode Button Notes: ● After powering the air conditioner on, the air conditioner will emit a single beeping sound after powering on. After that, you can operate the air conditioner by using the control panel or remote.
  • Page 10 +/- Button ● Pressing this button will allow you to change the temperature setting. ● After pressing the timer button, the +/- buttons will adjust the timer setting from 0.5-24 hours in 0.5-hour increments. After the 10-hour mark, the +/- button will adjust the timer setting in 1-hour increments.
  • Page 11: Remote Control

    Remote Control This is a universal remote control for a variety of models. If your model does not have a function listed on the remote control, there will be no changes in the operation of your unit. The max range of the remote control is 25 feet with no obstacles or interference from other devices, such as wireless phones or fluorescent lamps.
  • Page 12 ON/OFF Button Press to power the air conditioner ON or OFF. Mode Button Press this button to cycle through the following modes. A corresponding logo indicator on the left side of the remote will be shown. a. Cool mode: standard cooling mode. The set temperature and fan speed can both be adjusted.
  • Page 13: Combination Buttons

    Sleep Button Press this button to enter the sleep operation mode. While in sleep mode, you can only use the Cool modes. When in sleep mode, the AC temperature will automatically increase by 2°F for first hour and 4°F for second hour and then will keep running with this temperature.
  • Page 14: Replacing The Batteries

    Replacing the Batteries battery 1. Press the back side of the remote control battery cover and slide out following the engraved arrow. reinstall 2. Replace with two new AAA(1.5V) batteries remove (not included) of the same make and model. Make sure the polarities (+ & -) are aligned cover of battery box correctly.
  • Page 15: Parts List

    Parts List Accessory kit for window installation Window panel Adjustment panel Joint Exhaust Hose Rear Clip Exhaust cover Mounting Plate Insect Guard Screw x 4pcs Extension panel x 2pcs Fixed Clip Foam Seal A Foam Seal B Rain Guard Bracket x 2pcs (non adhesive) (adhesive type)
  • Page 16: Installing Your Ac

    Installing Your AC Here are the detailed instructions for installing the window panel into sliding sash or hung windows. For certain windows, such as a casement window, you will need to improvise several steps of the installation as each specific window will be different. 1.
  • Page 17 Double-hung sash window Sliding sash window Hole "A" Insect guard net Rain guard Insect guard net Hole Projec- "A" tion Projection Rain guard b. Insert the insect guard firmly to ensure that the four projections fit into the holes of the window panel. Make sure that Side A is on the top. Double-hung sash window Sliding sash window Projection...
  • Page 18 5.Installing the Window Panel(s) This window installation kit comes with 3 panels to adjust to your exact window size. You may not need to use all three panels. To begin, please refer to the guide below: ● If your window is less than 28 inches long you only need the window panel. You may need to saw off part of the window panel if your window is smaller than the window panel length.
  • Page 19 a. Find the adjustment panel (with two grooves on each end), and a Fixed Clip and Mounting Plate. b. Insert the fixed clip into the groove of the adjustment panel. c. Slide the fixed clip into the groove of the window panel and slide the fixed clip until there is no gap between the two panels.
  • Page 20 6. Insert the window panel into the window sill and close the window securely against the Window panel. 7. Stuff Foam Seal A (non adhesive) between the glass and the window to prevent air and insects from getting into the room. Foam Seal A 8.
  • Page 21: Installing The Exhaust Hose

    Please note that the exhaust hose is REQUIRED to use for this portable air conditioner. This TOSOT portable air conditioner (like all air conditioners) must produce heat as a byproduct of producing cool air. If you don’t connect the exhaust hose your unit will exhaust this hot air into the room you are trying to cool.
  • Page 22: Removing Collected Water

    51 inches about 24 inches wrong Removing Collected Water TOSOT portable air conditioner comes with an auto-evaporation system. The unit automatically evaporates the condensation. There is no need to empty the water except in humid conditions. Manual Drainage The internal pan can hold about 0.5L of water. When it is filled with water, an alarm will beep 8 times and the display panel will show an H8 malfunction code to remind you to drain the water.
  • Page 23 drainage port 3) Plug back the rubber plug to the port. The unit will resume operation in 3 minutes. Note: You can also insert a drain hose (included) to the port to aid drainage. Here, you will need to insert the hose to the port first before operation and secure it with a pipe clip.
  • Page 24: Installing The Power Cord Hooks

    2. Screw the drain hose adapter into the spout by twisting clockwise and attach the drain hose to the drain adapter. Note: When using the continuous drainage option make sure that the air conditioner is located on a flat, level surface and that the drain hose is directed downwards and clear of any obstructions.
  • Page 25: Cleaning And Maintenance

    Cleaning and Maintenance To avoid electric shock, turn off the air conditioner and disconnect from power before cleaning. Do not wash or douse the air conditioner with water. Never use abrasive or flammable solvents to clean the air conditioner. Cleaning the outer case Wipe with a soft cloth soaked in warm water and a mild detergent, if needed.
  • Page 26 Maintenance Checklists Pre-Season Maintenance Checklist ● Check the power cord for any cuts or exposed wiring ● Check the ground prong is still on your power plug ● Clean the air filter ● Check whether the hose adapters and exhaust hose are installed tightly and free of damage Post-Season Maintenance Checklist ●...
  • Page 27: Troubleshooting

    “pop-pop” sound What is 3-Minute Compressor Protection? All TOSOT Air Conditioners have a 3-Minute Compressor Protection feature to help extend the lifespan of your unit. You may notice this happening when the unit is not blowing cold air or you can’t hear the sound of the compressor. Below are some situations where the 3-Minute Protection Mode will be activated: A.
  • Page 28: Malfunction Codes

    Malfunction Codes If you experience any of the below malfunction codes, remove the unit from power for a few minutes. Plug the unit back in to determine if the malfunction code is still present. Malfunction Malfunction Name Symptoms Code on Unit Chassis is full of water, pour it out and see if symptoms Chassis is full of water...
  • Page 29: Warranty&Customer Support

    Warranty & Customer Support Warranty Information 1. 1-Year warranty: TOSOT Portable Air Conditioner comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing and material defects. Please visit https://tosotdirect.com/warranty for more details. 2. Additional 6-Month warranty extension: You can get a 6-month warranty extension by registering your new product at www.tosotdirect.com/extend.
