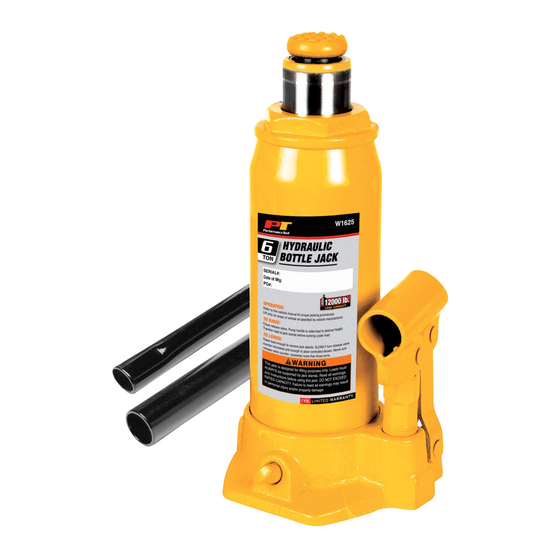

6 TON HYDRAULIC BOTTLE JACK
Item Number W1625
WARNING
It is the owner and/or operators' responsibility to study all WARNINGS, operating, and maintenance
instructions contained on the product label and instruction manual prior to operation of this hydraulic bottle
jack. The owner/operator shall retain product instructions for future reference.
The owner and/or operator are responsible for maintenance, maintaining all decals or warning labels and
while in use, maintaining the unit in good working order. If the owner and/or operator are not fluent in English,
the product warnings and instructions shall be read and discussed with the operators' native language by the
purchaser/owner or his designee. Make sure that the operator comprehends its contents. Safety information
shall be emphasized and understood prior to usage. The hydraulic bottle jack shall be inspected per the
operating instructions.
Users of this hydraulic bottle jack must fully understand these instructions. Each person operating this
hydraulic bottle jack must also be of sound mind and body and must not be under the influence of any
substance that might impair their vision, dexterity, or judgment.
Protect yourself and others by observing all safety information.
Failure to comply with instructions could result in personal injury and/or property damage!
If you encounter any problems or difficulties, please contact our customer service department at:
1-800-426-1262 between 6:30 a.m. and 4:30 p.m. Pacific time.
OWNER'S MANUAL
Advertisement
Table of Contents
Related Manuals for Performance Tool W1625
Summary of Contents for Performance Tool W1625
- Page 1 6 TON HYDRAULIC BOTTLE JACK Item Number W1625 OWNER’S MANUAL WARNING It is the owner and/or operators’ responsibility to study all WARNINGS, operating, and maintenance instructions contained on the product label and instruction manual prior to operation of this hydraulic bottle jack.
-
Page 2: Safety Guidelines - Definitions
SAFETY GUIDELINES / DEFINITIONS This instruction manual is intended for your benefit. Please read and follow the safety, installation, maintenance and troubleshooting steps described within to ensure your safety and satisfaction. The contents of this instruction manual are based upon the latest product information available at the time of publication. -
Page 3: Before Use
If unreadable or missing, contact that may occur. The operator must understand that common Performance Tool for a replacement. sense and caution are factors, which cannot be built into this 21. Before use, read manufacturer’s instruction manual for the product, but must be supplied by the operator. -
Page 4: Care And Maintenance
OPERATION To lower: stands of appropriate capacity (not included) beneath the vehicle at locations recommend- 1. Remove all tools, parts, etc. from under the vehicle. ed by the vehicle manufacturer. DO NOT Get 2. Position the saddle under the lifting point. Turn under the vehicle without jack stands. -
Page 5: Troubleshooting
TROUBLESHOOTING Your Performance Tool® hydraulic bottle jack was constructed with quality materials and workmanship and will give you many years of trouble free use when cared for as described in the "Care & Maintenance" section on page 4. However, as with any mechani- cal device, periodic adjustments are necessary to maintain a peak level of performance. -
Page 6: Replacement Parts List
REPLACEMENT PARTS LIST... - Page 7 REPLACEMENT PARTS LIST Part # Description Quantity W1625-1 Hydraulic Unit Body W1625-2 6 mm Steel Ball* W1625-3 Release Valve O-Ring* W1625-4 Release Valve* W1625-5 Flat Washer* W1625-6 Pump Cylinder W1625-7 Pump Piston O-Ring* W1625-8 Pump Piston Back-up Ring* W1625-9 Pump Piston*...
- Page 8 90 days from the date of purchase, provided that product is returned to place of purchase immediately after discovery of defect. After 90 days and up to one year from date of purchase, PERFORMANCE TOOL®...
