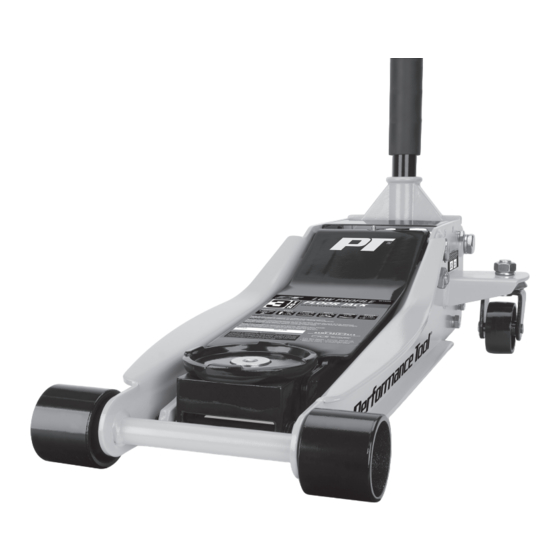

- Page 1 3 TON RAPID LIFT JACK Item Number W1626 OWNER'S MANUAL WARNING: READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY.
-
Page 2: Tool Features
TOOL FEATURES 1. Steel Frame 4. Swivel Castors 7. Handle Socket 2. 360° Swivel Saddel 5. Dual Pistons 8. Lift Arm 3. Extra Wide Wheels 6. Padded Handle 9. Handle Release Bolt 10. Cover Plate SPECIFICATIONS: Capacity..................6,000 lbs. Minimum Height................3-1/4 in. Maximum Height................ -
Page 3: Unpacking And Inspection
UNPACKING AND INSPECTION After opening the carton, unpack your new product and related parts and accessories. Please inspect it carefully for any damage that may have occurred during transit. Please check it against the photograph on carton. If any parts are missing, please call customer service at 1-800-426-1262 between 6 a.m. -
Page 4: Operation
OPERATION REMOVING SHIPPING WEDGE: CAUTION:The handle socket may be held down by a wedge under pressure. Remove wedge carefully. 1. Press on the Handle Socket (7) to relieve pressure on the wedge. 2. Remove the wedge from between handle socket and bar. 3. -
Page 5: Care And Maintenance
OPERATION CONTINUED TO LOWER: 1. Remove all tools, parts, etc. from under the vehicle. 2. Position the saddle under the lifting point. Turn the Handle firmly clockwise to close the valve release screw, and pump the upper/lower handle to raise the vehicle slightly above the saddle(s) of the jack stands. Then, collapse and remove jack stand(s). 3. -
Page 6: Troubleshooting
TROUBLESHOOTING Your Performance Tool® product was constructed with quality materials and workmanship and will give you many years of trouble free use when cared for as described in the "Care & Maintenance" section on page 4. However, as with any mechanical device, periodic adjustments are necessary to maintain a peak level of performance. - Page 7 EXPANDED PARTS DIAGRAM 18 19 EXPANDED PARTS LIST No. Description Qty. No. Description Qty. Upper Handle ......1 Retaining Ring (20) ....2 Foam Bumper ......1 Washer (20) ......2 Lower Handle ......1 Front Wheel ......2 Handle Lock Button ....1 Frame ........1 U-Joint ........
- Page 8 After 90 days and up to one year from date of purchase, PERFORMANCE TOOL® will replace at no charge any parts which our examination shall disclose to be defective and under warranty. These warranties shall be valid only when a sales receipt showing the date of purchase accompanies the defective product or defective part (s) being returned.
