Open Date Thermocode 2 Series Setting Instructions Manual page 10

Ethernet & USB-B Board

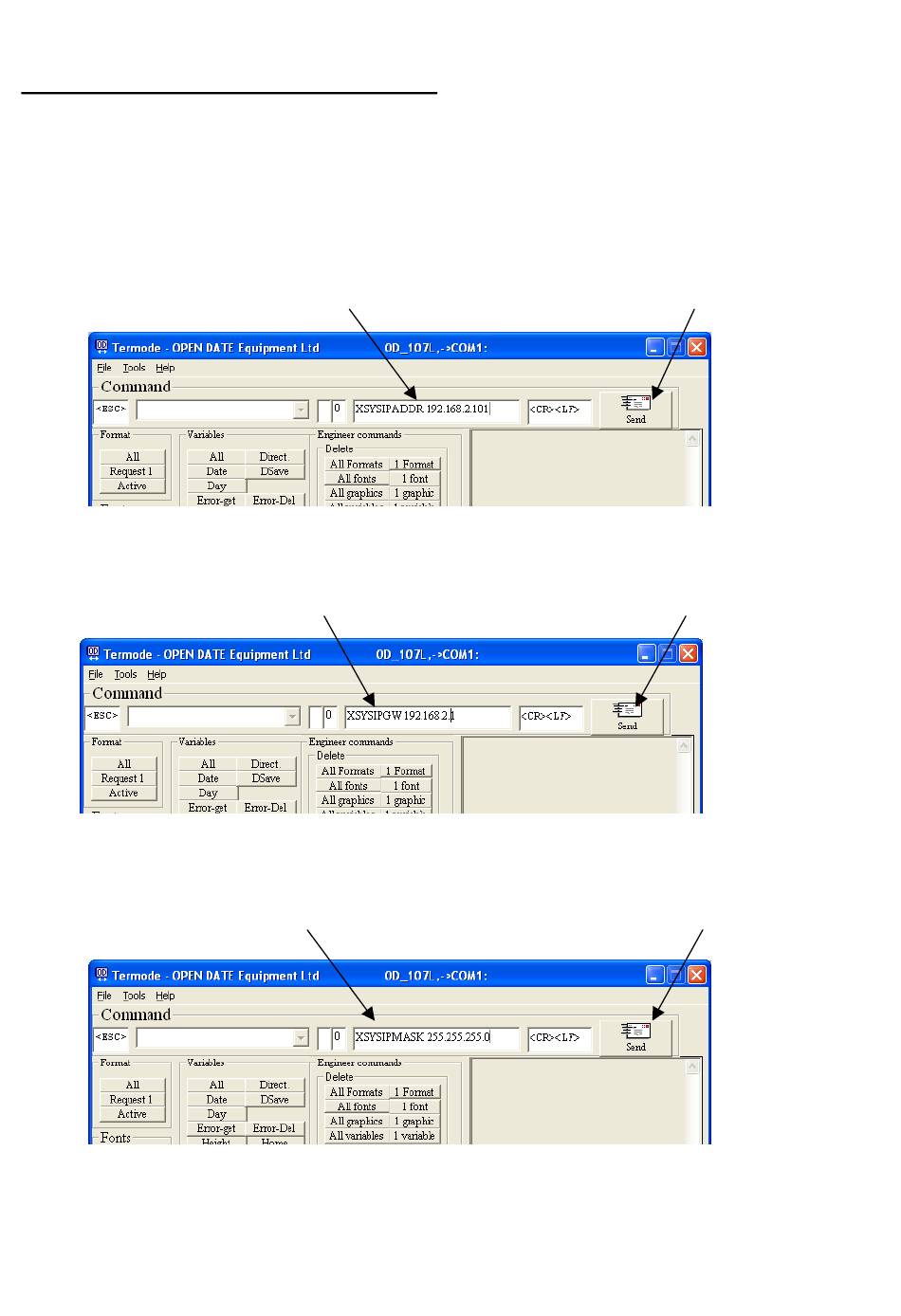

Changing System Variables using Termode
To enter the System variables using Termode the proceeding "XSYS" is required.
XSYSIPADDR 192.168.2.101
XSYSIPGW 192.168.2.1
XSYSIPMASK 255.255.255.0
Changing System Variable XSYSIPADDR
Enter the Variable name then a space then the required number.
Changing System Variable XSYSIPGW
Enter the Variable name then a space then the required number.
Changing System Variable XSYSIPMASK
Enter the Variable name then a space then the required number.
Once all system variables are set for TCP/IP, turn off the printer and then re-start the printer. To
ensure the settings are configured correctly, before attempting to connect to the Ethernet.
(
Issue 1.03) 11 January 2010
Then click on "Send"
Then click on "Send"
Then click on "Send"
Page No- 10 -
