Fountain Components
Item Description
Belleville
Fountain -
Water Feature
Belleville
Fountain - Basin
Fountain Information:
• This fountain holds approximately 1/2 gallon of water.
• A fountain cover is not available for this fountain.
• No refill device or submersible lights are suggested for this fountain.
Pump Information:
WP450LV - 120 GPH Low Voltage Pump (16 ft. cord length)
Tools Required:
Bubble Level
Screwdriver
Scissors
Component
Quantity
Item #
FT-328A
1
FT-328B
1

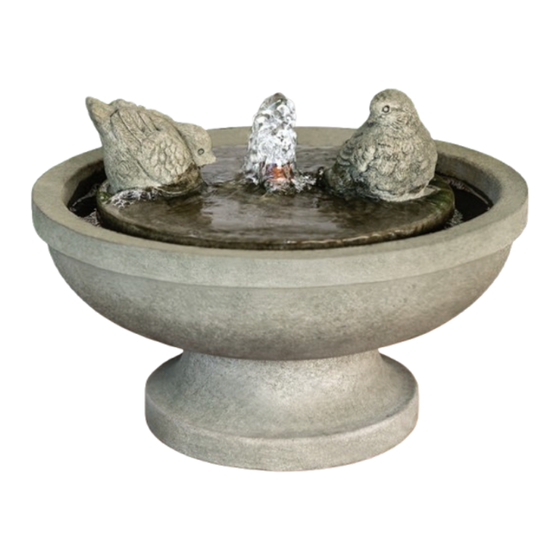

FT-328 Belleville Fountain
Assembly Instructions
Pump Kit Parts List
Component
PK120-LV Pump with Transformer
#7 Series Stopper
2" length of PermaGum Putty
6" length of 1/2" black non-kink tubing
1" length of 5/8" clear tubing
1" length of 1/2" CPVC pipe
Adhesive Dots
Hose Clamps
Proudly
MADE IN USA
Quantity
1
1
1
1
1
1
4
1
rev 3/30/2020
Advertisement
Related Manuals for Campania International Belleville FT-328
Summary of Contents for Campania International Belleville FT-328
- Page 1 FT-328 Belleville Fountain Assembly Instructions Fountain Information: • This fountain holds approximately 1/2 gallon of water. • A fountain cover is not available for this fountain. • No refill device or submersible lights are suggested for this fountain. Pump Information: WP450LV - 120 GPH Low Voltage Pump (16 ft.
- Page 2 FT-328 Belleville Fountain Assembly Instructions Fountain Set-Up: Assembly & Installation - A fountain can be diffi cult to install without knowing and understanding the steps involved. To ensure your fountain is installed properly, please read our instructions and tips before you begin. Step 1 - Seek Professional Help: Check if professional installation is recommended for your fountain.
- Page 3 FT-328 Belleville Fountain Assembly Instructions Step 6 - Fill the basin enough to cover the pump completely with water to check for leaking. 6a - If leaking occurs… - Remove the stopper and repeat step 5 again. - Use some of the excess putty to seal the cord around the top of the stopper. See image “D”.
- Page 4 Maintenance: Pump Care - The fountain relies heavily on the quality of the pump. A well-maintained pump can last several years. Step 1 - Fully submerge: Ensure the pump is fully submerged at all times to avoid damage. Step 2 - E nsure water level is sufficient: Check water levels regularly as water may evaporate over time, and periodically change water to avoid algae buildup.
