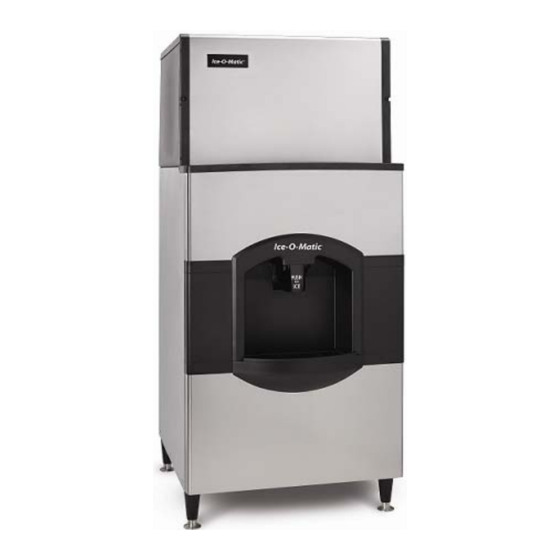

Ice-O-Matic CD40030 Service & Installation Manual
Hotel/motel cubed ice dispenser
Hide thumbs
Also See for CD40030:
- Specifications (2 pages) ,
- Service & parts manual (12 pages) ,
- Specification sheet (2 pages)
Related Manuals for Ice-O-Matic CD40030
Summary of Contents for Ice-O-Matic CD40030

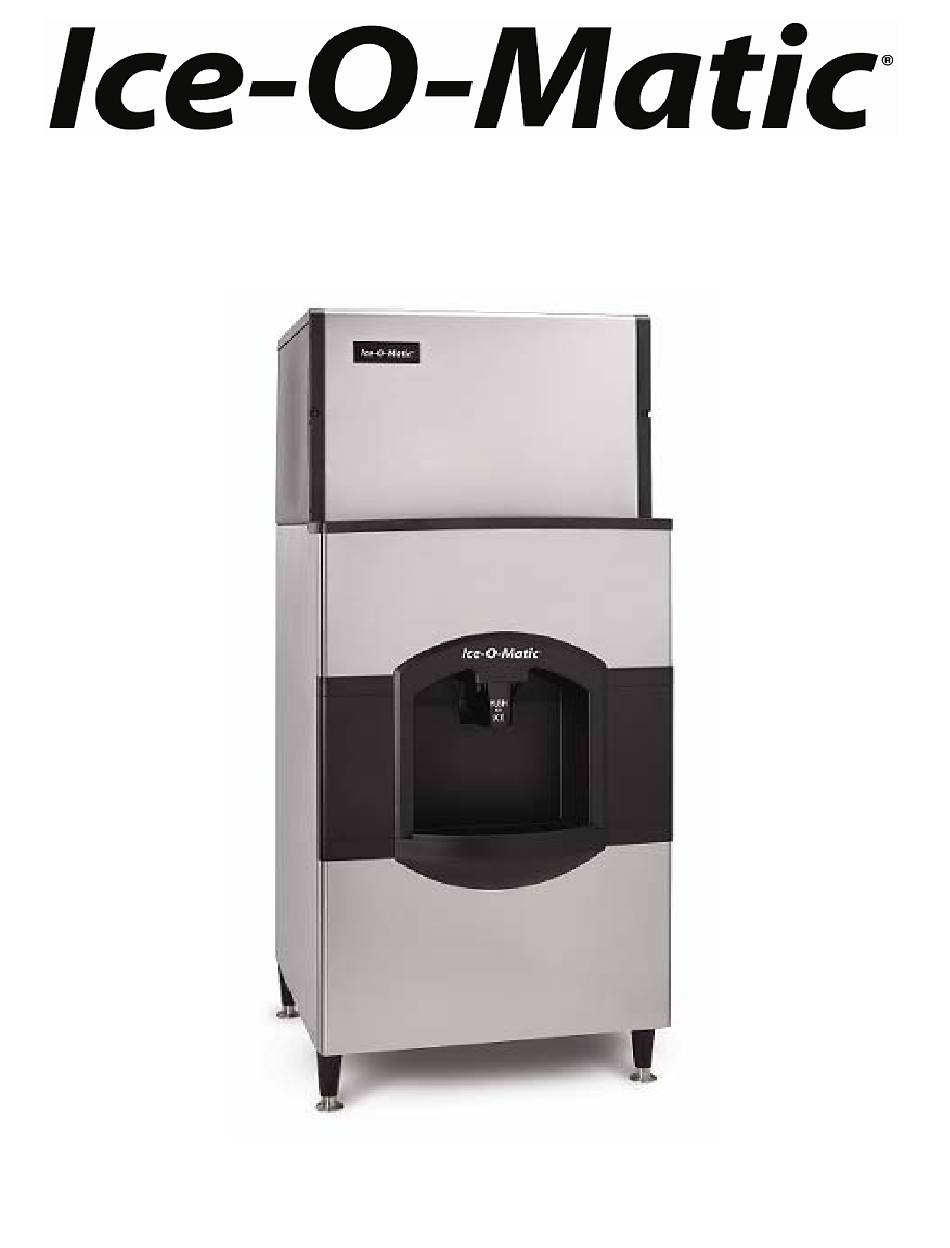

- Page 1 SERVICE/INSTALLATION MANUAL HOTEL DISPENSER MODEL CD40030 and CD40022 Ice-O-Matic 11100 East 45th Ave Denver, Colorado 80239 Part Number 9081317-01 Print Date 10/08...
- Page 2 SERVICE PARTS MANUAL 22 INCH WIDE ICE SERIES CUBERS MODEL-ICE0320, ICE0520 Includes 50Hz. Units ICE-O-Matic 11100 East 45th Ave Denver, Colorado 80239 Part Number 9081297-01 PD04/02 Rev1/05...
-
Page 3: Table Of Contents
Introduction CD40030/CD40022 To the owner or user: This product manual is a source of information about the installation, start up, cleaning, maintenance and repair of the product. Table of Contents Introduction Page 1 General Description and Warranty Information Page 2... -
Page 4: General Description And Warranty Information
Ice-O-Matic ICE0320 or ICE0520 cube ice machine as the source for ice. The CD40030* is a 30 inch wide version of the CD40022 and is designed to use Ice-O-Matic ICE0250 through ICE0500 cubers as its source of ice. Note: 22 inch wide ice machines are not for use on the 30 inch wide dispensers. - Page 5 General Description CD40030/CD40022 558.8 22" Dimensions CD40022 ICE FILL STATION 8 3/4 [221.5] HIEGHT 13 1/2 [342.9] WIDTH 8 1/2 [215.9] DEPTH 1351.3 53 1/4" 152.4 6" FRONT 650.6 25 5/8" 850.1 33 1/2" RIGHT SIDE Page 3...
- Page 6 General Description CD40030/CD40022 762.4 30" Dimensions CD40030 ICE FILL STATION 8 3/4 [221.5] HIEGHT 13 1/2 [342.9] WIDTH 8 1/2 [215.9] DEPTH 254.8 10" WATER VALVE HEIGHT (WATER FILLER ONLY - Optional) 1351.3 53 1/4" 152.4 (2) 5/16-18 UNC 6"...
-
Page 7: Specification/Limitations
CD40030 is available in all versions; the CD40022 is only available as a Basic model. The Basic models of the CD40022 and CD40030 are available in 230 volt 50 Hz electrical for those countries with that type of electrical service. -
Page 8: Product Description
Product Description CD40030/CD40022 All models consist of a plastic lined, insulated hopper mounted to a metal base. The hopper contains a 15 blade plastic dispense wheel and a stainless steel sweep arm. The top front of the hopper has a removable door to facilitate maintenance and cleaning of the hopper without removal of the ice machine. -
Page 9: Unpacking
Unpacking CD40030/CD40022 After removing the carton, check for the loose-shipped parts packed in the storage bin. The parts will include a carton with four legs. Remove the leg carton and any other loose-shipped items. To remove the skid, place part of the carton behind the unit and tip the unit on its back. -
Page 10: Installation-Plumbing
Because the drain tubing will be very cold, insulation is recommenced for the tubing. Water: CD40030 water dispenser models must be connected to a source of potable water. Flush the water supply line before connecting it to the dispenser. Follow All Local, State and National Codes... -
Page 11: Installation-Electrical And Ice Machine Assembly
Installation – Continued CD40030/CD40022 The dispenser is supplied with a power cord. Do not use with an extension cord. The unit must be plugged into a properly grounded outlet. The dispenser must be installed so that it is a separate piece of equipment from the ice machine. -
Page 12: Final Check List/Initial Start Up
Final Check List CD40030/CD40022 1. Check that electrical power has been supplied. 2. Check that a drain, separate from the ice machine, insulated and made of rigid tubing, has been connected to the dispenser. 3. Check that the ice machine has been properly installed per the ice machines installation directions. -
Page 13: Dispenser Use
Dispenser Use CD40030/CD40022 Basic Model After the ice machine has operated for a few hours, the CD dispenser can be used. Pushing the ice chute back will activate the dispense mechanism and ice will drop out of the chute into the user’s container. -
Page 14: General Care And Cleaning
General Care and Cleaning CD40030/CD40022 Periodically inspect and clean the ice dispenser to keep it operating at peak performance. Wash the outside of the dispenser with warm water and soap. Rinse off and wipe dry. Cleaning and Sanitizing of the Ice Storage Bin: The minerals, chlorine and other impurities in the water are rejected from the water during the freeze cycle of the ice machine. - Page 15 General Care and Cleaning CD40030/CD40022 10. Rinse all areas washed with clean, fresh water 11. Using the ice machine cleaning solution, clean the ice grill, sink, sweep arm and dispense wheel. Rinse these parts with clean fresh water. 12. To sanitize: Use a locally approved sanitizer per label instruction. Wash all interior surfaces, the sweep arm and dispense wheel with the sanitizer solution.
-
Page 16: Maintenance
Maintenance CD40030/CD40022 Spilled ice and user debris will collect in the ice catch pan, located just below the sink grill. Occasionally the debris will need to be removed and the drain flushed out to prevent water back ups. Note: Failure to clean out the ice catch pan will likely result in a water leak, one that is NOT covered by warranty. -
Page 17: Adjustments
Adjustments CD40030/CD40022 The dispenser is preset at the factory. Adjustments are rarely needed. Agitation Time Recommandations: The standard time is 3 seconds on every 6 hours. Adjust to agitate more frequently if the unit is installed in a low temperature environment. However, if... -
Page 18: Service Diagnosis
Service Diagnosis CD40030/CD40022 Symptom Probable Cause Possible Fix No ice is dispensed No power to dispenser. Check for proper power. Basic Model Is dispenser plugged in? No ice. Check ice machine. Vend switch does not close. Check vend switch. Check chute for proper motion. -
Page 19: Wiring Diagram-115 Volt 60Hz. Basic And Water Station
Wiring Diagram CD40030/CD40022 Wiring Diagram, 115 volt, 60Hz. Basic and Water Station 17-2956-01 GEAR MOTOR ALL CONTROLS SHOWN IN NORMAL ICE DISPENSING MODE DISPENSING EARTH SWITCH GROUND INLET POWER CORD INTERLOCK SWITCH OFF CYCLE AGITATION TIMER 6 HOURS OFF 3 SEC. ON... -
Page 20: Wiring Diagram-Coin Mechanism
Wiring Diagram CD40030/CD40022 Wiring Diagram for Coin Mechanism Model 17-2967-01 GEAR MOTOR FREE VEND DISPENSING SWITCH SWITCH EARTH GROUND INLET POWER CORD (2) 15K OHM 2 WATT RESISTOR OFF CYCLE AGITATION TIMER: 3 SEC. ON 6 HRS. OFF (ADJ.) COIN MECH. -
Page 21: Wiring Diagram-230 Volt, 50Hz Basic
Wiring Diagram CD40030/CD40022 Wiring Diagram 230 volt, 50 Hz. Basic 17-2987-01 GEAR MOTOR ALL CONTROLS SHOWN IN NORMAL ICE DISPENSING MODE DISPENSING EARTH SWITCH GROUND INLET POWER CORD INTERLOCK BK/W SWITCH OFF CYCLE AGITATION 6 HOURS OFF TIMER 3 SEC. ON...
