Summary of Contents for Ice-O-Matic CIM0320HA

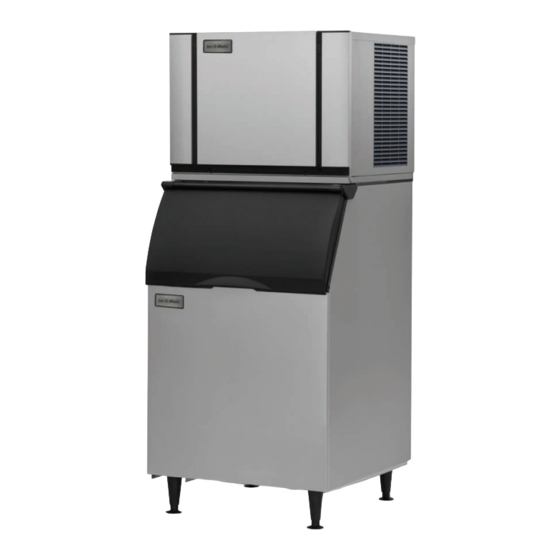

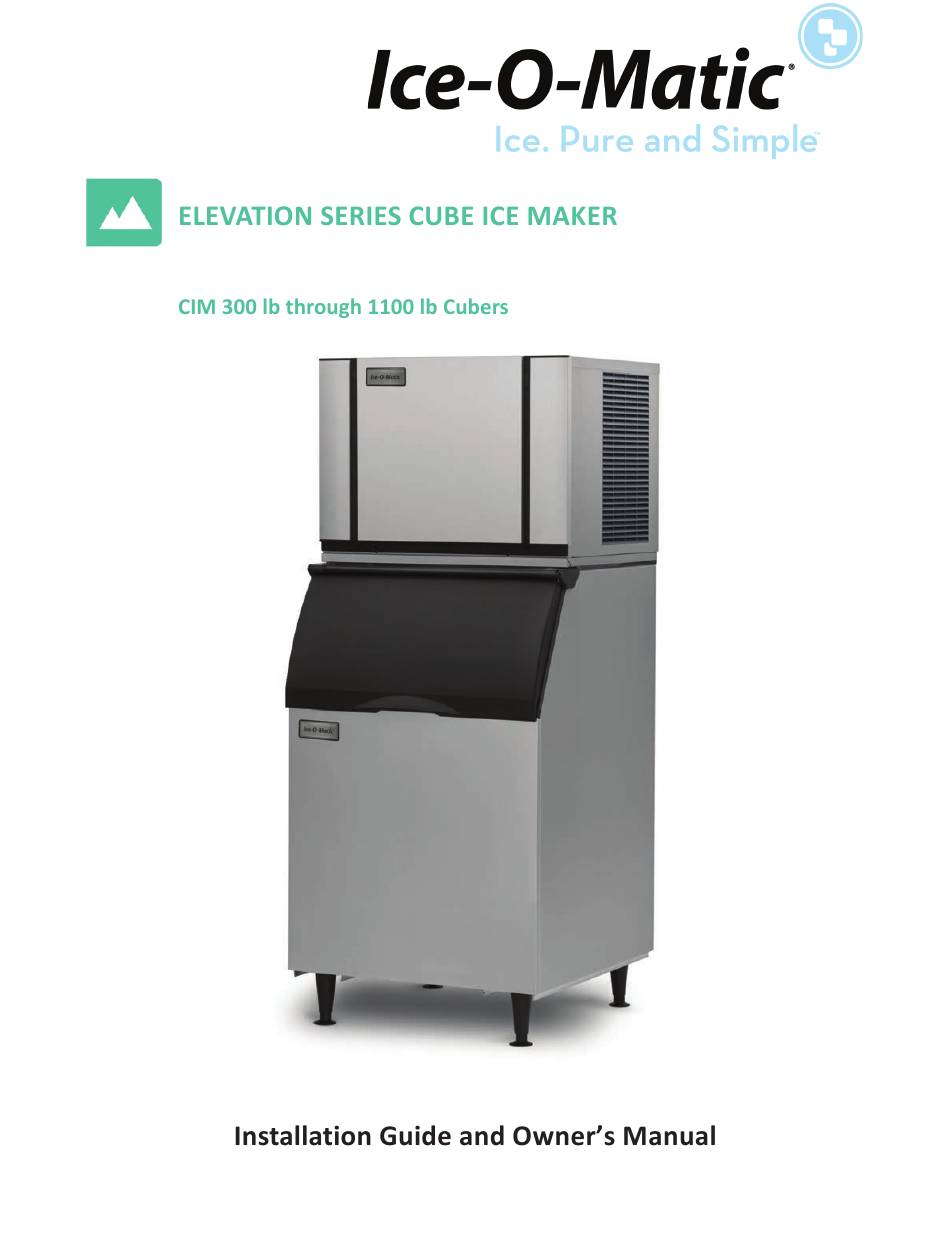

- Page 1 Ice-O-Matic 11100 East 45th Avenue Denver, Colorado 80239 11/2017 1-800-423-3367 9081484-01 REV. E...
-
Page 2: Energy Efficiency
Ice-O-Matic Warranty Every Ice-O-Matic ice maker is backed by a warranty that provides both parts and labor coverage. To view the warranty details, register products, or check your warranty status visit the “Warranty and Water Filter Registration” page on www.iceomatic.com... -
Page 3: Ambient Operating Temperature
100°F (38°C) units should be 1/2 inch O.D. minimum. The drain Minimum incoming water pressure: line fittings on Ice-O-Matic bins are 3/4 FPT. The 20 psi (1.4 bar, 0.138MPa) bin drain should be a minimum of 3/4 inch O.D. Maximum incoming water pressure: Cold water drains should be insulated to prevent 80 psi (5.5 bar, 0.552MPa) -
Page 4: Clearance Requirements
Ice-O-Matic does not endorse stacking ice manufacturers instructions for machine mounting. machines. Ice-O-Matic will not be responsible for damage or injury that results from unexpected closing of the Dispenser Application bin door as a result of the ice machine being too far forward on the bin. - Page 5 Note: the openings in the building or ceiling or wall, requirements must receive written authorization listed in the next step, are the minimum sizes from Ice-O-Matic. This includes multi-pass or rack recommended for passing the refrigerant lines through. system remote condensers...
-
Page 6: Remote Condenser Guidelines
75 to 100 ft. actual line set run. Remote Condenser Model CIM Machine Model Number Number CIM0530R VRC1001B/RCA1001 CIM0535R VRC1061B/RCA1061 CIM0636R VRC1061B/RCA1061 CIM1126R VRC2061B/RCA1061 CIM0835R/836R/837R VRC2061B/RCA1061 CIM1135R/1136R/1137R VRC2061B/RCA1061 *Verify the CIM machine is compatible with the remote condenser. For more information contact your Ice-O-Matic distributor... - Page 7 ELEVATION SERIES REMOTE CONDENSER GUIDELINES Equivalent Run Calculation Examples Formula for maximum equivalent run: (RISE x 1.7) + (DROP x 6.6) + HORIZONTAL RUN = EQUIVALENT RUN NOT TO EXCEED 100 CALCULATED FEET Rise: (35 ft. x 1.7) + (40 ft.) = 99.5 equivalent feet line run 35 ft.
-
Page 8: Electrical And Plumbing Requirements
ELEVATION SERIES ELECTRICAL AND PLUMBING REQUIREMENTS Electrical and Plumbing Requirements 22” CIM SERIES Common Connections (CIM**2* A) Air Cooled Please note: air-cooled units require 6”(152mm) for air intake and exhaust. A. Ice maker potable water in, 3/8” FPT. B. Ice maker water out, 3/4”... - Page 9 ELEVATION SERIES ELECTRICAL AND PLUMBING REQUIREMENTS Electrical and Plumbing Requirements 30” CIM SERIES Common Connections (CIM**3* A) Air Cooled Please note: air-cooled units require 6”(152mm) for air intake and exhaust. A. Ice maker potable water in, 3/8” FPT. B. Ice maker water out, 3/4”...
-
Page 10: How The Ice Machine Works
ELEVATION SERIES HOW THE ICE MACHINE WORKS Operation of the CIM Series Cuber Freeze Cycle Harvest Cycle A quick press and release of the ON/OFF button The Fan Motor shuts down as the Hot Gas Valve, will start operation of the unit. The Water Inlet Purge Valve and Water Inlet Valve are energized. -
Page 11: Start-Up Procedure
ELEVATION SERIES START-UP PROCEDURE Start-Up Procedure Note: Before starting the machine, make sure the machine is level within 1/8 inch in all directions, the bin or dispenser leg height can be adjusted by rotating the leg foot After verifying proper voltage, water supply, drains and breathable air space around the unit, press and quickly release the ON/OFF button behind the unit front panel. -
Page 12: General Maintenance Procedure
ELEVATION SERIES GENERAL MAINTENANCE Electrical shock and/or injury from moving parts inside this machine can cause serious injury. Disconnect electrical supply to machine prior to performing any adjustments or repairs Failure to perform the required maintenance at the frequency specified will void warranty coverage in the event of a related failure General Maintenance Procedure To insure economical, trouble free operation of your machine;... - Page 13 Descaling should be scheduled at a minimum of twice per year but no more than once per month. Descaling dissolves the mineral deposits on the evaporator and other surfaces. It removes scale, calcium, lime scale and other mineral buildup. Ice-O-Matic requires a “nickel-safe” cleaner such as Nu-Calgon Nickel-Safe Ice Machine Cleaner or equivalent diluted per manufacturer’s instructions.
- Page 14 ELEVATION SERIES CLEANING/SANITIZING PROCEDURES Quick press the CLEAN button to start the process. Ice machine will show a solid red and flashing yellow light during the cleaning cycle. The machine will first verify that the sump is empty with the pump ON and the purge valve energized. When the sump is mostly empty, the machine will begin to fill the sump (about 30 seconds to a minute).
-
Page 15: Cabinet Care
ELEVATION SERIES CABINET CARE Chemicals for Descaling and Sanitizing It is important to use solutions that do not harm the ice machine. Never use cleaning or sanitizing solutions that contain Nitric Acid, Sulfuric Acid, Hydrochloric Acid, Carbolic Acid, Acetic Acid, diluted Acetic Acid or non- food-grade vinegar (concentration of acetic acid greater that 6% and does not contain enzymes created in processing) or any chlorine-based solution such as bleach, chlorine dioxide or any type of salts such as potassium chloride (potassium salts) or sodium chloride. -
Page 16: Winterizing Procedures
ELEVATION SERIES WINTERIZING PROCEDURES Winterizing Procedures IMPORTANT: Whenever the ice machine is taken out of operation during the winter months, the procedure below must be performed. Failure to do so may cause serious damage and will void all warranties. 1. Turn off water to machine. 2.
