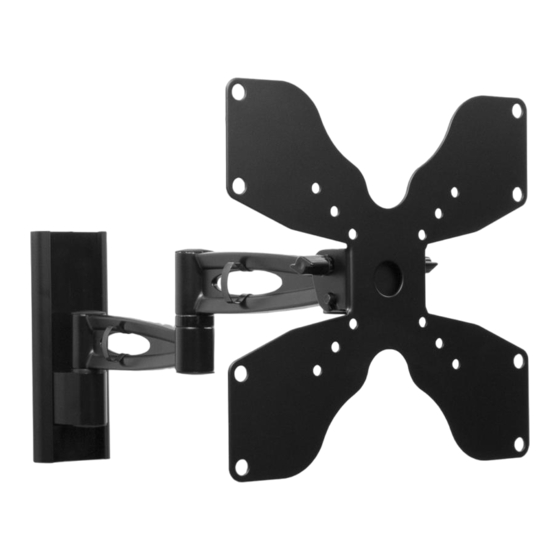

- Page 1 English User Manual L102 TV Mount FULL MOTION FLAT PANEL TV MOUNT ±12° 56 lb 50x50 19” - 32” VESA ±180° (25 kg) 200x200 3” - 17” (7.6 - 43.2 cm) ™ Supporting your digital lifestyle...
- Page 2 Supplied Parts & Hardware ....3 Other Kanto Products ..... . 7 Setup - Step 1 .
- Page 3 Supplied Parts and Hardware A: Wall Plate B: Arm Assembly C: TV Plate D: Screw Cover E: M4 x 12mm F: M4 x 30mm G: M6 x 12mm H: M6 x 35mm Bolt Bolt Bolt Bolt I: M4 Washer J: M6 Washer K: Plastic Spacer L: Lag Bolt M: Concrete Anchor...
- Page 4 Step 1.1 Select the correct size of bolt. Step 1.2 Attach TV plate to the back of the TV. Kanto provides 2 bolt diameters (Metric sizes M4 and M6) Insert the selected Bolts through the appropriate in various lengths. Part items: E, F, G, H.
- Page 5 Step 2: Mount Wall Plate Wood Stud Wall Brick or Concrete Wall The Wall Plate must be mounted to a wood stud. Use a Using the Wall Plate as a template (with the Stop Screw stud sensor to locate the stud, clearly marking the outer at the bottom of the plate - see Diagram C), use a level edges of the stud.
- Page 6 CAUTION Read this section carefully prior to install. Step 3: Insert Arm Assembly into Wall Plate Assemble the Arm Assembly and Screw Cover, then slide the two parts together into the channel on the Wall Plate, as shown in Diagram D. The Arm Assembly will stop when it hits the Stop Screw.
- Page 7 Check out more great products from Kanto! Kanto Speakers • Check out our full line of bookshelf and desktop speaker systems • Available in a stunning array of colors • Visit kantospeakers.com for more! SP26 • Full line of Audio and Video Cables •...
- Page 8 5 years parts and labour If equipment fails because of such defects and Kanto or an authorized dealer is notified within 5 years from the date of shipment with proof of original invoice, Kanto will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
