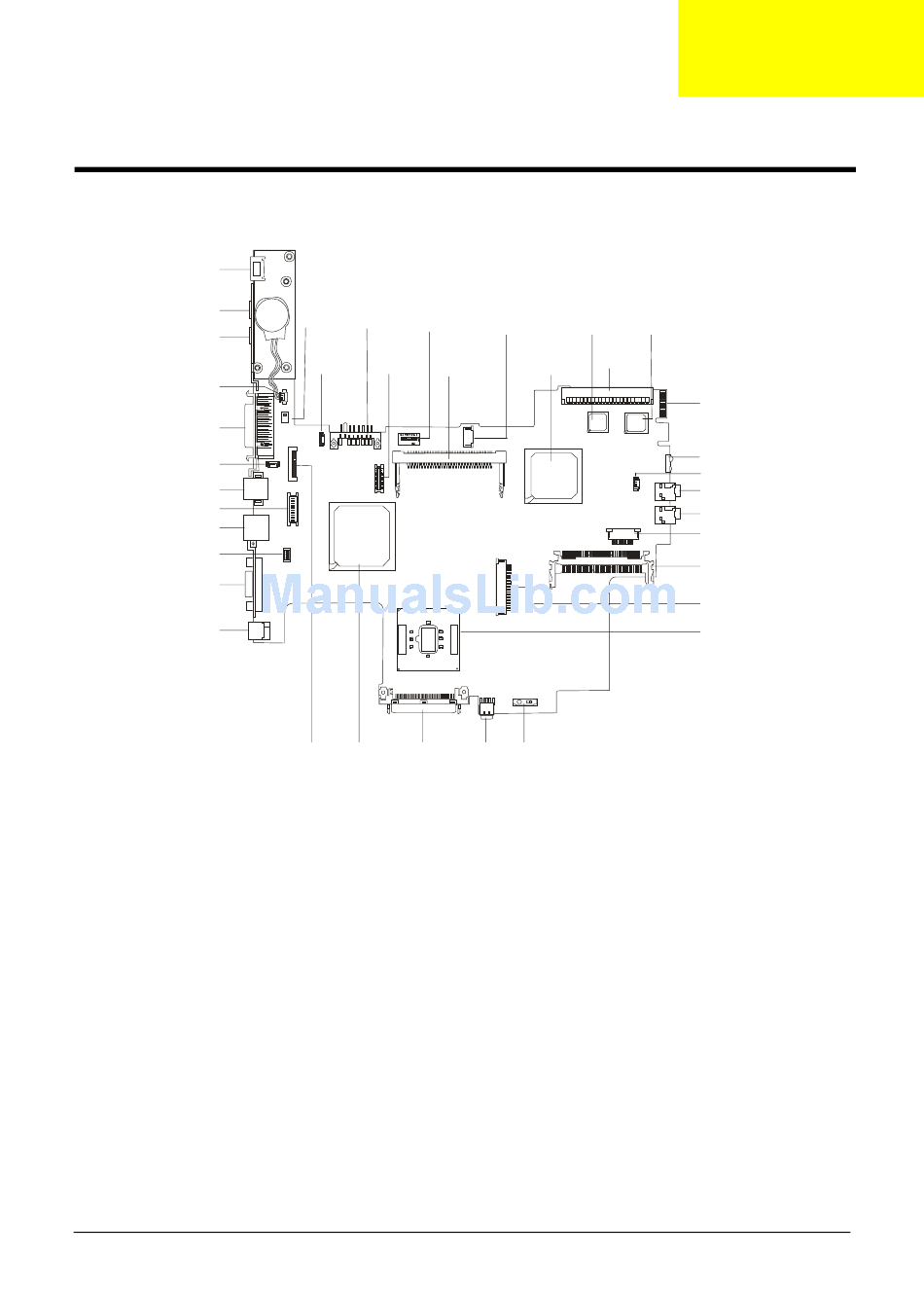

Jumper and Connector Locations

Top View

CN7
CN2
CN3
CN11
CN5
CN4
CN2
CN8
CN1
CN7
CN3
JK1
PCB 01200-S
SW1 Cover Switch
CN10 Speaker Connector
CN12 Battery Connector
CN13 Modem Connector
SW2 Jumper
CN15 Mini PCI Connector
CN17 Touchpad Connector
U20 ICH3 South Bridge
U30 Super I/O SMSC LPC 47N267
CN21 HDD Connector
U36 Firmware Hub
CN26 Golden Finger
U40 FIR
CN23 Microphone Connector
Chapter 5
SW1
CN12
SW2
CN10
CN15
U7 CN14
CN9 CN18
CN17
U36
U30
CN21
U20
SW3
U7 CPU socket
SW3 Power Switch
CN18 1394 Connector
CN14 Bay Connector
U4 GMCH North Bridge
CN9 LED Board Connector
JK1 AC Adapter
CN3 CRT Connector
CN7 LVDS Connector
CN1 RJ45 ( LAN Connector)
CN8 Inverter Connector
CN2 RJ11 (Modem Connector)
CN4 MDC Modem Cable Connector
CN5 Port Repelicator
Chapter 5
CN26
U40
CN23
CN24
CN25
CN22
CN20
CN19
U7
