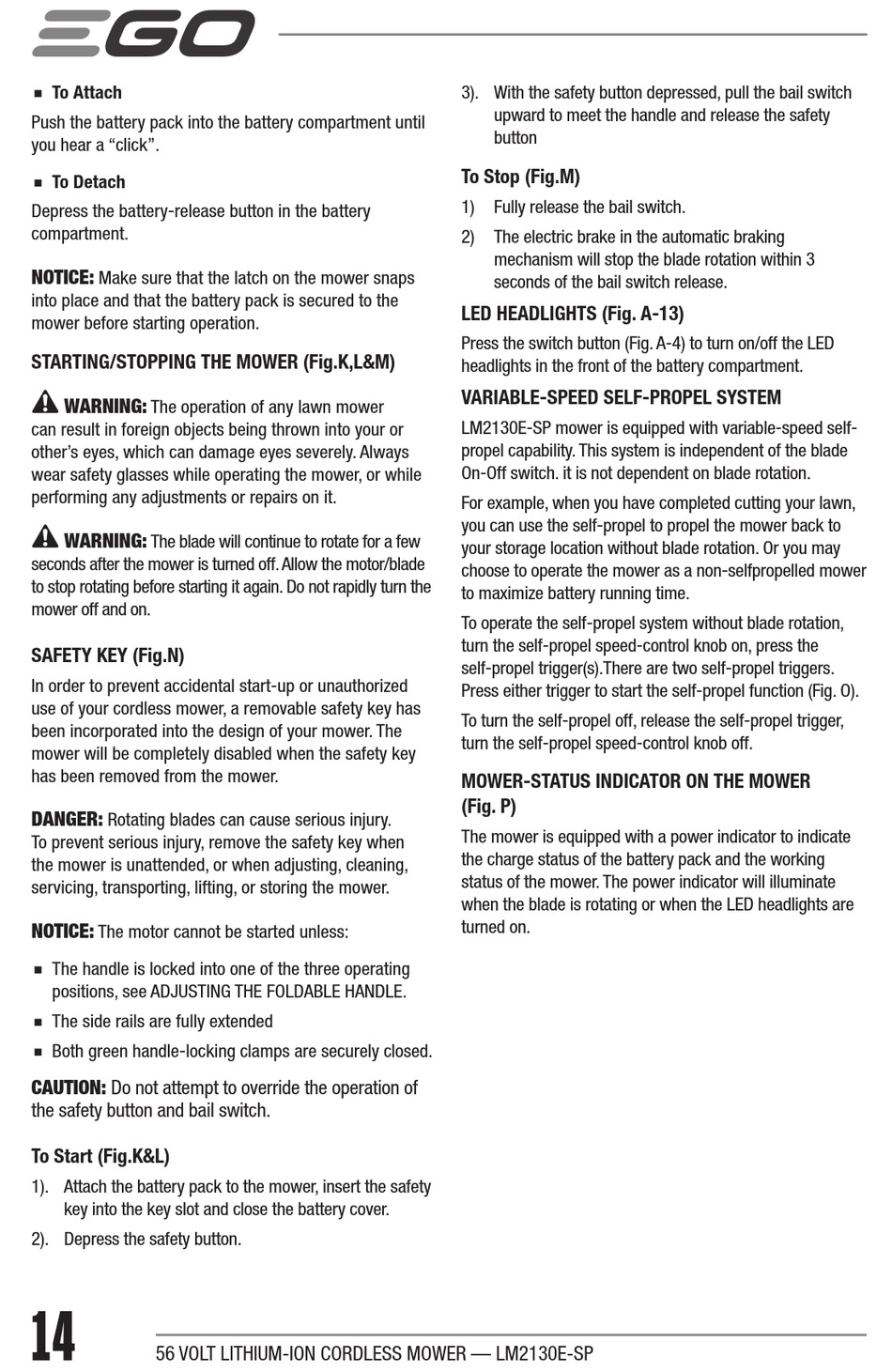

Ego Power+ LM2130E-SP Operator's Manual page 14

◾
To Attach
Push the battery pack into the battery compartment until
you hear a "click".
◾
To Detach
Depress the battery-release button in the battery
compartment.
NOTICE:
Make sure that the latch on the mower snaps
into place and that the battery pack is secured to the
mower before starting operation.
STARTING/STOPPING THE MOWER (Fig.K,L&M)
WARNING:
The operation of any lawn mower
can result in foreign objects being thrown into your or
other's eyes, which can damage eyes severely. Always
wear safety glasses while operating the mower, or while
performing any adjustments or repairs on it.
WARNING:
The blade will continue to rotate for a few
seconds after the mower is turned off. Allow the motor/blade
to stop rotating before starting it again. Do not rapidly turn the
mower off and on.
SAFETY KEY (Fig.N)
In order to prevent accidental start-up or unauthorized
use of your cordless mower, a removable safety key has
been incorporated into the design of your mower. The
mower will be completely disabled when the safety key
has been removed from the mower.
DANGER:
Rotating blades can cause serious injury.
To prevent serious injury, remove the safety key when
the mower is unattended, or when adjusting, cleaning,
servicing, transporting, lifting, or storing the mower.
NOTICE:
The motor cannot be started unless:
◾
The handle is locked into one of the three operating
positions, see ADJUSTING THE FOLDABLE HANDLE.
◾
The side rails are fully extended
◾
Both green handle-locking clamps are securely closed.
CAUTION: Do not attempt to override the operation of
the safety button and bail switch.
To Start (Fig.K&L)
1). Attach the battery pack to the mower, insert the safety
key into the key slot and close the battery cover.
2). Depress the safety button.
14
56 VOLT LITHIUM-ION CORDLESS MOWER — LM2130E-SP
3). With the safety button depressed, pull the bail switch
upward to meet the handle and release the safety
button
To Stop (Fig.M)
1) Fully release the bail switch.
2) The electric brake in the automatic braking
mechanism will stop the blade rotation within 3
seconds of the bail switch release.
LED HEADLIGHTS (Fig. A-13)
Press the switch button (Fig. A-4) to turn on/off the LED
headlights in the front of the battery compartment.
VARIABLE-SPEED SELF-PROPEL SYSTEM
LM2130E-SP mower is equipped with variable-speed self-
propel capability. This system is independent of the blade
On-Off switch. it is not dependent on blade rotation.
For example, when you have completed cutting your lawn,
you can use the self-propel to propel the mower back to
your storage location without blade rotation. Or you may
choose to operate the mower as a non-selfpropelled mower
to maximize battery running time.
To operate the self-propel system without blade rotation,
turn the self-propel speed-control knob on, press the
self-propel trigger(s).There are two self-propel triggers.
Press either trigger to start the self-propel function (Fig. O).
To turn the self-propel off, release the self-propel trigger,
turn the self-propel speed-control knob off.
MOWER-STATUS INDICATOR ON THE MOWER
(Fig. P)
The mower is equipped with a power indicator to indicate
the charge status of the battery pack and the working
status of the mower. The power indicator will illuminate
when the blade is rotating or when the LED headlights are
turned on.
