- Page 1 DJI RC Pro Quick Start Guide v1.0...
- Page 2 Failure to read and follow instructions and warnings may result in serious injury to yourself or others, damage to your DJI product, or damage to other objects in the vicinity. By using this product, you hereby signify that you have read this document carefully and that you understand and agree to abide by all terms and conditions of this document and all relevant documents of this product.
- Page 3 3 hours [1] Refer to the Specifications for more information on supported aircraft. [2] The DJI RC Pro can reach its maximum transmission distance (FCC) in a wide open area with no electromagnetic interference using a DJI MAVIC 3 at an altitude of approximately 120 meters.
- Page 4 10. Contact DJI or a DJI authorized dealer to replace the components of the remote controller if damaged. DO NOT disassemble the remote controller without the assistance of a DJI authorized...

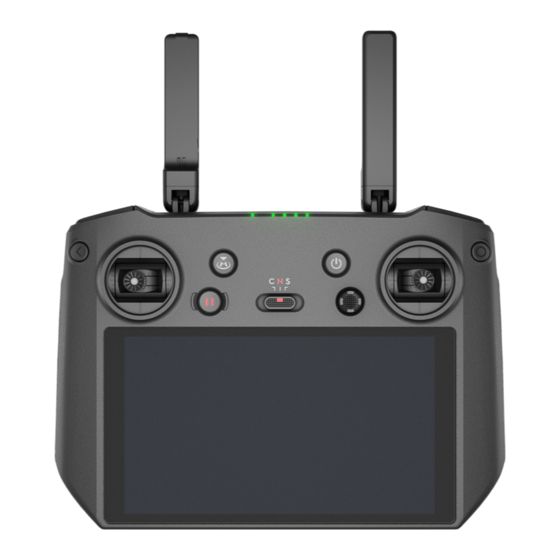

- Page 5 Overview 1. Antennas 2. Back Button/Function Button 3. Control Sticks 4. RTH Button 5. Flight Pause Button 6. Flight Mode Switch 7. 5D Button 8. Power Button 9. Confirm Button/Customizable C3 Button 11 12 13 10. Touchscreen 11. microSD Card Slot 12.
- Page 6 14. Gimbal Dial 15. Record Button 16. Status LED 16 17 17. Battery Level LEDs 18. Focus/Shutter Button 19. Camera Settings Dial 20. Air Vent 21. Control Sticks Storage Slots 22. Customizable C1 Button 23. Speaker 24. Customizable C2 Button 25.
- Page 7 1. Charging and Checking Battery Level The built-in battery is placed in hibernation Check battery level: press power button. mode before delivery. It must be charged before Power on/off: press, then press and hold. using for the first time. It takes approximately two hours to fully charge the remote controller using a recommended USB charger rated 12V and one and a half hours using a recommended USB charger rated 15V.
-
Page 8: Preparing The Remote Controller
• Make sure the control sticks are firmly mounted. • A prompt will be received in DJI Fly if the transmission signal is weak during flight. Adjust the antennas to make sure that the aircraft is in the optimal transmission range. - Page 9 Power on the remote Select the language Follow the prompts controller to activate Check the internet connection if activation fails. Try to activate the remote controller again if the internet connection is normal. Contact DJI if activation fails several times.
- Page 10 3. Press the linking button of the aircraft. The status LED of the remote controller will turn solid green if linking is successful. Refer to the DJI RC Pro User Manual for more information about linking. To download the user manual, visit https://www.dji.com/rc-pro...
- Page 11 5. Flight Before takeoff, make sure that takeoff is permitted in the camera view of DJI Fly. • Auto Takeoff/Landing Tap this icon in the camera view. When the prompt appears, press and hold the button to ／ initiate auto takeoff or landing.
- Page 12 The default control stick mode is Mode 2. The left control stick controls the altitude and heading of the aircraft, while the right control stick controls the forward, backward, and sideward movements. Left Stick Right Stick Forward Down Backward Turn Right Left Right Turn Left...
-
Page 13: Specifications
Specifications Operation Frequency Range 2.400-2.4835 GHz; 5.725-5.850 GHz* Max Transmission Distance 15 km (FCC); 8 km (CE/SRRC/MIC) (Unobstructed, free of interference) 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC) Transmission Power (EIRP) 5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC) Wi-Fi 802.11b/a/g/n/ac/ax Protocol... - Page 14 DJI Mavic 3 GNSS GPS+GLONASS+Galileo Weight Approx. 680 g Model RM510 5.8 GHz is unavailable in some countries due to local regulations. ** The DJI RC Pro will support more DJI aircraft in future. Visit the official website for the latest information.
