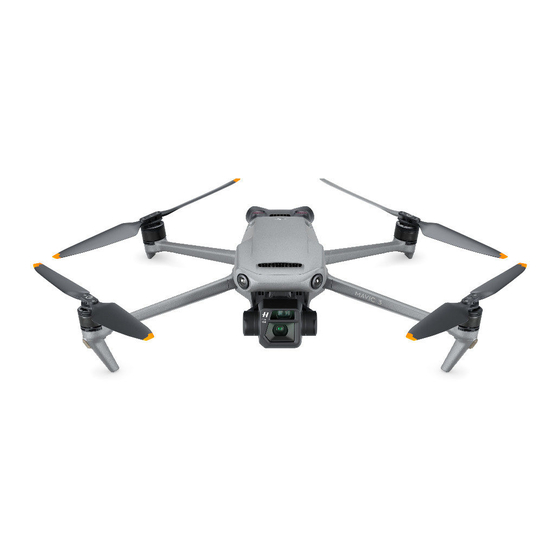

Summary of Contents for dji Mavic 3

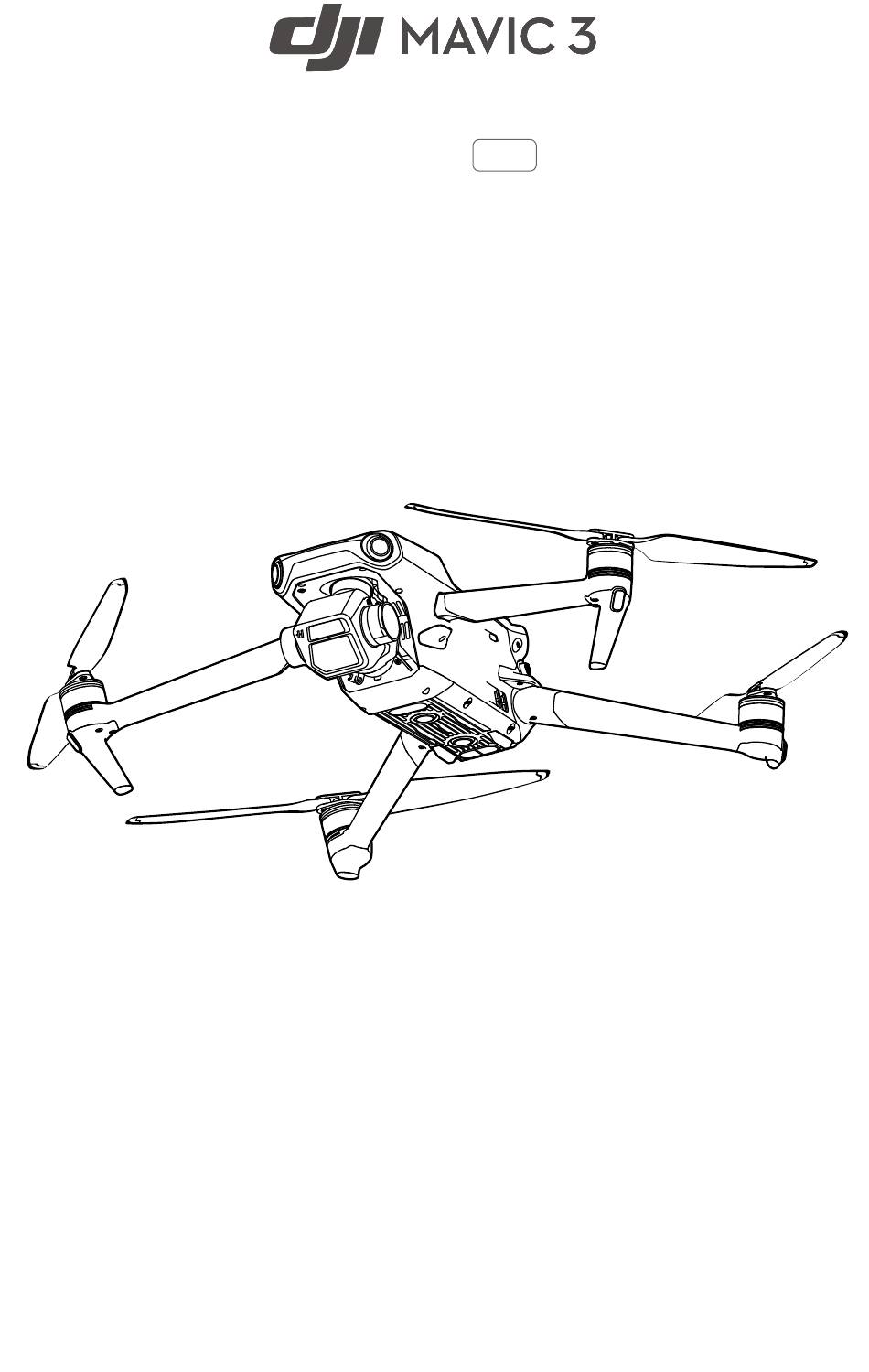

Page 1 User Manual 2021.11 v1.0...
Page 2 Navigating to a Topic View a complete list of topics in the table of contents. Click on a topic to navigate to that section. Printing this Document This document supports high resolution printing. © 2021 DJI All Rights Reserved.
Page 3: Using This Manual
Prepare for your first flight by reviewing the quick start guide and refer to this user manual for more information. Video Tutorials Go to the address below or scan the QR code to watch the DJI Mavic 3 tutorial videos, which demonstrate how to use the Mavic 3 safely: MAVIC 3...
Page 4: Table Of Contents
Contents Using this Manual Legend Read Before the First Flight Video Tutorials Download the DJI Fly App Download DJI Assistant 2 (Consumer Drones Series) Product Profile Introduction Using for the First Time Diagram Aircraft Flight Modes Aircraft Status Indicators Return to Home Vision Systems and Infrared Sensing System Advanced Pilot Assistance Systems (APAS 5.0)
Page 5 Flight Flight Environment Requirements Flight Limits and GEO Zones Pre-Flight Checklist Auto Takeoff/Landing Starting/Stopping the Motors Flight Test Appendix Specifications Firmware Update After-Sales Information © 2021 DJI All Rights Reserved.
Page 7: Introduction
Mavic 3 offers a maximum transmission range of 15 km and video quality at up to 1080p 60fps from the aircraft to the DJI Fly app. The remote controller works at both 2.4 and 5.8 GHz, and is capable of selecting the best transmission channel automatically.
Page 8: Using For The First Time
DJI Mavic 3 User Manual Using for the First Time DJI Mavic 3 is folded before being packaged. Follow the steps below to unfold the aircraft and remote controller. Preparing the Aircraft 1. Remove the storage cover. 2. All Intelligent Flight Batteries are in hibernation mode before delivery to ensure safety. Use the provided charger to charge and activate the Intelligent Flight Batteries for the first time.
Page 9 Preparing the Remote Controller Follow the steps below to prepare to use the DJI RC Pro remote controller with DJI Mavic 3 Cine. 1. Use the provided charger to charge the remote controller via the USB-C port to active the battery.
Page 10: Diagram
Activating DJI Mavic 3 Aircraft DJI Mavic 3 requires activation before using for the first time. After powering on the aircraft and remote controller, follow the on-screen prompts to activate DJI Mavic 3 using DJI Fly. An internet connection is required for activation.
Page 11 9. Confirm Button Relay aircraft control and video wireless Press once to confirm a selection. The button signals. does not have a function when using DJI Fly. 2. Back Button 10. Touchscreen Press once to return to the previous screen.
Page 12 23. Speaker Outputs sound. 24. Customizable C2 Button Press once to turn the Auxiliary Bottom Light on or off. The function can be set in DJI Fly. 20. Air Vent 25. Air Intake Used for heat dissipation. Do not block the Used for heat dissipation.
Page 13 DJI Mavic 3 User Manual 7. Photo/Video Toggle 12. Control Sticks Storage Slot Press once to switch between photo and For storing the control sticks. video mode. 13. Gimbal Dial Controls the tilt of the camera. Press and hold 8. Remote Controller Cable...
Page 14: Aircraft
Aircraft DJI Mavic 3 contains a flight controller, video downlink system, vision systems, infrared sensing system, propulsion system, and an Intelligent Flight Battery. © 2021 DJI All Rights Reserved.
Page 15: Flight Modes
Intelligent Flight Battery. Flight Modes DJI Mavic 3 has three flight modes, plus a fourth flight mode that the aircraft switches to in certain scenarios. Flight modes can be switched via the Flight Mode switch on the remote controller.
Page 16: Aircraft Status Indicators
After the motor starts, the front LEDs blink red and green alternately and the aircraft status indicators blink green. To obtain better footage, the front LEDs turn off automatically when shooting if the front LEDs are set to auto in DJI Fly. Lighting requirements vary depending on region. Observe local laws and regulations. ©...
Page 17: Return To Home
If the GNSS signal is sufficient, Smart RTH can be used to bring the aircraft back to the Home Point. Smart RTH is initiated either by tapping in DJI Fly or by pressing and holding the RTH button on the remote controller until it beeps. Exit Smart RTH by tapping in DJI Fly or by pressing the RTH button on the remote controller.
Page 18 DJI Mavic 3 User Manual During Advanced RTH, the aircraft will ignore the preset RTH altitude in DJI Fly and instead will automatically adjust the flight speed and altitude according the environment (wind speed and direction, obstacles, transmission signals). Advanced RTH will not be available if the lighting condition and environment were not suitable for vision systems during takeoff or RTH.
Page 19 The aircraft will remain in Straight Line RTH even if the remote controller signal is restored during Original Route RTH. If the RTH is triggered through DJI Fly and the aircraft is farther than 5 m from the Home Point, a prompt will appear in the app to select a landing option.
Page 20 Precision Landing The aircraft automatically scans and attempts to match the terrain features below during RTH. The aircraft will land when the current terrain matches the Home Point. A prompt will appear in DJI Fly if the terrain match fails.
Page 21: Vision Systems And Infrared Sensing System
DJI Mavic 3 User Manual Vision Systems and Infrared Sensing System DJI Mavic 3 is equipped with both an Infrared Sensing System and Forward, Backward, Lateral, Upward, and Downward Vision Systems. The Upward and Downward Vision Systems consist of two cameras each, and the Forward, Backward, and Lateral Vision Systems consist of four cameras in total.
Page 22 Vision Systems may be affected. The Auxiliary Bottom Light can be set in DJI Fly. If set to Auto, it is automatically enabled when the environment light is too weak. Note that the Vision System cameras performance may be affected when the Auxiliary Bottom Light is enabled.
Page 23: Advanced Pilot Assistance Systems (Apas 5.0)
When APAS is enabled, the aircraft can be stopped by pressing the Flight Pause button on the remote controller or tapping the screen in DJI Fly. The aircraft hovers for three seconds and awaits further pilot commands. To enable APAS, open DJI Fly, enter System Settings, then Safety, and enable APAS by selecting Bypass.
Page 24: Propellers
DJI Mavic 3 User Manual Propellers There are two types of DJI Mavic 3 Low-Noise Quick Release Propellers, which are designed to spin in different directions. Marks are used to indicate which propellers should be attached to which motors. Make sure to match the propeller and motor following the instructions.
Page 25: Intelligent Flight Battery
DJI Mavic 3 User Manual Intelligent Flight Battery The DJI Mavic 3 Intelligent Flight Battery is a 15.4 V, 5000 mAh battery with smart charging and discharging functionality. Battery Features 1. Battery Level Display: The LED indicators display the current battery level.
Page 26 2. Batteries cannot be used in extremely low-temperature environments of lower than -10° C (14° F). 3. When in low-temperature environments, end the flight as soon as DJI Fly displays the low battery level warning.
Page 27 Power supply or battery error (remove and reinsert the batteries or unplug and plug in the charger) It is recommended to use a DJI 65W Portable Charger or DJI Mavic 3 Car Charger when using the Mavic 3 Battery Charging Hub to charge Mavic 3 Intelligent Flight Batteries.
Page 28 DJI Mavic 3 User Manual Using DJI 65W Portable Charger 1. Connect the DJI 65W Portable Charger to an AC power supply (100-240 V, 50/60 Hz). 2. Attach the aircraft to the charger using the battery charging cable with the battery powered off.
Page 29 DJI Mavic 3 User Manual If the battery protection mechanisms activate, in order to resume charging it is necessary to unplug the battery from the charger and plug it in again. If the charging temperature is abnormal, wait for the charging temperature to return to normal, and the battery will automatically resume charging without requiring to unplug and plug in the charger again.
Page 30: Gimbal And Camera
DJI Mavic 3 User Manual Gimbal and Camera Gimbal Profile The 3-axis gimbal of DJI Mavic 3 provides stabilization for the camera, allowing you to capture clear and stable images and video. The control tilt range is -90° to +35°. 35°...
Page 31 Storing Photos and Videos DJI Mavic 3 has 8 GB of built-in storage and supports the use of a microSD card to store photos and videos. A SDXC, UHS-I, or UHS-II microSD card is required due to the fast read and write speeds necessary for high-resolution video data.
Page 32: Remote Controller
Remote Controller This section describes the features of the remote controller and includes instructions for controlling the aircraft and the camera. © 2021 DJI All Rights Reserved.
Page 33: Dji Rc Pro
Remote Controller DJI RC Pro The DJI RC Pro remote controller features O3+, the latest version of DJI’s signature OcuSync image transmission technology, works at both 2.4 and 5.8 GHz, is capable of selecting the best transmission channel automatically, and can transmit a live HD view from the camera of the aircraft at a distance of up to 15 km.
Page 34 DJI Mavic 3 User Manual Controlling the Aircraft Three preprogrammed modes (Mode 1, Mode 2, and Mode 3) are available and custom modes can be configured in DJI Fly. The default mode is Mode 2. Mode 1 Left Stick Right Stick...
Page 35 DJI Mavic 3 User Manual Remote Aircraft Controller Remarks Indicates Nose Direction) (Mode 2) Moving the left stick up or down changes the aircraft’s altitude. Push the stick up to ascend and down to descend. The more the stick is pushed away from the center position, the faster the aircraft will change altitude.
Page 36 RTH and regain control of the aircraft. Refer to the Return to Home section for more information about RTH. Customizable Buttons Including C1, C2, and the 5D button. Go to System Settings in DJI Fly and select Control to customize the function of the button. Combination Buttons...
Page 37 The remote controller vibrates or beeps when there is an error or warning. Pay attention when prompts appear on the touchscreen or in DJI Fly. Slide down from the top to select Do Not Disturb or Mute to disable some alerts.
Page 38 The top of the touchscreen displays the time, Wi-Fi signal, and battery level of the remote controller. Some apps are already installed by default such as DJI Fly, Gallery, Files, Firefox, Settings, and Guide. Settings includes network, display, voice, and Bluetooth configurations. Users can quickly learn about the features under Guide.
Page 39 DJI Mavic 3 User Manual Quick Settings 10:12 Notifications Sat, Mar 30 Wechat 8m ago 5 new messages WI-FI Bluetooth Capture Disturb DJI Fly 11m ago Expore skypixel.com One billion colors captured by the 10-bit Dlog- M color proﬁle. Disturb...
Page 40 DJI Mavic 3 User Manual Advanced Feature Calibrating the Compass The compass may need to be calibrated after the remote controller is used in areas with electromagnetic interference. A warning prompt will appear if the compass of the remote controller requires calibration.
Page 41: Rc-N1
Android devices. For iOS devices, first make sure that charging is enabled in DJI Fly. Charging for iOS devices is disabled by default and needs to be enabled each time the remote controller is powered on.
Page 42 (throttle), and left/right movement (roll). The control stick mode determines the function of each control stick movement. Three preprogrammed modes (Mode 1, Mode 2, and Mode 3) are available and custom modes can be configured in DJI Fly. The default mode is Mode 2. Mode 1...
Page 43 DJI Mavic 3 User Manual Remote Aircraft Controller Remarks Indicates Nose Direction) (Mode 2) Moving the left stick up or down changes the aircraft’s altitude. Push the stick up to ascend and down to descend. The more the stick is pushed away from the center position, the faster the aircraft will change altitude.
Page 44 RTH. Customizable Button Go to System Settings in DJI Fly and select Control to customize the function of the button. Functions include recentering the gimbal, switching the auxiliary LED, and toggling the map and live view. Remote Controller Alert The remote controller sounds an alert during RTH or when the battery level is low (6% to 15%).
Page 45: Linking The Remote Controller
DJI Mavic 3 User Manual Linking the Remote Controller The aircraft and remote controller must be linked before using. Follow these steps to link a new remote controller: 1. Power on the remote controller and the aircraft. 2. Launch DJI Fly.
Page 47: Home
Album Allows you to view photos and videos from DJI Fly and mobile device. Create contains Templates and Pro. Templates provides auto edit feature for imported footage. Pro allows you to edit the footage manually.
Page 48: Camera View
DJI Mavic 3 User Manual Camera View N Mode N Mode In-Flight 24 17 24 17 3m/s 3m/s 4.6m/s 4.6m/s Storage Storage RES&FPS RES&FPS 1:30:30 1:30:30 5.1K 50 5.1K 50 +0.7 +0.7 150 m 80 m 80 m 1. Flight Mode N : Displays the current flight mode.
Page 49 (CSC). Stopping the motors in mid-flight will cause the aircraft to crash. An alert will appear in DJI Fly when a manned aircraft is detected if AirSense is enabled. Read the disclaimer in the DJI Fly prompt before using AirSense.
Page 50 Make sure to fully charge your device before launching DJI Fly. Mobile cellular data is required when using DJI Fly. Contact your wireless carrier for data charges. If you are using a mobile phone as your display device, DO NOT accept phone calls or use texting features during flight.
Page 51 The app is designed to assist your operation. Use your sound discretion and DO NOT rely on the app to control your aircraft. Your use of the app is subject to DJI Fly Terms of Use and DJI Privacy Policy. Read them carefully in the app.
Page 53: Flight Environment Requirements
Once pre-flight preparation is complete, it is recommended to hone your flight skills and practice flying safely. Make sure that all flights are carried out in an open area. Refer to the Remote Controller and DJI Fly sections for information about using the remote controller and the app to control the aircraft.
Page 54: Pre-Flight Checklist
6. Make sure that DJI Fly is successfully connected to the aircraft. 7. Make sure that the camera lens and Vision System sensors are clean. 8. Use only genuine DJI parts or parts certified by DJI. Unauthorized parts or parts from non-DJI certified manufacturers may cause system malfunctions and compromise safety.
Page 55: Auto Takeoff/Landing
Auto Takeoff/Landing Auto Takeoff Use auto takeoff: 1. Launch DJI Fly and enter the camera view. 2. Complete all steps in the pre-flight checklist. 3. Tap . If conditions are safe for takeoff, press and hold the button to confirm.
Page 56: Flight Test
3. Launch DJI Fly and enter the camera view. 4. Wait until the self-check is finished, it is safe to fly if there is no abnormal warning in DJI Fly. 5. Gently push the throttle stick to take off or use auto-takeoff.
Page 58: Specifications
Horizontal: Vision Positioning: ±0.3 m High Accuracy System Positioning: ±0.5 m Internal Storage Mavic 3: 8 GB (7.2 GB of available storage) Mavic 3 Cine: 1 TB (934.8 GB of available storage) Hasselblad Camera Sensor 4/3 CMOS Effective Pixels: 20 MP Lens FOV: 84°...
Page 59 DJI Mavic 3 User Manual Video Resolution Apple ProRes 422 HQ 5.1K: 5120 × 2700@24/25/30/48/50fps DCI 4K：4096 × 2160@24/25/30/48/50/60/120*fps 4K：3840 × 2160@24/25/30/48/50/60/120*fps H264/H.265 5.1K：5120 × 2700@24/25/30/48/50fps DCI 4K：4096 × 2160@24/25/30/48/50/60/120*fps 4K：3840 × 2160@24/25/30/48/50/60/120*fps FHD：1920 × 1080@24/25/30/48/50/60/120*/200*fps * Recorded frame rate, corresponding video plays as slow motion video Max Video Bitrate H.264: 200Mbps;...
Page 60 DJI Mavic 3 User Manual Forward Vision System Precision Measurement Range: 0.5-20 m Detection Range: 0.5-200 m Effective Sensing Speed: ≤15 m/s FOV: 90° (horizontal), 103° (vertical) Backward Vision System Precision Measurement Range: 0.5-16 m Effective Sensing Speed: ≤12 m/s FOV: 90°...
Page 61 DJI Mavic 3 User Manual Charging Hub Input USB-C: 5 V-20 V 5.0 A max Output Battery Port: 12 V - 17.6 V 5.0 A max Rated Power 65 W Charging Type Charge three Intelligent Flight Batteries in sequence Charging Temperature 5°...
Page 62 DJI Mavic 3 User Manual When recording at high video resolutions, it is recommended to use SD cards listed below. Corresponding resolutions: H.264 5.1K: 5120x2700@24/25/30/48/50fps DCI 4K: 4096x2160@120fps 4K : 3840x2160@120fps SanDisk Extreme Pro 64G v30 A2 microSDXC SanDisk Extreme Pro 128G v30 A2 microSDXC...
Page 63: Firmware Update
Use DJI Fly or DJI Assistant 2 (Consumer Drones Series) to update the aircraft firmware. Using DJI Fly When you connect the aircraft or remote controller to DJI Fly, you will be notified if a new firmware update is available. To start updating, connect your remote controller or mobile device to the internet and follow the onscreen instructions.
Page 64 This content is subject to change. Download the latest version from http://www.dji.com/mavic-3 If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. DJI is a trademark of DJI. Copyright © 2021 DJI All Rights Reserved.
