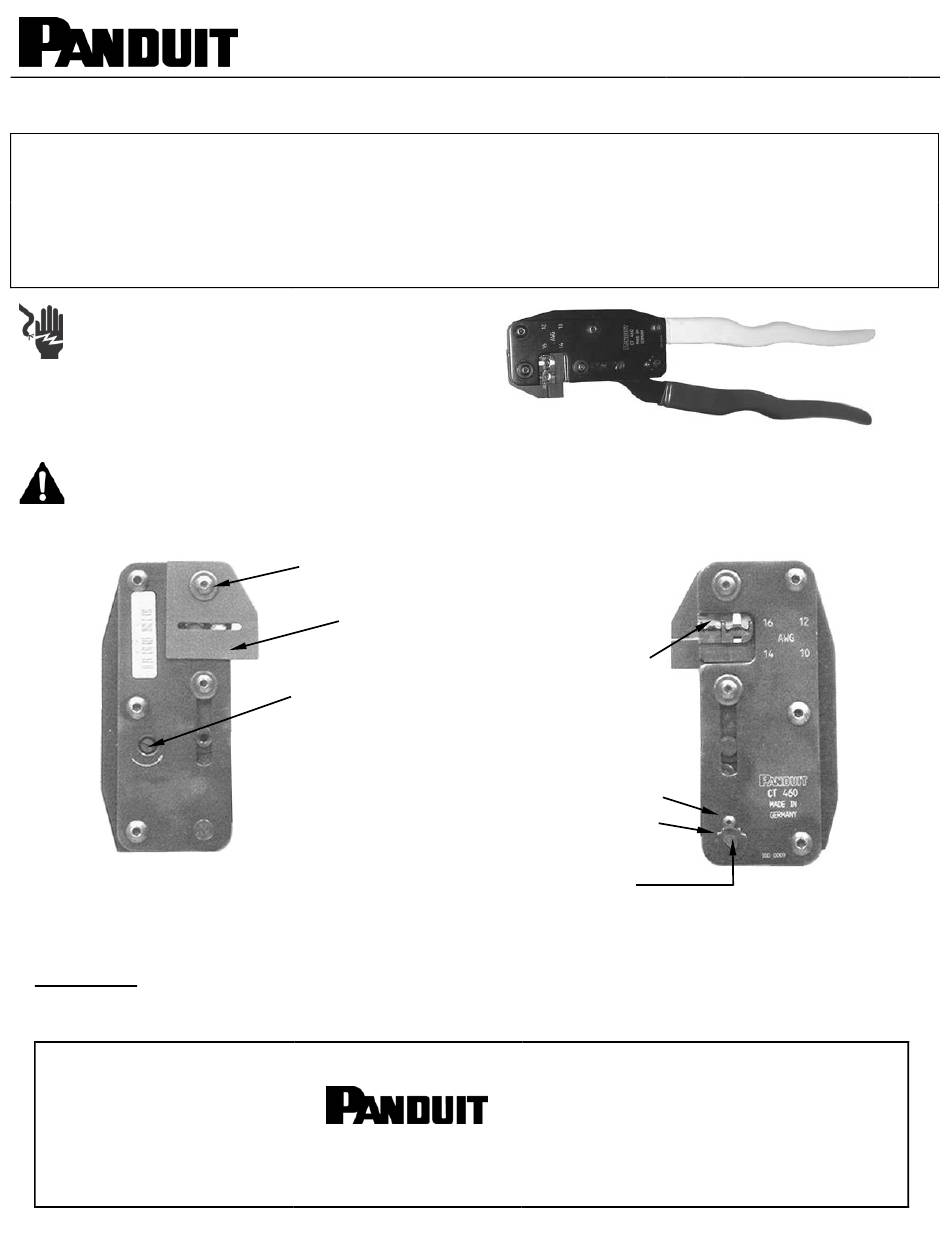

© Panduit Corp. 2018
NEW TOOLS – BEFORE PLACING INTO SERVICE
1. VISUALLY INSPECT TOOL
FOR DAMAGE.
2. CHECK DIE CLOSURE
3. CLEAN EXCESS OIL FROM
CRIMP DIES AND USE.
CAUTION:
Verify power is "OFF" before
working on wiring with this tool. The plastic grips
are for the user's comfort—and are not intended
to insulate against shock while working on live
electrical circuits.
WARNING: Controlled cycle device prevents tool from opening before cycle is
completed. Keep hands and other objects clear of pinch areas before closing.
BACK
VIEW
(FIG. 1)
ATTENTION: TO DISENGAGE CONTROLLED CYCLE DEVICE:
Turn the ratchet release screw counterclockwise and open handles.
The controlled cycle device will automatically reset after screw is released.
Email:
techsupport@panduit.com
EU Website:
www.panduit.com/emea
EU Email:
Emeatoolservicecenter
@panduit.com
CT-460: PA24481A01_04

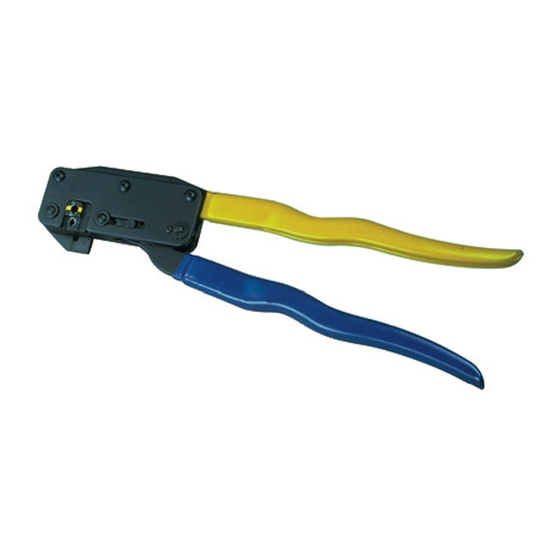

CT-460
All Panduit crimping tools are calibrated and inspected before they are shipped from
the factory. There is, however, a possibility of damage in shipment. All new tools
should therefore be inspected before being used.
New tools are shipped factory lubricated. They do not require extensive cleaning.
After inspection, simply clean any excess oil from the crimping dies and place into
service.
Locator Retention
Screw
Terminal Locator
Ratchet Release
Screw
www.panduit.com
Page: 1 of 4
CRIMP DIES for
Pan-Term insulated
terminals, splices
and wire joints.
Lock Screw
Notch
Adjustment
Pin
Technical Support:
1-800-777-3300
Panduit Europe • EMEA Headquarters
Tel: +31 (0) 546 580 452 • Fax: +31 (0) 546 580 441
PA24481A01
Rev. 04 6-2018
FRONT
VIEW
(FIG. 2)
6-2018
Advertisement
Related Manuals for Panduit CT-460
Summary of Contents for Panduit CT-460
- Page 1 © Panduit Corp. 2018 NEW TOOLS – BEFORE PLACING INTO SERVICE All Panduit crimping tools are calibrated and inspected before they are shipped from 1. VISUALLY INSPECT TOOL the factory. There is, however, a possibility of damage in shipment. All new tools FOR DAMAGE.
- Page 2 OPERATION INSTRUCTIONS CT-460 © Panduit Corp. 2018 INSULATED TERMINAL INSTRUCTIONS 1. With handles in open position, insert terminal in proper size die so that tongue slides into locator slot. See product packaging for proper crimping pockets. 2. Position terminal against locator and close handles until barrel is held snugly in place -- do not deform barrel.
- Page 3 Damaged crimping dies are objectionable and may go undetected when gaging the die closure. If parts are missing, defective or damaged; contact your local Panduit Sales Office for information on repair or replacement of tools; or contact Technical Support at 1-800-777-3300.
- Page 4 Step (2) in one-notch increments until the tool is gages to be dimensionally correct. Replace and tighten both lock screws after final adjustment. If the above procedure fails to satisfy all GO and NO-GO conditions, contact your local Panduit Sales Office; or contact Technical Support at 1-800-777-3300.
