NEW TOOLS – BEFORE PLACING INTO SERVICE
1. VISUALLY INSPECT TOOL
FOR DAMAGE.
3. CLEAN EXCESS OIL FROM
CRIMP DIES AND USE.
CAUTION: Verify power is "OFF" before
working on wiring with this tool.
plastic grips are for the user's comfort—
and are not intended to insulate against
shock while working on live electrical
circuits.
WARNING: Controlled cycle device prevents tool from opening before cycle is completed.
Keep hands and other objects clear of pinch areas before closing.
BACK
VIEW
(FIG. 1)
ATTENTION: TO DISENGAGE CONTROLLED CYCLE DEVICE:
Turn the ratchet release screw counterclockwise and open handles.
The controlled cycle device will automatically reset after screw is released.
©
Copyright
2001 Panduit Corp.
All Rights Reserved

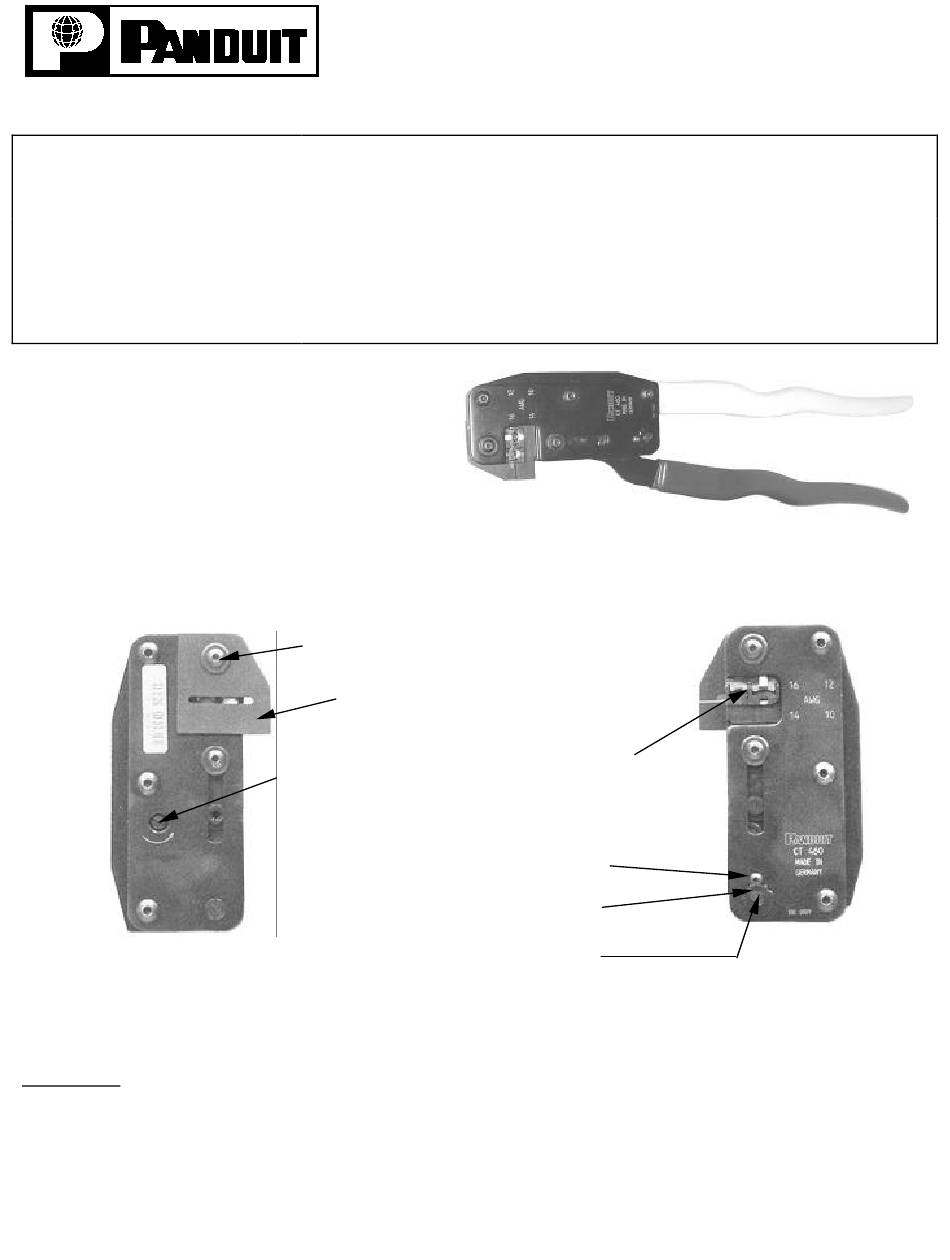

CT-460 Controlled Cycle Crimping Tool
Operating, Maintenance and Inspection Instructions
All PANDUIT crimping tools are calibrated and inspected before they are
shipped from the factory. There is, however, a possibility of damage in
shipment. All new tools should therefore be inspected before being used.
New tools are shipped factory lubricated, in protective cardboard cases. They
do not require extensive cleaning. After inspection, simply clean any excess
oil from the crimping dies and place into service.
The
Locator Retention
Screw
Terminal
Locator
Ratchet Release
Screw
CRIMP DIES for
PAN-TERM™
INSULATED terminals,
splices and wire joints.
Lock Screw
Notch
Adjustment
Pin
FRONT
VIEW
(FIG. 2)
PA24481A01
11/2001
1
