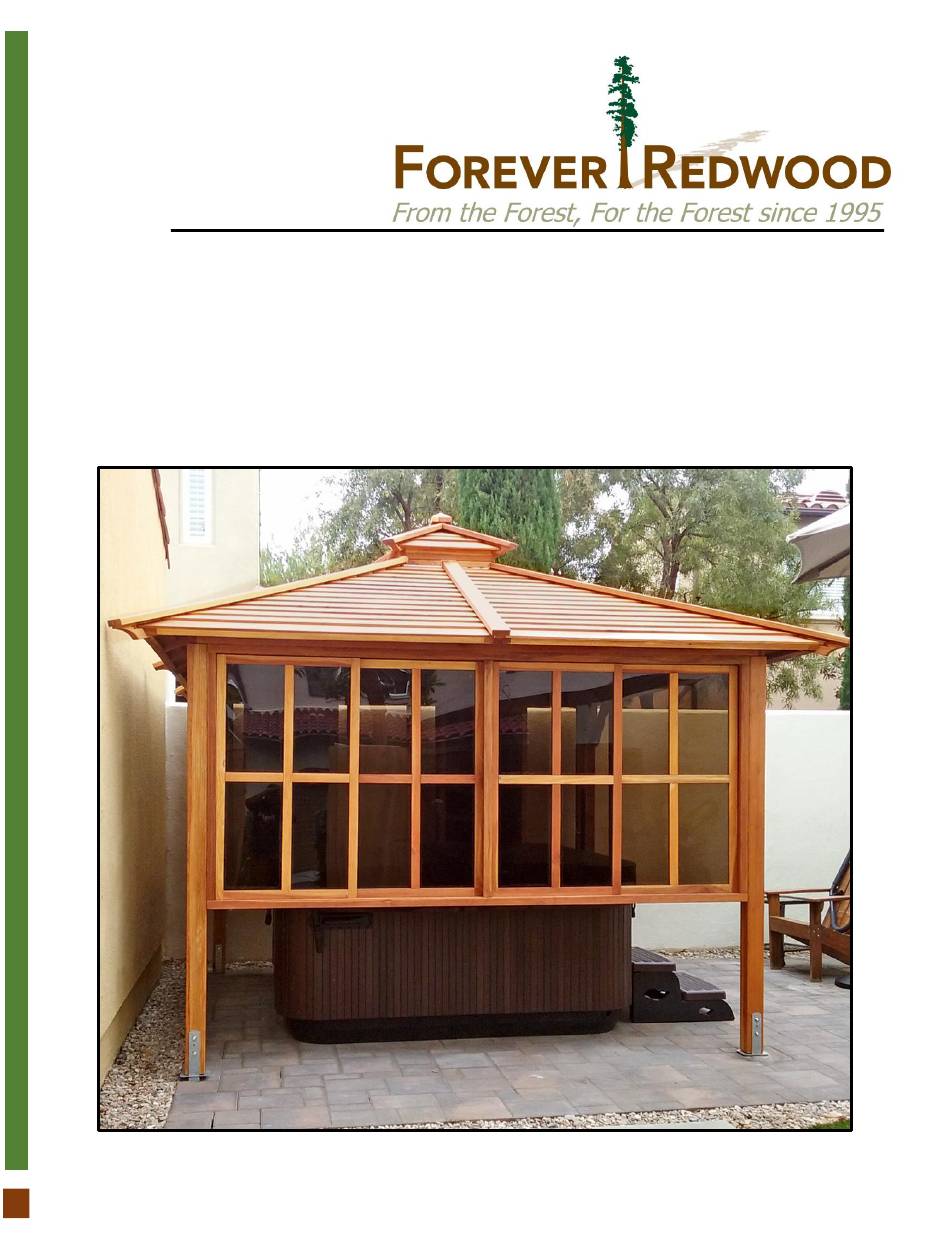

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE HOT TUB ENCLOSURE KITS / HOT TUB PAVILION...
- Page 2 P| 1 HOT TUB ENCLOSURE KITS / HOT TUB PAVILION www.ForeverRedwood.com...
- Page 3 P| 2 HOT TUB ENCLOSURE KITS / HOT TUB PAVILION www.ForeverRedwood.com...
- Page 4 P| 3 HOT TUB ENCLOSURE KITS / HOT TUB PAVILION www.ForeverRedwood.com...
- Page 5 P| 4 HOT TUB ENCLOSURE KITS / HOT TUB PAVILION www.ForeverRedwood.com...
- Page 6 After that, use a 5/16´´ X 3´´ lag bolts (B) to attach each post (1) to its respective anchor base (14). 5/16´´ X 3´´ Lag Bolts P| 5 HOT TUB ENCLOSURE KITS / HOT TUB PAVILION www.ForeverRedwood.com...
- Page 7 Step 3: Use 5/16´´ x 3´´ lag bolts (B) to attach the frames with knee braces (3) to the posts. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 5/16´´ X 3´´ Lag bolts P| 6 HOT TUB ENCLOSURE KITS / HOT TUB PAVILION www.ForeverRedwood.com...
- Page 8 Step 5: Use 5/16´´ x 3´´ lag bolts (B) to attach the angles (12). After that, use 5/16´´ x 3´´ lag bolts (B) and 3´´ deck screws (G) to attach the metal plaques (13) to the roof frames. 3´´ Deck Screw 5/16´´ X 3´´ Lag bolts P| 7 HOT TUB ENCLOSURE KITS / HOT TUB PAVILION www.ForeverRedwood.com...
- Page 9 Step 7: Support the skylight on a base at the height indicated in the drawings. Use a ladder or a scaffolding, to facilitate the installation of the skylight and the roof panels. Ladder Scaffold P| 8 HOT TUB ENCLOSURE KITS / HOT TUB PAVILION www.ForeverRedwood.com...
- Page 10 Step 8.2: Attach the roof panels (6) to the roof frames with 3/8´´ X 6´´ lag bolts (D). Step 8 Step 8.1 Step 8.2 3/8´´ X 6´´ Lag Bolts 5/16´´ X 3 ½´´ Bolts 5/16´´ X 4´´ Bolts P| 9 HOT TUB ENCLOSURE KITS / HOT TUB PAVILION www.ForeverRedwood.com...
- Page 11 Step 10: First, measure the roof panels After that, cut the #30 Felt Roof Deck Protection to those measures. Use staples to attach the #30 Felt Roof Deck Protection to the roof panels. #30 Felt Roof Deck Protection P| 10 HOT TUB ENCLOSURE KITS / HOT TUB PAVILION www.ForeverRedwood.com...
- Page 12 Step 12: Use 3´´ deck screws (G) and 4´´ deck screws (H) to attach the roof trims (9) and the corner roof trims (10) to the roof boards. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws 4´´ Deck Screws P| 11 HOT TUB ENCLOSURE KITS / HOT TUB PAVILION www.ForeverRedwood.com...
- Page 13 Step 13: Finally, attach the boots (11) to the posts with 3´´ deck screws (G). 8´´ X 3´Deck Screws P| 12 HOT TUB ENCLOSURE KITS / HOT TUB PAVILION www.ForeverRedwood.com...
- Page 14 This completes the Pavilion assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 13 HOT TUB ENCLOSURE KITS / HOT TUB PAVILION www.ForeverRedwood.com...
