Power Board Removal; Power Board Installation - Acer Aspire 7750Z Service Manual

Power Board Removal

Prerequisite:
Upper Cover Removal
1. Locate power board (A) on upper cover.
2. Remove two (2) screws (C) securing board to upper cover.
3. Guide FFC cable (D) through upper cover opening (E).
4. Remove power saver module (B) from upper cover.
5. Lift board (A) from upper cover.

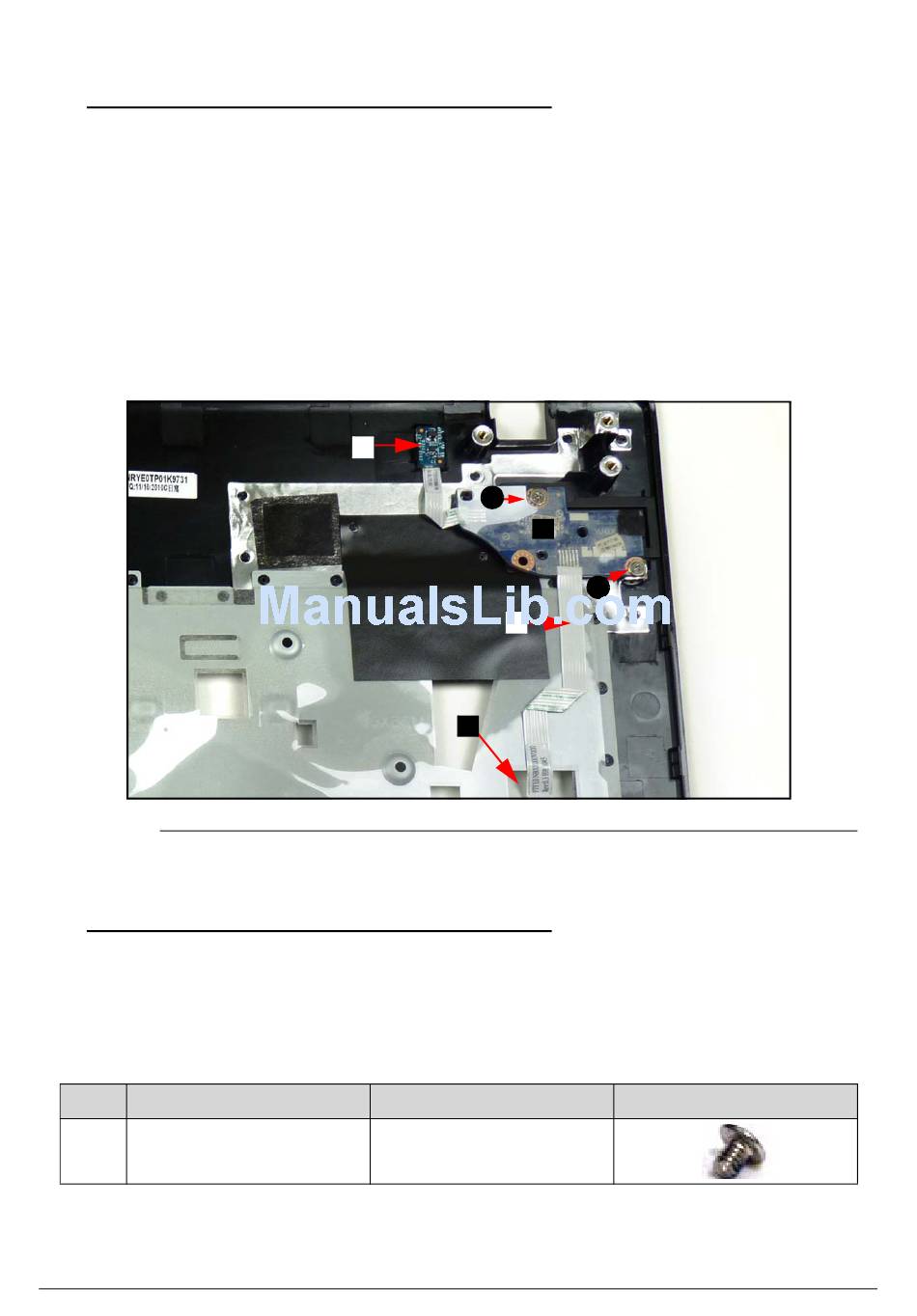

Figure 3-18. Power Board

Power Board Installation

1. Put board (A) and module (B) onto upper cover.
2. Install and secure two (2) screws (C) to board (A).
3. Install upper cover.
ID Size
C M2.5*3 Ni
Machine Maintenance Procedures
B
C
D
E
Quantity
2
0
A
C
Screw Type
0
3-23
