Summary of Contents for REED K7020

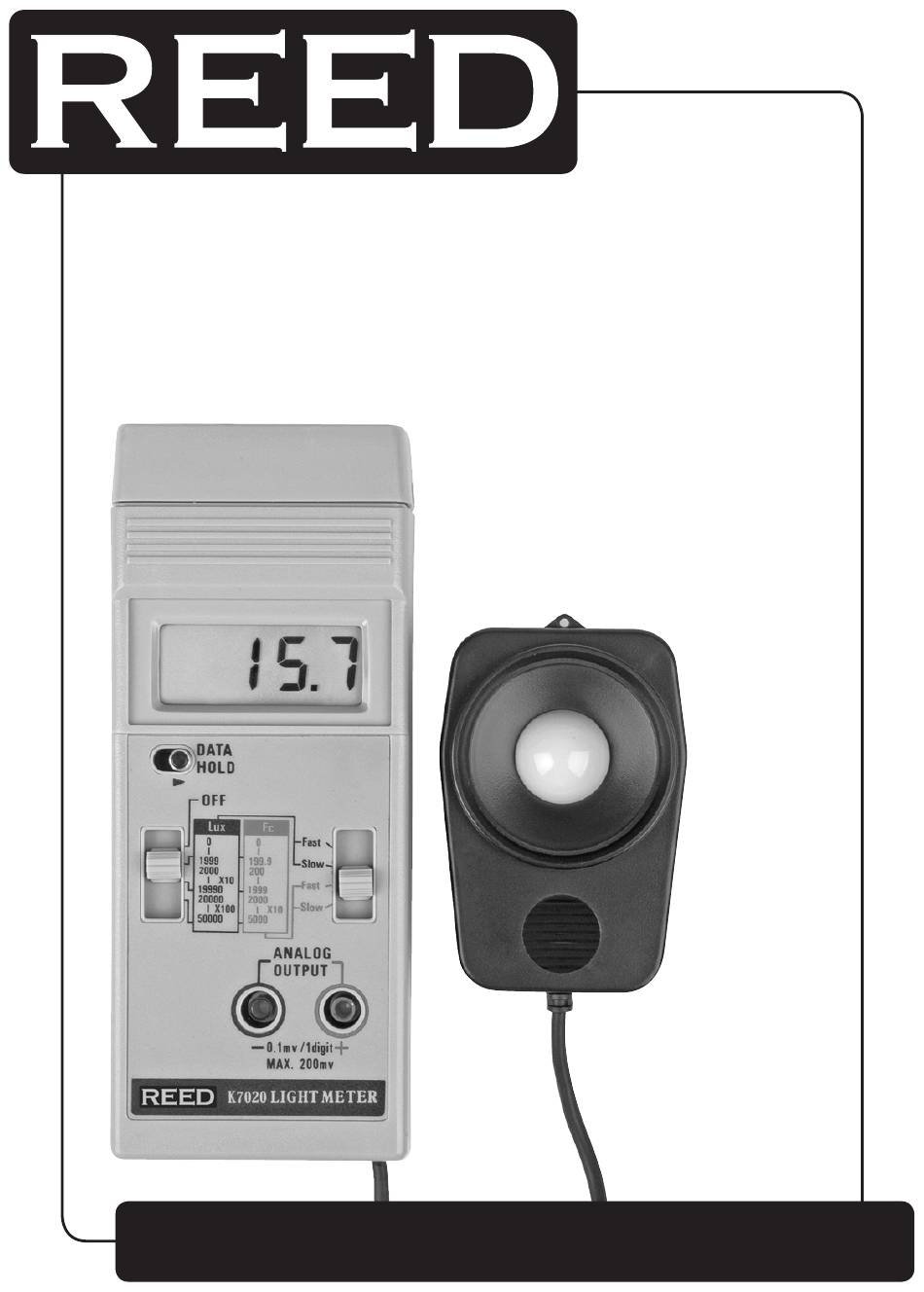

- Page 1 K7020 Model Illuminometer Instruction Manual reedinstruments...
-
Page 2: Table Of Contents
• Pocket size, easy to carry out & operation • Compact, light weight and excellent operation • Built-in low battery indicator For service on this or any other REED product or information on other REED products, contact REED Instruments at info@reedinstruments.com. reedinstruments... -
Page 3: Specifications
Specifications General Specifications Display 13 mm (0.5”) LCD (Liquid Crystal Display) Measurement Lux, Ft-candle (Fc) Ranges Lux-0 to 50,000 Lux, 3 ranges Foot-candle: 0 -5,000 Fc, 3 ranges Sensor Used the exclusive photo diode & color correction . filter, spectrum designed to meet C. I. E. Zero Adjustment Automatic adjustment Sampling Time... -
Page 4: Spectrum For Light Sensor
Spectrum for Light Sensor Instrument Description 1 - Display 2 - Data Hold Switch 3 - Power Off/Range Switch 4 - LUX/Fc Switch & Response Time Switch 5 - Analog Output Terminal 6 - Battery Compartment/Cover 7 - Light Sensor Measuring Procedures 1. -
Page 5: Measuring Consideration
Measuring Consideration 1. As the range of 20,000 Lux (2000 Fc) is designed to measure the light values 000 Lux (200 Fc). So if the measured light values less than 2000 Lux (200 Fc), please select the “Range Switch” to the lower range to let display reading show high resolution &... - Page 6 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ reedinstruments...
