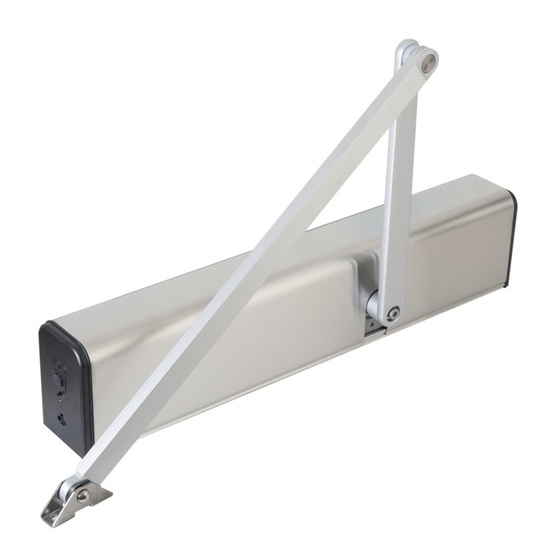

Record DFA 127 Basic Quick Set Up

This Quick Guide is intended to be used in conjunction with a full installation
.
manual
Once you have mechanically fitted your Swing unit follow this guide:
Fitting a pair? –Wire in the CAN Isolator before starting –(25 to 25, 26 to 26 etc..)
1. Using jumper J14 on the STG 127, one operator is set as Master and the other as
Slave. The operator of the active door leaf must always be selected as the Master
2. Select The rotation (Push or pull) on the Switch on the Control unit
A = PULL DIRECTION

3. Select English on the BDE

4. Press blue button for 6 flashes to select the spring type( the spring will go back and
forth – wait for it to stop) – On both operators if a pair
5. Press blue button for 4 flashes to enter programming mode - Master
6. Select configure system, then select Door type
7. Select either UK or UK LOW E depending on your risk assessment (on door safety or
not.
8. Put arm on with the door closed approx. 0 deg only finger tight
9. Press blue button for 3 flashes (– On both operators if a pair) and step back from the
door. The door should start to open slowly.
10. Stop the door-s at approx. 100 deg and the door will then close.
11. Select hold open on the BDED (top left)
12. Slacken the arm and close the door approx. 10 deg, tighten the arm finger tight. –
This Provides pre-tension on the springs.
13. Select manual operation on the BDED Top middle (snowflake) and the door will close.
14. Press the RECORD reset symbol until reset appears and then select reset. The door
will then evaluate the closed position and remember this as "Home".
15. Tighten the arm (not overtight)
DFA 127 Basic quick set up
B = PUSH DIRECTION
