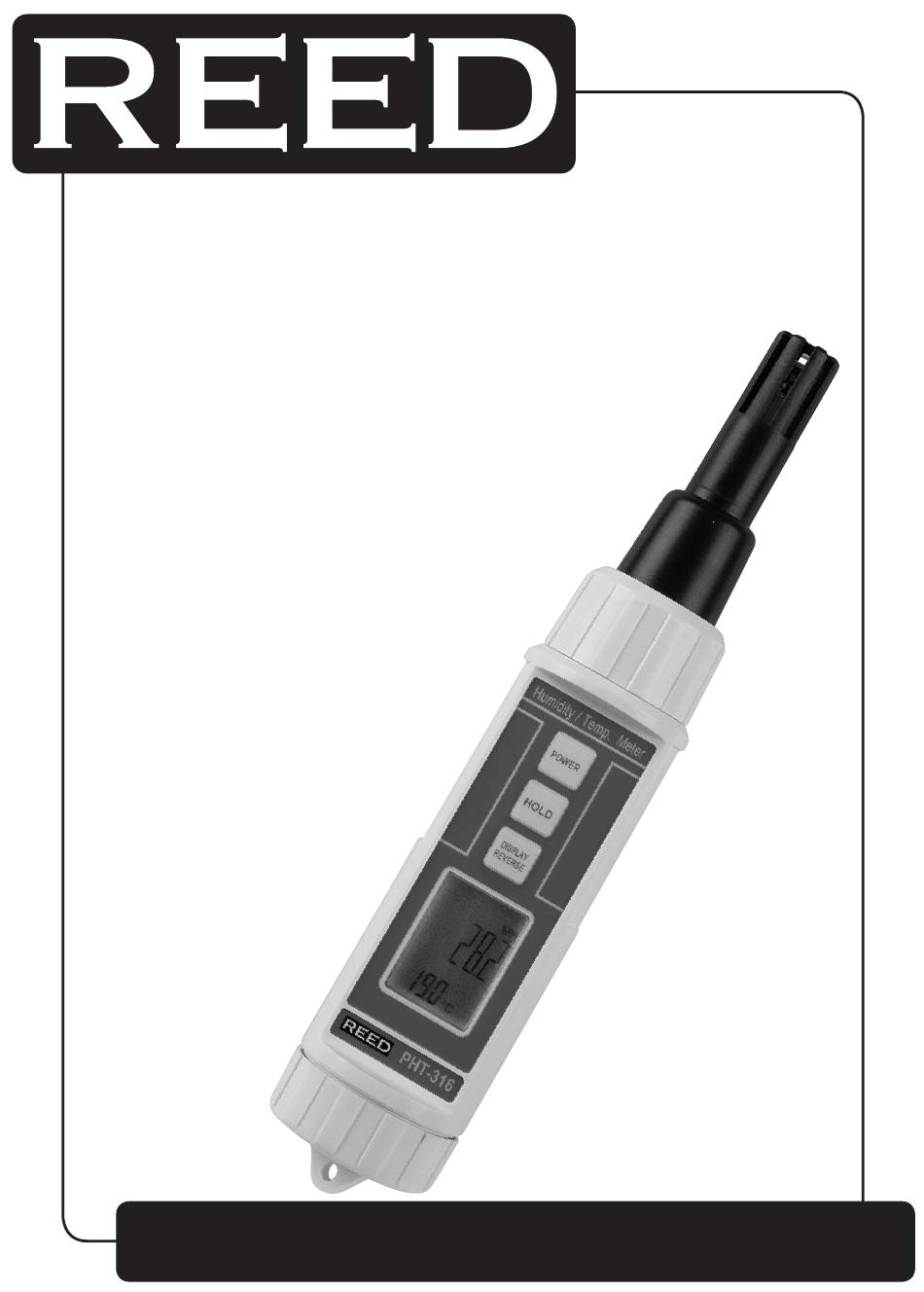

- Page 1 Black PHT-316 Model Pantone 534 Blue - 100/80/30/5 Humidity/Temperature Pantone 485 Red - 10/100/100/5 Pantone 123 Yellow - 0/27/100/ Meter Instruction Manual reedinstruments...
- Page 2 Table of Contents Features..................2 Specifications................. 3 Instrument.Description..............4 Operating.Instructons..............5-6 Data Hold ................... 5 Display Reverse ................5 Changing the Temperature Unit ........... 6 Auto Power Off ................6 Battery.Replacement..............7 Features •.
- Page 3 Specifications Display:. 28.x.19mm Display.Direction:. Normal.or.reverse.. Temperature.Units:. ºC.or.ºF Humidity.Unit:. %RH.. Humidity.Sensor:. Capacitance.semiconductor.. Temperature.Sensor:. Semiconductor.. Sampling.Time:. Approx..1.second Operating.Temperature:. 0.to.50ºC Operating.Humidity:. Less.than.80%.RH Power.Supply:. Four.AAA.(DC.1.5V).batteries Weight:. 157g/.0.35lb.(including.batteries).. Dimensions:. 210.x.40.x.40mm.(8.3.x.1.6.x.1.6”).. Optional.Accessories:. Soft.carrying.case.(CA-52A) Humidity. Range:. 10%.to.95%.RH Resolution:. 0.1.%.RH Accuracy:. ≥70%.RH:.±(3%.reading.+.1%.RH);. <70%.RH:.±3%.RH Temperature Measuring.Range:. 0.to.50ºC.(32.to.122ºF). Resolution:. 0.1º Accuracy:.

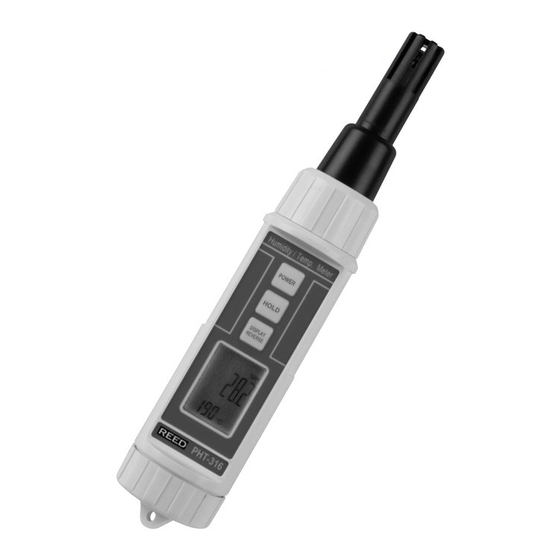

- Page 4 Instrument Description Probe.Head. Humidity/Temp..Sensor Power.Button Hold.Button Display.Reverse.Button LCD.Display Battery.Compartment/Cover. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue reedinstruments Black Rich Black - 20/20/20/100...
- Page 5 Display Reverse While.taking.a.measurement,.press.the.Display.Reverse.Button. and.the.display.direction.will.reverse.for.user.convenience. Press.the.Display.Reverse.Button.again.to.switch.the.display. back. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow For.service.on.this.or.any.other.REED.product.or.information.on.other. REED.products,.contact.REED.Instruments.at.info@reedinstruments.com Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue reedinstruments Black...
- Page 6 Changing the Temperature Unit Fig 1 Open.the.Battery.Compartment.Cover.by.rotating.it.clockwise. Press.and.hold.the.Battery.Snap.against.the.batteries.with.your. finger.(see.Fig.1). Turn.on.the.meter.by.pressing.the.Power.Button. Press.the.ºC/ºF.Button.(See.Fig.1).to.switch.the.temperature.unit. from.ºC.to.ºF.(and.vice-versa). After.the.temperature.unit.is.selected,.release.your.finger.from.the. Battery.Snap.and.reinstall.the.Battery.Cover.. (rotate.counterclockwise). The.selected.temperature.unit.will.be.the.meter’s.default.unit. Auto Power Off The.instrument.has.built-in.Auto.Power.Shut-off.function.in.order.to. prolong.battery.life..The.meter.will.switch.off.automatically.if.inactive.for. 10.min. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5...
- Page 7 Battery Replacement When.the.lower.left.corner.of.the.LCD.screen.displays. ,.the. batteries.need.to.be.replaced..To.change.the.batteries,.open.the.Battery. Cover.by.rotating.it.clockwise..Replace.the.old.batteries.with.new.. batteries.and.reinstall.the.Battery.Cover. Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red ________________________________________________ Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
- Page 8 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red ________________________________________________ Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
