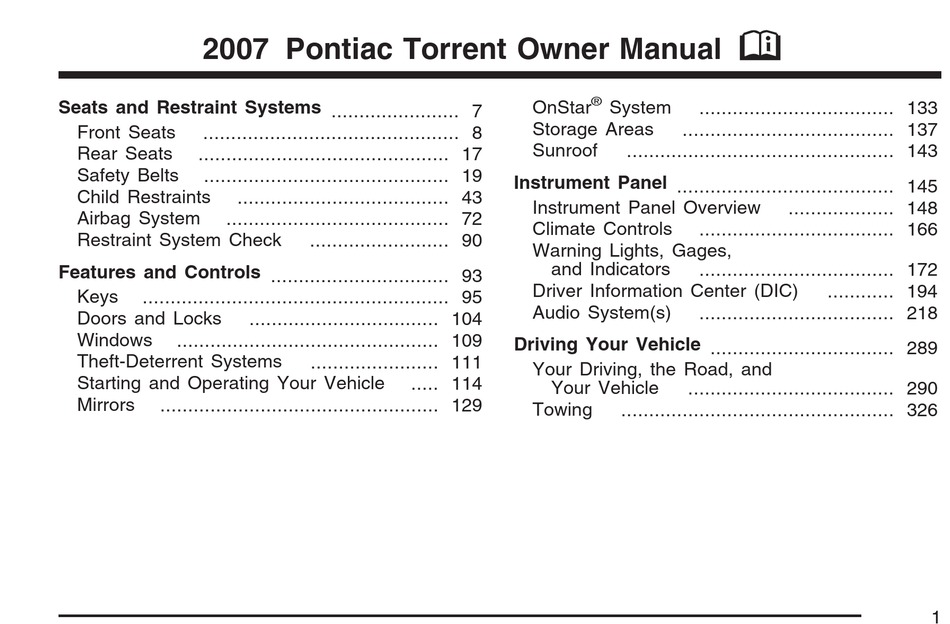

2007 Pontiac Torrent Owner Manual

Seats and Restraint Systems ....................... 7

Front Seats

.............................................. 8

Rear Seats

............................................. 17

Safety Belts

............................................ 19

Child Restraints

Airbag System

........................................ 72

Restraint System Check

Features and Controls ................................ 93

Keys

....................................................... 95

Doors and Locks

Windows

............................................... 109

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

.................................................. 129

...................................... 43

......................... 90

.................................. 104

....................... 111

..... 114

OnStar

System

Storage Areas

...................................... 137

Sunroof

................................................ 143

Instrument Panel ....................................... 145

Instrument Panel Overview

Climate Controls

Warning Lights, Gages,

and Indicators

Driver Information Center (DIC)

Audio System(s)

Driving Your Vehicle ................................. 289

Your Driving, the Road, and

Your Vehicle

..................................... 290

Towing

................................................. 326

................................... 133

................... 148

................................... 166

................................... 172

............ 194

................................... 218

Table of Contents

Chapters

Table of Contents

Need help?

Do you have a question about the 2007 Torrent and is the answer not in the manual?

Questions and answers

Joseph Mike

March 3, 2025

Right front door latch assembly manual

1 comments:

Mr. Anderson

March 3, 2025

The manual for the 2007 Pontiac Torrent includes information on "Doors and Locks" on page 104. You can check that section for details on the right front door latch assembly.

This answer is automatically generated

Charles Berry berry

April 18, 2025

Diagram for the belt tensioner pulley I understand

Summary of Contents for Pontiac 2007 Torrent

Page 1 2007 Pontiac Torrent Owner Manual Seats and Restraint Systems ... 7 Front Seats ... 8 Rear Seats ... 17 Safety Belts ... 19 Child Restraints ... 43 Airbag System ... 72 Restraint System Check Features and Controls ... 93 Keys ...
Page 2 Service and Appearance Care ... 337 Service ... 339 Fuel ... 341 Checking Things Under the Hood All-Wheel Drive ... 378 Bulb Replacement ... 380 Windshield Wiper Blade Replacement Tires ... 386 Appearance Care ... 420 Vehicle Identiﬁcation ... 430 Electrical System ...
Page 3: Canadian Owners
GENERAL MOTORS, GM, the GM Emblem, PONTIAC, the PONTIAC Emblem, and the name TORRENT are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without further notice.
Page 4: How To Use This Manual
How to Use This Manual Many people read the owner manual from beginning to end when they ﬁrst receive their new vehicle. If this is done, it can help you learn about the features and controls for the vehicle. Pictures and words work together in the owner manual to explain things.
Page 5: Vehicle Damage Warnings
Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 6 These are some examples of symbols that may be found on the vehicle:...
Page 7: Table Of Contents
Section 1 Front Seats ... 8 Manual Seats ... 8 Driver Seat Height Adjuster ... 9 Power Seat ... 10 Manual Lumbar ... 10 Heated Seats ... 11 Manual Reclining Seatbacks ... 11 Head Restraints ... 14 Passenger Folding Seatback ... 15 Rear Seats ...
Page 8: Front Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 9: Driver Seat Height Adjuster
Driver Seat Height Adjuster If your vehicle has a manual driver seat height adjuster, it is located on the outboard side of the seat near the front of the seat cushion. To raise the seat, move the lever upward repeatedly until the seat is at the desired height. To lower the seat, move the lever downward repeatedly until the seat is at the desired height.
Page 10: Power Seat
Power Seat If the vehicle has a power seat, the control used to operate it is located on the outboard side of the driver’s seat. To adjust the seat do any of the following: • Move the seat forward or rearward by sliding the control forward or rearward.
Page 11: Heated Seats
Heated Seats If your vehicle has heated seats, the switches are located on the center console of the instrument panel above the shift lever. The ignition must be on for the heated seats to operate. Press the switch, nearest to the seat, once to turn the heated seat on to the high setting.
Page 12 Driver’s Seat with Manual Recline and Manual Height Adjuster shown To adjust the seatback on the driver’s seat, lift the lever on the rear outboard side of the seat and move the seatback to the desired position. Then release the lever to lock the seatback in place. Passenger Seat with Folding Seatback Option shown To adjust the seatback on the front passenger’s...
Page 13 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job because it will not be against your body.
Page 14: Head Restraints
Head Restraints Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant’s head. This position reduces the chance of a neck injury in a crash. Pull the head restraint up to raise it.
Page 15: Passenger Folding Seatback
Passenger Folding Seatback The front passenger’s seatback may fold ﬂat. CAUTION: If you fold the seatback forward to carry longer objects, such as skis, be sure any such cargo is not near an airbag. In a crash, an inﬂating airbag might force that object toward a person.
Page 16 3. Lift the recliner lever, located on the outboard side of the seat, up fully and fold the seatback forward until it disengages. 4. Continue to fold the seat forward until it locks in the folded position. 5. Pull up on the seatback to be sure it is locked.
Page 17: Rear Seats
To raise the seatback, do the following: 1. Lift the recliner lever, located on the outboard side of the seat, up fully and push up on the seatback. 2. Continue raising the seatback until the seatback re-engages. CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash.
Page 18 CAUTION: A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted.
Page 19: Safety Belts
To recline the seatback, do the following: 1. Lift and hold the lever located on top of the seatback. 2. Tilt the seatback rearward, then release the lever when the seatback is in the desired position. To slide the entire seat forward or rearward, do the following: 1.
Page 20 CAUTION: It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts.
Page 21: Why Safety Belts Work
Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it is just a seat on wheels.
Page 22 Get it up to speed. Then stop the vehicle. The rider does not stop. The person keeps going until stopped by something. In a real vehicle, it could be the windshield...
Page 23 or the instrument panel... or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense.
Page 24: Questions And Answers About Safety Belts
Questions and Answers About Safety Belts Will I be trapped in the vehicle after an accident if I am wearing a safety belt? You could be — whether you are wearing a safety belt or not. But you can unbuckle a safety belt, even if you are upside down.
Page 25: How To Wear Safety Belts Properly
How to Wear Safety Belts Properly This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see Older Children on page 43 or Infants and Young Children on page 46.
Page 26 4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 42. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 27 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 28 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 29 What is wrong with this? The lap belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force at your abdomen.
Page 30 What is wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen.
Page 31 What is wrong with this? The belt is over an armrest. CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied at the abdomen, not at the pelvic bones, and that could cause serious or fatal injuries.
Page 32 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 33 What is wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 34: Shoulder Belt Height Adjustment
To unlatch the belt, push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 35: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 36: Rear Seat Passengers
Rear Seat Passengers It is very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who are not safety belted can be thrown out of the vehicle in a crash.
Page 37 2. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again.
Page 38 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 39: Rear Safety Belt Comfort Guides
To unlatch the belt, just push the button on the buckle. For outboard seating positions, when the safety belt is not in use, slide the latch plate up the safety belt webbing. The latch plate should rest on the stitching on the safety belt, near the guide loop on the side wall.
Page 40 2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt, and insert the two edges of the belt into the slots of the guide. 3. Be sure that the belt is not twisted and it lies ﬂat.
Page 41 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
Page 42: Safety Belt Pretensioners
Safety Belt Pretensioners Your vehicle has safety belt pretensioners for the driver and right front passenger. Although you cannot see them, they are part of the safety belt assembly. They help tighten the safety belts during the early stages of a moderate to severe frontal or near frontal crash if the threshold conditions for pretensioner activation are met.
Page 43: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
Page 44 CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time.
Page 45 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 46: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 47 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for CAUTION: (Continued) CAUTION: (Continued) young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 48 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 49: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 50 A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.
Page 51 A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window.
Page 52 Securing an Add-on Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Make sure the child restraint is properly installed in the vehicle using the vehicle’s safety belt or LATCH system, following the instructions that came with that restraint, and also the...
Page 53: Securing The Child Within The Child Restraint
Securing the Child Within the Child Restraint There are several systems for securing the child within the child restraint. One system, the three-point harness, has straps that come down over each of the infant’s shoulders and buckle together at the crotch. The ﬁve-point harness system has two shoulder straps, two hip straps, and a crotch strap.
Page 54: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We recommend that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat, and an older child riding in a booster seat.
Page 55 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in the right front passenger seat unless the passenger airbag status indicator shows off and the airbag is off.
Page 56 Conﬁgurations for Use of Two Child Restraints A. Child restraint using LATCH B. Occupant prohibited A. Occupant prohibited B. Child restraint using LATCH A. Child restraint using LATCH B. No occupant recommended C. Child restraint or occupant using safety belt Conﬁgurations for Use of Three Child Restraints A.
Page 57: Lower Anchors And Tethers For Children (Latch)
Lower Anchors and Tethers for Children (LATCH) The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system Make sure that a LATCH-compatible child restraint...
Page 58 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.
Page 59 Lower Anchor and Top Tether Anchor Locations Seating positions with top tether anchors. (Lower Anchor): Seating positions with two lower anchors. Rear Seat Each rear seating position has exposed metal anchors located in the crease between the seatback and the seat cushion. (Top Tether Anchor): The top tether anchors for each rear seating position are located on the back of the rear...
Page 60 Do not secure a child restraint in the right front passenger’s position if a national or local law requires that the top tether be attached, or if the instructions that come with the child restraint say that the top tether must be attached. There is no place to attach the top tether in this position.
Page 61 CAUTION: Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Secure any unused safety belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, if your vehicle has one, after the child restraint has been...
Page 62 Make sure to attach the child restraint at the proper anchor location. This system is designed to make installation of child restraints easier. When using lower anchors, do not use the vehicle’s safety belts. Instead use the vehicle’s anchors and child restraint attachments to secure the restraints.
Page 63 If the position you are using does not have a head restraint and you are using a dual tether, route the tether over the seatback. If the position you are 3. Push and pull the child restraint in different using has an adjustable head restraint and you are using a dual tether, route the tether around...
Page 64: Securing A Child Restraint In A Rear Seat Position
Securing a Child Restraint in a Rear Seat Position If your child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 57. If your child restraint does not have the LATCH system, you will be using the lap-shoulder belt to secure the child restraint in this position.
Page 65 4. Pull the rest of the shoulder belt all the way 5. To tighten the belt, push down on the child out of the retractor to set the lock. restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor.
Page 66: Securing A Child Restraint In The Right Front Seat Position
6. If your child restraint manufacturer recommends using a top tether, attach and tighten the top tether to the top tether anchor. Refer to the instructions that came with the child restraint and to Lower Anchors and Tethers for Children (LATCH) on page 57. 7.
Page 67 If your vehicle has a rear seat that will accommodate a rear-facing child restraint, a label on your sun visor that says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys.
Page 68 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in the right front passenger seat unless the passenger airbag status indicator shows off and the airbag is off.
Page 69 There is no top tether anchor at the right front seating position. Do not secure a child seat in this position if a national or local law requires that the top tether be anchored or if the instructions that come with the child restraint say that the top tether must be anchored.
Page 70 4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 6.
Page 71 7. Push and pull the child restraint in different directions to be sure it is secure. 8. If the airbag is off, the off indicator on the instrument panel will be lit and stay lit when the key is turned to RUN or START. If a child restraint has been installed and the on indicator is lit, turn the vehicle off.
Page 72: Airbag System
Airbag System Your vehicle has a frontal airbag for the driver and a frontal airbag for the right front passenger. Your vehicle may also have roof-mounted side impact airbags designed for either side impact or rollover deployment. Roof-mounted side impact airbags are available for the driver and the passenger seated directly behind the driver and for the right front passenger and the passenger...
Page 73 Here are the most important things to know about the airbag system: CAUTION: You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it.
Page 74 CAUTION: Both frontal and roof-mounted side impact airbags inﬂate with great force, faster than the blink of an eye. If you are too close to an inﬂating airbag, as you would be if you were leaning forward, it could seriously injure you.
Page 75: Where Are The Airbags
There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol. The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light on page 176 for more information.
Page 76 The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side. If your vehicle has a roof-mounted airbag for the driver and the person seated directly behind the driver, it is located in the ceiling above the side windows.
Page 77 If your vehicle has a roof-mounted airbag for the right front passenger and the person directly behind that passenger, it is located in the ceiling above the side windows. CAUTION: If something is between an occupant and an airbag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 78: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? The driver’s and right front passenger’s frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact exceeds a predetermined deployment threshold. Deployment thresholds take into account a variety of desired deployment and non-deployment events and are used to predict how severe a crash is likely to be in...
Page 79 Frontal airbags may inﬂate at different crash speeds. For example: • If the vehicle hits a stationary object, the airbags could inﬂate at a different crash speed than if the vehicle hits a moving object. • If the vehicle hits an object that deforms, the airbags could inﬂate at a different crash speed than if the vehicle hits an object that does not deform.
Page 80: What Makes An Airbag Inﬂate
What Makes an Airbag Inﬂate? In an impact of sufficient severity, the airbag sensing system detects that the vehicle is in a crash. Additionally, in the case of a “rollover capable” roof-mounted side impact airbag, the sensing system detects that the vehicle is about to roll over.
Page 81: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After a frontal airbag inﬂates, it quickly deﬂates, so quickly that some people may not even realize an airbag inﬂated. Roof-mounted rollover airbags may still be at least partially inﬂated minutes after the vehicle comes to rest. Some components of the airbag module —...
Page 82: Passenger Sensing System
In many crashes severe enough to inﬂate the airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for your airbag system.
Page 83 The passenger sensing system works with sensors that are part of the right front passenger’s seat. The sensors are designed to detect the presence of a properly seated occupant and determine if the passenger’s frontal airbag should be enabled (may inﬂate) or not. Accident statistics show that children are safer if they are restrained in the rear rather than the front seat.
Page 84 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in the right front passenger seat unless the passenger airbag status indicator shows off and the airbag is off.
Page 85 The passenger sensing system is designed to turn off the right front passenger’s frontal airbag if: • The right front passenger seat is unoccupied. • The system determines that an infant is present in a rear-facing infant seat. • The system determines that a small child is present in a forward-facing child restraint.
Page 86 The passenger sensing system is designed to enable (may inﬂate) the right front passenger’s frontal airbag anytime the system senses that a person of adult size is sitting properly in the right front passenger’s seat. When the passenger sensing system has allowed the airbag to be enabled, the on indicator will light and stay lit to remind you that the airbag is active.
Page 87 CAUTION: If the airbag readiness light in the instrument panel cluster ever comes on and stays on, it means that something may be wrong with the airbag system. If this ever happens, have the vehicle serviced promptly, because an adult-size person sitting in the right front passenger’s seat may not have the protection of the frontal airbag.
Page 88: Servicing Your Airbag-Equipped Vehicle
Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places around your vehicle. You do not want the system to inﬂate while someone is working on your vehicle. Your dealer and the service manual have information about servicing your vehicle and the airbag system.
Page 89: Adding Equipment To Your Airbag-Equipped Vehicle
Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to the front or sides of the vehicle that could keep the airbags from working properly? Yes. If you add things that change your vehicle’s frame, bumper system, height, front end or side sheet metal, they may keep the airbag system from working properly.
Page 90: Restraint System Check
Restraint System Check Checking the Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 91: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary...
Page 92 NOTES...
Page 93: Features And Controls
Section 2 Keys ... 95 Remote Keyless Entry (RKE) System ... 96 Remote Keyless Entry (RKE) System Operation ... 97 Doors and Locks ... 104 Door Locks ... 104 Power Door Locks ... 105 Delayed Locking ... 105 Programmable Automatic Door Locks ... 105 Rear Door Security Locks ...
Page 94 Section 2 ® OnStar System ... 133 Storage Areas ... 137 Glove Box ... 137 Cupholder(s) ... 137 Center Console Storage Area ... 138 Luggage Carrier ... 138 Features and Controls Rear Compartment Storage Panel/Cover ... 140 Rear Seat Armrest ... 141 Table ...
Page 95: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed. Do not leave the keys in a vehicle with children.
Page 96: Remote Keyless Entry (Rke) System
One key is used for the ignition and all of the locks. Key code information can be obtained by your dealer. These code numbers can be used to make new keys. Additional keys that are needed can be made at any retail service facility provided you have the key code information.
Page 97: Remote Keyless Entry (Rke) System Operation
Changes or modiﬁcations to this system by other than an authorized service facility could void authorization to use this equipment. At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this: •...
Page 98 Remote Keyless Entry Remote Keyless Entry with Remote Start without Remote Start The following functions may be available if your vehicle has the RKE system: (Remote Vehicle Start): If your vehicle has this feature, it may be started from outside the vehicle using the RKE transmitter.
Page 99: Matching Transmitter(S) To Your Vehicle
(Vehicle Locator/Panic Alarm): Press and release this button to locate your vehicle. The turn signal lamps will ﬂash and the horn will sound three times. Press and hold this button for more than two seconds to activate the panic alarm. The turn signal lamps will ﬂash and the horn will sound repeatedly for 30 seconds.
Page 100: Battery Replacement
Battery Replacement Under normal use, the battery in your RKE transmitter should last about four years. The battery is weak if the transmitter will not work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it is probably time to change the battery.
Page 101: Remote Vehicle Start
Remote Vehicle Start Your vehicle may have the remote start feature. This feature allows you to start the engine from outside the vehicle. See “REMOTE START” under DIC Vehicle Personalization on page 210 for instructions on how to enable and disable this feature.
Page 102 3. When the vehicle’s engine starts, the parking lamps will turn on and remain on while the engine is running. 4. If it is your ﬁrst remote start since last driving, repeat these steps while the engine is still running for a 10 minute time extension. When you enter the vehicle during a remote start, and the engine is still running, turn the key to the RUN position to drive the vehicle.
Page 103: Remote Start Ready
The remote vehicle start feature will not operate if: • The vehicle’s key is in the ignition. • The vehicle’s hood, liftgate or doors are not closed. • The hazard warning ﬂashers are on. • There is an emission control system malfunction.
Page 104: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 105: Power Door Locks
Power Door Locks The power door lock switches are located on the driver’s and front passenger’s doors. (Unlock): To unlock the doors, press the unlock symbol. (Lock): Remove the ignition key and press the lock symbol to lock all of the doors. Delayed Locking A chime will sound three times to indicate a door or liftgate is open when you try to lock the...
Page 106: Rear Door Security Locks
Rear Door Security Locks Your vehicle has rear door security locks that prevent passengers from opening the rear doors from the inside. The rear door security locks are located on the inside edge of each rear door. You must open the rear doors to access them.
Page 107: Liftgate
Liftgate CAUTION: It can be dangerous to drive with the liftgate or liftglass open because carbon monoxide (CO) gas can come into your vehicle. You cannot see or smell CO. It can cause unconsciousness and even death. If you must drive with the liftgate open or if electrical wiring or other cable connections must pass through the seal between the body and the liftgate or...
Page 108 Liftgate Operation with Loss of Power The liftgate is equipped with an electric latch. If the battery is disconnected or has low voltage, the liftgate will not open. To open the liftgate if this happens, remove the interior trim plug located at the base of the liftgate from inside the vehicle.
Page 109: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 110: Power Windows
Power Windows The window switches for all doors are located on the center console. A window switch for each rear window is located on each rear door. To open a window, press the bottom of the switch. To close a window, press the top of the switch. The power windows operate when the ignition is RUN or ACC (Accessory), or while in Retained Accessory Power (RAP).
Page 111: Theft-Deterrent Systems
Visor Vanity Mirrors Your vehicle has covered visor vanity mirrors on both the driver’s and passenger’s side. Theft-Deterrent Systems Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal.
Page 112: Disarming With Your Key
Disarming with the Remote Keyless Entry Transmitter The alarm system will disarm when you use your remote keyless entry transmitter to unlock the doors. The ﬁrst time a remote unlock command is received, three ﬂashes will be seen and three horn chirps heard to indicate an alarm condition has occurred since last arming.
Page 113: Pass-Key Iii+ Operation
® PASS-Key III+ Operation ® Your vehicle has PASS-Key Automotive Security System) theft-deterrent ® system. PASS-Key III+ is a passive theft-deterrent system. This means you do not have to do anything special to arm or disarm the system. It works when you transition the key to RUN, ACC or START from the LOCK position.
Page 114: Starting And Operating Your Vehicle
To program the new additional key do the following: 1. Verify that the new key has a 2. Insert the original, already programmed, key in the ignition and start the engine. If the engine will not start, see your dealer for service.
Page 115: Ignition Positions
Ignition Positions With the key in the ignition switch, you can turn it to four different positions. A warning tone will sound if you open the driver’s door when the key has not been removed from the ignition. Notice: Using a tool to force the key from the ignition switch could cause damage or break the key.
Page 116: Automatic Transaxle
Key In the Ignition Never leave your vehicle with the keys inside, as it is an easy target for joy riders or thieves. If you leave the key in the ignition and park your vehicle, a chime will sound, when you open the driver’s door.
Page 117 Your vehicle has a Computer-Controlled Cranking System. This feature assists in starting the engine and protects components. If the ignition key is turned to the START position, and then released when the engine begins cranking, the engine will continue cranking for a few seconds or until the vehicle starts.
Page 118: To Use The Engine Coolant Heater
Engine Coolant Heater If your vehicle has this feature, in very cold weather 0°F ( 18°C) or colder, the engine coolant heater can help. You will get easier starting and better fuel economy during engine warm-up. Usually, the coolant heater should be plugged in a minimum of four hours prior to starting your vehicle.
Page 119: Automatic Transaxle Operation
Automatic Transaxle Operation The shift lever is located on the center console. When you change gears, the different shift positions will display on the instrument panel cluster. There are several different positions for the automatic transaxle. PARK (P): This position locks your front wheels. It is the best position to use when you start your engine because your vehicle cannot move easily.
Page 120 You must fully apply your regular brakes ﬁrst and then press the shift lever button before you can shift from PARK (P) when the ignition key is in RUN. If you cannot shift out of PARK (P), ease pressure on the shift lever and push the shift lever all the way into PARK (P) as you maintain brake application.
Page 121 DRIVE (D): This position is for normal driving with the automatic transaxle. It provides the best fuel economy for your vehicle. If you need more power for passing, and you are: • Going less than about 35 mph (55 km/h), push your accelerator pedal about halfway down.
Page 122: Parking Brake
Transaxle Overheating If the transaxle ﬂuid temperature rises above 284°F (140°C) or rises rapidly, the Engine Coolant Temperature Warning Light will ﬂash. See Engine Coolant Temperature Warning Light on page 182 for more information. When the transaxle overheats it will go into a protection mode and will default shift into ﬁfth gear if in the DRIVE (D) position, or second gear if in the LOW (L) position.
Page 123: Shifting Into Park (P)
Make sure to release the parking brake before driving the vehicle. If the parking brake is applied and the vehicle is moving at least 4 mph (6 km/h), a chime will activate to remind you to release the parking brake. Notice: Driving with the parking brake on can overheat the brake system and cause premature wear or damage to brake system parts.
Page 124: Leaving Your Vehicle With The Engine Running
Leaving Your Vehicle With the Engine Running CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch ﬁre.
Page 125: Shifting Out Of Park (P)
Shifting Out of Park (P) Your vehicle has an automatic transaxle shift lock control system. You have to fully apply your regular brakes before you can shift from PARK (P) when the ignition is in RUN. If you cannot shift out of PARK (P), ease pressure on the shift lever —...
Page 126: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass, or other things that can burn.
Page 127: Engine Exhaust
Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • Your exhaust system sounds strange or different. •...
Page 128: Running The Engine While Parked
Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 129: Mirrors
Mirrors Manual Rearview Mirror To adjust the angle of the mirror, move the mirror to a position that allows you see to out of the back window. To adjust the height of the mirror, adjust the arm that connects the mirror to the windshield. To reduce glare from lights behind you, move the lever toward you to the night position.
Page 130: Compass Operation
Compass Operation Press the on/off button once brieﬂy to turn the compass on or off. Compass Display If the display reads CAL, the compass needs to be calibrated. For more information, see “Compass Calibration” later in this section. Compass Variance Compass variance is the difference between earth’s magnetic north and true geographic north.
Page 131: Compass Calibration
Compass Calibration The compass may need calibration if one of the following occurs: • After approximately ﬁve seconds, the display does not show a compass heading (N for North, for example), there may be a strong magnetic ﬁeld interfering with the compass. Such interference may be caused by a magnetic antenna mount, magnetic note pad holder, or a similar magnetic item.
Page 132: Outside Power Mirrors
Automatic Dimming Mirror Operation See Automatic Dimming Rearview Mirror with ® OnStar and Compass on page 129 for information on Automatic Dimming Mirror Operation and Compass Operation. Outside Power Mirrors The controls for the power mirrors are located on the instrument panel.
Page 133: Outside Convex Mirrors
Outside Convex Mirrors The passenger’s side mirror is convex. A convex mirror’s surface is curved, creating a wider area of vision for the driver. CAUTION: A convex mirror can make things (like other vehicles) look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on your right.
Page 134: Onstar Services
® OnStar service is provided to you subject to the ® OnStar Terms and Conditions. You may cancel ® your OnStar service at any time by contacting ® OnStar as provided below. A complete OnStar Owners Guide and the OnStar Conditions are included in the vehicle’s OnStar Subscriber glove box literature.
Page 135 Available Services with Safe & Sound • Automatic Notiﬁcation of Airbag Deployment • Advanced Automatic Crash Notiﬁcation (AACN) (If equipped) • Link to Emergency Services • Roadside Assistance • Stolen Vehicle Location Assistance • AccidentAssist • Remote Door Unlock/Vehicle Alert ®...
Page 136 ® OnStar Steering Wheel Controls Your vehicle may have a Talk/Mute button that can be used to interact with OnStar Calling. See Audio Steering Wheel Controls on page 285 for more information. On some vehicles, you may have to hold the button for a few seconds and give the command “ONSTAR”...
Page 137: Storage Areas
® OnStar service cannot work unless your vehicle ® is in a place where OnStar has an agreement with a wireless service provider for service in that ® area. OnStar service also cannot work unless you are in a place where the wireless service ®...
Page 138: Center Console Storage Area
Center Console Storage Area Your vehicle has a center console armrest with storage area. Use the lever on the front of the console to open it. Luggage Carrier CAUTION: If you try to carry something on top of your vehicle that is longer or wider than the luggage carrier —...
Page 139 Press the levers down until the locking mechanisms fully engage to the side rail. Make sure each lever is in the down position. The crossrail will not slide when properly engaged. To move the crossrail, pull up on the end levers on each side of the crossrail to the upright position.
Page 140: Rear Compartment Storage Panel/Cover
Rear Compartment Storage Panel/Cover Your vehicle may have an adjustable panel/cargo cover feature. The panel/cargo cover can be adjusted into three positions. There is a ﬂip panel towards the front of the cargo cover. You may have to ﬂip this panel upward in order to gain access to the cargo cover.
Page 141: Rear Seat Armrest
CAUTION: If you were to carry things on the adjustable panel when it is in the upper (cargo cover) or center positions, during a sudden vehicle movement or a crash, those things could be thrown around in the vehicle. You or others could be injured.
Page 142: Table
Table Your vehicle may have an adjustable panel that also functions as a table. The maximum load for the table is 100 lbs. distributed (45 kg). To set up the table, do the following: 1. With the adjustable panel in the upper position, pull it rearward to position it for use as a table.
Page 143: Convenience Net
Convenience Net Your vehicle may have a rear compartment net to prevent items from rolling under the rear seat. There may also be four convenience net tie-downs. Two tie-downs are located on the side trim just behind the rear seat and the other two are located on the ﬂoor at the rear of the cargo area.
Page 144 NOTES...
Page 145 Section 3 Instrument Panel Overview ... 148 Hazard Warning Flashers ... 150 Other Warning Devices ... 150 Horn ... 150 Tilt Wheel ... 151 Turn Signal/Multifunction Lever ... 151 Turn and Lane-Change Signals ... 152 Headlamp High/Low-Beam Changer ... 152 Flash-to-Pass ...
Page 146 Section 3 Engine Coolant Temperature Gage ... 183 Tire Pressure Light ... 183 Malfunction Indicator Lamp ... 184 Oil Pressure Light ... 187 Change Engine Oil Light ... 188 Security Light ... 189 Fog Lamp Light ... 189 Cruise Control Light ... 189 Reduced Engine Power Light ...
Page 147 NOTES...
Page 148: Instrument Panel Overview
Instrument Panel Overview...
Page 149 The main components of your instrument panel are the following: A. Air Outlets. See Outlet Adjustment on page 170. B. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 151. C. Instrument Panel Cluster. See Instrument Panel Cluster on page 173. D.
Page 150: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located in the center of the instrument panel.
Page 151: Tilt Wheel
Tilt Wheel Your vehicle has a tilt wheel that allows you to adjust the steering wheel. The lever to tilt the steering wheel is located on the left side of the steering column. To tilt the wheel, hold the steering wheel and push the lever down.
Page 152: Turn And Lane-Change Signals
Turn and Lane-Change Signals The turn signal has two upward (for right) and two downward (for left) positions. These positions allow you to signal a turn or a lane change. To signal a turn, move the lever all the way up or down.
Page 153: Flash-To-Pass
Flash-to-Pass This feature lets you use your high-beam headlamps to signal a driver in front of you that you want to pass. To ﬂash the high beams from low beam, pull the turn signal/multifunction lever all the way towards you. Then release it. Windshield Wipers Be sure to clear ice and snow from the wiper blades before using them.
Page 154: Windshield Washer
(Delay): Move the lever to this position to set & a delay between wipes. (Delay Adjustment): Move the lever to the delay position to choose a delayed wiping cycle. Turn the intermittent adjust band down for a longer delay or up for a shorter delay. (Off): Move the lever to this position to turn off the windshield wipers.
Page 155: Rear Window Wiper/Washer
Rear Window Wiper/Washer The rear wiper and rear wash buttons are located on the instrument panel above the audio system. (Rear Wiper): Press this button to turn the rear wiper on and off. When the wiper is on it will run continuously at a preset speed. (Wash): Press this button to spray washer ﬂuid on the rear window.
Page 156: Setting Cruise Control
Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 157 Setting Cruise Control The cruise control light on the instrument panel cluster will come on after the cruise control has been set to the desired speed. 1. Press the on/off button to turn cruise control on. 2. Get up to the speed you want. 3.
Page 158 Increasing Speed While Using Cruise Control There are two ways to go to a higher speed. • Press and hold the +RES button on the steering wheel until you reach your new desired speed, then release it. • To increase vehicle speed in small amounts, press the +RES button.
Page 159: Headlamps
Ending Cruise Control There are three ways to end cruise control: • Step lightly on the brake pedal. • Press the cancel button on the steering wheel. • Press the On/Off button on the steering wheel. Erasing Speed Memory When the cruise control or the ignition is turned off, the cruise control set speed memory is erased.
Page 160: Daytime Running Lamps (Drl)
Daytime Running Lamps (DRL) Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the day. DRL can be helpful in many different driving conditions, but they can be especially helpful in the short periods after dawn and before sunset.
Page 161: Fog Lamps
Fog Lamps Use the fog lamps for better visibility in foggy or misty conditions. The fog lamps button is located on the center console above the radio. To use the fog lamps, the parking lamps or low-beam headlamps must be on. Push the button to turn the fog lamps on or off.
Page 162: Dome Lamp
Dome Lamp The dome lamp switch has three positions. (Off): The lamp will not come on as long as the switch is in this position. AUTO (Automatic): The lamp will come on when a door is opened. See Entry Lighting on page 162. (On): The lamp will stay on as long as the switch is in this position.
Page 163: Electric Power Management
Electric Power Management The vehicle has Electric Power Management (EPM) that estimates the battery’s temperature and state of charge. It then adjusts the voltage for best performance and extended life of the battery. When the battery’s state of charge is low, the voltage is raised slightly to quickly put the charge back in.
Page 164: Battery Run-Down Protection
Battery Run-Down Protection Your vehicle has a battery saver feature designed to protect the vehicle’s battery. When any interior lamp is left on and the ignition is turned off, the battery rundown protection system will automatically turn the lamp off after 20 minutes.
Page 165: Ashtray(S) And Cigarette Lighter
Notice: Adding any electrical equipment to your vehicle may damage it or keep other components from working as they should. The repairs would not be covered by your warranty. Do not use equipment exceeding maximum amperage rating of 20 amperes. Check with your dealer before adding electrical equipment.
Page 166: Climate Controls
Climate Controls Climate Control System With this system you can control the heating, cooling, and ventilation for the vehicle. Operation Temperature Control: Turn the center knob clockwise or counterclockwise to increase or decrease the temperature inside the vehicle. (Fan): Turn the left knob clockwise or counterclockwise to increase or decrease the fan speed.
Page 167 (Vent): This mode directs air to the instrument panel outlets. (Bi-Level): This mode directs about half of the air to the instrument panel outlets, and then directs the remaining air to the ﬂoor outlets. (Floor): This mode directs most of the air to the ﬂoor outlets with some air directed to the windshield and side windows.
Page 168: Defogging And Defrosting
For quick cool down on hot days, do the following: 1. Select the vent mode. 2. Select the outside air. 3. Select air conditioning. 4. Select the coolest temperature. 5. Select the highest fan speed. 6. Once the vehicle’s interior temperature is below the outside temperature, select recirculation mode for enhanced cooling.
Page 169: Rear Window Defogger
(Defog): This mode directs half of the air to the windshield and the side window outlets, and half to the ﬂoor outlets. (Defrost): This mode directs most of the air to the windshield and the side window outlets, with some air directed to the ﬂoor outlets. Rear Window Defogger The rear window defogger uses a warming grid to remove fog from the rear window.
Page 170: Outlet Adjustment
Outlet Adjustment Use the louvers located on the air outlets to change the direction of the airﬂow. Operation Tips • Clear away any ice, snow, or leaves from the air inlets at the base of the vehicle that may block the ﬂow of air into your vehicle. •...
Page 171 To change the passenger compartment air ﬁlter, use the following steps: 1. Remove the push pins from the rear of the passenger’s side air inlet panel. It is located in the rear of the engine compartment on the passenger side of the vehicle. 2.
Page 172: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 173: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, how much fuel you are using, and many other things you will need to drive safely and economically.
Page 174: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). Your vehicle has a tamper resistant odometer.
Page 175: Safety Belt Reminder Light
Safety Belt Reminder Light When the key is turned to RUN or START, a chime will come on for several seconds to remind people to fasten their safety belts, unless the driver’s safety belt is already buckled. The safety belt light will also come on and stay on for several seconds, then it will ﬂash for...
Page 176: Airbag Readiness Light
Airbag Readiness Light There is an airbag readiness light on the instrument panel, which shows the airbag symbol. The system checks the airbag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the airbag sensor, the airbag modules, the wiring and the crash sensing and diagnostic module.
Page 177: Passenger Airbag Status Indicator
Passenger Airbag Status Indicator Your vehicle has the passenger sensing system. Your instrument panel has a passenger airbag status indicator. United States When the ignition key is turned to RUN or START, the passenger airbag status indicator will light ON and OFF, or the symbol for on and off, for several seconds as a system check.
Page 178 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in the right front passenger seat unless the passenger airbag status indicator shows off and the airbag is off.
Page 179: Battery Warning Light
If the word OFF or the off symbol is lit on the airbag status indicator, it means that the passenger sensing system has turned off the right front passenger’s frontal airbag. See Passenger Sensing System on page 82 for more on this, including important safety information.
Page 180: Brake System Warning Light
Brake System Warning Light Your vehicle’s hydraulic brake system is divided into two parts. If one part is not working, the other part can still work and stop you. For good braking, though, you need both parts working well. If the brake system warning light comes on, there is a brake problem.
Page 181: Anti-Lock Brake System Warning Light
CAUTION: Your brake system may not be working properly if the brake system warning light is on. Driving with the brake system warning light on can lead to an accident. If the light is still on after you have pulled off the road and stopped carefully, have the vehicle towed for service.
Page 182: Traction Control System (Tcs) Warning Light
Traction Control System (TCS) Warning Light Your vehicle has a Traction Control System (TCS) and StabiliTrak light. This light will come on when the TCS is limiting wheel spin or when the StabiliTrak is active. You may feel or hear the system working, but this is normal.
Page 183: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage This gage measures the temperature of the vehicle’s engine. If the indicator needle moves towards the shaded in thermostat, the engine is too hot. The engine coolant temperature warning light will turn on. See Engine Coolant Temperature Warning Light on page 182 for more information.
Page 184: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light Your vehicle has a computer which monitors operation of the fuel, ignition, and emission control systems. This system is called OBD II (On-Board Diagnostics-Second Generation) and is intended to assure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 185: If The Light Is Flashing
This light should come on, as a check to show you it is working, when the ignition is on and the engine is not running. If the light does not come on, have it repaired. This light will also come on during a malfunction in one of two ways: •...
Page 186: If The Light Is On Steady
If the Light Is On Steady You may be able to correct the emission system malfunction by considering the following: Did you recently put fuel into your vehicle? If so, reinstall the fuel cap, making sure to fully install the cap. See Filling the Tank on page 343. The diagnostic system can determine if the fuel cap has been left off or improperly installed.
Page 187: Emissions Inspection And Maintenance Programs
Emissions Inspection and Maintenance Programs Some state/provincial and local governments have or may begin programs to inspect the emission control equipment on your vehicle. Failure to pass this inspection could prevent you from getting a vehicle registration. Here are some things you need to know to help your vehicle pass an inspection: Your vehicle will not pass this inspection if the check engine light is on or not working properly.
Page 188: Change Engine Oil Light
• If the vehicle is idling at a stop sign, the light may blink on and then off. • If you make a hard stop, the light may come on for a moment. This is normal. CAUTION: Do not keep driving if the oil pressure is low.
Page 189: Security Light
Security Light Your vehicle is equipped with a theft-deterrent system. With this system, the security light will ﬂash as you open the door if your ignition is off. This light will come on brieﬂy when the vehicle is turned on. For more information, see PASS-Key Operation on page 113.
Page 190: Reduced Engine Power Light
Reduced Engine Power Light This light will come on brieﬂy when you start the engine. This light, along with the service vehicle soon light, will be displayed when a noticeable reduction in the vehicle’s performance may occur. Stop the vehicle and turn off the ignition. Wait for 10 seconds and restart your vehicle.
Page 191: Service All-Wheel Drive Light
Service All-Wheel Drive Light This light is located in the center of your instrument panel cluster. This light and the SERVICE ALL WHEEL DRIVE message in the Driver Information Center (DIC) will come on and stay on to indicate that there may be a problem with the drive system and service is required.
Page 192: Gate Ajar Light
Gate Ajar Light If this light comes on, your liftgate is not completely closed. Driving with the liftgate open can cause carbon monoxide (CO) to enter the vehicle. See Engine Exhaust on page 127 for more information. Door Ajar Light This light will come on when a door is ajar.
Page 193: Low Fuel Warning Light
When the indicator nears empty, the low fuel light will come on. You still have a little fuel left, but you should get more soon. See Low Fuel Warning Light on page 192 for more information. Here are four things that some owners ask about. None of these show a problem with your fuel gage: •...
Page 194: Driver Information Center (Dic)
Driver Information Center (DIC) Your vehicle has a Driver Information Center (DIC). All messages will appear in the DIC display located in the center of the instrument panel cluster. The DIC buttons are located on the center of the instrument panel. The DIC comes on when the ignition is on.
Page 195: Dic Operation And Displays
DIC Operation and Displays The DIC has different displays which can be accessed by pressing the DIC buttons located on the center of the instrument panel. DIC Buttons The buttons are the trip/fuel, vehicle information, and set/reset buttons. The button functions are detailed in the following pages.
Page 196 Trip/Fuel Menu Items (Trip/Fuel): Press this button to scroll through the following displays: ODOMETER Press the trip/fuel button until ODOMETER displays. This display shows the distance the vehicle has been driven in either miles (mi) or kilometers (km). This display will also show the outside air temperature in either degrees Fahrenheit (°F) or degrees Celsius (°C).
Page 197 AVG (Average) ECONOMY Press the trip/fuel button until AVG ECONOMY displays. This display shows the approximate average miles per gallon (mpg) or liters per 100 kilometers (L/100 km). This number is calculated based on the number of mpg (L/100 km) recorded since the last time this menu item was reset.
Page 198 Vehicle Information Menu Items (Vehicle Information): Press this button to scroll through the following displays: OIL LIFE Press the vehicle information button until OIL LIFE REMAINING displays. This display shows an estimate of the oil’s remaining useful life. If you see 99% OIL LIFE REMAINING on the display, that means 99% of the current oil life remains.
Page 199 If a low or high tire pressure condition is detected by the system while driving, a message advising you to check the pressure in a speciﬁc tire will appear in the display. See Inﬂation - Tire Pressure on page 393 and DIC Warnings and Messages on page 200 for more information.
Page 200: Dic Warnings And Messages
3. Press the set/reset button. The message REMOTE KEY LEARNING ACTIVE will display. 4. Press and hold the lock and unlock buttons on the ﬁrst transmitter at the same time for about 15 seconds. A chime will sound indicating that the transmitter is matched.
Page 201: Battery Saver Active
ALL WHEEL DRIVE OFF If your vehicle has the All-Wheel Drive (AWD) system, this message displays along with the All-Wheel Drive Disabled light when the rear drive system is overheating. This message turns off when the rear drive system cools down. If the warning message stays on for a while, you need to reset the warning message.
Page 202: Buckle Seatbelt
BUCKLE SEATBELT This message reminds you to buckle the driver’s safety belt. This message displays and a chime sounds when the ignition is on, the driver’s safety belt is unbuckled, and the vehicle is in motion. You should buckle your safety belt. If the driver remains unbuckled when the ignition is on and the vehicle is in motion, the reminder will be repeated.
Page 203: Driver Door Open
DRIVER DOOR OPEN This message displays when the driver’s door is not closed properly. When this message appears, make sure that the driver’s door is closed completely. ENGINE HOT A/C (Air Conditioning) OFF This message displays when the engine coolant becomes hotter than the normal operating temperature.
Page 204: Fuel Level Low
ENGINE OVERHEATD (Overheated) STOP ENGINE Notice: If you drive your vehicle while the engine is overheating, severe engine damage may occur. If an overheat warning appears on the instrument panel cluster and/or DIC, stop the vehicle as soon as possible. See Engine Overheating on page 360 for more information.
Page 205 OIL PRSSURE (Pressure) LOW STOP ENGINE Notice: If you drive your vehicle while the engine oil pressure is low, severe engine damage may occur. If a low oil pressure warning appears on the Driver Information Center (DIC), stop the vehicle as soon as possible.
Page 206: Service Brake System
SERVICE ALL WHEEL DRIVE If your vehicle has the All-Wheel Drive (AWD) system, this message displays along with the service all-wheel drive light if a problem occurs with this system. See Service All-Wheel Drive Light on page 191. If this message appears, stop as soon as possible and turn off the vehicle.
Page 207: Service Tire Monitor System
SERVICE STABILITRAK This message displays if there has been a problem detected with the StabiliTrak A warning light also appears on the instrument panel cluster. See Traction Control System (TCS) Warning Light on page 182. See StabiliTrak System on page 298 for more information. If this message turns on while you are driving, pull off the road as soon as possible and stop carefully.
Page 208: Service Vehicle Soon
SERVICE VEHICLE SOON This message displays when a non-emissions related malfunction occurs. Have the vehicle serviced by your dealer as soon as possible. STABILITRAK NOT READY This message may display and a warning light on the instrument panel cluster may be on after ﬁrst driving the vehicle and exceeding 30 mph (48 km/h) for 30 seconds.
Page 209 THEFT ATTEMPTED This message displays if the content theft-deterrent system has detected a break-in attempt while you were away from your vehicle. See Content Theft-Deterrent on page 111 for more information. TIRE LEARNING ACTIVE This message displays when the Tire Pressure Monitor (TPM) system is re-learning the tire positions.
Page 210: Dic Vehicle Personalization
DIC Vehicle Personalization Your vehicle has personalization capabilities that allow you to program certain features to one preferred setting. All of the personalization options may not be available on your vehicle. Only the options available will be displayed on the DIC. The default settings for the personalization features were set when your vehicle left the factory, but may have been changed from their...
Page 211 DISPLAY LANGUAGE This feature allows you to select the language in which the DIC messages will appear. Press the vehicle information button until DISPLAY LANGUAGE appears on the DIC display. Press the set/reset button to access the settings for this feature.
Page 212 AUTO UNLOCK This feature allows you to select whether or not to turn off the automatic door unlocking feature. It also allows you to select which doors and when the doors will automatically unlock. See Programmable Automatic Door Locks on page 105 for more information.
Page 213 HORN ONLY: The horn will sound on the second press of the lock button on the RKE transmitter. HORN & LIGHTS (default): The exterior lamps will ﬂash when you press the lock button on the RKE transmitter, and the horn will sound when the lock button is pressed again within ﬁve seconds of the previous command.
Page 214 DELAY LOCK This feature allows you to select whether or not the locking of the vehicle’s doors will be delayed. The locking of the vehicle’s doors is delayed for up to 10 seconds after a power door lock switch is pressed when a door is open, or after the lock button on the RKE transmitter is pressed while a door is open.
Page 215 2 MINUTES: The exterior lamps will stay on for two minutes. NO CHANGE: No change will be made to this feature. The current setting will remain. Choose one of the available settings and press the set/reset button while it is displayed on the DIC to select it.
Page 216 NO CHANGE: No change will be made to this feature. The current setting will remain. Choose one of the available settings and press the set/reset button while it is displayed on the DIC to select it. REMOTE START If your vehicle has this feature, it allows you to turn the remote start off or on.
Page 217 DO NOT RESTORE: The personalization features will not be set to their factory default settings. Choose one of the available settings and press the set/reset button while it is displayed on the DIC to select it. EXIT FEATURE SETTINGS This feature allows you to exit the feature settings menu.
Page 218: Audio System(S)
Audio System(s) Determine which radio your vehicle has and then read the pages following to familiarize yourself with its features. Driving without distraction is a necessity for a safer driving experience. See Defensive Driving on page 290. By taking a few moments to read this manual and get familiar with your vehicle’s audio system, you can use it with less effort, as well as take advantage of its features.
Page 219 Here are some ways in which you can help avoid distraction while driving. While your vehicle is parked: • Familiarize yourself with all of its controls. • Familiarize yourself with its operation. • Set up your audio system by presetting your favorite radio stations, setting the tone, and adjusting the speakers.
Page 220: Setting The Time (Without Date Display)
Setting the Time (Without Date Display) If your vehicle has an AM/FM base radio with a single CD player and preset buttons numbered one through six, the radio will have a clock button for setting the time. You can set the time by following these steps: 1.
Page 221 3. Press the pushbutton located under any one of the labels that you want to change. Every time the pushbutton is pressed again, the time or the date if selected, will increase by one. • Another way to increase the time or date, is to press the right SEEK arrow or FWD (forward) button.
Page 222: Radio With Cd (Base)
To change the time default setting from 12 hour to 24 hour or to change the date default setting from month/day/year to day/month/year, follow these instructions: 1. Press the clock button and then the pushbutton located under the forward arrow label.
Page 223: Finding A Station
Finding a Station BAND: Press this button to switch between FM1, FM2 or AM. The display shows the selection. (Tune): Turn this knob to select radio stations. © ¨ SEEK : Press the right or left SEEK arrow to go to the next or to the previous station and stay there.
Page 224: Adjusting The Speakers (Balance/Fade)
Adjusting the Speakers (Balance/Fade) BAL/FADE (Balance/Fade): To adjust the balance or fade, press this button or the tune knob until the desired speaker control label appears on the display. Turn the tune knob clockwise or counterclockwise to adjust the setting. Radio Messages Calibration Error: The audio system has been calibrated for your vehicle from the factory.
Page 225 Do not add any label to a CD, it could get caught in the CD player. If a CD is recorded on a personal computer and a description label is needed, try labeling the top of the recorded CD with a marking pen. Notice: If you add any label to a CD, insert more than one CD into the slot at a time, or attempt to play scratched or damaged CDs, you...
Page 226 RDM (Random): With random, you can listen to CD tracks in random, rather than sequential order. To use random, do the following: 1. Press this button to play tracks from the CD you are listening to in random order. The random icon appears on the display.
Page 227: Using The Auxiliary Input Jack
CD Messages CHECK DISC: If an error message appears on the display and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. •...
Page 228: Radio With Cd (Mp3)
Radio with CD (MP3) (Power/Volume): Turn this knob clockwise or counterclockwise to increase or decrease the volume of the portable player. You may need to do additional volume adjustments from the portable device if the volume does not go loud or soft enough.
Page 229: Radio Data System (Rds)
Radio Data System (RDS) The audio system has a Radio Data System (RDS). The RDS feature is available for use only on FM stations that broadcast RDS information. This system relies upon receiving speciﬁc information from these stations and only works when the information is available.
Page 230 Finding a Station BAND: Press this button to switch between AM, FM, or XM™ (if equipped). The display shows the selection. (Tune): Turn this knob to select radio stations. © ¨ SEEK : Press the right or left SEEK arrow to go to the next or to the previous station and stay there.
Page 231 Storing a Radio Station as a Favorite Drivers are encouraged to set up their radio station favorites while the vehicle is parked. Tune to your favorite stations using the presets, favorites button, and steering wheel controls (if equipped). See Defensive Driving on page 290. FAV (Favorites): A maximum of 36 stations can be programmed as favorites using the six pushbuttons positioned below the radio station...
Page 232 Setting the Tone (Bass/Treble) BASS/MID/TREB (Bass, Midrange, or Treble): To adjust bass, midrange, or treble, press the tune knob until the tone control labels appear on the display. Continue pressing to highlight the desired label, or press the pushbutton positioned under the desired label.
Page 233: Finding A Category (Cat) Station
Finding a Category (CAT) Station CAT (Category): The CAT button is used to ﬁnd XM™ stations when the radio is in the XM™ mode. To ﬁnd XM™ channels within a desired category, perform the following: 1. Press the BAND button until the XM™ frequency is displayed.
Page 234: Playing A Cd(S) (Six-Disc Cd Player)
Radio Messages Calibration Error: The audio system has been calibrated for your vehicle from the factory. If Calibration Error appears on the display, it means that the radio has not been conﬁgured properly for your vehicle and it must be returned to your dealer for service.
Page 235 When a CD is inserted, the CD symbol appears on the CD. As each new track starts to play, the track number appears on the display. The CD player can play the smaller 3 inch (8 cm) single CDs with an adapter ring. Full-size CDs and the smaller CDs are loaded in the same manner.
Page 236 © ¨ SEEK : Press the left SEEK arrow to go to the start of the current track, if more than ten seconds have played. Press the right SEEK arrow to go to the next track. If either SEEK arrow is held, or pressed multiple times, the player continues moving backward or forward through the tracks on the CD.
Page 237 BAND: Press this button to listen to the radio when a CD is playing. The CD remains safely inside the radio for future listening. CD/AUX (CD/Auxiliary): Press this button to play a CD when listening to the radio. The CD icon and a message showing disc and/or track number appears on the display when a CD is in the player.
Page 238 Using the Auxiliary Input Jack Your radio system has an auxiliary input jack located on the lower right side of the faceplate. This is not an audio output; do not plug the headphone set into the front auxiliary input jack. You can however, connect an external audio device such as an iPod, laptop computer, MP3 player, CD changer, or cassette tape player, etc.
Page 239: Radio With Cd And Dvd
Radio with CD and DVD If your vehicle has a Rear Seat Entertainment (RSE) system, it has a CD/DVD radio. See Rear Seat Entertainment System on page 274 for more information on the vehicle’s RSE system. The DVD player is the top slot on the radio faceplate.
Page 240 XM™ Satellite Radio Service XM™ is a satellite radio service that is based in the 48 contiguous United States and Canada. XM™ offers a large variety of coast-to-coast channels including music, news, sports, talk, traffic/weather (U.S. subscribers), and children’s programming. XM™ provides digital quality audio and text information that includes song title and artist name.
Page 241 Finding a Station BAND: Press this button to switch between AM, FM, or XM™ (if equipped). The display shows the selection. (Tune): Turn this knob to select radio stations. © ¨ SEEK : Press the right or left SEEK arrow to go to the next or to the previous station and stay there.
Page 242 Storing a Radio Station as a Favorite Drivers are encouraged to set up their radio station favorites while the vehicle is parked. Tune to your favorite stations using the presets, favorites button, and steering wheel controls, if the vehicle has them. See Defensive Driving on page 290.
Page 243 Setting the Tone (Bass/Treble) BASS/MID/TREB (Bass, Midrange, or Treble): To adjust bass, midrange, or treble, press the tune knob until the tone control labels appear on the display. Continue pressing to highlight the desired label, or press the pushbutton positioned under the desired label. Turn the tune knob clockwise or counterclockwise to adjust the highlighted setting.
Page 244 Finding a Category (CAT) Station CAT (Category): The CAT button is used to ﬁnd XM™ stations when the radio is in the XM™ mode. To ﬁnd XM™ channels within a desired category, perform the following: 1. Press the BAND button until the XM™ frequency is displayed.
Page 245 Radio Messages Calibration Error: The audio system has been calibrated for your vehicle from the factory. If Calibration Error appears on the display, it means that the radio has not been conﬁgured properly for your vehicle and it must be returned to your dealer for service.
Page 246 If playing a CD-R, the sound quality may be reduced due to CD-R quality, the method of recording, the quality of the music that has been recorded, and the way the CD-R has been handled. There may be an increase in skipping, difficulty in ﬁnding tracks, and/or difficulty in loading and ejecting.
Page 247 DVD (Eject): Press and release the DVD eject button to eject the CD that is currently playing in the top slot. A beep will sound and Ejecting Disc appears on the display. Once the disc is ejected, Remove Disc appears on the display. The CD can be removed.
Page 248: Audio Output
DVD/CD AUX (Auxiliary): Press this button to cycle through DVD, CD, or Auxiliary when listening to the radio. The DVD/CD text label and a message showing track or chapter number appears on the display when a disc is in either slot.
Page 249 Playing an MP3/WMA CD-R or CD-RW Disc If you have a radio with a CD and DVD, it is capable of playing an MP3/WMA CD-R or CD-RW disc. For more information on how to play an MP3 CD-R or CD-RW disc, see “Using an MP3” in the index.
Page 250: Using The Dvd Player
Using the DVD Player The DVD player is controlled by the buttons on the remote control, by the RSA system, or by the buttons on the radio faceplate. See “Remote Control”, under Rear Seat Entertainment System on page 274 for more information. The DVD player is only compatible with DVDs of the appropriate region code that is printed on the jacket of most DVDs.
Page 251 (Power): Press this knob to turn the radio on. Turn this knob clockwise or counterclockwise to increase or decrease the volume. A single press turns the radio off. Press and holding the knob for more than two seconds turns off the entire radio and rear seat entertainment system and starts the parental control feature which prevents the rear seat occupant from operating the Rear...
Page 252 (Eject): Press this button to eject a CD or DVD. If a CD or DVD is ejected, but not removed, the player automatically pulls it back in after 15 seconds. If loading and reading of a CD cannot be completed, such as unknown format, etc., and the disc fails to eject, press and hold the CD eject button for more than ﬁve seconds to force the disc to eject.
Page 253 (Menu): Press this button to access the DVD menu. The DVD menu is different on every DVD. Use the pushbuttons located under the navigation arrows to navigate the cursor through the DVD menu. After making a selection press the enter button. This button only operates when using a DVD.
Page 254 (Play/Pause): Press either the play or pause icon displayed on the radio system, to toggle between pausing or restarting playback of a DVD. If the forward arrow is showing on display, the system is in pause mode. If the pause icon is showing on display, the system is in playback mode.
Page 255: Dvd Radio Error Messages
Stopping and Resuming Playback To stop playing a DVD without turning off the system, press the stop button on the remote control, or press the pushbutton located under the stop or the play/pause symbol tags displayed on the radio. If the radio head is sourced to something other than DVD-V, press the DVD/CD AUX button to make DVD-V the active source.
Page 256 Using the Auxiliary Input Jack(s) Your radio system has an auxiliary input jack located on the lower right side of the faceplate. This is not an audio output; do not plug the headphone set into the front auxiliary input jack. You can however, connect an external audio device such as an iPod, laptop computer, MP3 player, CD player, or cassette tape player,...
Page 257: Using An Mp3 (Radio With Cd Or Six-Disc Cd Player)
DVD/CD AUX (CD/Auxiliary): Press this button to cycle through DVD, CD, or Auxiliary when listening to the radio. The DVD/CD text label and a message showing track or chapter number appears on display when a disc is in either slot. Press this button again and the system automatically searches for an auxiliary input device, such as a portable audio player.
Page 258 MP3/WMA Format If you burn your own MP3/WMA disc on a personal computer: • Make sure the MP3 ﬁles are recorded on a CD-R or CD-RW disc. • Avoid mixing standard audio and MP3 ﬁles on one disc. • The CD player is able to read and play a maximum of 50 folders, 50 playlists, and 255 ﬁles.
Page 259 Root Directory The root directory of the CD-R is treated as a folder. If the root directory has compressed audio ﬁles, the directory displays as F1 ROOT. All ﬁles contained directly under the root directory are accessed prior to any root directory folders. However, playlists (Px) are always accessed before root folders or ﬁles.
Page 260 File System and Naming The song name that displays is the song name that is contained in the ID3 tag. If the song name is not present in the ID3 tag, then the radio displays the ﬁle name without the extension (such as .mp3) as the track name.
Page 261 Do not add any label to a CD, it could get caught in the CD player. If a CD is recorded on a personal computer and a description label is needed, try labeling the top of the recorded CD with a marking pen. Notice: If you add any label to a CD, insert more than one CD into the slot at a time, or attempt to play scratched or damaged CDs, you...
Page 262 FWD (Fast Forward): Press and hold this button to advance playback quickly within an MP3 ﬁle. You will hear sound at a reduced volume. Release this button to resume playing the ﬁle. The elapsed time of the ﬁle appears on the display.
Page 263 To change from playback by artist to playback by album, press the pushbutton located below the Sort By label. From the sort screen, push one of the buttons below the album button. Press the pushbutton below the back label to return to the main music navigator screen.
Page 264: Player)
Using an MP3 (Radio with CD and DVD Player) MP3/WMA CD-R or CD-RW Disc Compressed Audio or Mixed Mode Discs The radio also plays discs that contain both uncompressed CD audio (.CDA ﬁles) and MP3/WMA ﬁles depending on which slot the disc is loaded into.
Page 265 • Avoid subfolders. The system can support up to 8 subfolders deep, however, keep the total number of folders to a minimum in order to reduce the complexity and confusion in trying to locate a particular folder during playback. • Make sure playlists have a .m3u, .wpl or .pls extension (other ﬁle extensions may not work).
Page 266 No Folder When the CD-R contains only compressed ﬁles, the ﬁles are located under the root folder. The next and previous folder functions are not displayed on a CD-R that was recorded without folders or playlists. When displaying the name of the folder the radio displays ROOT.
Page 267 Playing an MP3 (In Either the DVD or CD Slot) Insert a CD-R partway into either the top or bottom slot, label side up. The player pulls it in, and the CD-R should begin playing. Depending on the format of the disc, a softkey menu appears and allow navigation of the disc.
Page 268 If there is no apparent damage, try a known good CD. Notice: If you add any label to a CD, insert more than one CD into the slot at a time, or attempt to play scratched or damaged CDs, you could damage the CD player.
Page 269 DVD (Eject): Press and release the DVD eject button to eject the CD-R that is currently playing in the top slot. A beep will sound and Ejecting Disc appears on the display. Once the disc is ejected, Remove Disc appears on the display.
Page 270 REV (Reverse): Press and hold this button to reverse playback quickly within an MP3 ﬁle. You will hear sound at a reduced volume. Release this button to resume playing the ﬁle. The elapsed time of the ﬁle appears on the display. FWD (Fast Forward): Press and hold this button to advance playback quickly within an MP3 ﬁle.
Page 271 To change from playback by artist to playback by album, press the pushbutton located below the Sort By label. From the sort screen, push one of the buttons below the album button. Press the pushbutton below the back label to return to the main music navigator screen.
Page 272: Xm Radio Messages
XM Radio Messages Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. XM Updating Updating encryption code The encryption code in the receiver is being updated, and No XM Signal Loss of signal Loading XM Acquiring channel audio...
Page 273 Radio Display Message No CAT Info Category Name not available No Information No Text/Informational message available CAT Not Found No channel available for the chosen category XM Theftlocked Theft lock active XM Radio ID Radio ID label (channel 0) If tuned to channel 0, this message will alternate with the Unknown Radio ID not known (should only be if...
Page 274: Navigation/Radio System
Navigation/Radio System Your vehicle may have a navigation radio system. The navigation system has built-in features intended to minimize driver distraction. Technology alone, no matter how advanced, can never replace your own judgment. See the Navigation System manual for some tips to help you reduce distractions while driving.
Page 275 To enable Parental Control press and hold the radio power button for more than 2 seconds. If on, the radio and video screen will turn off. If a DVD and/or CD is playing, it will be stopped. A “padlock” icon or a text message may be displayed on the radio display depending on which radio you have, while Parental Control is on.
Page 276 If the remote control becomes lost or damaged, a new universal remote control can be purchased. If this happens, make sure the universal remote control uses a code set of Toshiba Notice: Do not store the headphones in heat or direct sunlight. This could damage the headphones and repairs will not be covered by your warranty.
Page 277: Audio/Video (A/V) Jacks
Audio/Video (A/V) Jacks The A/V jacks are located on the rear of the ﬂoor console. The A/V jacks allow audio or video signals to be connected from an auxiliary device such as a camcorder or a video game unit to the RSE system.
Page 278 How to Change the RSE Video Screen Settings The screen display mode (normal, full, and zoom), screen brightness, and setup menu language can be changed from the on screen setup menu. To change any feature, perform the following: 1. Press the display menu button on the remote control.
Page 279: Video Screen
Video Screen The video screen is located in the RSE overhead console. To use the video screen, do the following: 1. Push the release button located on the RSE overhead console. 2. Turn the screen to the desired position. When the video screen is not in use, push it up into its locked position.
Page 280: Remote Control Buttons
Remote Control Buttons (Power): Press this button to turn the video screen on and off. (Illumination): Press this button to turn the remote control backlight on. The backlight will automatically time out after 7 to 10 seconds if no other button is pressed while the backlight is on. (Title): Press this button to return the DVD to the main menu of the DVD.
Page 281 (Play/Pause): Press this button to start playing a DVD. Press this button while a DVD is playing to pause it. Press it again to continue playing the DVD. When the DVD is playing, depending on the radio, you may be able to do slow play by pressing the pause button then pressing the fast forward button.
Page 282 AUX (Auxiliary): Press this button to switch the system between the DVD player and an auxiliary source. (Camera): Press this button to change camera angles on DVDs that have this feature when a DVD is playing. The format and content of this function will vary for each disc.
Page 283 Problem Recommended Action No power. The ignition might not be turned on or in accessory. The picture does not ﬁll the Check the display mode screen. There are black settings in the setup menu borders on the top and by pressing the display bottom or on both sides or menu button on the remote it looks stretched out.
Page 284: Dvd Display Error Messages
DVD Display Error Messages The DVD display error message depends on which radio you have. The video screen may display one of the following: Disc Load/Eject Error: This message is displayed when there are disc load or eject problems. Disc Format Error: This message will be displayed, if the disc is inserted with the disc label wrong side up, or if the disc is damaged.
Page 285: Theft-Deterrent Feature
Theft-Deterrent Feature ® THEFTLOCK is designed to discourage theft of your vehicle’s radio. It works by using a secret code to disable all radio functions whenever battery power is removed and the radio is placed in a different vehicle. This feature requires no user input to be activated.
Page 286 (Mute/Voice Recognition): Press and release this button to silence the system. Press and release this button again, to turn the sound on. If your vehicle has the navigation system, press and hold this button for longer than one second to initiate voice recognition. See “Voice Recognition”...
Page 287: Radio Reception
Radio Reception XM™ Satellite Radio Service XM™ Satellite Radio Service gives digital radio reception from coast-to-coast in the 48 contiguous United States, and in Canada. You may experience interference with satellite radio signals, while driving near tall buildings or through hilly areas, causing the sound to fade in and out.
Page 288: Care Of Your Cds And Dvds
Care of Your CDs and DVDs Handle CDs carefully. Store them in their original cases or other protective cases and away from direct sunlight and dust. The CD player scans the bottom surface of the disc. If the surface of a CD is damaged, such as cracked, broken, or scratched, the CD does not play properly or not at all.
Page 289: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ... 290 Defensive Driving ... 290 Drunken Driving ... 291 Control of a Vehicle ... 294 Braking ... 294 Anti-Lock Brake System (ABS) ... 295 Braking in Emergencies ... 297 Traction Control System (TCS) ... 297 ®...
Page 290: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 19. CAUTION: Defensive driving really means “Be ready for anything.”...
Page 291: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It is the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: •...
Page 292 According to the American Medical Association, a 180 lb (82 kg) person who drinks three 12 ounce (355 ml) bottles of beer in an hour will end up with a BAC of about 0.06 percent. The person would reach the same BAC by drinking three 4 ounce (120 ml) glasses of wine or three mixed drinks if each had 1-1/2 ounces (45 ml) of liquors like whiskey, gin, or vodka.
Page 293 But the ability to drive is affected well below a BAC of 0.10 percent. Research shows that the driving skills of many people are impaired at a BAC approaching 0.05 percent, and that the effects are worse at night. All drivers are impaired at BAC levels above 0.05 percent.
Page 294: Control Of A Vehicle
Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering, and the accelerator. All three systems have to do their work at the places where the tires meet the road.
Page 295: Anti-Lock Brake System (Abs)
Avoid needless heavy braking. Some people drive in spurts — heavy acceleration followed by heavy braking — rather than keeping pace with traffic. This is a mistake. The brakes may not have time to cool between hard stops. The brakes will wear out much faster if you do a lot of heavy braking.
Page 296 Let us say the road is wet and you are driving safely. Suddenly, an animal jumps out in front of you. You slam on the brakes and continue braking. Here is what happens with ABS: A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each wheel.
Page 297: Braking In Emergencies
Remember: ABS does not change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you will not have time to apply your brakes if that vehicle suddenly slows or stops.
Page 298: Stabilitrak System
The traction control system automatically comes on whenever you start your vehicle. To limit wheel spin, especially in slippery road conditions, you should always leave the system on. But you can turn the traction control system off if you ever need to.
Page 299: All-Wheel Drive (Awd) System
The traction control system and StabiliTrak warning light on the instrument panel cluster will ﬂash when the system is operating. You may also feel or hear the system working. This is normal. ® StabiliTrak can be turned off using the traction control button.
Page 300: Steering
This light will come on along with the ALL WHEEL DRIVE OFF message when the rear drive system is overheating. This light will turn off when the rear drive system cools down. If this light stays on, it must be reset.
Page 301 The traction you can get in a curve depends on the condition of your tires and the road surface, the angle at which the curve is banked, and your speed. While you are in a curve, speed is the one factor you can control. Suppose you are steering through a sharp curve.
Page 302: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 303: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 304 • Watch for traffic signs, pavement markings, and lines. If you can see a sign up ahead that might indicate a turn or an intersection, delay your pass. A broken center line usually indicates it is all right to pass, providing the road ahead is clear.
Page 305: Loss Of Control
• Do not overtake a slowly moving vehicle too rapidly. Even though the brake lamps are not ﬂashing, it may be slowing down or starting to turn. • If you are being passed, make it easy for the following driver to get ahead of you. Perhaps you can ease a little to the right.
Page 306: Driving At Night
Of course, traction is reduced when water, snow, ice, gravel, or other material is on the road. For safety, you will want to slow down and adjust your driving to these conditions. It is important to slow down on slippery surfaces because stopping distance will be longer and vehicle control more limited.
Page 307 No one can see as well at night as in the daytime. But as we get older these differences increase. A 50-year-old driver may require at least twice as much light to see the same thing at night as a 20-year-old.
Page 308: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you cannot stop, accelerate, or turn as well because your tire-to-road traction is not as good as on dry roads. And, if your tires do not have much tread left, you will get even less traction.
Page 309: Driving Through Deep Standing Water
Driving too fast through large water puddles or even going through some car washes can cause problems, too. The water may affect your brakes. Try to avoid puddles. But if you cannot, try to slow down before you hit them. Hydroplaning Hydroplaning is dangerous.
Page 310: Driving Through Flowing Water
Driving Through Flowing Water CAUTION: Flowing or rushing water creates strong forces. If you try to drive through ﬂowing water, as you might at a low water crossing, your vehicle can be carried away. As little as six inches of ﬂowing water can carry away a smaller vehicle.
Page 311: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. Here are ways to increase your safety in city driving: •...
Page 312: Freeway Driving
Freeway Driving Mile for mile, freeways — also called thruways, parkways, expressways, turnpikes, or superhighways — are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 313: Before Leaving On A Long Trip
Once you are moving on the freeway, make certain you allow a reasonable following distance. Expect to move slightly slower at night. When you want to leave the freeway, move to the proper lane well in advance. If you miss your exit, do not, under any circumstances, stop and back up.
Page 314: Highway Hypnosis
Highway Hypnosis Is there actually such a condition as highway hypnosis? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
Page 315 If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable. • Keep your vehicle in good shape. Check all ﬂuid levels and also the brakes, tires, cooling system, and transaxle.
Page 316: Winter Driving
• Stay in your own lane when driving on two-lane roads in hills or mountains. Do not swing wide or cut across the center of the road. Drive at speeds that let you stay in your own lane. • As you go over the top of a hill, be alert. There could be something in your lane, like a stalled car or an accident.
Page 317: Driving On Snow Or Ice
Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective warning triangles. And, if you will be driving under severe conditions, include a small bag of sand, a piece of old carpet, or a couple of burlap bags to help provide traction.
Page 318: You Are Caught In Blizzard
Traction control improves your ability to accelerate when driving on a slippery road. But you can turn the traction system off if you ever need to. You should turn the traction system off if your vehicle ever gets stuck in sand, mud, ice, or snow. See If Your Vehicle is Stuck in Sand, Mud, Ice, or Snow on page 320.
Page 319 You can run the engine to keep warm, but be careful. CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 320: If Your Vehicle Is Stuck In Sand, Mud
You will need a well-charged battery to restart the vehicle, and possibly for signaling later on with your headlamps. Let the heater run for a while. Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold.
Page 321: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out First, turn the steering wheel left and right. That will clear the area around the front wheels. If your vehicle has traction control, you should turn the traction control system off. See Traction Control System (TCS) on page 297.
Page 322 Tire and Loading Information Label Label Example A vehicle speciﬁc Tire and Loading Information label is attached to the vehicle’s center pillar (B-pillar). With the driver’s door open, you will ﬁnd the label attached below the door lock post (striker). The tire and loading information label lists the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms...
Page 323 4. The resulting ﬁgure equals the available amount of cargo and luggage load capacity. For example, if the “XXX” amount equals 1400 lbs and there will be ﬁve 150 lb passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs (1400 750 (5 x 150) = 650 lbs).
Page 324 Example 2 Item Description Maximum Vehicle Capacity Weight for Example 2 Subtract Occupant Weight 150 lbs (68 kg) Available Cargo Weight Total Item 1,000 lbs (453 kg) 750 lbs (340 kg) 250 lbs (113 kg) Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s maximum vehicle capacity weight and seating positions.
Page 325 Certiﬁcation Label A vehicle speciﬁc Certiﬁcation/Tire label is found on the rear edge of the driver’s door. The label shows the size of your original tires and the inﬂation pressures needed to obtain the gross weight capacity of your vehicle. This is called the Gross Vehicle Weight Rating (GVWR).
Page 326: Towing
If you put things inside your vehicle — like suitcases, tools, packages, or anything else — they will go as fast as the vehicle goes. If you have to stop or turn quickly, or if there is a crash, they will keep going.
Page 327: Dinghy Towing
Here are some important things to consider before you do recreational vehicle towing: • What’s the towing capacity of the towing vehicle? Be sure you read the tow vehicle manufacturer’s recommendations. • How far will you tow? Some vehicles have restrictions on how far and how long they can tow.
Page 328: Towing A Trailer
If you have an all-wheel-drive vehicle, it cannot be towed with any of its wheels on the ground. It can be towed with car carrier equipment. Towing a Trailer CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer.
Page 329: If You Do Decide To Pull A Trailer
If You Do Decide To Pull A Trailer If you do, here are some important points: • There are many different laws, including speed limit restrictions, having to do with trailering. Make sure your rig will be legal, not only where you live but also where you will be driving.
Page 330: Weight Of The Trailer Tongue
Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total or gross weight of your vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo you may carry in it, and the people who will be riding in the vehicle.
Page 331: Total Weight On Your Vehicle's Tires
Total Weight on Your Vehicle’s Tires Be sure your vehicle’s tires are inﬂated to the upper limit for cold tires. You will ﬁnd these numbers on the Certiﬁcation/Tire Label at the rear edge of the driver’s door, or see Loading Your Vehicle on page 321.
Page 332: Driving With A Trailer
Because your vehicle may have anti-lock brakes, do not try to tap into your vehicle’s brake system. If you do, both brake systems will not work well, or at all. Driving with a Trailer CAUTION: If you have the liftgate open and you pull a trailer with your vehicle, carbon monoxide (CO) could come into your vehicle.
Page 333: Following Distance
Before you start, check all trailer hitch parts and attachments, safety chains, electrical connector, lamps, tires and mirror adjustment. If the trailer has electric brakes, start your vehicle and trailer moving and then apply the trailer brake controller by hand to be sure the brakes are working. This lets you check your electrical connection at the same time.
Page 334: Turn Signals When Towing A Trailer
Turn Signals When Towing a Trailer When you tow a trailer, your vehicle has to have extra wiring. The arrows on your instrument panel will ﬂash whenever you signal a turn or lane change. Properly hooked up, the trailer lamps will also ﬂash, telling other drivers you are about to turn, change lanes or stop.
Page 335: When You Are Ready To Leave After Parking On A Hill
3. When the wheel chocks are in place, release the regular brakes until the chocks absorb the load. 4. Reapply the regular brakes. Then apply your parking brake, and then shift to PARK (P). 5. Release the regular brakes. When You Are Ready to Leave After Parking on a Hill 1.
Page 336 NOTES...
Page 337: Service And Appearance Care
Section 5 Service ... 339 Accessories and Modiﬁcations ... 339 California Proposition 65 Warning ... 340 Doing Your Own Service Work ... 340 Adding Equipment to the Outside of Your Vehicle ... 341 Fuel ... 341 Gasoline Octane ... 341 Gasoline Speciﬁcations ...
Page 338 Section 5 When It Is Time for New Tires ... 401 Buying New Tires ... 401 Different Size Tires and Wheels ... 403 Uniform Tire Quality Grading ... 403 Wheel Alignment and Tire Balance ... 405 Wheel Replacement ... 405 Tire Chains ...
Page 339: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 340: California Proposition 65 Warning
California Proposition 65 Warning Most motor vehicles, including this one, contain and/or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Engine exhaust, many parts and systems (including some inside the vehicle), many ﬂuids, and some component wear by-products contain and/or emit these chemicals.
Page 341: Adding Equipment To The Outside Of Your Vehicle
Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airﬂow around it. This may cause wind noise and affect windshield washer performance. Check with your dealer before adding equipment to the outside of your vehicle. Fuel Use of the recommended fuel is an important part of the proper maintenance of your vehicle.
Page 342: California Fuel
California Fuel If your vehicle is certiﬁed to meet California Emissions Standards, it is designed to operate on fuels that meet California speciﬁcations. See the underhood emission control label. If this fuel is not available in states adopting California emissions standards, your vehicle will operate satisfactorily on fuels meeting federal speciﬁcations, but emission control system performance may be affected.
Page 343: Fuels In Foreign Countries
Some gasolines that are not reformulated for low emissions may contain an octane-enhancing additive called methylcyclopentadienyl manganese tricarbonyl (MMT); ask the attendant where you buy gasoline whether the fuel contains MMT. General Motors recommends against the use of such gasolines. Fuels containing MMT can reduce the life of spark plugs and the performance of the emission control system may be affected.
Page 344 The tethered fuel cap is located behind a hinged fuel door on the passenger’s side of the vehicle. To remove the fuel cap, turn it slowly counterclockwise. The fuel cap has a spring in it; if the cap is released too soon, it will spring back to the right.
Page 345: Filling A Portable Fuel Container
CAUTION: If a ﬁre starts while you are refueling, do not remove the nozzle. Shut off the ﬂow of fuel by shutting off the pump or by notifying the station attendant. Leave the area immediately. Notice: If you need a new fuel cap, be sure to get the right type.
Page 346: Checking Things Under The Hood
Checking Things Under the Hood CAUTION: An electric fan under the hood can start up and injure you even when the engine is not running. Keep hands, clothing, and tools away from any underhood electric fan. CAUTION: Things that burn can get on hot engine parts and start a ﬁre.
Page 347: Hood Release
Hood Release To open the hood, do the following: 1. Pull the handle with this symbol on it. It is located inside the vehicle, to the left of the brake pedal. 2. Then go to the front of the vehicle and move the secondary hood release lever to the right.
Page 348: Engine Compartment Overview
Engine Compartment Overview When you open the hood you will see the following:...
Page 349: Engine Oil
A. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 354. B. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine Oil on page 349. C. Engine Oil Dipstick. See “Checking Engine Oil” under Engine Oil on page 349. D.
Page 350: When To Add Engine Oil
When to Add Engine Oil If the oil is below the cross-hatched area at the tip of the dipstick, you will need to add at least one quart/liter of oil. But you must use the right kind. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Speciﬁcations on page 436.
Page 351: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Look for two things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. You should look for and use only an oil that meets GM Standard GM6094M. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
Page 352: Engine Oil Additives
Notice: Use only engine oil identiﬁed as meeting GM Standard GM6094M and showing the American Petroleum Institute Certiﬁed For Gasoline Engines starburst symbol. Failure to use the recommended oil can result in engine damage not covered by your warranty. ® GM Goodwrench oil meets all the requirements for your vehicle.
Page 353: How To Reset The Engine Oil Life System
How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change your engine oil and ﬁlter based on vehicle use. Anytime your oil is changed, reset the system so it can calculate when the next oil change is required.
Page 354: When To Inspect The Engine Air Cleaner/Filter
Engine Air Cleaner/Filter The engine air cleaner/ﬁlter is located in the engine compartment on the passenger’s side of the vehicle. See Engine Compartment Overview on page 348 for more information on location. When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at the Maintenance II intervals and replace it at the ﬁrst oil change after each 50,000 mile (83 000 km) interval.
Page 355 3. Disconnect the crank case ventilation tube. 4. Loosen the screws on the clamps holding the air outlet duct in place. Do not pry the clamps off. 5. Remove the air outlet duct.
Page 356 6. Undo the clamps on the ﬁlter cover. To remove the cover, pull up on the front and then pull the cover out. 7. Inspect or replace the engine air cleaner/ﬁlter. Wipe all dust from inside of the housing and inspect the air cleaner and air outlet duct for cracks, cuts, and deterioration.
Page 357: Automatic Transaxle Fluid
Automatic Transaxle Fluid It is not necessary to check the transaxle ﬂuid level. A transaxle ﬂuid leak is the only reason for ﬂuid loss. If a leak occurs, take your vehicle to the dealership service department and have it repaired as soon as possible. Change the ﬂuid at the intervals listed in Additional Required Services on page 443, and be sure to use the transaxle ﬂuid listed in Recommended...
Page 358: What To Use
What to Use Use a mixture of one-half clean, drinkable water ® and one-half DEX-COOL coolant which will not damage aluminum parts. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 359: Checking Coolant
Checking Coolant The surge tank is located on the driver’s side of the engine compartment. See Engine Compartment Overview on page 348 for more information on location. CAUTION: Turning the surge tank pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
Page 360: Engine Overheating
Adding Coolant If you need more coolant, add the proper ® DEX-COOL coolant mixture at the surge tank, but only when the engine is cool. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol, and it will burn if the engine parts are hot enough.
Page 361: If No Steam Is Coming From Your Engine
Notice: If your engine catches ﬁre because you keep driving with no coolant, your vehicle can be badly damaged. The costly repairs would not be covered by your warranty. See Overheated Engine Protection Operating Mode on page 362 for information on driving to a safe place in an emergency.
Page 362: Overheated Engine Protection Operating Mode
Overheated Engine Protection Operating Mode This emergency operating mode lets your vehicle be driven to a safe place in an emergency situation. If an overheated engine condition exists, an overheat protection mode which alternates ﬁring groups of cylinders helps prevent engine damage. In this mode, there is a signiﬁcant loss in power and engine performance.
Page 363 CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you. Keep hands, clothing, and tools away from any underhood electric fan. If the coolant inside the coolant surge tank is boiling, do not do anything else until it cools down.
Page 364: How To Add Coolant To The Coolant Surge Tank
Notice: Engine damage from running your engine without coolant is not covered by your warranty. See Overheated Engine Protection Operating Mode on page 362 for information on driving to a safe place in an emergency. Notice: Using coolant other than DEX-COOL may cause premature engine, heater core, or radiator corrosion.
Page 365 CAUTION: Steam and scalding liquids from a hot cooling system can blow out and burn you badly. They are under pressure, and if you turn the coolant surge tank pressure cap — even a little — they can come out at high speed.
Page 366 Notice: In cold weather, water can freeze and crack the engine, radiator, heater core and other parts. Use the recommended coolant and the proper coolant mixture. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough.
Page 367 3. Fill the coolant surge tank with the proper ® DEX-COOL coolant mixture, to the COLD FILL line. 4. With the coolant surge tank pressure cap off, start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fans.
Page 368: Adding Windshield Washer Fluid
6. After driving the vehicle, check the level in the surge tank again when the cooling system has cooled down. If the coolant is not at the proper level, repeat Steps 1 through 3 and reinstall the pressure cap. If the coolant is not at the proper level when the system cools down again, see your dealer.
Page 369: Brakes
Brakes Brake Fluid Your brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 348 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 370: Brake Wear
What to Add When you do need brake ﬂuid, use only DOT-3 brake ﬂuid. Use new brake ﬂuid from a sealed container only. See Recommended Fluids and Lubricants on page 449. Always clean the brake ﬂuid reservoir cap and the area around the cap before removing it.
Page 371: Replacing Brake System Parts
CAUTION: The brake wear warning sound means that soon the brakes will not work well. That could lead to an accident. When you hear the brake wear warning sound, have your vehicle serviced. Notice: Continuing to drive with worn-out brake pads could result in costly brake repair. Some driving conditions or climates may cause a brake squeal when the brakes are ﬁrst applied or lightly applied.
Page 372: Battery
Battery Your vehicle has a maintenance free battery. When it is time for a new battery, get one that has the replacement number shown on the original battery’s label. We recommend an ACDelco replacement battery. For battery replacement, see your dealer or the service manual.
Page 373: Jump Starting
Jump Starting If your battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 374 Notice: If you leave your radio or other accessories on during the jump starting procedure, they could be damaged. The repairs would not be covered by your warranty. Always turn off your radio and other accessories when jump starting your vehicle. 3.
Page 375 CAUTION: An electric fan can start up even when the engine is not running and can injure you. Keep hands, clothing and tools away from any underhood electric fan. CAUTION: Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded.
Page 376 5. Check that the jumper cables do not have loose or missing insulation. If they do, you could get a shock. The vehicles could be damaged, too. Before you connect the cables, here are some basic things you should know. Positive (+) will go to positive (+) or to a remote positive (+) terminal if the vehicle has one.
Page 377 9. Connect the other end of the negative ( ) cable at least 18 inches (45 cm) away from the dead battery, but not near engine parts that move. The electrical connection is just as good there, and the chance of sparks getting back to the battery is much less.
Page 378: All-Wheel Drive
To disconnect the jumper cables from both vehicles, do the following: 1. Disconnect the black negative ( ) cable from the vehicle that had the dead battery. 2. Disconnect the black negative ( ) cable from the vehicle with the good battery. 3.
Page 379 How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface. If the level is below the bottom of the ﬁller plug hole, you’ll need to add some lubricant. Add enough lubricant to raise the level to the bottom of the ﬁller plug hole, located on the transfer case.
Page 380: Bulb Replacement
To get an accurate reading, the vehicle should be on a level surface. If the level is below the bottom of the ﬁller plug hole, you’ll need to add some lubricant. Add enough lubricant to raise the level to the bottom of the ﬁller plug hole.
Page 381: Headlamps, Front Turn Signal, Sidemarker, And Parking Lamps
Headlamps, Front Turn Signal, Sidemarker, and Parking Lamps To replace one of these bulbs, do the following: 1. Open the hood. See Hood Release on page 347 for more information. 2. Remove the three headlamp assembly attachment screws. 3. Pull the headlamp assembly toward you to release it from the hidden, lower headlamp mount.
Page 382: Taillamps, Turn Signal, Stoplamps And Back-Up Lamps
7. Connect the electrical connector. 8. Reverse Steps 1 through 4 to reinstall the headlamp assembly. When reinstalling the three headlamp screws, do not overtighten. Taillamps, Turn Signal, Stoplamps and Back-up Lamps A. Stoplamp/Taillamp/Sidemarker Lamp B. Turn Signal Lamp/Taillamp C. Backup Lamp To replace one of these bulbs, do the following: 1.
Page 383: License Plate Lamp
5. Turn the bulb socket counterclockwise to disconnect it from the taillamp assembly. 6. Pull the bulb out of the bulb socket. 7. Push the new bulb into the bulb socket. 8. Insert the bulb socket into the taillamp assembly and turn it clockwise to secure. 9.
Page 384: Replacement Bulbs
Replacement Bulbs Exterior Lamp Back-Up, Rear Turn Signal, Stoplamp and Taillamp Front and Rear Sidemarker Lamp 194 Front Turn Signal Lamp License Plate Lamp Low/High-Beam Headlamp/DRL For replacement bulbs not listed here, contact your dealer. Windshield Wiper Blade Replacement Bulb Number Windshield wiper blades should be inspected for 3157 wear or cracking.
Page 385: Rear Window Wiper Blade Replacement
3. Pull up the release clip, located at the connecting point of the blade and the arm. Then, pull the blade assembly down toward the glass to remove it from the wiper arm. 4. Push the new wiper blade securely on the wiper arm until you hear the release clip “click”...
Page 386: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle.
Page 387: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger (P-Metric) Tire Example (A) Tire Size: The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type, and service description.
Page 388 (D) Tire Identiﬁcation Number (TIN): The letters and numbers following DOT (Department of Transportation) code is the Tire Identiﬁcation Number (TIN). The TIN shows the manufacturer and plant code, tire size, and date the tire was manufactured. The TIN is molded onto both sides of the tire, although only one side may have the date of manufacture.
Page 389 (B) Tire Ply Material: The type of cord and number of plies in the sidewall and under the tread. (C) Tire Identiﬁcation Number (TIN): The letters and numbers following the DOT (Department of Transportation) code is the Tire Identiﬁcation Number (TIN). The TIN shows the manufacturer and plant code, tire size, and date the tire was manufactured.
Page 390: Tire Terminology And Deﬁnitions
(B) Tire Width: The three-digit number indicates the tire section width in millimeters from sidewall to sidewall. (C) Aspect Ratio: A two-digit number that indicates the tire height-to-width measurements. For example, if the tire size aspect ratio is 60, as shown in item C of the illustration, it would mean that the tire’s sidewall is 60 percent as high as it is wide.
Page 391 Cold Tire Pressure: The amount of air pressure in a tire, measured in pounds per square inch (psi) or kilopascals (kPa) before a tire has built up heat from driving. See Inﬂation - Tire Pressure on page 393. Curb Weight: This means the weight of a motor vehicle with standard and optional equipment including the maximum capacity of fuel, oil, and coolant, but without passengers and cargo.
Page 392 Normal Occupant Weight: The number of occupants a vehicle is designed to seat multiplied by 150 lbs (68 kg). See Loading Your Vehicle on page 321. Occupant Distribution: Designated seating positions. Outward Facing Sidewall: The side of an asymmetrical tire that has a particular side that faces outward when mounted on a vehicle.
Page 393: Inﬂation - Tire Pressure
UTQGS (Uniform Tire Quality Grading Standards): A tire information system that provides consumers with ratings for a tire’s traction, temperature, and treadwear. Ratings are determined by tire manufacturers using government testing procedures. The ratings are molded into the sidewall of the tire. See Uniform Tire Quality Grading on page 403.
Page 394: When To Check
A Tire and Loading Information label is attached to the vehicle’s center pillar (B-pillar). This label shows your vehicle’s original equipment tires and the correct inﬂation pressures for your tires when they are cold. The recommended cold tire inﬂation pressure, shown on the label, is the minimum amount of air pressure needed to support your vehicle’s maximum load carrying capacity.
Page 395: Tire Pressure Monitor System
Tire Pressure Monitor System Your vehicle has a Tire Pressure Monitor System (TPMS). This system uses radio and sensor technology to check tire pressure levels. TPMS sensors are mounted onto each tire and wheel assembly, except for the spare tire. The TPMS sensors monitor the air pressure in your vehicle’s tires and transmit tire pressure readings to a receiver located in the vehicle.
Page 396 Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure, even if under-inﬂation has not reached the level to trigger illumination of the TPMS low tire pressure telltale. Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly.
Page 397: Tpms Sensor Matching Process
See Loading Your Vehicle on page 321, for an example of the Tire and Loading Information Label and its location on your vehicle. Also see Inﬂation - Tire Pressure on page 393. Your vehicle’s TPMS system can warn you about a low tire pressure condition but it does not replace normal tire maintenance.
Page 398 The TPMS matching process is outlined below: 1. Set the parking brake. 2. Turn the ignition switch to RUN with the engine off. 3. Using the DIC, press the vehicle information button until the TIRE LOCATIONS PRESS TO LEARN message displays. 4.
Page 399: Tire Inspection And Rotation
Federal Communications Commission (FCC) and Industry and Science Canada The Tire Pressure Monitor System (TPMS) operates on a radio frequency and complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference.
Page 400 Do not include the compact spare tire in your tire rotation. After the tires have been rotated, adjust the front and rear inﬂation pressures as shown on the Tire and Loading Information label. See Inﬂation - Tire Pressure on page 393 and Loading Your Vehicle on page 321.
Page 401: When It Is Time For New Tires
When It Is Time for New Tires One way to tell when it is time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 mm) or less of tread remaining.
Page 402 CAUTION: Mixing tires could cause you to lose control while driving. If you mix tires of different sizes, brands, or types (radial and bias-belted tires), the vehicle may not handle properly, and you could have a crash. Using tires of different sizes, brands, or types may also cause damage to your vehicle.
Page 403: Different Size Tires And Wheels
Different Size Tires and Wheels If you add wheels or tires that are a different size than your original equipment wheels and tires, this may affect the way your vehicle performs, including its braking, ride and handling characteristics, stability, and resistance to rollover. Additionally, if your vehicle has electronic systems such as, anti-lock brakes, traction control, and electronic stability control, the performance...
Page 404 While the tires available on General Motors passenger cars and light trucks may vary with respect to these grades, they must also conform to federal safety requirements and additional General Motors Tire Performance Criteria (TPC) standards. Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a speciﬁed government test course.
Page 405: Wheel Alignment And Tire Balance
Wheel Alignment and Tire Balance The tires and wheels on your vehicle were aligned and balanced carefully at the factory to give you the longest tire life and best overall performance. Adjustments to wheel alignment and tire balancing will not be necessary on a regular basis. However, if you notice unusual tire wear or your vehicle pulling to one side or the other, the alignment may need to be checked.
Page 406: Used Replacement Wheels
Notice: The wrong wheel can also cause problems with bearing life, brake cooling, speedometer or odometer calibration, headlamp aim, bumper height, vehicle ground clearance, and tire or tire chain clearance to the body and chassis. See Changing a Flat Tire on page 408 for more information.
Page 407: If A Tire Goes Flat
If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly. But if you should ever have a blowout, here are a few tips about what to expect and what to do: If a front tire fails, the ﬂat tire will create a drag...
Page 408: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your vehicle’s hazard warning ﬂashers. See Hazard Warning Flashers on page 150 for more information. CAUTION: Changing a tire can be dangerous.
Page 409: Removing The Spare Tire And Tools
When your vehicle has a ﬂat tire, use the following example as a guide to assist you in the placement of wheel blocks. The following information will tell you next how to use the jack and change a tire. Removing the Spare Tire and Tools If your vehicle has the rear compartment storage panel/cover, you will have to remove it to access the load ﬂoor.
Page 410 2. Remove the nut retaining the spare tire. 3. Remove the compact spare tire. See Compact Spare Tire on page 420 for more information. 4. Locate the jack and wheel wrench, which are located on the driver’s side of the rear cargo area, behind an access door.
Page 411: Removing The Flat Tire And Installing The Spare Tire
Removing the Flat Tire and Installing the Spare Tire You must take off the wheel cover or center cap, if the vehicle has one, to reach the wheel bolts. 1. Loosen all ﬁve 2. Pull the cover or center cap away from the wheel.
Page 412 6. Find the arrow on the plastic lower body panel. Position the jack head under the metal jacking ﬂange and not the plastic lower body panel. With the jack head positioned correctly on the metal jacking ﬂange, it should look like this from underneath.
Page 413 Do not lift the vehicle using the plastic lower body panel. 7. Put the compact spare tire near you. CAUTION: Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off the jack you could be badly injured or killed.
Page 414 CAUTION: Lifting a vehicle and getting under it to do maintenance or repairs is dangerous without the appropriate safety equipment and training. The jack provided with your vehicle is designed only for changing a ﬂat tire. If it is used for anything else, you or others could be badly injured or killed if the vehicle slips off the jack.
Page 415 9. Remove all of the 10. Remove the ﬂat tire. CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after time. The wheel could come off and cause an accident.
Page 416 12. Place the compact spare tire on the wheel-mounting surface. CAUTION: Never use oil or grease on studs or nuts. If you do, the nuts might come loose. Your wheel could fall off, causing a serious accident. 13. Reinstall the wheel nuts. Tighten each nut by hand until the wheel is held against the hub.
Page 417 CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new GM original equipment wheel nuts.
Page 418: Storing A Flat Or Spare Tire And Tools
Notice: Wheelcovers will not ﬁt on your compact spare. If you try to put a wheel cover on the compact spare, you could damage the cover or the spare. Do not try to put a wheel cover on your compact spare tire.
Page 419 5. Screw the threaded wheel stow rod onto the spare tire bracket. The ﬁnal position of the wheel stow rod must be turned to the farthest forward position. 6. If your vehicle has a cap, remove the cap from the center of the load ﬂoor. Position the rod through the hole.
Page 420: Compact Spare Tire
Compact Spare Tire Although the compact spare tire was fully inﬂated when the vehicle was new, it can lose air after a time. Check the inﬂation pressure regularly. It should be 60 psi (420 kPa). After installing the compact spare on the vehicle, stop as soon as possible and make sure the spare tire is correctly inﬂated.
Page 421 Lighter colored interiors may require more frequent cleaning. Use care because newspapers and garments that transfer color to your home furnishings may also transfer color to your vehicle’s interior. When cleaning your vehicle’s interior, only use cleaners speciﬁcally designed for the surfaces being cleaned.
Page 422: Fabric/Carpet
• Do not heavily saturate your upholstery while cleaning. • Damage to your vehicle’s interior may result from the use of many organic solvents such as naptha, alcohol, etc. Fabric/Carpet Cleaning Fabric/Carpet Use a vacuum cleaner often to get rid of dust and loose dirt.
Page 423: Using Cleaner On Fabric
Using Cleaner on Fabric 1. First, try the cleaner in an inconspicuous area to make sure the cleaner does not affect the color of the fabric. 2. For liquids: blot the stain with a clean, soft white cloth. For solids: remove as much as possible and then vacuum or brush.
Page 424: Instrument Panel, Vinyl, And Other Plastic Surfaces
Never use steam to clean leather. Never use spot lifters or spot removers on leather. Many commercial leather cleaners and coatings that are sold to preserve and protect leather may permanently change the appearance and feel of your leather and are not recommended. Do not use silicone or wax-based products, or those containing organic solvents to clean your vehicle’s interior because they can alter the...
Page 425: Weatherstrips
Weatherstrips Silicone grease on weatherstrips will make them last longer, seal better, and not stick or squeak. Apply silicone grease with a clean cloth. During very cold, damp weather frequent application may be required. See Recommended Fluids and Lubricants on page 449. Washing Your Vehicle The paint ﬁnish on the vehicle provides beauty, depth of color, gloss retention, and durability.
Page 426: Windshield And Wiper Blades
The vehicle has a basecoat/clearcoat paint ﬁnish. The clearcoat gives more depth and gloss to the colored basecoat. Always use waxes and polishes that are non-abrasive and made for a basecoat/clearcoat paint ﬁnish. Foreign materials such as calcium chloride and other salts, ice melting agents, road oil and tar, tree sap, bird droppings, chemicals from industrial chimneys, etc., can damage the vehicle’s...
Page 427: Tires
The surface of these wheels is similar to the painted surface of your vehicle. Do not use strong soaps, chemicals, abrasive polishes, abrasive cleaners, cleaners with acid, or abrasive cleaning brushes on them because you could damage the surface. Do not use chrome polish on aluminum wheels.
Page 428: Finish Damage
Finish Damage Any stone chips, fractures or deep scratches in the ﬁnish should be repaired right away. Bare metal will corrode quickly and may develop into major repair expense. Minor chips and scratches can be repaired with touch-up materials available from your dealer. Larger areas of ﬁnish damage can be corrected in your dealer’s body and paint shop.
Page 429: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Removes tar, road oil, Oil Remover and asphalt. Chrome Cleaner Use on chrome or and Polish stainless steel. White Sidewall Removes soil and black Tire Cleaner marks from whitewalls.
Page 430: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
Page 431: Electrical System
Electrical System Add-On Electrical Equipment Notice: Do not add anything electrical to your vehicle unless you check with your dealer ﬁrst. Some electrical equipment can damage your vehicle and the damage would not be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 432: Instrument Panel Fuse Block
Instrument Panel Fuse Block The instrument panel fuse block is located on the passenger’s side of the center console, to the left of the glove box near the ﬂoor. Remove the console cover to access the fuse block. Fuses Sunroof Rear Seat Entertainment Rear Wiper Liftgate...
Page 433 Fuses Usage Driver’s Side Turn Signal Door Locks Automatic Occupant Sensing Module Power Mirrors Passenger’s Side Turn Signal Ampliﬁer Steering Wheel Illumination SPARE Spare SPARE Spare SPARE Spare SPARE Spare SPARE Spare Infotainment Climate Control System, Remote Function Actuator Canister Vent Radio Cluster Fuses...
Page 434: Engine Compartment Fuse Block
Engine Compartment Fuse Block The engine compartment fuse block is located on the driver’s side of the engine compartment. See Engine Compartment Overview on page 348 for more information on location. Fuses Cooling Fan 2 Cooling Fan 1 Usage Fuses Usage Auxiliary Power Not Used...
Page 435 Fuses Usage Spare Stoplamp Passenger’s Side Low-Beam Driver’s Side High-Beam Battery Main 3 Spare Engine Control Module, Battery Transmission Control Module, Battery Trailer Park Lamp Front Wiper Driver’s Side Trailer Stoplamp, Turn Signal Spare Fuel Pump Not Used All-Wheel Drive Regulated Voltage Control Passenger’s Side Trailer Stoplamp, Turn Signal...
Page 436: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 449 for more information. Application Air Conditioning Refrigerant R134a Cooling System Engine Oil with Filter Fuel Tank Front-Wheel Drive All-Wheel Drive Transaxle Fluid Wheel Nut Torque...
Page 437: Maintenance Schedule
Section 6 Maintenance Schedule ... 438 Introduction ... 438 Maintenance Requirements ... 438 Your Vehicle and the Environment ... 438 Using the Maintenance Schedule ... 439 Scheduled Maintenance ... 440 Additional Required Services ... 443 Maintenance Footnotes ... 444 Maintenance Schedule Owner Checks and Services ...
Page 438: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and...
Page 439: Using The Maintenance Schedule
Using the Maintenance Schedule We at General Motors want to help you keep your vehicle in good working condition. But we do not know exactly how you will drive it. You may drive very short distances only a few times a week. Or you may drive long distances all the time in very hot, dusty weather.
Page 440: Scheduled Maintenance
When you go to your GM Goodwrench your service needs, you will know that GM-trained and supported service technicians will perform the work using genuine GM parts. If you want to purchase service information, see Service Publications Ordering Information on page 474.
Page 441 When the change engine oil light and/or CHANGE ENGINE OIL SOON message appears, certain services, checks, and inspections are required. Required services are described in the following for “Maintenance I” and “Maintenance II.” Generally, it is recommended that your ﬁrst service be Maintenance I, your second service be Maintenance II, and that you alternate Maintenance I and Maintenance II thereafter.
Page 442 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and ﬁlter. See Engine Oil on page 349. Reset oil life system. See Engine Oil Life System on page 352. An Emission Control Service. Visually check for any leaks or damage. See footnote (k). Inspect engine air cleaner ﬁlter.
Page 443: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 444: Maintenance Footnotes
Maintenance Footnotes (a) Visually inspect brake lines and hoses for proper hook-up, binding, leaks, cracks, chaﬁng, etc. Inspect disc brake pads for wear and rotors for surface condition. Inspect other brake parts, including calipers, parking brake, etc. Check parking brake adjustment. (b) Visually inspect front and rear suspension and steering system for damaged, loose, or missing parts, signs of wear.
Page 445: Owner Checks And Services
(h) Change automatic transaxle ﬂuid if the vehicle is mainly driven under one or more of these conditions: − In heavy city traffic where the outside temperature regularly reaches 90°F (32°C) or higher. − In hilly or mountainous terrain. − When doing frequent trailer towing. −...
Page 446: At Each Fuel Fill
At Each Fuel Fill It is important to perform these underhood checks at each fuel ﬁll. Engine Oil Level Check Check the engine oil level and add the proper oil if necessary. See Engine Oil on page 349 for further details. Notice: It is important to check your oil regularly and keep it at the proper level.
Page 447: At Least Once A Year
At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle. 2.
Page 448 Ignition Transaxle Lock Check While parked, and with the parking brake set, try to turn the ignition to LOCK in each shift lever position. • The ignition should turn to LOCK only when the shift lever is in PARK (P). •...
Page 449: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number, or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines Engine Oil starburst symbol.
Page 450: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer. Part Engine Air Cleaner/Filter Engine Oil Filter Passenger Compartment Air Filter Element Replacement Battery Spark Plugs Windshield Wiper Blades Driver’s Side – 24 inches (60.0 cm) Passenger’s Side –...
Page 451: Engine Drive Belt Routing
Engine Drive Belt Routing 3.4L V6 Engine...
Page 452: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 438. Any additional information from Owner Checks and Services on page 445 can be added on the following record pages.
Page 453 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II...
Page 454 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II...
Page 455: Customer Assistance Information
Section 7 Customer Assistance and Information ... 456 Customer Satisfaction Procedure ... 456 Online Owner Center ... 459 Customer Assistance for Text Telephone (TTY) Users ... 460 Customer Assistance Offices ... 460 GM Mobility Reimbursement Program ... 461 Roadside Assistance Program ... 462 Courtesy Transportation ...
Page 456: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Pontiac. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 457 STEP THREE — U.S. Owners: Both General Motors and your dealer are committed to making sure you are completely satisﬁed with your new vehicle. However, if you continue to remain unsatisﬁed after following the procedure outlined in Steps One and Two, you should ﬁle with the BBB Auto Line Program to enforce your rights.
Page 458 STEP THREE — Canadian Owners: In the event that you do not feel your concerns have been addressed after following the procedure outlined in Steps One and Two, General Motors of Canada Limited wants you to be aware of its participation in a no-charge Mediation/Arbitration Program.
Page 459: Online Owner Center
Online Owner Center Online Owner Center (United States only) The Owner Center is a resource for your GM ownership needs. Speciﬁc vehicle information can be found in one place. The Online Owner Center allows you to: • Get e-mail service reminders. •...
Page 460: Customer Assistance For Text Telephone (Tty) Users
(TTY users in Canada can dial 1-800-263-3830.) Customer Assistance Offices Pontiac encourages customers to call the toll-free number for assistance. However, if a customer wishes to write or e-mail Pontiac, the letter should be addressed to: United States — Customer Assistance Pontiac Customer Assistance Center P.O.
Page 461: Overseas - Customer Assistance
Overseas — Customer Assistance Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) — Customer Assistance General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center Paseo de la Reforma #2740 Col.
Page 462: Roadside Assistance Program
In the U.S., call 1-800-ROADSIDE (762-3743) In Canada, call 1-800-268-6800 Service available 24 hours a day, 365 days a year. As the owner of a new Pontiac vehicle, you are automatically enrolled in the Pontiac Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road.
Page 463 • Emergency Tow From a Public Roadway or Highway: Tow to the nearest dealership for warranty service or in the event of a vehicle-disabling accident. Winch-out assistance when the vehicle is mired in sand, mud, or snow. • Flat Tire Change: Installation of your spare tire in good condition is covered at no charge.
Page 464 Roadside Assistance. In many instances, mechanical failures are covered under Pontiac’s Bumper-to-Bumper warranty, and the duration of the Base Warranty Coverage for Canadian customers of the new Vehicle Limited Warranty. However, any cost for parts and labor for non-warranty repairs are the responsibility of the driver.
Page 465: Courtesy Transportation
While we hope you never have the occasion to use our service, it is added security while traveling for you and your family. Remember, we are only a phone call away. Pontiac Roadside Assistance: 1-800-ROADSIDE (762-3743), text telephone (TTY) users, call 1-888-889-2438, Canadian customers call 1-800-268-6800.
Page 466: Scheduling Service Appointments
Several courtesy transportation options are available to assist in reducing your inconvenience when warranty repairs are required. Courtesy Transportation is not a part of the New Vehicle Limited Warranty and is available only at participating dealers. A separate booklet entitled “Warranty and Owner Assistance Information”...
Page 467: Additional Program Information
Public Transportation or Fuel Reimbursement If your vehicle requires overnight warranty repairs, and public transportation is used as ‘shuttle service,’ the reimbursement is limited to the associated shuttle allowance and must be supported by original receipts. In addition, for U.S. customers, should you arrange transportation through a friend or relative, limited reimbursement for reasonable fuel expenses may be available.
Page 468: Vehicle Data Collection And Event Data Recorders
Vehicle Data Collection and Event Data Recorders Your vehicle, like other modern motor vehicles, has a number of sophisticated computer systems that monitor and control several aspects of the vehicle’s performance. Your vehicle uses on-board vehicle computers to monitor emission control components to optimize fuel economy, to monitor conditions for airbag deployment and, if the vehicle has the Anti-lock Brake System (ABS), to provide...
Page 469: Collision Damage Repair
In addition, once GM collects or receives data, GM may: • use the data for GM research needs, • make it available for research where appropriate conﬁdentiality is to be maintained and need is shown, or • share summary data which is not tied to a speciﬁc vehicle with non-GM organizations for research purposes.
Page 470: Repair Facility
Aftermarket collision parts are also available. These are made by companies other than GM and may not have been tested for your vehicle. As a result, these parts may ﬁt poorly, exhibit premature durability/corrosion problems, and may not perform properly in subsequent collisions. Aftermarket parts are not covered by your GM New Vehicle Limited Warranty, and any vehicle failure related to such parts are not covered by that...
Page 471: If An Accident Occurs
If an Accident Occurs Here is what to do if you are involved in an accident. • Try to relax and then check to make sure you are all right. If you are uninjured, make sure that no one else in your vehicle, or the other vehicle, is injured.
Page 472: Managing The Vehicle Damage Repair Process
• If possible, call your insurance company from the scene of the accident. They will walk you through the information they will need. If they ask for a police report, phone or go to the police department headquarters the next day and you can get a copy of the report for a nominal fee.
Page 473: Reporting Safety Defects
If another party’s insurance company is paying for the repairs, you are not obligated to accept a repair valuation based on that insurance company’s collision policy repair limits, as you have no contractual limits with that company. In such cases, you can have control of the repair and parts choices as long as cost stays within reasonable limits.
Page 474: Reporting Safety Defects To General Motors
In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you’ll notify us. Please call us at 1-800-762-2737, or write: Pontiac Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 In Canada, please call us at 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 475: Owner Information
Owner Information Owner publications are written speciﬁcally for owners and intended to provide basic operational information about the vehicle. The owner manual will include the Maintenance Schedule for all models. In-Portfolio: Includes a Portfolio, Owner Manual, and Warranty Booklet. RETAIL SELL PRICE: $35.00 US + Processing Fee Without Portfolio: Owner’s Manual only.
Page 476 NOTES...
Page 477 Accessories and Modiﬁcations ... 339 Accessory Power Outlet(s) ... 164 Adding Equipment to Your Airbag-Equipped Vehicle ... 89 Additives, Fuel ... 342 Add-On Electrical Equipment ... 431 Air Cleaner/Filter, Engine ... 354 Air Conditioning ... 166 Airbag Passenger Status Indicator ... 177 Readiness Light ...
Page 478 Audio System(s) (cont.) Care of Your CDs and DVDs ... 288 Navigation/Radio System, see Navigation Manual ... 274 Radio with CD ... 222, 228 Radio with CD and DVD ... 239 Setting the Time ... 220 Theft-Deterrent Feature ... 285 Understanding Radio Reception ...
Page 479 Center Console Storage Area ... 138 Chains, Tire ... 406 Check Engine Light ... 184 Checking Things Under the Hood ... 346 Chemical Paint Spotting ... 428 Child Restraints Child Restraint Systems ... 49 Infants and Young Children ... 46 Lower Anchors and Tethers for Children ...
Page 480 Customer Assistance Information (cont.) Customer Assistance Offices ... 460 Customer Satisfaction Procedure ... 456 GM Mobility Reimbursement Program ... 461 Reporting Safety Defects to General Motors ... 474 Reporting Safety Defects to the Canadian Government ... 473 Reporting Safety Defects to the United States Government ...
Page 481 Electric Power Management ... 163 Electrical System Add-On Equipment ... 431 Engine Compartment Fuse Block ... 434 Fuses and Circuit Breakers ... 431 Instrument Panel Fuse Block ... 432 Windshield Wiper Fuses ... 431 Engine Air Cleaner/Filter ... 354 Battery ... 372 Change Engine Oil Light ...
Page 482 Fuel (cont.) Gage ... 192 Gasoline Octane ... 341 Gasoline Speciﬁcations ... 341 Low Warning Light ... 193 Fuses Engine Compartment Fuse Block ... 434 Fuses and Circuit Breakers ... 431 Instrument Panel Fuse Block ... 432 Windshield Wiper ... 431 Gage Engine Coolant Temperature ...
Page 483 Ignition Positions ... 115 Infants and Young Children, Restraints ... 46 Inﬂation - Tire Pressure ... 393 Instrument Panel Overview ... 148 Instrument Panel (I/P) Brightness ... 161 Cluster ... 173 Jump Starting ... 373 Keyless Entry System ... 96 Keys ...
Page 484 Light (cont.) Security ... 189 Service All-Wheel-Drive ... 191 Service Vehicle Soon ... 192 TCS Warning Light ... 182 Tire Pressure ... 183 Traction Control System (TCS) Warning ... 182 Lighting Entry ... 162 Loading Your Vehicle ... 321 Lockout Protection ... 106 Locks Delayed Locking ...
Page 485 Mirrors (cont.) Automatic Dimming Rearview with ® OnStar and Compass ... 129 Manual Rearview Mirror ... 129 Manual Rearview Mirror with OnStar Outside Convex Mirrors ... 133 Outside Power Mirrors ... 132 MP3 ... 257, 264 MyGMLink.com ... 459 Navigation/Radio System, see Navigation Manual ...
Page 486 ® PASS-Key III+ ... 112 ® PASS-Key III+ Operation ... 113 Power Accessory Outlet(s) ... 164 Door Locks ... 105 Reduced Engine Light ... 190 Retained Accessory (RAP) ... 116 Seat ... 10 Windows ... 110 Pretensioners, Safety Belt ... 42 Programmable Automatic Door Locks ...
Page 487 Reporting Safety Defects Canadian Government ... 473 General Motors ... 474 United States Government ... 473 Restraint System Check Checking the Restraint Systems ... 90 Replacing Restraint System Parts After a Crash ... 91 Retained Accessory Power (RAP) ... 116 Right Front Passenger Position, Safety Belts ...
Page 488 Service ... 339 Accessories and Modiﬁcations ... 339 Adding Equipment to the Outside of Your Vehicle ... 341 All-Wheel-Drive Light ... 191 California Proposition 65 Warning ... 340 Doing Your Own Work ... 340 Engine Soon Light ... 184 Publications Ordering Information ... 474 Vehicle Soon Light ...
Page 489 Theft-Deterrent Systems (cont.) ® PASS-Key III+ ... 112 ® PASS-Key III+ Operation ... 113 Tilt Wheel ... 151 Tire Pressure Light ... 183 Tires ... 386 Aluminum or Chrome-Plated Wheels, Cleaning ... 426 Buying New Tires ... 401 Chains ... 406 Changing a Flat Tire ...
Page 490 Vehicle Control ... 294 Damage Warnings ... 5 Loading ... 321 Service Soon Light ... 192 Symbols ... 5 Vehicle Data Collection and Event Data Recorders ... 468 Vehicle Identiﬁcation Number (VIN) ... 430 Service Parts Identiﬁcation Label ... 430 Vehicle Personalization DIC ...

Pontiac 2007 Torrent Owner's Manual

Section 1 Seats and Restraint Systems

Seats and Restraint Systems

Front Seats

Rear Seats

Safety Belts

Child Restraints

Airbag System

Restraint System Check

Section 2 Features and Controls

Features and Controls

Keys

Doors and Locks

Windows

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

Onstar System

Storage Areas

Sunroof

Section 3 Instrument Panel

Instrument Panel Overview

Climate Controls

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(S)

Section 4 Driving Your Vehicle

Driving Your Vehicle

Your Driving, the Road, and Your Vehicle

Towing

Section 5 Service and Appearance Care

Service

Fuel

Checking Things under the Hood

All-Wheel Drive

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

Appearance Care

Vehicle Identiﬁcation

Electrical System

Capacities and Speciﬁcations

Quick Links

Chapters

Need help?

Questions and answers

Related Manuals for Pontiac 2007 Torrent

Summary of Contents for Pontiac 2007 Torrent
