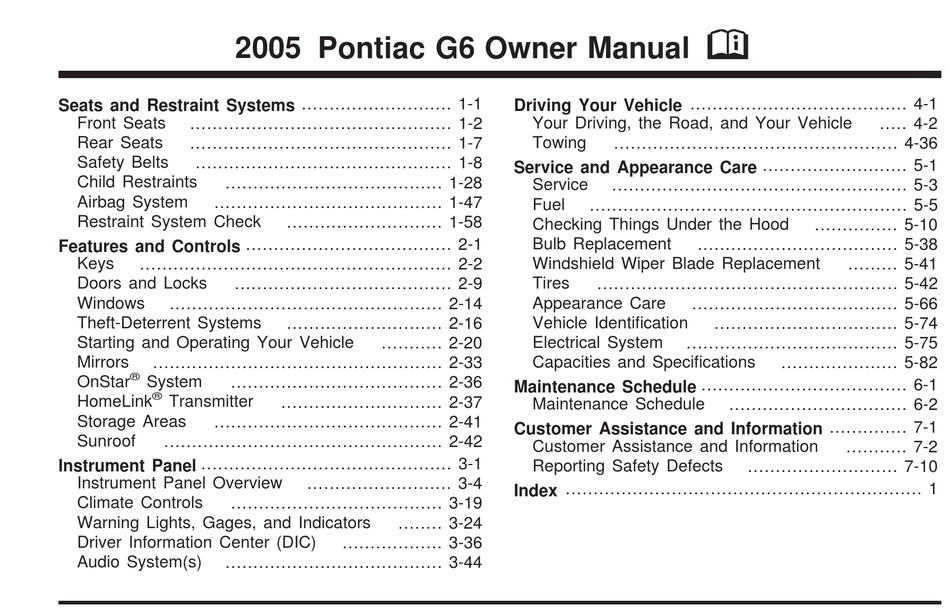

2005 Pontiac G6 Owner Manual

Seats and Restraint Systems ........................... 1-1

Front Seats

............................................... 1-2

Rear Seats

............................................... 1-7

Safety Belts

.............................................. 1-8

Child Restraints

....................................... 1-28

Airbag System

......................................... 1-47

Restraint System Check

Features and Controls ..................................... 2-1

Keys

........................................................ 2-2

Doors and Locks

....................................... 2-9

Windows

................................................. 2-14

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

.................................................... 2-33

OnStar

System

...................................... 2-36

HomeLink

Transmitter

Storage Areas

......................................... 2-41

Sunroof

.................................................. 2-42

Instrument Panel ............................................. 3-1

Instrument Panel Overview

Climate Controls

...................................... 3-19

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(s)

....................................... 3-44

............................ 1-58

............................ 2-16

........... 2-20

............................. 2-37

.......................... 3-4

........ 3-24

.................. 3-36

Driving Your Vehicle ....................................... 4-1

Your Driving, the Road, and Your Vehicle

Towing

................................................... 4-36

Service and Appearance Care .......................... 5-1

Service

..................................................... 5-3

Fuel

......................................................... 5-5

Checking Things Under the Hood

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

...................................................... 5-42

Appearance Care

..................................... 5-66

Vehicle Identiﬁcation

Electrical System

...................................... 5-75

Capacities and Speciﬁcations

Maintenance Schedule ..................................... 6-1

Maintenance Schedule

Customer Assistance and Information .............. 7-1

Customer Assistance and Information

Reporting Safety Defects

Index ................................................................ 1

............... 5-10

.................................... 5-38

......... 5-41

................................. 5-74

..................... 5-82

................................ 6-2

........... 7-2

........................... 7-10

..... 4-2

Table of Contents

Chapters

Table of Contents

Summary of Contents for Pontiac 2005 G6

Page 1 2005 Pontiac G6 Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-2 Rear Seats ... 1-7 Safety Belts ... 1-8 Child Restraints ... 1-28 Airbag System ... 1-47 Restraint System Check ... 1-58 Features and Controls ... 2-1 Keys ...
Page 2: How To Use This Manual
GENERAL MOTORS, GM, the GM Emblem, PONTIAC, and the PONTIAC Emblem, are registered trademarks; and the name G6 is a trademark of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without further notice.
Page 3 Safety Warnings and Symbols There are a number of safety cautions in this book. We use a box and the word CAUTION to tell about things that could hurt you if you were to ignore the warning. CAUTION: These mean there is something that could hurt you or other people.
Page 4 Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 5 These are some examples of symbols that may be found on the vehicle:...
Page 6 NOTES...
Page 7: Seats And Restraint Systems
Section 1 Front Seats ...1-2 Manual Seats ...1-2 Power Seat ...1-3 Manual Lumbar ...1-3 Heated Seats ...1-4 Reclining Seatbacks ...1-4 Head Restraints ...1-6 Power Lift Seat ...1-6 Rear Seats ...1-7 60/40 Split Bench Seat ...1-7 Safety Belts ...1-8 Safety Belts: They Are for Everyone ...1-8 Questions and Answers About Safety Belts ...1-12 How to Wear Safety Belts Properly ...1-13 Driver Position ...1-13...
Page 8: Front Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 9: Power Seat
Power Seat If your vehicle has this feature, the control is located on the outboard side of the driver’s seat. To adjust the seat, do the following: • Move the seat forward or rearward by pushing the control toward the front or back of the vehicle. •...
Page 10 Heated Seats Your vehicle may have heated front seats. The buttons are located on the outboard corner of the driver and front passenger seat. Press the top of the switch to turn the feature on. The seat will heat to the high setting. The indicator light above the switch will be lit next to the number 2.
Page 11 But do not have a seatback reclined if your vehicle is moving. CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can not do their job when you are reclined like this. The shoulder belt can not do its job because it will not be against your body.
Page 12: Head Restraints
Head Restraints The head restraints on both the front and rear seats are adjustable. Press the button on the side of the post to adjust the head restraint. Slide the head restraint up or down so that the top of the restraint is closest to the top of your head.
Page 13: Rear Seats
Rear Seats 60/40 Split Bench Seat Folding the Seatback To fold down the rear seatback, do the following: 1. The handles that are used to lower the rear seatbacks are located on the upper edge of the trunk opening. Open the trunk. Pull the driver’s side handle to open the larger side of the seatback.
Page 14: Safety Belts
Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she can not wear a safety belt properly.
Page 15: Why Safety Belts Work
Your vehicle has a light that comes on as a reminder to buckle up. See Safety Belt Reminder Light on page 3-26. In most states and in all Canadian provinces, the law says to wear safety belts. Here is why: They work. You never know if you will be in a crash.
Page 16 Put someone on it. 1-10 Get it up to speed. Then stop the vehicle. The rider does not stop.
Page 17 The person keeps going until stopped by something. In or the instrument panel... a real vehicle, it could be the windshield... 1-11...
Page 18: Questions And Answers About Safety Belts
or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. 1-12 Questions and Answers About Safety Belts...
Page 19: How To Wear Safety Belts Properly
If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in an accident — even one that is not your fault — you and your passengers can be hurt.
Page 20 3. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.
Page 21 5. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder belt. The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones.
Page 22 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. 1-16 CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 23 What is wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 24 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 1-18 CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 25 What is wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 26: Shoulder Belt Height Adjustment
To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 27: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 28 Lap-Shoulder Belt All rear seating positions have lap-shoulder belts. Here is how to wear one properly. 1. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly.
Page 29 3. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder part. The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash this applies force to the strong pelvic bones.
Page 30 The safety belt locks if there is a sudden stop or a crash, or if you pull the belt very quickly out of the retractor. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 31: Rear Safety Belt Comfort Guides
Rear Safety Belt Comfort Guides Rear shoulder belt comfort guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed on a shoulder belt, the comfort guide positions the belt away from the neck and head.
Page 32 3. Be sure that the belt is not twisted and it lies ﬂat. The elastic cord must be under the belt and the guide on top. 1-26 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured.
Page 33: Safety Belt Extender
4. Buckle, position and release the safety belt as described in Rear Seat Passengers on page 1-21. Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guides, squeeze the belt edges together so that you can take them out of the guides.
Page 34: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. 1-28 What is the proper way to wear safety belts? If possible, an older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
Page 35 CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck?
Page 36 1-30 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 37: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 38 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 39 CAUTION: Newborn infants need complete support, including support for the head and neck. This is necessary because a newborn infant’s neck is weak and its head weighs so much compared with the rest of its body. In a crash, an infant in a rear-facing seat settles into the restraint, so the crash forces can be distributed across the strongest part of an infant’s body, the back and...
Page 40: Child Restraint Systems
Child Restraint Systems An infant car bed (A), a special bed made for use in a motor vehicle, is an infant restraint system designed to restrain or position a child on a continuous ﬂat surface. Make sure that the infant’s head rests toward the center of the vehicle.
Page 41 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields. A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness.
Page 42 How do child restraints work? A child restraint system is any device designed for use in a motor vehicle to restrain, seat, or position children. A built-in child restraint system is a permanent part of the motor vehicle. An add-on child restraint system is a portable one, which is purchased by the vehicle’s owner.
Page 43: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We, therefore, recommend that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat.
Page 44 In Canada, the law requires that forward-facing child restraints have a top strap, and that the strap be anchored. In the United States, some child restraints also have a top strap. If your child restraint has a top strap, it should be anchored. Anchor the top strap to an anchor point speciﬁed in Top Strap Anchor Location on page 1-39.
Page 45: Top Strap Anchor Location
Top Strap Anchor Location Your vehicle has top strap anchors installed for the rear seating positions. You will ﬁnd them behind the rear seat head restraints. If your vehicle has adjustable head restraints, pull up the head restraint to access the anchors. The straps from the child restraint must be threaded between the poles of the head restraint on the seat.
Page 46 A. Lower Anchorage B. Lower Anchorage C. Top Tether 1-40 A. Lower Anchorage B. Lower Anchorage In order to use the LATCH system in your vehicle, you need a child restraint designed for that system. To assist you in locating the lower anchors for this child restraint system, each seating position with the LATCH system has a label on the seatback at each lower anchor position.
Page 47 The labels are located near the base of the two rear outside seating positions. CAUTION: If a LATCH-type child restraint is not attached to its anchorage points, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed.
Page 48: Securing A Child Restraint In A Rear Seat Position
Securing a Child Restraint in a Rear Seat Position If your child restraint is equipped with the LATCH system, see Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-39. See Top Strap on page 1-37 if the child restraint has one. If your child restraint does not have the LATCH system, you will be using the lap-shoulder belt to secure the child restraint in this position.
Page 49 3. Buckle the belt. Make sure the release button is 4. Pull the rest of the shoulder belt all the way out of positioned so you would be able to unbuckle the the retractor to set the lock. safety belt quickly if you ever had to. 1-43...
Page 50 1-44 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 51: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Right Front Seat Position If your child restraint is equipped with the LATCH system, see Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-39. There is no top strap anchor in the right front passenger’s position.
Page 52 3. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how. 4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 53: Airbag System
6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. You may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 54 Here are the most important things to know about the airbag system: CAUTION: You can be severely injured or killed in a crash if you are not wearing your safety belt, even if you have airbags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it.
Page 55 CAUTION: Anyone who is up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 56: Where Are The Airbags
Where Are the Airbags? The driver’s frontal airbag is in the middle of the steering wheel. 1-50 The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side.
Page 57 If your vehicle has a seat-mounted side impact airbag for the driver, it is in the side of the driver’s seatback closest to the door. If your vehicle has a seat-mounted side impact airbag for the right front passenger, it is in the side of the passenger’s seatback closest to the door.
Page 58 If your vehicle has a roof-mounted side impact airbag for the driver and the person seated directly behind the driver, it is in the ceiling above the side windows. 1-52 If your vehicle has a roof-mounted side impact airbag for the right front passenger and the person seated directly behind that passenger, it is in the ceiling above the side windows.
Page 59 CAUTION: If something is between an occupant and an airbag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death. The path of an inﬂating airbag must be kept clear. Do not put anything between an occupant and an airbag, and do not attach or put anything on the steering wheel hub or on or near any other...
Page 60: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? The driver’s and right front passenger’s frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact exceeds a predetermined deployment threshold. Deployment thresholds take into account a variety of desired deployment and non-deployment events and are used to predict how severe a crash is likely to be in time for the airbags to inﬂate and help...
Page 61: How Does An Airbag Restrain
Your vehicle may or may not have side impact airbags. See Airbag System on page 1-47. Side impact airbags are designed to inﬂate in moderate to severe side crashes. A side impact airbag will inﬂate if the crash severity is above the system’s designed “threshold level.”...
Page 62: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After the airbag inﬂates, it quickly deﬂates, so quickly that some people may not even realize the airbag inﬂated. Some components of the airbag module — the steering wheel hub for the driver’s airbag, the instrument panel for the right front passenger’s bag, the side of the seatback closest to the door for the seat-mounted side impact airbags (if equipped) and the...
Page 63: Servicing Your Airbag-Equipped Vehicle
• Your vehicle is equipped with a crash sensing and diagnostic module which records information after a crash. See Vehicle Data Collection and Event Data Recorders on page 7-9 • Let only qualiﬁed technicians work on your airbag system. Improper service can mean that the airbag system will not work properly.
Page 64: Restraint System Check
Restraint System Check Checking Your Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 65 If the LATCH system was being used during a more severe crash, you may need new LATCH system parts. If belts are cut or damaged, replace them. Collision damage also may mean you will need to have LATCH system, safety belt or seat parts repaired or replaced. New parts and repairs may be necessary even if the belt or LATCH system was not being used at the time of the collision.
Page 66 NOTES 1-60...
Page 67: Table Of Contents
Section 2 Keys ...2-2 Remote Keyless Entry System ...2-3 Remote Keyless Entry System Operation ...2-4 Doors and Locks ...2-9 Door Locks ...2-9 Power Door Locks ...2-10 Door Ajar Reminder ...2-10 Delayed Locking ...2-10 Automatic Door Locks ...2-11 Programmable Automatic Door Unlock ...2-11 Lockout Protection ...2-12 Trunk ...2-12 Windows ...2-14...
Page 68: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed.
Page 69 One key is used for the ignition and all locks. When a new vehicle is delivered to the dealer, the key has a key tag. This tag has a bar-coded key code that tells your dealer how to make extra keys. This tag may be removed and kept by your dealer.
Page 70: Remote Keyless Entry System Operation
At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this: •...
Page 71 (Lock): Press the lock button to lock all the doors. The interior lamps will turn off after all of the doors are closed. If enabled through the Driver Information Center (DIC), the parking lamps will ﬂash once to indicate locking has occurred. If enabled through the DIC, the horn will also chirp to indicate locking has occurred.
Page 72: Battery Replacement
Battery Replacement Under normal use, the battery in your remote keyless entry transmitter should last about four years. You can tell the battery is weak if the transmitter won’t work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it’s probably time to change the battery.
Page 73: Remote Vehicle Start
Remote Vehicle Start Your vehicle may have a remote starting feature. This feature allows you to start the engine from outside of the vehicle. It also starts up the vehicle’s heating or air conditioning systems and rear window defogger. When the remote start system is active and the vehicle has an automatic climate control system, it will automatically regulate the inside temperature.
Page 74 (Remote Start): Press and release the lock button and then press and hold the remote start button to use the remote start feature. To start the vehicle using the remote start feature, do the following: 1. Aim the transmitter at the vehicle. 2.
Page 75: Door Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers — especially children — can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 76: Delayed Locking
Power Door Locks The power door lock switches are located on the driver’s and front passenger’s door. Press the top of the switch to unlock all doors. Press the bottom of the switch to lock all doors. The rear doors do not have power door lock switches. Rear seat passengers must use the manual lock knob on their doors.
Page 77: Programmable Automatic Door Unlock
If a door is opened before the ﬁve seconds has elapsed, the doors will not lock until ﬁve seconds after all doors are closed. If the power door lock switch or the transmitter lock button is pressed twice when leaving the vehicle, the doors will lock immediately.
Page 78: Lockout Protection
Lockout Protection This feature prevents the driver’s door from being locked using the power door locks, if the key is left in the ignition and a door is open. Pressing the power door lock switch will lock all the doors and then unlock the driver’s door. Pressing and holding the power door lock switch for more than three seconds will override this feature.
Page 79: Remote Trunk Release
Remote Trunk Release From the inside, press this button located on the driver’s door in front of the map pocket to open the trunk. You can open the trunk only while the vehicle is stationary. Emergency Trunk Release Handle Notice: Using the emergency trunk release handle as a tie-down or anchor point when securing items in the trunk may damage it.
Page 80: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 81: Power Windows
Power Windows The power window switches for all windows are located on driver’s door armrest. Each passenger door also has a power window switch for their own window. Press the front of the switch to the ﬁrst position to lower the window to the desired level.
Page 82: Sun Visors
Sun Visors Swing down the visors to block glare. The visors can be removed from the center mount and swung to the side. The visors also have extenders that can be pulled out for additional blockage. Your vehicle may have lighted vanity mirrors on the driver’s and passenger’s visors.
Page 83: Disarming The System
Disarming the System You can disarm the system by doing any one of the following: • Press the remote keyless entry transmitter unlock button. • Turn the ignition on. • Turn the driver’s door key lock cylinder counterclockwise. Once the system is disarmed, the security light will stop ﬂashing.
Page 84 Passive Arming If passive arming is enabled through the DIC, the system will arm itself 60 seconds after cycling the ignition off and closing all doors. ® PASS-Key III+ ® Your PASS-Key III+ system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada.
Page 85 If the engine still does not start, and the key appears to be undamaged, try another ignition key. At this time, you may also want to check the fuse, see Fuses and Circuit Breakers on page 5-75. If the engine still does not start with the other key, your vehicle needs service.
Page 86: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines: • Do not drive at any one speed, fast or slow, for the ﬁrst 500 miles (805 km).
Page 87: Retained Accessory Power (Rap)
To use ACCESSORY, turn the key clockwise to the ﬁrst position. Use this position if your vehicle must be pushed or towed, but never try to push-start your vehicle. See Recreational Vehicle Towing on page 4-36. (ON): This position is where the key returns to after you start the engine and release the key.
Page 88: Adjustable Throttle And Brake Pedal
3. If your engine still will not start, or starts but then stops, it could be ﬂooded with too much gasoline. Try pushing your accelerator pedal all the way to the ﬂoor and holding it there as you hold the key in START for a maximum of 15 seconds.
Page 89: Engine Coolant Heater
Engine Coolant Heater Your vehicle may have this feature. In very cold weather, 0°F ( 18°C) or colder, the engine coolant heater can provide easier starting and better fuel economy during engine warm-up. Usually, the coolant heater should be plugged in a minimum of four hours prior to starting your vehicle.
Page 90: Automatic Transaxle Operation
Automatic Transaxle Operation SE Model Your automatic transaxle has a shift lever located on the console between the seats. PARK (P): This position locks your front wheels. It is the best position to use when you start your engine because your vehicle cannot move easily. 2-24 CAUTION: It is dangerous to get out of your vehicle if the...
Page 91 REVERSE (R): Use this gear to back up. Notice: Shifting to REVERSE (R) while your vehicle is moving forward could damage the transaxle. The repairs would not be covered by your warranty. Shift to REVERSE (R) only after your vehicle is stopped.
Page 92 AUTOMATIC OVERDRIVE (D): This position is for normal driving. If you need more power for passing, and you are: • Going less than 35 mph (55 km/h), push your accelerator pedal about halfway down. • Going about 35 mph (55 km/h) or more, push the accelerator all the way down.
Page 93 Driver Shift Control (DSC) For the GT model with an automatic transaxle, you may have a Driver Shift Control (DSC) feature that allows you to change gears similar to a manual transmission. To use this feature, do the following: GT Model 1.
Page 94: Parking Brake
Parking Brake To set the parking brake, pull up on the parking brake handle. If the ignition is on, the brake system warning light will come on. See Brake System Warning Light on page 3-28. 2-28 To release the parking brake, hold the brake pedal down.
Page 95: Shifting Into Park (P)
Shifting Into Park (P) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 96: Shifting Out Of Park (P)
Torque Lock If you are parking on a hill and you do not shift your automatic transaxle into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl in the transaxle. You may ﬁnd it difficult to pull the shift lever out of PARK (P).
Page 97: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass or other things that can burn. Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell.
Page 98: Running Your Engine While You Are Parked
Running Your Engine While You Are Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 99: Mirrors
Mirrors Manual Rearview Mirror While sitting in a comfortable driving position, adjust the mirror so you can see clearly behind your vehicle. Grip the mirror in the center to move it up or down and side to side. The day/night control at the bottom of the mirror lets you adjust the mirror to avoid glare from the lamps behind you.
Page 100: With Onstar
Cleaning the Mirror When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner. Do not spray glass cleaner directly on the mirror as that may cause the liquid cleaner to enter the mirror housing. Automatic Dimming Rearview Mirror ®...
Page 101: Outside Power Mirrors
Outside Power Mirrors The controls for the outside power mirrors, are located on the driver’s door armrest. Move the selector switch located below the four-way control pad to the left or right to choose either the driver’s side or passenger’s side mirror. To adjust a mirror, use the arrows located on the four-way control pad to move the mirror in the desired direction.
Page 102: Onstar System
® OnStar System ® OnStar uses global positioning system (GPS) satellite technology, wireless communications, and call centers to provide you with a wide range of safety, security, information, and convenience services. ® A complete OnStar user’s guide and the terms and ®...
Page 103: Homelink Transmitter
® OnStar Personal Calling ® As an OnStar subscriber, the Personal Calling capability is available if your hand-held cell phone is lost, forgotten, or has a low battery. It is a hands-free wireless phone that is integrated into the vehicle. Calls can be placed nationwide using simple voice commands with no additional contracts and no additional roaming charges.
Page 104: Programming The Homelink
This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference received, including interference that may cause undesired operation of the device. Changes and modiﬁcations to this system by other than an authorized service facility could void authorization to use this equipment.
Page 105 Programming HomeLink Your vehicle’s engine should be turned off while programming the transmitter. Follow these steps to program up to three channels: 1. Press and hold down the two outside buttons, releasing only when the indicator light begins to ﬂash, after 20 seconds. Do not hold down the buttons for longer than 30 seconds and do not repeat this step to program a second and/or third transmitter to the remaining two HomeLink...
Page 106: Gate Operator And Canadian Programming
6. Locate in the garage, the garage door opener receiver (motor-head unit). Locate the “Learn” or “Smart” button. This can usually be found where the hanging antenna wire is attached to the motor-head unit. 7. Firmly press and release the “Learn” or “Smart” button.
Page 107: Storage Areas
® Erasing HomeLink Buttons To erase programming from the three buttons do the following: 1. Press and hold down the two outside buttons until the indicator light begins to ﬂash, after 20 seconds. Do not hold the two outside buttons for longer than 30 seconds.
Page 108: Center Console Storage Area
Center Console Storage Area The center console has a separate storage area. To open the compartment, which is also the armrest, pull up on the front of the lid. In the ﬂoor console is a power accessory outlet. See Accessory Power Outlets on page 3-18 for more information.
Page 109: Sunroof - Panoramic
To close the sunroof, press the switch forward and hold it until the sunroof is closed. The sunroof will stop if the switch is released. Close the sunshade by hand. The sunroof glass panel cannot be opened or closed if the vehicle has an electrical failure.
Page 110 (First-Open Position): Turn the control to this position to open the panoramic sunroof about a third of the way. The second glass panel will retract and the fourth glass panel will stack above the roof. The sunshade will automatically retract to this position. (Second-Open Position): Turn the control to this position to open the panoramic sunroof about half-way.
Page 111 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-6 Horn ...3-6 Tilt Wheel ...3-6 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-8 Headlamp High/Low-Beam Changer ...3-8 Flash-to-Pass ...3-8 Windshield Wipers ...3-9 Windshield Washer ...3-10 Cruise Control ...3-10 Headlamps ...3-13 Headlamps on Reminder ...3-13...
Page 112 Section 3 Driver Information Center (DIC) ...3-36 DIC Operation and Displays ...3-37 DIC Warnings and Messages ...3-40 DIC Vehicle Personalization ...3-42 Audio System(s) ...3-44 Setting the Time for Radios without Radio Data Systems (RDS) ...3-45 Setting the Time for Radios with Radio Data Systems (RDS) ...3-45 Instrument Panel Radio with CD (Base Level) ...3-46...
Page 113 NOTES...
Page 114: Instrument Panel Overview
Instrument Panel Overview...
Page 115 The main components of your instrument panel are the following: A. Side Air Outlets. See Outlet Adjustment on page 3-23. B. Side Window Outlets. See Outlet Adjustment on page 3-23. C. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 3-7. D.
Page 116: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located near the center of the instrument panel.
Page 117: Turn Signal/Multifunction Lever
The lever that allows you to tilt and telescope the steering wheel is located on the left side of the steering column. To tilt and telescope the wheel, pull down the lever. Then move the wheel to a comfortable position, pull up the lever to lock the wheel in place.
Page 118: Turn And Lane-Change Signals
Turn and Lane-Change Signals The turn signal has two upward (for right) and two downward (for left) positions. These positions allow you to signal a turn or a lane change. To signal a turn, move the lever all the way up or down.
Page 119: Windshield Wipers
Windshield Wipers Use this lever located on the right side of the steering wheel to operate the windshield wipers. (Off): Move the lever to this position to turn off the windshield wipers. (Intermittent): Move the lever to this position to choose a delayed wiping cycle.
Page 120: Windshield Washer
Windshield Washer To wash your windshield, press the button at the end of the lever until the washers begin. CAUTION: In freezing weather, do not use your washer until the windshield is warmed. Otherwise the washer ﬂuid can form ice on the windshield, blocking your vision.
Page 121 Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 122 Resuming a Set Speed Suppose you set your cruise control at a desired speed and then you apply the brake. This, of course, disengages the cruise control. The cruise symbol in the instrument panel cluster will also go out indicating cruise is no longer engaged.
Page 123: Headlamps
Ending Cruise Control There are two ways to disengage the cruise control: • Step lightly on the brake pedal; when cruise control disengages, the cruise symbol in the instrument panel cluster will go out. • Press the on/off button, this will turn off the cruise control system.
Page 124: Headlamps Off In Park (P)
Headlamps Off in PARK (P) This feature works when the ignition is on and it is dark outside. To turn the headlamps off when it is dark outside but keep other exterior lights on, turn the exterior lamp control to the parking lamp position. In this position, the parking lamps, sidemarker lamps, taillamps, license plate lamps and instrument panel lights will be on, but the headlamps will be off.
Page 125: Automatic Headlamp System
Automatic Headlamp System When it is dark enough outside, your automatic headlamp system will turn on your headlamps at the normal brightness along with other lamps such as the taillamps, sidemarker, parking lamps and the instrument panel lights. The radio lights will also be dim. Your vehicle is equipped with a light sensor on the top of the instrument panel under the defroster grill, so be sure it is not covered which will cause the...
Page 126: Fog Lamps
Fog Lamps The fog lamp button is located on the instrument panel, to the left of the steering wheel. The ignition must be on to turn you fog lamps on. Push the button to turn the fog lamps on. An indicator light in the button will glow when the fog lamps are on.
Page 127: Entry/Exit Lighting
Entry/Exit Lighting The lamps inside your vehicle will go on when you open any door. These lamps will fade out after about 20 seconds after all of the doors have been closed or when the ignition is turned to ON. These lamps will also go on when you press the trunk release, unlock symbol button or the horn symbol on the keyless entry system transmitter.
Page 128: Accessory Power Outlets
Accessory Power Outlets Accessory power outlets can be used to connect auxiliary electrical equipment such as a cellular telephone or CB radio. There is one accessory power outlet located on the center console below the climate controls and another in the center storage console. To use the outlet, remove the protective cap.
Page 129: Climate Controls
Climate Controls Climate Control System With this system you can control the heating, cooling and ventilation for your vehicle. If your vehicle has the remote start feature, the climate control system will function as part of the remote start feature. The system will return to the last settings the vehicle was at when it was turned off.
Page 130 (Outside Air): Press the right side of this button to turn the outside air mode on. When this mode is selected, air from outside the vehicle will circulate throughout your vehicle. When the button is pressed, an indicator light will come on to let you know that it is activated.
Page 131: Defogging And Defrosting
(Air Conditioning): Press this button to turn the air conditioning system on or off. When the air conditioning button is pressed, an indicator light will come on to let you know that air conditioning is activated. On hot days, open the windows to let hot inside air escape;...
Page 132: Rear Window Defogger
(Defrost): This mode directs most of the air to the windshield with some air directed to the ﬂoor vents. In this mode, the system will automatically force outside air into your vehicle. The air-conditioning compressor will run unless the outside temperature is at or below freezing.
Page 133: Outlet Adjustment
If your vehicle has the remote start feature, the rear defogger will automatically be turned on if it is cold outside. The indicator light will be on. When the vehicle transitions out of the remote start mode, the rear defogger will turn off. Notice: Don’t use anything sharp on the inside of the rear window.
Page 134: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 135 Your vehicle has this cluster or one very similar to it. It includes indicator warning lights and gages that are explained on the following pages. Be sure to read about them. United States shown, Canada similar 3-25...
Page 136: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). Your vehicle has a tamper resistant odometer.
Page 137: Airbag Readiness Light
Airbag Readiness Light There is an airbag readiness light on the instrument panel, which shows the airbag symbol. The system checks the airbag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the airbag sensors, the airbag modules, the wiring and the diagnostic module.
Page 138: Charging System Light
Charging System Light The charging system light will come on for a few seconds when you turn on the ignition as a check to show you it is working. If it stays on, or comes on while you are driving and you hear a chime, you may have a problem with the electrical charging system.
Page 139: Anti-Lock Brake System Warning Light
When the ignition is on, the brake system warning light will also come on when you set your parking brake. The light will stay on if your parking brake doesn’t release fully. If it stays on after your parking brake is fully released, it means you have a brake problem.
Page 140: Traction Control System (Tcs)
Traction Control System (TCS) Warning Light If the traction control warning light comes on and stays on, there may be a problem with the traction control system. The traction control warning light will come on brieﬂy when you turn the ignition to ON. If it does not come on then, have it ﬁxed so it will be ready to warn you if there is a problem.
Page 141: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light Your vehicle is equipped with a computer which monitors operation of the fuel, ignition, and emission control systems. This system is called OBD II (On-Board Diagnostics- Second Generation) and is intended to assure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 142: If The Light Is Flashing
If the Light is Flashing The following may prevent more serious damage to your vehicle: • Reducing vehicle speed • Avoiding hard accelerations • Avoiding steep uphill grades • If you are towing a trailer, reduce the amount of cargo being hauled as soon as it is possible If the light stops ﬂashing and remains on steady, see “If the Light Is On Steady”...
Page 143 Have you recently changed brands of fuel? If so, be sure to fuel your vehicle with quality fuel. See Gasoline Octane on page 5-5. Poor fuel quality will cause your engine not to run as efficiently as designed. You may notice this as stalling after start-up, stalling when you put the vehicle into gear, misﬁring, hesitation on acceleration, or stumbling on acceleration.
Page 144: Maintenance Schedule
Oil Pressure Light If you have low engine oil pressure, this light will stay on after you start your engine, or come on and you will hear a chime when you are driving. This indicates that your engine is not receiving enough oil.
Page 145: Security Light
Security Light For information regarding this light, see Theft-Deterrent Systems on page 2-16. Cruise Control Light This light comes on whenever you set your cruise control. The light will go out when the cruise control is turned off. See Cruise Control on page 3-10 for more information.
Page 146: Fuel Gage
Fuel Gage United States Your fuel gage tells you about how much fuel you have left, when the ignition is on. See Low Fuel Warning Light on page 3-36 for more information. Low Fuel Warning Light This light comes on when the fuel tank is low on fuel. To turn if off, add fuel to the fuel tank.
Page 147: Dic Operation And Displays
The buttons used to activate the DIC are located on the left side of the vehicle’s audio system. INFO/ (Information): Press this button to scroll through the vehicle information mode displays. MENU: Press this button to enter and scroll through the menu mode.
Page 148 FUEL RANGE: Press the information button until FUEL RANGE is displayed. This shows the remaining distance you can drive without refueling. It is based on fuel economy and the fuel remaining in the tank. The fuel economy data used to determine fuel range is an average of recent driving conditions.
Page 149 Personalization MENU: Press this button while the vehicle is in ON to scroll through each of the personalization options in the following order. All of the personalization options may not be available on your vehicle. Only the options available will be displayed on your DIC. •...
Page 150: Dic Warnings And Messages
DIC Warnings and Messages These messages will appear if there is a problem sensed in one of your vehicle’s systems. Any message will clear when the vehicle’s condition is no longer present. To acknowledge a message and clear it from the display, press any of the three DIC buttons. The warning message will come back on the next time the vehicle is turned off and back on if the condition is still present.
Page 151 ENG PWR REDUCED: This message informs you that the vehicle has reduced engine power to avoid damaging the engine. ICE POSSIBLE: This message appears when the outside air temperature is cold enough to create icy road conditions. KEY FOB BATT LOW: This message is displayed if the remote keyless entry transmitter battery is low.
Page 152: Dic Vehicle Personalization
DIC Vehicle Personalization The following personalization options may appear on your vehicle’s audio display by pressing the MENU button: OIL LIFE RESET: When this option is displayed, you can reset the engine oil life system. To reset the system to 100%, press and hold the enter button for at least one second.
Page 153 UNLOCK HORN: If your vehicle has remote keyless entry, this option which allows the vehicle’s horn to chirp every time the unlock button on the remote keyless entry transmitter is pressed, can be enabled or disabled. When UNLOCK HORN appears on the display, press the enter button to move between ON and OFF.
Page 154: Audio System(S)
SECURITY: If your vehicle has the remote keyless entry system, this option allows you to select the method used to arm the vehicle’s security system. When SECURITY appears on the display, press the enter button to move between RKE and PASSIVE. When you have made your choice, press the MENU button to record your selection.
Page 155: Setting The Time For Radios Without Radio
Setting the Time for Radios without Radio Data Systems (RDS) To set the hour, press the clock button. The clock symbol will appear on the display and the hour number will ﬂash. Then turn the ADJ knob to increase or to decrease.
Page 156: Radio With Cd (Base Level)
Radio with CD (Base Level) United States shown, Canada similar Playing the Radio (Power): Press this knob to turn the system on and off. (Volume): Turn this knob to increase or to decrease the volume. 3-46 DISP (Display): Press this knob to switch the display between the time and the temperature or the radio station frequency and the temperature.
Page 157: Setting Preset Stations
To scan preset stations, press and hold either SEEK button for more than four seconds until you hear two beeps. The radio will go to the ﬁrst preset station stored on the pushbuttons, play for a few seconds, then go on to the next preset station. Press either SEEK button again to stop scanning presets.
Page 158: Radio Messages
Adjusting the Speakers (Balance/Fade) BAL/FADE / (Balance/Fade): To adjust the balance between the right and the left speakers, press and release the balance and fade button until BAL appears on the display. Turn the ADJ knob to move the sound toward the right or the left speakers. To adjust the fade between the front and the rear speakers, press and release the balance and fade button until FADE appears on the display.
Page 159 The CD player can play the smaller 3 inch (8 cm) single CDs with an adapter ring. Full-size CDs and the smaller CDs are loaded in the same manner. If playing a CD-R the sound quality may be reduced due to CD-R quality, the method of recording, the quality of the music that has been recorded, and the way the CD-R has been handled.
Page 160 SEEK : Press this button to go to the start of the current track if more than eight seconds have played. The track number will appear on the display. If this button is pressed more than once, the player will continue moving backward through the CD.
Page 161: Radio With Cd (Up Level)
Radio with CD (Up Level) United States shown, Canada similar Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: •...
Page 162: Playing The Radio
XM™ Satellite Radio Service XM™ is a satellite radio service that is based in the 48 contiguous United States. XM™ offers 100 coast-to-coast channels including music, news, sports, talk, and children’s programming. XM™ provides digital quality audio and text information that includes song title and artist name.
Page 163: Finding A Station
Finding a Station BAND: Press this button to switch between FM1, FM2, AM, or XM1 or XM2 (if equipped). The display will show the selection. ADJ (Adjust): Turn this knob to select radio stations. SEEK : Press the down or up arrow to go to the next or to the previous station and stay there.
Page 164 Setting the Tone (Bass/Midrange/Treble) TONE / (Bass/Treble): Press and release this button until BASS, MID, or TREB appears on the display. Turn the ADJ knob to increase or to decrease. The display will show the bass, midrange, or treble level. If a station is weak or noisy, decrease the treble. To adjust bass, midrange, or treble to the middle position, select BASS, MID, or TREB.
Page 165: Rds And Xm
Finding a Program Type (PTY) Station (RDS and XM™) To select and ﬁnd a desired PTY perform the following: 1. Press the P-TYPE button to activate program type select mode. PTY for FM or PTYPE for XM and a program type will appear on the display. 2.
Page 166 MSG (Message): If the current station has a message, MSG will appear on the display. Press this button to see the message. The message may display the artist, song title, call in phone numbers, etc. If the entire message is not displayed, parts of the message will appear every three seconds.
Page 167 Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) Off Air Channel not in service CH Unavl Channel no longer...
Page 168 Radio Display Message No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Lock Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Check DAB...
Page 169 Playing a CD Insert a CD partway into the slot, label side up. The player will pull it in and the CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the eject button or the DISP knob. As each new track starts to play, the track number will appear on the display.
Page 170 RPT (Repeat): Press this button once to hear a track over again. REPEAT ON and RPT will appear on the display. The current track will continue to repeat. Press RPT again to turn off repeat play. REPEAT OFF will appear on the display and RPT will disappear from the display.
Page 171 AUTO TONE/AUTO EQ (Automatic Equalization): Press this button to select the desired equalization setting while playing a CD. The equalization will be automatically recalled whenever a CD is played. For more information, see AUTO TONE/AUTO EQ listed previously in this section. BAND: Press this button to listen to the radio when a CD is playing.
Page 172: Radio With Six-Disc Cd
Radio with Six-Disc CD United States shown, Canada similar Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. 3-62 With RDS, the radio can do the following: •...
Page 173 XM™ Satellite Radio Service XM™ is a satellite radio service that is based in the 48 contiguous United States. XM™ offers 100 coast-to-coast channels including music, news, sports, talk, and children’s programming. XM™ provides digital quality audio and text information that includes song title and artist name.
Page 174 Finding a Station BAND: Press this button to switch between FM1, FM2, AM, or XM1 or XM2 (if equipped). The display will show the selection. ADJ (Adjust): Turn this knob to select radio stations. SEEK : Press the down or up arrow to go to the next or to the previous station and stay there.
Page 175 Setting the Tone (Bass/Midrange/Treble) TONE / (Bass/Treble): Press and release this button until BASS, MID, or TREB appears on the display. Turn the ADJ knob to increase or to decrease. The display will show the bass, mid, or treble level. If a station is weak or noisy, decrease the treble.
Page 176 Adjusting the Speakers (Balance/Fade) BAL/FADE / (Balance/Fade): To adjust the balance between the right and the left speakers, push and release the balance and fade button until BAL appears on the display. Turn the ADJ knob to move the sound toward the right or the left speakers. To adjust the fade between the front and rear speakers, push and release the balance and fade button until FADE appears on the display.
Page 177 BAND (Alternate Frequency): Alternate frequency allows the radio to switch to a stronger station with the same program type. To turn alternate frequency on, press and hold BAND for two seconds. FM ALT FREQ ON and AF will appear on the display. The radio may switch to stations with a stronger frequency.
Page 178 MSG (Traffic): If TRAFFIC appears on the display, the tuned station broadcasts traffic announcements and when a traffic announcement comes on the tuned radio station you will hear it. If the current tuned station does not broadcast traffic announcements, press and hold this button for two seconds and the radio will seek to a station that does.
Page 179 Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) Off Air Channel not in service CH Unavl Channel no longer...
Page 180 Radio Display Message No Info Song/Program Title not available No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Lock Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known...
Page 181 Playing a CD If the ignition or radio is turned off, with a CD in the player, it will stay in the player. When the ignition or radio is turned on, the CD will start playing where it stopped, if it was the last selected audio source. When a CD is inserted, the CD symbol will appear on the CD.
Page 182 To load more than one CD but less than six, complete Steps 1 through 3. When ﬁnished loading CDs, the radio will begin to play the last CD loaded. If more than one CD has been loaded, a number for each CD will be displayed and the currently selected slot number will be underlined.
Page 183 RPT (Repeat): With repeat, one track or an entire CD can be repeated. To use repeat, do the following: • To repeat the track you are listening to, press and release the RPT button. REPEAT ON and RPT will appear on the display. Press RPT again to turn off repeat play.
Page 184 DISP (Display): Press this knob to switch between time, temperature, and the elapsed time of the track. To change the default on the display (CD#/Track#/Time, CD#/Track#/Temperature, or Track#/Elapsed Time/Temperature), press the knob until you see the display you want, then hold the knob for two seconds. The radio will produce one beep and the selected display will now be the default.
Page 185 SONG LIST FULL will appear on the display if you try to save more than 20 selections. To play the song list, press the song list button. One beep will be heard and SONG LIST will appear on the display. The recorded tracks will begin to play in the order that they were saved.
Page 186: Theft-Deterrent Feature
CD Messages CHECK CD: If this message appears on the display and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. •...
Page 187: Radio Reception
They include the following: SEEK : Press the up or the down arrow to go to the next or to the previous radio station and stay there. The radio will only seek stations with a strong signal that are in the selected band. When a CD is playing, press the up or the down arrow to go to the next or previous track.
Page 188: Care Of Your Cds And Dvds
Care of Your CDs and DVDs Handle discs carefully. Store them in their original cases or other protective cases and away from direct sunlight and dust. If the surface of a disc is soiled, dampen a clean, soft cloth in a mild, neutral detergent solution and clean it, wiping from the center to the edge.
Page 189: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunken Driving ...4-2 Control of a Vehicle ...4-5 Braking ...4-5 Anti-Lock Brake System (ABS) ...4-6 Braking in Emergencies ...4-8 Traction Control System (TCS) ...4-8 Enhanced Traction System (ETS) ...4-10 Steering ...4-11 Off-Road Recovery ...4-13 Passing ...4-14...
Page 190: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 1-8. Defensive driving really means “be ready for anything.”...
Page 191 Many adults — by some estimates, nearly half the adult population — choose never to drink alcohol, so they never drive after drinking. For persons under 21, it is against the law in every U.S. state to drink alcohol. There are good medical, psychological and developmental reasons for these laws.
Page 192 There is a gender difference, too. Women generally have a lower relative percentage of body water than men. Since alcohol is carried in body water, this means that a woman generally will reach a higher BAC level than a man of her same body weight will when each has the same number of drinks.
Page 193: Control Of A Vehicle
CAUTION: Drinking and then driving is very dangerous. Your reﬂexes, perceptions, attentiveness, and judgment can be affected by even a small amount of alcohol. You can have a serious — or even fatal — collision if you drive after drinking. Please do not drink and drive or ride with a driver who has been drinking.
Page 194: Anti-Lock Brake System (Abs)
Avoid needless heavy braking. Some people drive in spurts — heavy acceleration followed by heavy braking — rather than keeping pace with traffic. This is a mistake. Your brakes may not have time to cool between hard stops. Your brakes will wear out much faster if you do a lot of heavy braking.
Page 195 Let us say the road is wet and you are driving safely. Suddenly, an animal jumps out in front of you. You slam on the brakes and continue braking. Here is what happens with ABS: A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each front wheel and at both rear wheels.
Page 196: Braking In Emergencies
Using Anti-Lock Do not pump the brakes. Just hold the brake pedal down ﬁrmly and let anti-lock work for you. You may feel a slight brake pedal pulsation or notice some noise, but this is normal. Braking in Emergencies At some time, nearly every driver gets into a situation that requires hard braking.
Page 197 This light, located on the instrument panel, will come on when your Traction Control System is limiting wheel spin. You may feel or hear the system working, but this is normal. If your vehicle is in cruise control when the traction control system begins to limit wheel spin, the cruise control will automatically disengage.
Page 198: Enhanced Traction System (Ets)
Enhanced Traction System (ETS) Your vehicle may have an Enhanced Traction System (ETS) that limits wheel spin. This is especially useful in slippery road conditions. The system operates only if it senses that one or both of the front wheels are spinning or beginning to lose traction.
Page 199: Steering
When you turn the system off, the Enhanced Traction System warning light will come on and stay on. If the Enhanced Traction System is limiting wheel spin when you press the button to turn the system off, the warning light will come on – but the system won’t turn off right away.
Page 200: Steering In Emergencies
Suppose you are steering through a sharp curve. Then you suddenly apply the brakes. Both control systems —steering and braking — have to do their work where the tires meet the road. Unless you have four-wheel anti-lock brakes, adding the hard braking can demand too much of those places.
Page 201: Off-Road Recovery
An emergency like this requires close attention and a quick decision. If you are holding the steering wheel at the recommended 9 and 3 o’clock positions, you can turn it a full 180 degrees very quickly without removing either hand. But you have to act fast, steer quickly, and just as quickly straighten the wheel once you have avoided the object.
Page 202: Passing
Passing The driver of a vehicle about to pass another on a two-lane highway waits for just the right moment, accelerates, moves around the vehicle ahead, then goes back into the right lane again. A simple maneuver? Not necessarily! Passing another vehicle on a two-lane highway is a potentially dangerous move, since the passing vehicle occupies the same lane as oncoming traffic for several seconds.
Page 203: Loss Of Control
• Check your mirrors, glance over your shoulder, and start your left lane change signal before moving out of the right lane to pass. When you are far enough ahead of the passed vehicle to see its front in your inside mirror, activate your right lane change signal and move back into the right lane.
Page 204: Driving At Night
Of course, traction is reduced when water, snow, ice, gravel, or other material is on the road. For safety, you will want to slow down and adjust your driving to these conditions. It is important to slow down on slippery surfaces because stopping distance will be longer and vehicle control more limited.
Page 205 Here are some tips on night driving. • Drive defensively. • Do not drink and drive. • Adjust your inside rearview mirror to reduce the glare from headlamps behind you. • Since you cannot see as well, you may need to slow down and keep more space between you and other vehicles.
Page 206: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you cannot stop, accelerate, or turn as well because your tire-to-road traction is not as good as on dry roads. And, if your tires do not have much tread left, you will get even less traction.
Page 207: Driving Through Flowing Water
Hydroplaning Hydroplaning is dangerous. So much water can build up under your tires that they can actually ride on the water. This can happen if the road is wet enough and you are going fast enough. When your vehicle is hydroplaning, it has little or no contact with the road.
Page 208: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. 4-20 Here are ways to increase your safety in city driving: •...
Page 209: Freeway Driving
Freeway Driving Mile for mile, freeways—also called thruways, parkways, expressways, turnpikes, or superhighways — are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 210: Before Leaving On A Long Trip
Once you are moving on the freeway, make certain you allow a reasonable following distance. Expect to move slightly slower at night. When you want to leave the freeway, move to the proper lane well in advance. If you miss your exit, do not, under any circumstances, stop and back up.
Page 211: Highway Hypnosis
Here are some things you can check before a trip: • Windshield Washer Fluid: Is the reservoir full? Are all windows clean inside and outside? • Wiper Blades: Are they in good shape? • Fuel, Engine Oil, Other Fluids: Have you checked all levels? •...
Page 212: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or mountains is different from driving in ﬂat or rolling terrain. 4-24 If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable.
Page 213: Winter Driving
CAUTION: Coasting downhill in NEUTRAL (N) or with the ignition off is dangerous. Your brakes will have to do all the work of slowing down. They could get so hot that they would not work well. You would then have poor braking or even none going down a hill.
Page 214: Driving On Snow Or Ice
Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective warning triangles. And, if you will be driving under severe conditions, include a small bag of sand, a piece of old carpet, or a couple of burlap bags to help provide traction.
Page 215 But wet ice can be even more trouble because it may offer the least traction of all. You can get wet ice when it is about freezing, 32°F (0°C), and freezing rain begins to fall. Try to avoid driving on wet ice until salt and sand crews can get there.
Page 216: If You Are Caught In A Blizzard
If You Are Caught in a Blizzard If you are stopped by heavy snow, you could be in a serious situation. You should probably stay with your vehicle unless you know for sure that you are near help and you can hike through the snow. Here are some things to do to summon help and keep yourself and your passengers safe: •...
Page 217 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 218: If You Are Stuck: In Sand, Mud, Ice Or Snow
If You Are Stuck: In Sand, Mud, Ice or Snow In order to free your vehicle when it is stuck, you will need to spin the wheels, but you do not want to spin your wheels too fast. The method known as rocking can help you get out when you are stuck, but you must use caution.
Page 219: Loading Your Vehicle
Loading Your Vehicle It is very important to know how much weight your vehicle can carry. This weight is called the vehicle capacity weight and includes the weight of all occupants, cargo and all nonfactory-installed options. Two labels on your vehicle show how much weight it may properly carry, the Tire and Loading Information label and the Certiﬁcation label.
Page 220 There is also important loading information on the Certiﬁcation label. It tells you the Gross Vehicle Weight Rating (GVWR) and the Gross Axle Weight Rating (GAWR) for the front and rear axle; see “Certiﬁcation Label” later in this section. Steps for Determining Correct Load Limit 1.
Page 221 Example 1 Item Description Vehicle Capacity Weight for Example 1 Subtract Occupant Weight 150 lbs (68 kg) Available Occupant and Cargo Weight Total Item 1,000 lbs (453 kg) 300 lbs (136 kg) 700 lbs (317 kg) Example 2 Description Vehicle Capacity Weight 1,000 lbs (453 kg) for Example 2 Subtract Occupant...
Page 222 Example 3 Item Description Vehicle Capacity Weight for Example 3 Subtract Occupant Weight 200 lbs (91 kg) Available Cargo Weight Refer to your vehicle’s Tire and Loading Information label for speciﬁc information about your vehicle’s capacity weight and seating positions. The combined weight of the driver, passengers, and cargo should never exceed your vehicle’s capacity weight.
Page 223 CAUTION: Do not load your vehicle any heavier than the Gross Vehicle Weight Rating (GVWR), or either the maximum front or rear Gross Axle Weight Rating (GAWR). If you do, parts on your vehicle can break, and it can change the way your vehicle handles.
Page 224: Towing
Towing Towing Your Vehicle Consult your dealer or a professional towing service if you need to have your disabled vehicle towed. See Roadside Assistance Program on page 7-5. If you want to tow your vehicle behind another vehicle for recreational purposes (such as behind a motorhome), see “Recreational Vehicle Towing”...
Page 225: Dinghy Towing
Dinghy Towing To tow your vehicle with all four wheels on the ground, follow these steps: 1. Position the vehicle to tow and then secure it. 2. Turn the ignition to OFF. 3. Set the parking brake. 4. Turn the ignition to ACC. 5.
Page 226: Towing A Trailer
Dolly Towing To tow your vehicle with two wheels on the ground and a dolly, do the following: 1. Put the front wheels on a dolly. 2. Put the vehicle in PARK (P). 3. Set the parking brake and then remove the key. 4.
Page 227: If You Do Decide To Pull A Trailer
That is the reason for this part. In it are many time-tested, important trailering tips and safety rules. Many of these are important for your safety and that of your passengers. So please read this section carefully before you pull a trailer. Load-pulling components such as the engine, transaxle, wheel assemblies and tires are forced to work harder against the drag of the added weight.
Page 228: Weight Of The Trailer Tongue
45 mph (72 km/h) to avoid overheating the engine cooling system. You can ask your dealer for additional trailering information or advice, or you can write us at: Pontiac-GMC Customer Assistance P.O. Box 33172 Detroit, MI 48232-5172 In Canada, write to:...
Page 229: Safety Chains
Total Weight on Your Vehicle’s Tires Be sure your vehicle’s tires are inﬂated to the upper limit for cold tires. You will ﬁnd these numbers on the Tire-Loading Information label at the rear edge of the driver’s door or see Loading Your Vehicle on page 4-31. Then be sure you do not go over the GVW limit for your vehicle, including the weight of the trailer tongue.
Page 230: Driving With A Trailer
Driving with a Trailer Towing a trailer requires a certain amount of experience. Before setting out for the open road, you will want to get to know your rig. Acquaint yourself with the feel of handling and braking with the added weight of the trailer. And always keep in mind that the vehicle you are driving is now a good deal longer and not nearly as responsive as your vehicle is by itself.
Page 231: Turn Signals When Towing A Trailer
Turn Signals When Towing a Trailer When you tow a trailer, your vehicle may need a different turn signal ﬂasher and/or extra wiring. Check with your dealer. The arrows on your instrument panel will ﬂash whenever you signal a turn or lane change.
Page 232: Maintenance When Trailer Towing
When You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you: • start your engine, • shift into a gear, and • release the parking brake. 2. Let up on the brake pedal. 3.
Page 233: Service And Appearance Care
Section 5 Service ...5-3 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of Your Vehicle ...5-5 Fuel ...5-5 Gasoline Octane ...5-5 Gasoline Speciﬁcations ...5-5 California Fuel ...5-6 Additives ...5-6 Fuels in Foreign Countries ...5-7 Filling Your Tank ...5-8 Filling a Portable Fuel Container ...5-10 Checking Things Under the Hood ...5-10 Hood Release ...5-11...
Page 234 Section 5 If a Tire Goes Flat ...5-55 Changing a Flat Tire ...5-56 Removing the Spare Tire and Tools ...5-57 Removing the Flat Tire and Installing the Spare Tire ...5-59 Storing a Flat or Spare Tire and Tools ...5-64 Compact Spare Tire ...5-65 Appearance Care ...5-66 Fabric/Carpet ...5-66 Vinyl ...5-68...
Page 235: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 236: Doing Your Own Service Work
Doing Your Own Service Work If you want to do some of your own service work, you will want to use the proper service manual. It tells you much more about how to service your vehicle than this manual can. To order the proper service manual, see Service Publications Ordering Information on page 7-11.
Page 237: Adding Equipment To The Outside Of
Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airﬂow around it. This may cause wind noise and affect windshield washer performance. Check with your dealer before adding equipment to the outside of your vehicle.
Page 238: California Fuel
California Fuel If your vehicle is certiﬁed to meet California Emission Standards, it is designed to operate on fuels that meet California speciﬁcations. See the underhood emission control label. If this fuel is not available in states adopting California emissions standards, your vehicle will operate satisfactorily on fuels meeting federal speciﬁcations, but emission control system performance may be affected.
Page 239: Fuels In Foreign Countries
Gasolines containing oxygenates, such as ethers and ethanol, and reformulated gasolines may be available in your area to contribute to clean air. General Motors recommends that you use these gasolines, particularly if they comply with the speciﬁcations described earlier. Notice: Your vehicle was not designed for fuel that contains methanol.
Page 240: Filling Your Tank
Filling Your Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling. Do not smoke if you are near fuel or refueling your vehicle.
Page 241 CAUTION: If you spill fuel and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather. Open the fuel cap slowly and wait for any hiss noise to stop.
Page 242: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 243: Hood Release
Hood Release To open the hood, do the following: 1. Pull the handle with this symbol on it. It is located under the instrument panel on the driver’s side of the vehicle. 2. Then go to the front of the vehicle and push the secondary hood release lever to the right or towards the driver’s side of the vehicle.
Page 244: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the 3.5L LX9 engine, here is what you will see: 5-12...
Page 245: Engine Oil
A. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 5-17. B. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine Oil on page 5-13. C. Engine Oil Dipstick. See “Checking Engine Oil” under Engine Oil on page 5-13. D.
Page 246: When To Add Engine Oil
When to Add Engine Oil If the oil is below the cross-hatched area at the tip of the dipstick, you will need to add at least one quart of oil. But you must use the right kind. This section explains what kind of oil to use.
Page 247: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Look for two things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. You should look for and use only an oil that meets GM Standard GM6094M. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
Page 248: Engine Oil Life System
® GM Goodwrench oil meets all the requirements for your vehicle. If you are in an area of extreme cold, where the temperature falls below 20°F ( 29°C), it is recommended that you use either an SAE 5W-30 synthetic oil or an SAE 0W-30 oil. Both will provide easier cold starting and better protection for your engine at extremely low temperatures.
Page 249: Engine Air Cleaner/Filter
After changing the engine oil, the system must be reset. To reset the oil life system, use the following procedure: 1. Turn the ignition to ON, with the engine off. 2. Fully press and release the accelerator pedal slowly three times within ﬁve seconds. When the reset is complete, the CHANGE OIL SOON message can be cleared as described under CHANGE OIL SOON message.
Page 250: How To Inspect The Engine Air Cleaner/Filter
When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at the Maintenance II intervals and replace at the ﬁrst oil change after 50,000 miles (83 000 km). See Scheduled Maintenance on page 6-4 for more information. If you are driving in dusty/dirty conditions, inspect the ﬁlter at each engine oil change.
Page 251: Automatic Transaxle Fluid
Automatic Transaxle Fluid It is not necessary to check the transaxle ﬂuid level. A transaxle ﬂuid leak is the only reason for ﬂuid loss. If a leak occurs, take the vehicle to the dealership service department and have it repaired as soon as possible.
Page 252: What To Use
What to Use Use a mixture of one-half clean, drinkable water and ® one-half DEX-COOL coolant which will not damage aluminum parts. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 253: Checking Coolant
Checking Coolant The engine coolant surge tank is located in the rear of the engine compartment. See Engine Compartment Overview on page 5-12 for more information on location. CAUTION: Turning the surge tank pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
Page 254: Coolant Surge Tank Pressure Cap
Adding Coolant If you need more coolant, add the proper DEX-COOL coolant mixture at the surge tank, but only when the engine is cool. If the surge tank is empty, a special ﬁll procedure is necessary. See Engine Overheating on page 5-22 and Cooling System on page 5-24. CAUTION: You can be burned if you spill coolant on hot engine parts.
Page 255: If No Steam Is Coming From Your Engine
If No Steam Is Coming From Your Engine If you get an engine overheat warning, but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: • Climb a long hill on a hot day.
Page 256: Cooling System
Cooling System When you decide it is safe to lift the hood, here is what you will see: A. Engine Cooling Fans B. Engine Coolant Reservoir 5-24 CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you.
Page 257 CAUTION: Heater and radiator hoses, and other engine parts, can be very hot. Do not touch them. If you do, you can be burned. Do not run the engine if there is a leak. If you run the engine, it could lose all coolant. That could cause an engine ﬁre, and you could be burned.
Page 258: How To Add Coolant To The Coolant Surge Tank
How to Add Coolant to the Coolant Surge Tank Notice: This vehicle has a speciﬁc coolant ﬁll procedure. Failure to follow this procedure could cause your engine to overheat and be severely damaged. If you have not found a problem yet, check to see if coolant is visible in the surge tank.
Page 259 CAUTION: Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid such as alcohol, can boil before the proper coolant mixture will. Your vehicle’s coolant warning system is set for the proper coolant mixture. With plain water or the wrong mixture, your engine could get too hot but you would not get the overheat warning.
Page 260 2. Then keep turning the pressure cap slowly, and remove it. 3. Fill the coolant surge tank with the proper mixture, to the Full Cold mark. Wait about ﬁve minutes, then check to see if the level is below the Full Cold mark.
Page 261: Windshield Washer Fluid
Windshield Washer Fluid What to Use When you need windshield washer ﬂuid, be sure to read the manufacturer’s instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 262: Brakes
Brakes Brake Fluid Your brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 263 What to Add When you do need brake ﬂuid, use only DOT-3 brake ﬂuid. Use new brake ﬂuid from a sealed container only. See Recommended Fluids and Lubricants on page 6-12. Always clean the brake ﬂuid reservoir cap and the area around the cap before removing it.
Page 264: Brake Wear
Brake Wear Your vehicle has four-wheel disc brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving, except when you are pushing on the brake pedal ﬁrmly.
Page 265: Battery
Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Your vehicle was designed and tested with top-quality GM brake parts.
Page 266: Jump Starting
Jump Starting If your battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 267 4. Open the hoods and locate the batteries. Find the positive (+) and negative ( ) terminal locations on each vehicle. See Engine Compartment Overview on page 5-12 for more information on location. CAUTION: An electric fan can start up even when the engine is not running and can injure you.
Page 268 CAUTION: Fans or other moving engine parts can injure you badly. Keep your hands away from moving parts once the engine is running. 6. Connect the red positive (+) cable to the positive (+) terminal of the dead battery. 5-36 7.
Page 269 Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 270: Bulb Replacement
Bulb Replacement For the proper type of replacement bulbs, see Replacement Bulbs on page 5-40. For any bulb changing procedure not listed in this section, contact your dealer. Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb. You or others could be injured.
Page 271: Center High-Mounted Stoplamp (Chmsl)
2. Loosen the front fascia by removing the plastic push pins along the top of the tie bar. 3. Pull back the front fascia then pull the headlamp assembly forward, out of the vehicle. You may want someone to assist you with the removal of the headlamp assembly to avoid possible damage to the vehicle.
Page 272: Taillamps, Turn Signal, Sidemarker
Taillamps, Turn Signal, Sidemarker, Stoplamps and Back-up Lamps A. Sidemarker B. Back-up C. Taillamp, Turn Signal, Stoplamp To replace one of these bulbs, do the following: 1. Open the trunk. See Trunk on page 2-12 for more information. 2. Remove the convenience net, if equipped. 3.
Page 273: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected at least twice a year for wear or cracking. See Scheduled Maintenance on page 6-4 for more information on wiper blade inspection. Replacement blades come in different types and are removed in different ways.
Page 274: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle’s Owner’s Manual.
Page 275: Tire Sidewall Labelling
Tire Sidewall Labelling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger (P-Metric) Tire Example (A) Tire Size: The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description.
Page 276 Compact Spare Tire Example (A) Temporary Use Only: The compact spare tire or temporary use tire has a tread life of approximately 3,000 miles (5 000 km) and should not be driven at speeds over 65 mph (105 km/h). The compact spare tire is for emergency use when a regular road tire has lost air and gone ﬂat.
Page 277: Tire Terminology And Deﬁnitions
Tire Size The following illustration shows an example of a typical passenger vehicle tire size. (A) Passenger (P-Metric) Tire: The United States version of a metric tire sizing system. The letter P as the ﬁrst character in the tire size means a passenger vehicle tire engineered to standards set by the U.S.
Page 278 Belt: A rubber coated layer of cords that is located between the plies and the tread. Cords may be made from steel or other reinforcing materials. Bead: The tire bead contains steel wires wrapped by steel cords that hold the tire onto the rim. Bias Ply Tire: A pneumatic tire in which the plies are laid at alternate angles less than 90 degrees to the centerline of the tread.
Page 279 Outward Facing Sidewall: The side of an asymmetrical tire that has a particular side that faces outward when mounted on a vehicle. The side of the tire that contains a whitewall, bears white lettering or bears manufacturer, brand, and/or model name molding that is higher or deeper than the same moldings on the other sidewall of the tire.
Page 280: Inﬂation - Tire Pressure
Inﬂation - Tire Pressure Tires need the correct amount of air pressure to operate effectively. Notice: Do not let anyone tell you that under-inﬂation or over-inﬂation is all right. It is not. If your tires do not have enough air (under-inﬂation), you can get the following: •...
Page 281: Tire Inspection And Rotation
How to Check Use a good quality pocket-type gage to check tire pressure. You cannot tell if your tires are properly inﬂated simply by looking at them. Radial tires may look properly inﬂated even when they are under-inﬂated. Check the tire’s inﬂation pressure when the tires are cold.
Page 282: When It Is Time For New Tires
After the tires have been rotated, adjust the front and rear inﬂation pressures as shown on the Tire and Loading Information label. Make certain that all wheel nuts are properly tightened. See “Wheel Nut Torque” under Capacities and Speciﬁcations on page 5-82. CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts...
Page 283: Buying New Tires
Buying New Tires To ﬁnd out what kind and size of tires your vehicle needs, look at the tire and loading information label. For more information about this label and its location on your vehicle, see Loading Your Vehicle on page 4-31. The tires installed on your vehicle when it was new had a Tire Performance Criteria Speciﬁcation (TPC Spec) number on each tire’s sidewall.
Page 284: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration, which grades tires by treadwear, traction and temperature performance.
Page 285: Wheel Alignment And Tire Balance
Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 286: Tire Chains
If you need to replace any of your wheels, wheel bolts or wheel nuts, replace them only with new GM original equipment parts. This way, you will be sure to have the right wheel, wheel bolts and wheel nuts for your vehicle. CAUTION: Using the wrong replacement wheels, wheel bolts or wheel nuts on your vehicle can be...
Page 287: If A Tire Goes Flat
CAUTION: (Continued) Use another type of traction device only if its manufacturer recommends it for use on your vehicle and tire size combination and road conditions. Follow that manufacturer’s instructions. To help avoid damage to your vehicle, drive slowly, re-adjust or remove the device if is contacting your vehicle, and do not spin your wheels.
Page 288: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning ﬂashers. CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people.
Page 289: Removing The Spare Tire And Tools
Removing the Spare Tire and Tools The equipment you’ll need is in the trunk. 1. Open the trunk. See Trunk on page 2-12 for more information. 2. Lift the handle on the spare tire cover. The handle may hook on the front edge of the trunk’s weatherstrip to hold the cover out of the way.
Page 290 1. Turn the plastic wing nut counterclockwise to loosen the wheel wrench. 2. Unhook the wheel wrench from the jack. 5-58 3. Extend the handle on the wheel wrench by pressing the button with your index ﬁnger and pulling on the end of the wrench.
Page 291: Removing The Flat Tire And Installing The Spare Tire
Removing the Flat Tire and Installing the Spare Tire 1. If your vehicle has a wheel cover or hubcap that has plastic wheel nut caps, then loosen the plastic nut caps. You may need to use the wheel wrench to loosen them. Do not pry off wheel covers or center caps that have plastic wheel nut caps.
Page 292 4. Position the lift head at the jack location nearest the ﬂat tire. Make sure all of the jack lift head is touching the jacking ﬂange under the body. Do not place the jack under a body panel. The lower body panel has an arrow to aid in locating the jacking location.
Page 293 6. Raise the vehicle by turning the wheel wrench clockwise. Raise the vehicle far enough off the ground so there is enough room for the compact spare tire to ﬁt underneath the wheel well. 7. Remove all of the wheel nuts. 8.
Page 294 10. Install the compact spare tire. CAUTION: Never use oil or grease on studs or nuts. If you do, the nuts might come loose. Your wheel could fall off, causing a serious accident. 11. Put the wheel nuts back on with the rounded end of the nuts toward the wheel.
Page 295 CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new GM original equipment wheel nuts.
Page 296: Storing A Flat Or Spare Tire And Tools
Storing a Flat or Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. The ﬂat tire and jack are stored in the compact spare tire compartment as follows: 1.
Page 297: Compact Spare Tire
A. Cover E. Nut B. Wing Nut F. Jack C. Bolt Extension G. Bolt D. Spare Tire The compact spare is for temporary use only. Replace the compact spare tire with a full-size tire as soon as you can. See Compact Spare Tire on page 5-65. See the storage instructions label to replace your compact spare into your trunk properly.
Page 298: Appearance Care
Appearance Care Cleaning products can be hazardous. Some are toxic. Other cleaning products can burst into ﬂames if a match is struck near them or if they get on a hot part of the vehicle. Some are dangerous if their fumes are inhaled in an enclosed space.
Page 299: Special Fabric Cleaning Problems
Most stains can be removed with club soda water. To clean, use the following instructions: 1. For liquids: blot with a clean, soft, white cloth. For solids: remove as much as possible and then vacuum or brush. 2. Apply club soda water to a clean, soft, white cloth. Do not over-saturate;...
Page 300: Vinyl
Vinyl Use warm water and a clean cloth. • Rub with a clean, damp cloth to remove dirt. This may have to be done more than once. • Things like tar, asphalt, and shoe polish will stain if they are not removed quickly. Use a clean cloth and vinyl cleaner.
Page 301: Care Of Safety Belts
Care of Safety Belts Keep belts clean and dry. CAUTION: Do not bleach or dye safety belts. If you do, it may severely weaken them. In a crash, they might not be able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water.
Page 302: Finish Care
Finish Care Occasional waxing or mild polishing of the vehicle by hand may be necessary to remove residue from the paint ﬁnish. GM-approved cleaning products can be obtained from your dealer. See Vehicle Care/Appearance Materials on page 5-73. The vehicle has a “basecoat/clearcoat” paint ﬁnish. The clearcoat gives more depth and gloss to the colored basecoat.
Page 303: Aluminum Wheels
Aluminum Wheels Notice: If you use strong soaps, chemicals, abrasive polishes, cleaners, brushes, or cleaners that contain acid on aluminum or chrome-plated wheels, you could damage the surface of the wheel(s). The repairs would not be covered by your warranty. Use only GM-approved cleaners on aluminum or chrome-plated wheels.
Page 304: Sheet Metal Damage
Sheet Metal Damage If the vehicle is damaged and requires sheet metal repair or replacement, make sure the body repair shop applies anti-corrosion material to parts repaired or replaced to restore corrosion protection. Original manufacturer replacement parts will provide the corrosion protection while maintaining the warranty.
Page 305: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials See your GM dealer for more information on purchasing the following products. Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Oil Removes tar, road oil, Remover and asphalt. Chrome Cleaner Use on chrome or and Polish stainless steel.
Page 306: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
Page 307: Electrical System
Electrical System Add-On Electrical Equipment Notice: Don’t add anything electrical to your vehicle unless you check with your dealer ﬁrst. Some electrical equipment can damage your vehicle and the damage wouldn’t be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 308: Instrument Panel Fuse Block
Instrument Panel Fuse Block The instrument panel fuse block is located on the passenger’s side of the vehicle, on the lower portion of the instrument panel console near the ﬂoor. Your vehicle may not be equipped with all the fuses and features listed. 5-76...
Page 309 Fuses Usage POWER Power Mirrors MIRRORS Electric Power Steering RUN/CRANK Run, Crank HVAC Heating Ventilation Air Conditioning BLOWER HIGH Blower - High CLUSTER/ Instrument Panel Cluster, Theft THEFT Deterrent System ® ONSTAR OnStar Blank INSTALLED AIRBAG (IGN) Airbag (Ignition) HVAC CTRL Heating Ventilation Air Conditioning (BATT) Control (Battery)
Page 310: Engine Compartment Fuse Block
Engine Compartment Fuse Block Your vehicle may not be equipped with all the fuses and features listed. The engine compartment fuse block is located on the driver’s side of the engine compartment, near the battery. Fuses Air Conditioner Clutch Electronic Throttle Control Ignition 1 Transaxle Injector...
Page 311: Rear Compartment Fuse Block
Relays Usage Cooling Fan 1 Cooling Fan Series/Parallel Cooling Fan 2 Starter Run/Crank Powertrain Air Conditioning Clutch High Beam Front Fog Lamps Horn Low Beam Windshield Wiper 1 Windshield Wiper 2 Daytime Running Lamps Stop Lamp Diodes Usage Wiper Miscellaneous Usage Electric Power Steering Rear Compartment Fuse Block...
Page 312 5-80...
Page 313 Fuses Usage Not Used Driver Seat Controls Not Used Not Used Emission 2 Park Lamps Not Used Not Used Sliding Panel Roof Sunroof Controls Not Used Not Used Audio Ampliﬁer Heated Seat Controls Not Used Remote Keyless Entry System, XM Satellite Radio, Rear Seat Entertainment System, Homelink Back-up Lamps...
Page 314: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 6-12 for more information. Application Air Conditioning Refrigerant R134a Automatic Transaxle Complete Overhaul Cooling System Engine Oil with Filter Fuel Tank Wheel Nut Torque All capacities are approximate.
Page 315 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using Your Maintenance Schedule ...6-3 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-8 At Each Fuel Fill ...6-8 At Least Once a Month ...6-9 At Least Once a Year ...6-9 Recommended Fluids and Lubricants ...6-12...
Page 316: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts and recommended ﬂuids and...
Page 317: Using Your Maintenance Schedule
Using Your Maintenance Schedule We at General Motors want to help you keep your vehicle in good working condition. But we do not know exactly how you will drive it. You may drive very short distances only a few times a week. Or you may drive long distances all the time in very hot, dusty weather.
Page 318: Scheduled Maintenance
Owner Checks and Services on page 6-8 tells you what should be checked, when to check it and what you can easily do to help keep your vehicle in good condition. The proper replacement parts, ﬂuids and lubricants to use are listed in Recommended Fluids and Lubricants on page 6-12 and Normal Maintenance Replacement Parts on page 6-13.
Page 319 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and ﬁlter. See Engine Oil on page 5-13. Reset oil life system. See Engine Oil Life System on page 5-16. An Emission Control Service. Visually check for any leaks or damage. See footnote (j). Inspect engine air cleaner ﬁlter.
Page 320: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 321: Maintenance Footnotes
Maintenance Footnotes † The U.S. Environmental Protection Agency or the California Air Resources Board has determined that the failure to perform this maintenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful life. We, however, urge that all recommended maintenance services be performed at the indicated intervals and the maintenance be recorded.
Page 322: Owner Checks And Services
(h) Change automatic transaxle ﬂuid and ﬁlter if the vehicle is mainly driven under one or more of these conditions: − In heavy city traffic where the outside temperature regularly reaches 90°F (32°C) or higher. − In hilly or mountainous terrain. −...
Page 323: At Least Once A Year
Engine Coolant Level Check Check the engine coolant level and add ® DEX-COOL coolant mixture if necessary. See Engine Coolant on page 5-19 for further details. Windshield Washer Fluid Level Check Check the windshield washer ﬂuid level in the windshield washer tank and add the proper ﬂuid if necessary.
Page 324: Ignition Transaxle Lock Check
Automatic Transaxle Shift Lock Control System Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle. It should be parked on a level surface.
Page 325: Underbody Flushing Service
Parking Brake and Automatic Transaxle Park (P) Mechanism Check CAUTION: When you are doing this check, your vehicle could begin to move. You or others could be injured and property could be damaged. Make sure there is room in front of your vehicle in case it begins to roll.
Page 326: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines starburst symbol.
Page 327: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your GM dealer. Part Engine Air Cleaner/Filter Engine Oil Filter Spark Plugs Windshield Wiper Blades Driver’s Side — 24.0 inches (60.0 cm) Passenger’s Side —...
Page 328: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2. Any additional information from Owner Checks and Services on page 6-8 can be added on the following record pages. You should retain all maintenance receipts.
Page 329 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-15...
Page 330 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-16...
Page 331: Customer Assistance And Information
Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-3 Customer Assistance for Text Telephone (TTY) Users ...7-4 Customer Assistance Offices ...7-4 GM Mobility Reimbursement Program ...7-5 Roadside Assistance Program ...7-5 Courtesy Transportation ...7-7 Vehicle Data Collection and Event Data Recorders ...7-9 Customer Assistance and Information Reporting Safety Defects ...7-10...
Page 332: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Pontiac. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 333: Online Owner Center
The BBB Auto Line Program is an out of court program administered by the Council of Better Business Bureaus to settle automotive disputes regarding vehicle repairs or the interpretation of the New Vehicle Limited Warranty. Although you may be required to resort to this informal dispute resolution program prior to ﬁling a court action, use of the program is free of charge and your case will generally be heard within...
Page 334: Customer Assistance For Text Telephone (Tty) Users
Customer Assistance Offices Pontiac encourages customers to call the toll-free number for assistance. If a U.S. customer wishes to write to Pontiac, the letter should be addressed to Pontiac’s Customer Assistance Center. United States — Customer Assistance Pontiac Customer Assistance Center P.O.
Page 335: Gm Mobility Reimbursement Program
1-800-GM-DRIVE (463-7483) for details. TTY users call 1-800-263-3830. Roadside Assistance Program As the owner of a new Pontiac vehicle, you are automatically enrolled in the Pontiac Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road.
Page 336 (762-3743), text telephone (TTY) users, call 1-888-889-2438. Pontiac reserves the right to limit services or reimbursement to an owner or driver when, in Pontiac’s judgement, the claims become excessive in frequency or type of occurrence. Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty.
Page 337: Courtesy Transportation
Canada or the United States. Please refer to the Warranty and Owner Assistance Information book. Courtesy Transportation Pontiac has always exempliﬁed quality and value in its offering of motor vehicles. To enhance your ownership experience, we and our participating dealers are proud to offer Courtesy Transportation, a customer support program for new vehicles.
Page 338: Transportation Options
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait Pontiac helps minimize your inconvenience by providing several transportation options. Depending on the circumstances, your dealer can offer you one of the following:...
Page 339: Vehicle Data Collection And Event Data Recorders
Additional Program Information Courtesy Transportation is available during the Bumper-to-Bumper warranty coverage period, but it is not part of the New Vehicle Limited Warranty. A separate booklet entitled Warranty and Owner Assistance Information furnished with each new vehicle provides detailed warranty coverage information. Courtesy Transportation is available only at participating dealers and all program options, such as shuttle service, may not be available at every dealer.
Page 340: Reporting Safety Defects
Unlike the data recorders on many airplanes, these on-board systems do not record sounds, such as conversation of vehicle occupants. To read this information, special equipment is needed and access to the vehicle or the device that stores the data is required. GM will not access information about a crash event or share it with others other than: •...
Page 341: Reporting Safety Defects To The Canadian Government
In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you’ll notify us. Please call us at 1-800-762-2737, or write: Pontiac Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 In Canada, please call us at 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 342: Current And Past Model Order Forms
Transmission, Transaxle, Transfer Case Unit Repair Manual This manual provides information on unit repair service procedures, adjustments, and speciﬁcations for GM transmissions, transaxles, and transfer cases. Service Bulletins Service Bulletins give technical service information needed to knowledgeably service General Motors cars and trucks.
Page 343 Accessory Power Outlets ... 3-18 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-75 Adjustable Throttle and Brake Pedal ... 2-22 Air Cleaner/Filter, Engine ... 5-17 Air Conditioning ... 3-19 Airbag Readiness Light ... 3-27 Airbag Sensing and Diagnostic Module (SDM) ... 7-9 Airbag System ...
Page 344 Automatic Transaxle Fluid ... 5-19 Operation ... 2-24 Backglass Antenna ... 3-78 Battery ... 5-33 Run-Down Protection ... 3-17 Before Leaving on a Long Trip ... 4-22 Bench Seat, Split (60/40) ... 1-7 Brake Anti-Lock Brake System (ABS) ... 4-6 Emergencies ...
Page 345 Child Restraints (cont.) Lower Anchorages and Top Tethers for Children (LATCH System) ... 1-39 Older Children ... 1-28 Securing a Child Restraint Designed for the LATCH System ... 1-41 Securing a Child Restraint in a Rear Seat Position ... 1-42 Securing a Child Restraint in the Right Front Seat Position ...
Page 346 Daytime Running Lamps ... 3-14 Defensive Driving ... 4-2 Delayed Headlamps ... 3-14 Delayed Locking ... 2-10 Doing Your Own Service Work ... 5-4 Dome Lamp ... 3-16 Door Delayed Locking ... 2-10 Door Ajar Reminder ... 2-10 Locks ... 2-9 Power Door Locks ...
Page 347 Filter Engine Air Cleaner ... 5-17 Finish Damage ... 5-72 Flash-to-Pass ... 3-8 Flat Tire ... 5-55 Flat Tire, Changing ... 5-56 Flat Tire, Storing ... 5-64 Fluid Automatic Transaxle ... 5-19 Windshield Washer ... 5-29 Fog Lamps ... 3-16 Fuel ...
Page 348 Heated Seats ... 1-4 Heater ... 3-19 Highbeam On Light ... 3-35 Highway Hypnosis ... 4-23 Hill and Mountain Roads ... 4-24 ® HomeLink Transmitter ... 2-37 ® HomeLink Transmitter, Programming ... 2-38 Hood Checking Things Under ... 5-10 Release ... 5-11 Horn ...
Page 349 Light (cont.) Oil Pressure ... 3-34 Safety Belt Reminder ... 3-26 Security ... 3-35 Service Vehicle Soon ... 3-35 TCS Warning Light ... 3-30 Traction Control System Active ... 3-30 Traction Control System (TCS) Warning ... 3-30 Lighting Entry/Exit ... 3-17 Lockout Protection ...
Page 350 Odometer ... 3-26 Odometer, Trip ... 3-26 Off-Road Recovery ... 4-13 Engine ... 5-13 Pressure Light ... 3-34 Older Children, Restraints ... 1-28 Online Owner Center ... 7-3 ® OnStar System ... 2-36 Other Warning Devices ... 3-6 Outlet Adjustment ... 3-23 Outside Convex Mirror ...
Page 351 Radios (cont.) Understanding Reception ... 3-77 Rear Safety Belt Comfort Guides ... 1-25 Rear Seat Passengers, Safety Belts ... 1-21 Rearview Mirror, Automatic Dimming ... 2-33 Rearview Mirror, Automatic Dimming with ® OnStar ... 2-34 ® Rearview Mirror with OnStar ...
Page 352 Seats (cont.) Manual ... 1-2 Manual Lumbar ... 1-3 Power Lift Seat ... 1-6 Power Seat ... 1-3 Reclining Seatbacks ... 1-4 Securing a Child Restraint Designed for the LATCH System ... 1-41 Rear Seat Position ... 1-42 Right Front Seat Position ... 1-45 Security Light ...
Page 353 Theft-Deterrent Systems ... 2-16 Content Theft-Deterrent ... 2-16 ® PASS-Key III+ ... 2-18 ® PASS-Key III+ Operation ... 2-18 Throttle, Adjustable ... 2-22 Tilt Wheel ... 3-6 Tires ... 5-42 Aluminum Wheels, Cleaning ... 5-71 Buying New Tires ... 5-51 Chains ...
Page 354 Vehicle (cont.) Vehicle Data Collection and Event Data Recorders ... 7-9 Vehicle Identiﬁcation Number (VIN) ... 5-74 Service Parts Identiﬁcation Label ... 5-74 Vehicle Personalization DIC ... 3-42 Ventilation Adjustment ... 3-23 Visors ... 2-16 Warning Lights, Gages and Indicators ... 3-24 Warnings DIC Warnings and Messages ...

Pontiac 2005 G6 Owner's Manual

Section 2 Features and Controls

Features and Controls

Keys

Doors and Locks

Windows

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

Onstar System

Homelink Transmitter

Storage Areas

Sunroof

Section 3 Instrument Panel

Instrument Panel Overview

Climate Controls

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(S)

Section 4 Driving Your Vehicle

Driving Your Vehicle

Your Driving, the Road, and Your Vehicle

Towing

Section 5 Service and Appearance Care

Service and Appearance Care

Service

Fuel

Checking Things under the Hood

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

Appearance Care

Vehicle Identiﬁcation

Electrical System

Capacities and Speciﬁcations

Quick Links

Chapters

Related Manuals for Pontiac 2005 G6

Summary of Contents for Pontiac 2005 G6
