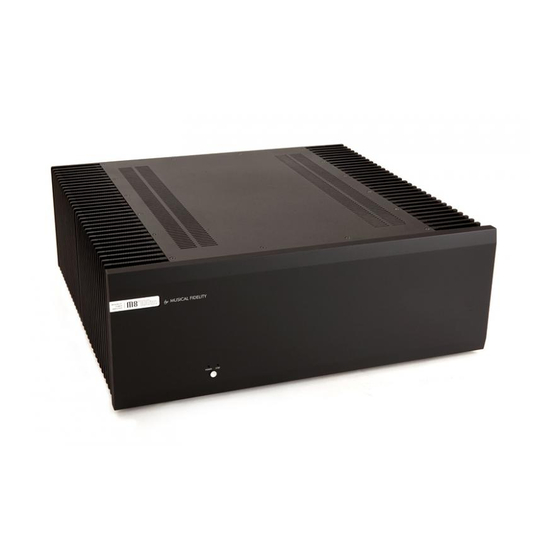

Thank you for purchasing the Musical Fidelity M8s 700m fully balanced "monobloc" power amplifier.
The M8s 700m is designed to be partnered with present and future M8 series products. It is, in fact, based on the
Titan design. It features twin high-current power amplifier sections connected in bridged mono configuration for
the absolute best in dynamics and drive capabilities. Two paralleled and generously over specified power
supplies also ensure unsurpassed supply noise filtering, transient handling and massive power reserve possible
in a single box power amplifier Phase splitting between the two internal amplifiers is achieved using a high
performance fully balanced converter circuit with wide flat frequency response uniform in-band characteristics
and immeasurably low distortion and noise.
Fully balanced as well as single ended inputs are catered for with loop outputs for both types, for bi-amping etc.
Trigger input/output allows the unit to be controlled/controller for switch on/off function.
This combination yields one of the best high-fidelity power amplifiers available at any price.
Used properly and carefully, it should give many years of outstanding musical reproduction.
Dust regularly with a soft duster or soft brush, but be careful when using cleaning or polishing agents - they may
harm the surface finish.
If there are any questions about the product or related, please consult the dealer who is there to help and
advice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the M8s 700m and is the answer not in the manual?

Questions and answers

Related Manuals for Musical Fidelity M8s 700m

Summary of Contents for Musical Fidelity M8s 700m

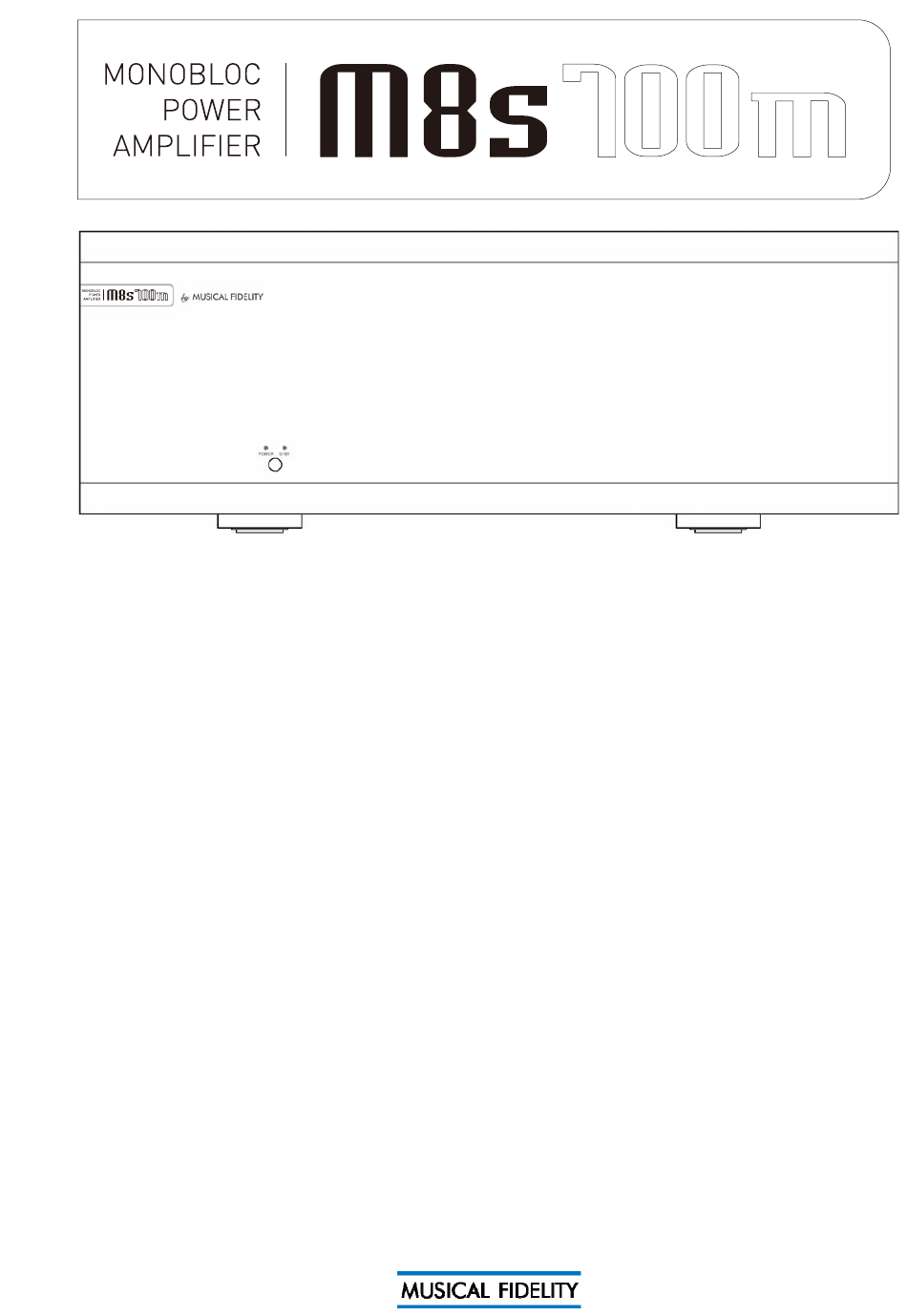

  • Page 1 Thank you for purchasing the Musical Fidelity M8s 700m fully balanced “monobloc” power amplifier. The M8s 700m is designed to be partnered with present and future M8 series products. It is, in fact, based on the Titan design. It features twin high-current power amplifier sections connected in bridged mono configuration for the absolute best in dynamics and drive capabilities.

  • Page 2: Table Of Contents

    CONTENTS Section Page Safety Information – Mains plug (UK only) – Modification warning General advice – Installation precautions Disposal information – EU disposal information – Introduction, cleaning, installation, power connections, audio Installation connections Facilities and connections – Illustrations, main unit front & rear panels Operation –...

  • Page 3: Safety Information

    • If connecting to a BS1363 plug, a 13 amp fuse must be used. WARNING: MODIFICATIONS THIS PRODUCT EXPRESSLY APPROVED BY MUSICAL FIDELITY WHO IS THE PARTY RESPONSIBLE STANDARDS COMPLIANCE COULD VOID USER'S AUTHORITY TO OPERATE THIS EQUIPMENT. Page 3 of 13...

  • Page 4: General Advice

    • Heed all warnings shown on the back of the product. • Only connect the M8s 700m to a mains outlet having the same voltage as marked at the back of the unit. • Always ensure that when disconnecting and reconnecting audio equipment the mains supply is switched off.
  • Page 5 ITEM DISPOSAL INFORMATION DISPOSAL The crossed out wheeled bin label that appears on the back panel of the product indicates that the product must not be disposed of as normal household waste. To prevent possible harm to the environment please separate the product from other waste to ensure that it can be recycled in an environmentally safe manner.

  • Page 6: Installation

    Power Connections The M8s 700m is supplied with a standard IEC mains cable which plugs into the IEC socket at the back of the unit (see page 7) Audio Connections XLR Inputs: Connect any XLR balanced source to balanced analogue input (see page 7 for more information).

  • Page 7: Facilities And Connections

    FACILITIES & CONNECTIONS POWER LED ON/OFF Button STANDBY LED TRIGGER input jack socket BALANCED/RCA Selector LOUDSPEAKER OUTPUTS 4mm banana 10 RCA input socket TRIGGER output jack socket 11 RCA loop output socket BALANCED XLR (female) input 12 IEC MAINS INPUT BALANCED XLR (male) loop output XLR Balanced input and output lead Pin functions:...

  • Page 8: Operation

    OPERATION SINGLE-ENDED (RCA) INPUT To use the RCA INPUT, connect RCA source outputs to the INPUT RCA sockets. Make sure the BALANCED/RCA switch is set for RCA. LEFT RCA output Pre-amplifier RIGHT RCA output LEFT RIGHT Speaker Speaker BALANCED/RCA switch set to RCA RCA leads connection diagram.
  • Page 9 BALANCED (XLR) INPUT To use the XLR INPUT, connect XLR source outputs to the INPUT XLR sockets (see page 7). Make sure the BALANCED/RCA switch is set for BALANCED. LEFT XLR output Pre-amplifier RIGHT XLR output LEFT RIGHT Speaker Speaker BALANCED/RCA switch set to BALANCED XLR signal leads connection diagram.

  • Page 10: Speaker Bi-Wiring

    Speaker bi-wiring It is intention of the above feature to “bi-wire” the outputs with suitable speakers. Such speakers must have at least four terminals; two for the treble, high frequency (or HF) driver and two more for the bass, low frequency (or LF) driver. Any “shorting links”...
  • Page 11 If none of these actions affect a cure, please contact the dealer, or an authorised Musical Fidelity service agent. Remember; never open the case of the M8s 700m, as this will invalidate the guarantee. Issue 1...
  • Page 12 Depth (front to back) including terminals 460 mm (18⅛”) Standard accessories IEC type mains lead (10-Amp type) Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. E&OE. Issue 1 Page 12 of 13...
  • Page 13 MANUAL HISTORY RELEASE DATE CHANGES Issue 1 release. 21st August 2018 Issue 1 Page 13 of 13...
