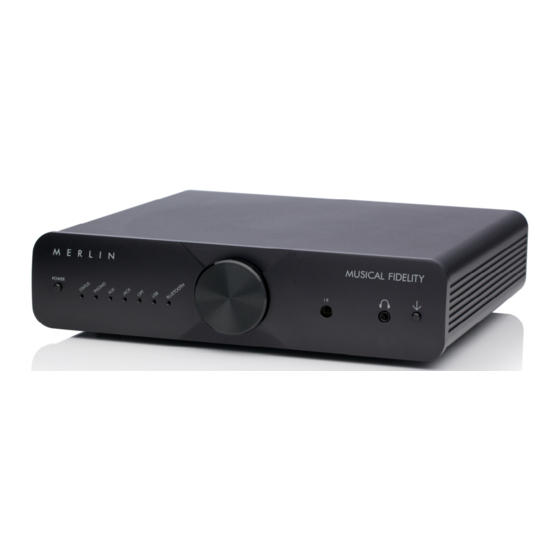

The Merlin is a conveniently sized integrated amplifier with beautifully designed and executed casework.
The Merlin has a host of inputs both modern and traditional
Bluetooth
Optical digital S/PDIF
USB
High level analogue line in
Low level analogue line in (suitable for portable device headphones outputs)
Phono (RIAA) MM cartridge input.
It also features several outputs
40W/Channel speaker outputs
Variable preamp output
Fixed Line output
Fixed optical output
Headphones output
The volume control adjusts internal high precision digital attenuators. This gives unparalleled channel
matching and rock steady imaging even at low levels of volume setting.
The headphone socket features its own independent volume setting, which is automatically used when
headphones are connected, to prevent inadvertent damage to hearing or speakers! When headphones
are removed, the unit reverts to previous output volume setting.

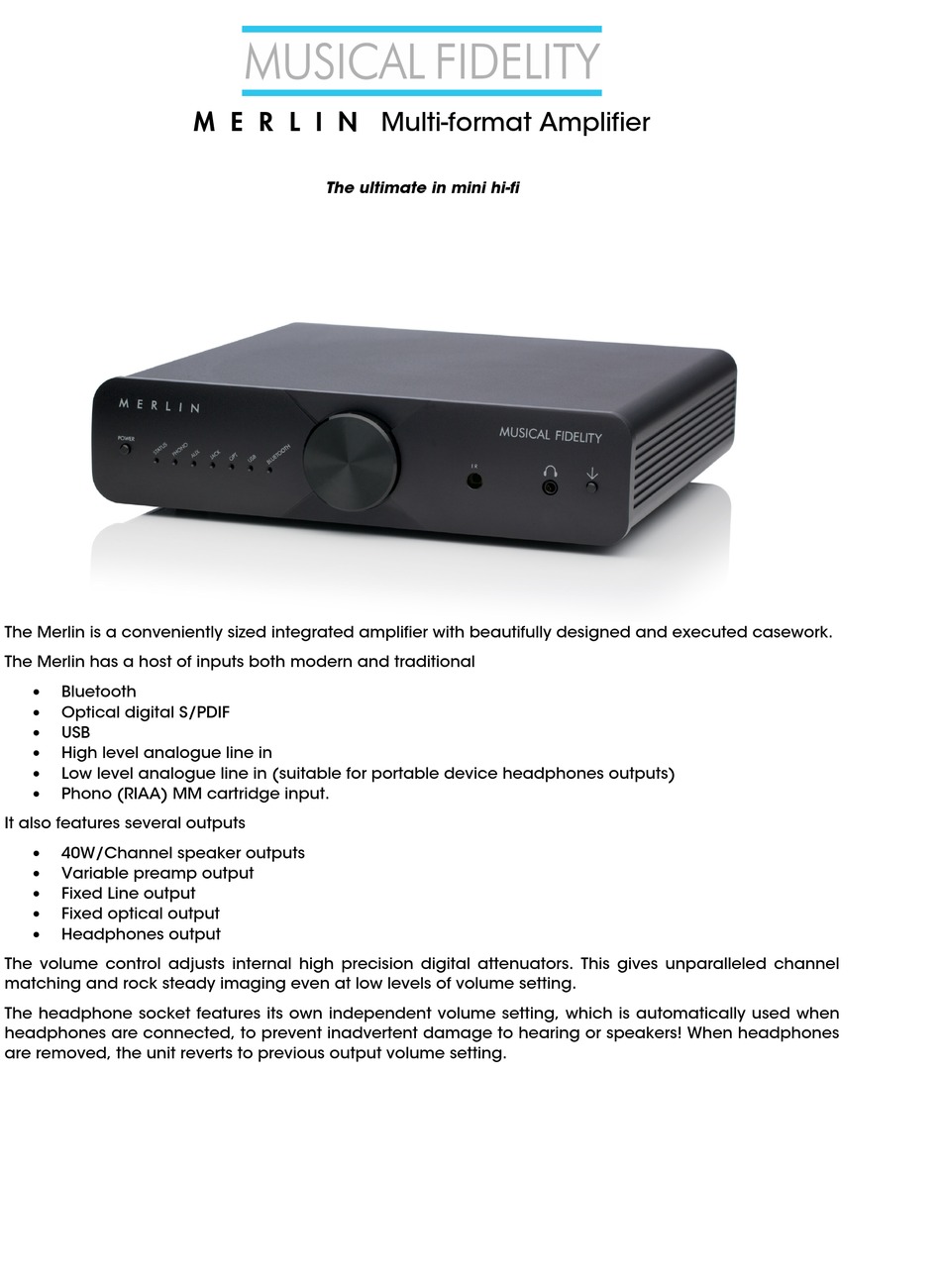

M E R L I N Multi-format Amplifier
The ultimate in mini hi-fi
Advertisement
Table of Contents
Related Manuals for Musical Fidelity MERLIN
Summary of Contents for Musical Fidelity MERLIN
- Page 1 M E R L I N Multi-format Amplifier The ultimate in mini hi-fi The Merlin is a conveniently sized integrated amplifier with beautifully designed and executed casework. The Merlin has a host of inputs both modern and traditional Bluetooth ...
-
Page 2: Warning! This Appliance Must Be Earthed
M E R L I N Multi-format Amplifier IMPORTANT! (U.K. only) This unit is supplied in the U.K. with mains lead fitted with a moulded 13 amp plug. If, for any reason, it is necessary to remove the plug, please make sure it is removed from supply. Remove the fuse holder and dispose of the plug safely, out of reach of children. -
Page 3: Remote Control
M E R L I N Multi-format Amplifier FRONT VIEW POWER INPUT VOLUME REMOTE CONTROL PHONES SOURCE BUTTON LEDS CONTROL I.R. SENSOR OUTPUT SELECT REAR VIEW EARTH BLUETOOTH SPEAKER OUTPUTS CLOVERLEAF INPUTS TERMINAL AERIAL PLUG RIGHT LEFT MAINS SOCKET INPUT JACK/OPT LINE/PRE LINE/PRE... - Page 4 M E R L I N Multi-format Amplifier Front panel functions and connections POWER button Press to turn unit on/off. Unit is ON when SOURCE or more front panel LEDs is lit. No LEDS at all indicate it is in standby or unplugged/switched off at wall socket. Initial switch–on mutes outputs for approx.
-
Page 5: Rear Panel Functions And Connections
This is for use with turntable. If excessive hum occurs, try connecting turntable earth lead or terminal to this point. The MERLIN earth terminal will take 4mm banana plug, or it unscrews to allow bare wire to be inserted, and held in place by tightening back up. -
Page 6: Bluetooth Pairing And Connecting
The power button on the remote control operates in the exact same way as the power button on the front of the Merlin. PHONO / AUX Selects PHONO input (INPUT slide switch on rear of MERLIN set to PHONO). AUX is selected if the INPUT slide switch is set to AUX. JACK / OPT Automatically senses if the input connected is JACK (analogue) or OPTICAL (digital) This button will select the USB input. -
Page 7: Typical Specifications
Remote control CR2025 battery Bluetooth aerial IEC C5 (cloverleaf) type mains lead (3 Amp type) Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. E+OE. Manual Issue 1 - 7 -... - Page 8 FACHGERECHTE ENTSORGUNG: Das auf der Geräterückseite angebrachte Label deutet darauf hin, dass das Produkt nicht mit konventionellem Hauskehricht entsorgt werden darf. Um Schäden und Verschmutzungen Umwelt Mensch vermeiden, muss das Produkt fachgerecht entsorgt und von anderem Abfall getrennt werden. Wenden Sie sich bei Fragen hierzu an Ihren Fachhändler oder an eine öffentliche Informationsstelle.
