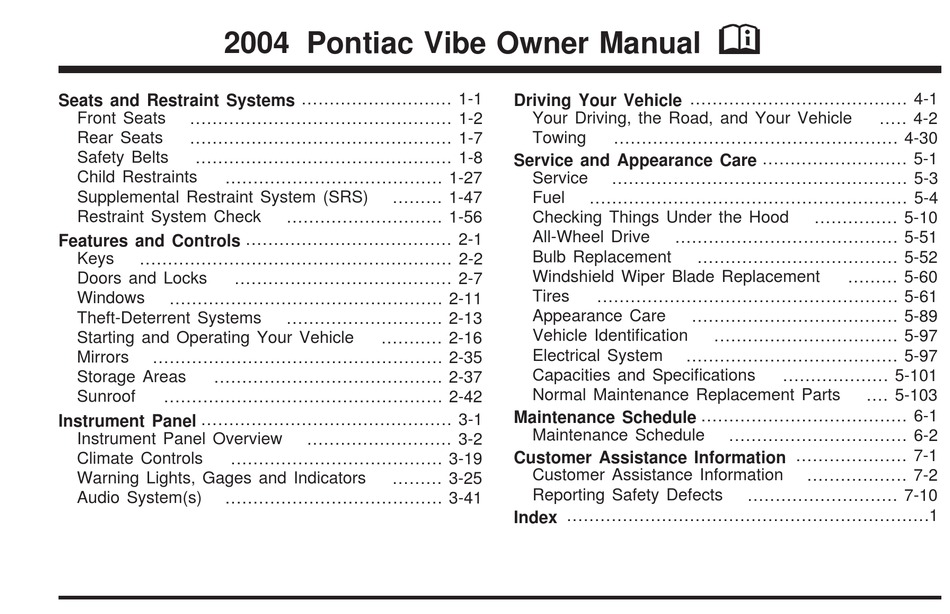

Page 1 2004 Pontiac Vibe Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-2 Rear Seats ... 1-7 Safety Belts ... 1-8 Child Restraints ... 1-27 Supplemental Restraint System (SRS) Restraint System Check ... 1-56 Features and Controls ... 2-1 Keys ...
Page 2: How To Use This Manual
GENERAL MOTORS, GM, the GM Emblem, PONTIAC, the PONTIAC Emblem are registered trademarks and the name VIBE is a trademark of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without further notice.
Page 3 Safety Warnings and Symbols You will ﬁnd a number of safety cautions in this book. We use a box and the word CAUTION to tell you about things that could hurt you if you were to ignore the warning. CAUTION: These mean there is something that could hurt you or other people.
Page 4 Vehicle Damage Warnings Also, in this book you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice will tell you about something that can damage your vehicle. Many times, this damage would not be covered by your warranty, and it could be costly.
Page 5 These are some examples of vehicle symbols you may ﬁnd on your vehicle:...
Page 6 NOTES...
Page 7: Table Of Contents
Section 1 Front Seats ...1-2 Manual Seats ...1-2 Driver Seat Height Adjuster ...1-3 Reclining Seatbacks ...1-3 Head Restraints ...1-5 Passenger Folding Seatback ...1-5 Rear Seats ...1-7 Rear Seat Operation ...1-7 Safety Belts ...1-8 Safety Belts: They Are for Everyone ...1-8 Questions and Answers About Safety Belts ...1-13 How to Wear Safety Belts Properly ...1-14 Driver Position ...1-14...
Page 8: Front Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you don’t want to.
Page 9: Driver Seat Height Adjuster
Driver Seat Height Adjuster Turn the knob located on the outboard side of the driver’s seat cushion to adjust the height of the driver’s seat. It is easier to use the adjuster when the seat is unoccupied. Make sure the ignition is off and the vehicle is in PARK (P) before adjusting the seat.
Page 10 But don’t have a seatback reclined if your vehicle is moving. CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can’t do their job when you’re reclined like this. The shoulder belt can’t do its job because it won’t be against your body.
Page 11: Head Restraints
Head Restraints Adjust your head restraint so that the top of the restraint is closest to the top of your head. This position reduces the chance of a neck injury in a crash. Press the release button near the base of the restraint to lower and raise the restraint to a comfortable position.
Page 12 To fold the seatback down, do the following: 1. Lower the head restraint to the lowest position and make sure the seatback is at the most upright position and locked. 2. Pull up on one of the levers located on either side of the back of the passenger’s seatback.
Page 13: Rear Seats
Rear Seats Rear Seat Operation You can fold either side of the seatback down for more cargo space. The rear right side seatback can also be used as a temporary table while the vehicle is stopped. Make sure the front seatback isn’t reclined or in the rearward most position.
Page 14 To fold either seatback down, do the following: 1. Pull up on the lock release knob, located on the top of the seatbacks. 2. Fold the seatback down. Each seatback can be folded separately. To raise the seatback, do the following: 1.
Page 15 CAUTION: It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts.
Page 16: Why Safety Belts Work
Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it’s just a seat on wheels. 1-10...
Page 17 Get it up to speed. Then stop the vehicle. The rider doesn’t stop. The person keeps going until stopped by something. In a real vehicle, it could be the windshield... 1-11...
Page 18 or the instrument panel... 1-12 or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense.
Page 19 Questions and Answers About Safety Belts Won’t I be trapped in the vehicle after an accident if I’m wearing a safety belt? You could be – whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down.
Page 20: How To Wear Safety Belts Properly
How to Wear Safety Belts Properly This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see Older Children on page 1-27 or Infants and Young Children on page 1-29 .
Page 21 The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly. 4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure.
Page 22: Shoulder Belt Height Adjuster
6. The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you’d be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 23 What’s wrong with this? The shoulder belt is too loose. It won’t give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should ﬁt against your body.
Page 24 What’s wrong with this? The belt is buckled in the wrong place. 1-18 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 25 What’s wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 26 What’s wrong with this? The belt is twisted across the body. 1-20 CAUTION: You can be seriously injured by a twisted belt. In a crash, you wouldn’t have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 27: Safety Belt Use During Pregnancy
To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 28: Rear Seat Passengers
The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it’s more likely that the fetus won’t be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly.
Page 29 Lap-Shoulder Belt All rear seating positions have lap-shoulder belts. Here’s how to wear one properly. 1. Pick up the latch plate and pull the belt across you. Don’t let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly.
Page 30 The lap part of the belt should be worn low and snug 3. To make the lap part tight, pull down on the buckle on the hips, just touching the thighs. In a crash, this end of the belt as you pull up on the shoulder belt. applies force to the pelvic bones.
Page 31 The safety belt locks if there’s a sudden stop or a crash, or if you pull the belt very quickly out of the retractor. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 32: Safety Belt Extender
Safety Belt Pretensioners Your vehicle has safety belt pretensioners. Although you cannot see them, they are located on the retractor part of the safety belts for the driver and right front passenger. They help the safety belts reduce a person’s forward movement in a moderate to severe crash in which the front of the vehicle hits something.
Page 33: Safety Belts
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. What is the proper way to wear safety belts? If possible, an older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
Page 34 1-28 CAUTION: Never do this. Here two children are wearing the same belt. The belt can’t properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck?
Page 35: Infants And Young Children
CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 36 Every time infants and young children ride in vehicles, they should have the protection provided by the appropriate restraint. Young children should not use the vehicle’s safety belts, unless there is no other choice. 1-30 CAUTION: People should never hold a baby in their arms while riding in a vehicle.
Page 37: Child Restraints
CAUTION: Children who are up against, or very close to, any air bag when it inﬂates can be seriously injured or killed. Air bags plus lap-shoulder belts offer outstanding protection for adults and older children, but not for young children and infants.
Page 38 For most basic types of child restraints, there are many different models available. When purchasing a child restraint, be sure it is designed to be used in a motor vehicle. If it is, the restraint will have a label saying that it meets federal motor vehicle safety standards.
Page 39: Child Restraint Systems
Child Restraint Systems An infant car bed (A), a special bed made for use in a motor vehicle, is an infant restraint system designed to restrain or position a child on a continuous ﬂat surface. Make sure that the infant’s head rests toward the center of the vehicle.
Page 40 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields. 1-34 A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness.
Page 41 How do child restraints work? A child restraint system is any device designed for use in a motor vehicle to restrain, seat, or position children. A built-in child restraint system is a permanent part of the motor vehicle. An add-on child restraint system is a portable one, which is purchased by the vehicle’s owner.
Page 42: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We, therefore, recommend that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat.
Page 43 In Canada, the law requires that forward-facing child restraints have a top strap, and that the strap be anchored. In the United States, some child restraints also have a top strap. If your child restraint has a top strap, it should be anchored. CAUTION: Each top tether anchor is designed to anchor only one child restraint.
Page 44: Top Strap Anchor Location
Top Strap Anchor Location Anchor the top strap to one of the top strap anchors. Your vehicle has top strap anchors for the rear seating positions. You will ﬁnd three top strap anchors in a covered compartment on the ﬂoor of the rear cargo area. 1-38 To access the anchors, open the compartment...
Page 45: Lower Anchorages And Top Tethers
Lower Anchorages and Top Tethers for Children (LATCH System) Your vehicle has the LATCH system. You will ﬁnd anchors (A) for both outside rear seat positions. This system, designed to make installation of child restraints easier, does not use the vehicle’s safety belts. Instead, it uses vehicle anchors (A, B) and child restraint attachments to secure the restraints.
Page 46 In order to use the LATCH system in your vehicle, you need a child restraint designed for that system. 1-40 To assist you in locating the lower anchors for this child restraint system, each seating position with the LATCH system has a label on the seatback at each lower anchor position.
Page 47: Securing A Child Restraint Designed
CAUTION: If a LATCH-type child restraint isn’t attached to its anchorage points, the restraint won’t be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Make sure that a LATCH-type child restraint is properly installed using the anchorage points, or use the vehicle’s safety belts to secure the restraint.
Page 48: Securing A Child Restraint In A Rear Seat Position
Securing a Child Restraint in a Rear Seat Position If your child restraint is equipped with the LATCH system, see Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-39 . See Top Strap on page 1-36 if the child restraint has one. If your child restraint does not have the LATCH system, you’ll be using the lap-shoulder belt to secure the child restraint in this position.
Page 49 4. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 5. To tighten the belt, feed the shoulder belt back into the retractor while you push down on the child restraint. If you’re using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 50: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Right Front Seat Position Your vehicle has a right front passenger air bag. Never put a rear-facing child restraint in this seat. Here’s why: CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s air bag inﬂates.
Page 51 4. Buckle the belt. Make sure the release button is 5. Pull the rest of the shoulder belt all the way out of positioned so you would be able to unbuckle the the retractor to set the lock. safety belt quickly if you ever had to. 1-45...
Page 52 1-46 6. To tighten the belt, feed the shoulder belt back into the retractor while you push down on the child restraint. You may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 53: Supplemental Restraint System (Srs)
Supplemental Restraint System (SRS) This part explains the frontal and side impact Supplemental Restraint Systems (SRS) or air bag systems. Your vehicle has air bags – a frontal air bag for the driver and another frontal air bag for the right front passenger.
Page 54 Here are the most important things to know about the air bag systems: CAUTION: You can be severely injured or killed in a crash if you aren’t wearing your safety belt – even if you have air bags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it.
Page 55 CAUTION: Both frontal and side impact air bags inﬂate with great force, faster than the blink of an eye. If you’re too close to an inﬂating air bag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep youin position for air bag inﬂation before and during a crash.
Page 56: Where Are The Air Bags
Where Are the Air Bags? The driver’s frontal air bag is in the middle of the steering wheel. 1-50 The right front passenger’s frontal air bag is in the instrument panel on the passenger’s side. If your vehicle has one, the driver’s side impact air bag is in the side of the driver’s seatback closest to the door.
Page 57 If your vehicle has one, the right front passenger’s side impact air bag is in the side of the passenger’s seatback closest to the door. CAUTION: If something is between an occupant and an air bag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 58: When Should An Air Bag Inﬂate
When Should an Air Bag Inﬂate? The driver’s and right front passenger’s frontal air bags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact speed is above the system’s designed “threshold level.”...
Page 59: What Makes An Air Bag Inﬂate
What Makes an Air Bag Inﬂate? In an impact of sufficient severity, the air bag sensing system detects that the vehicle is in a crash. For both frontal and side impact air bags, the sensing system triggers a release of gas from the inﬂator, which inﬂates the air bag.
Page 60: What Will You See After An Air Bag Inﬂates
What Will You See After an Air Bag Inﬂates? After the air bag inﬂates, it quickly deﬂates, so quickly that some people may not even realize the air bag inﬂated. Some components of the air bag module – the steering wheel hub for the driver’s air bag, the instrument panel for the right front passenger’s bag, the side of the seatback closest to the door for the driver and right passenger’s...
Page 61 In many crashes severe enough to inﬂate an air bag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger air bag. • Air bags are designed to inﬂate only once. After an air bag inﬂates, you’ll need some new parts for your air bag system.
Page 62: Servicing Your Air Bag-Equipped Vehicle
Servicing Your Air Bag-Equipped Vehicle Air bags affect how your vehicle should be serviced. There are parts of the air bag systems in several places around your vehicle. Your dealer and the service manual have information about servicing your vehicle and the air bag systems.
Page 63: Replacing Restraint System Parts
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.
Page 64 NOTES 1-58...
Page 65: Features And Controls
Section 2 Keys ...2-2 Remote Keyless Entry System ...2-4 Remote Keyless Entry System Operation ...2-5 Doors and Locks ...2-7 Door Locks ...2-7 Power Door Locks ...2-8 Rear Door Security Locks ...2-8 Leaving Your Vehicle ...2-9 Liftgate/Liftglass ...2-9 Windows ...2-11 Manual Windows ...2-11 Power Windows ...2-12 Sun Visors ...2-13 Theft-Deterrent Systems ...2-13...
Page 66: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. A child or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. Don’t leave the keys in a vehicle with children.
Page 67 One key is used for the ignition, the doors and all other locks. When a new vehicle is delivered, the dealer removes the key tag from the key and gives it to the ﬁrst owner. Each tag has a code on it that tells your dealer or a qualiﬁed locksmith how to make extra keys.
Page 68: Remote Keyless Entry System
Remote Keyless Entry System If equipped, the keyless entry system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 69: Remote Keyless Entry System Operation
Remote Keyless Entry System Operation If your vehicle has this feature, you can lock and unlock your doors from about 3 feet (1 m) up to 30 feet (9 m) away using the remote keyless entry transmitter supplied with your vehicle. LOCK: Press this button to lock all of the doors.
Page 70: Battery Replacement
Matching Transmitter(s) to Your Vehicle Each remote keyless entry transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer. Remember to bring any remaining transmitters with you when you go to your dealer.
Page 71: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers — especially children — can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle won’t open it. You increase the chance of being thrown out of the vehicle in a crash if the doors aren’t locked.
Page 72: Power Door Locks
If your vehicle has power door locks, open the driver’s door by turning the key in the lock toward the rear of the vehicle. Turning the key back toward the center, then toward the rear again will unlock all of the doors. Using the key in the passenger’s door will also unlock all of the doors.
Page 73: Leaving Your Vehicle
To open a rear door with the security lock, do the following: 1. Unlock the door from the inside. 2. Then open the door from the outside. If you don’t cancel the security lock feature, adults and older children who ride in the rear won’t be able to open the rear door from the inside.
Page 74 Liftgate/Liftglass Release To open the liftgate using your key insert the key into the keyhole and turn the key counterclockwise. Raise the liftgate by hand. When closing the liftgate, you can use the handle to pull it down. To lock the liftgate, turn the key clockwise to the ﬁrst position.
Page 75: Windows
Windows CAUTION: Leaving children in a vehicle with the windows closed is dangerous. A child can be overcome by the extreme heat and can suffer permanent injuries or even death from heat stroke. Never leave a child alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 76: Power Windows
Power Windows If your vehicle has this option, the switches controlling the driver’s and passenger’s windows are located on the driver’s door. The power window switch on each passenger door controls that window only. These switches work while the ignition is on. For the front windows, press the front of a switch to lower a window and lift the front of the switch to raise a window.
Page 77: Sun Visors
Sun Visors To block out glare, you can swing down the visors. You can also swing them to the side. The visors can also be extended for more coverage. Swing the visor down and to the side and then slide the visor out to extend it.
Page 78: Testing The Alarm
Arming the System To arm the system, do the following: 1. Turn the ignition key to the LOCK position and remove it. 2. Have all passengers get out of the vehicle. 3. Close and lock all the side doors and liftgate with the key or remote keyless entry transmitter.
Page 79: How The System Alarm Is Activated
How the System Alarm is Activated The system will activate the alarm under the following conditions: • If the driver’s or front passenger’s door is unlocked or if any of the other side doors or the liftgate is forcibly opened without the key or remote keyless entry transmitter.
Page 80: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle doesn’t need an elaborate “break-in.” But it will perform better in the long run if you follow these guidelines: • Don’t drive at any one speed — fast or slow —...
Page 81 (A) LOCK: This is the only position from which you can remove the key. This locks your steering wheel, ignition and automatic transaxle. Push in the ignition switch as you turn the key toward you. If you have an automatic transaxle, the ignition switch can’t be turned to LOCK unless the shift lever is in PARK (P).
Page 82: Starting Your Engine
Starting Your Engine Automatic Transaxle Move your shift lever to PARK (P) or NEUTRAL (N). Your engine won’t start in any other position – that’s a safety feature. To restart when you’re already moving, use NEUTRAL (N) only. Notice: Don’t try to shift to PARK (P) if your vehicle is moving.
Page 83: To Use The Engine Coolant Heater
Engine Coolant Heater In very cold weather, 0°F ( 18°C) or colder, the engine coolant heater, if equipped, can help. You’ll get easier starting and better fuel economy during engine warm-up. Usually, the coolant heater should be plugged in a minimum of four hours prior to starting your vehicle.
Page 84 Automatic Transaxle Operation There are several different positions for your shift lever. PARK (P): This position locks your front wheels. It’s the best position to use when you start your engine because your vehicle can’t move easily. 2-20 CAUTION: It is dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set.
Page 85 Ensure that the shift lever is fully in PARK (P) before starting the engine. Your vehicle has an automatic transaxle shift lock control system. You have to fully apply your regular brakes before you can shift from PARK (P) when the ignition key is in ON. If you cannot shift out of PARK (P), ease pressure on the shift lever, push the shift lever all the way into PARK (P) and release the shift lever button as you maintain brake...
Page 86: Overdrive Off
SECOND (2): This position gives you more power than DRIVE (D) but lower fuel economy. You can use SECOND (2) on hills. It can help control your speed as you go down steep mountain roads, but then you would also want to use your brakes off and on. LOW (L): This position gives you even more power than SECOND (2) but lower fuel economy.
Page 87 Manual Transaxle Operation Five-Speed First (1): Press the clutch pedal and shift into FIRST (1). Then, slowly let up on the clutch pedal as you press the accelerator pedal. Five-Speed Transaxle Shift Pattern You can shift into FIRST (1) when you’re going less than 20 mph (32 km/h).
Page 88 Six-Speed FIRST (1): Press the clutch pedal and shift into FIRST (1). Then, slowly let up on the clutch pedal as you press the accelerator pedal. Six-Speed Transaxle Shift Pattern 2-24 You can shift into FIRST (1) when you’re going less than 20 mph (32 km/h).
Page 89 THIRD (3): Press the clutch pedal and upshift into THIRD (3). Then, slowly let up on the clutch pedal as you press the accelerator pedal. FOURTH (4), FIFTH (5), SIXTH (6): Shift into FOURTH (4) and FIFTH (5) and SIXTH (6) the same way you do for THIRD (3).
Page 90: Shift Speeds
Shift Speeds CAUTION: If you skip a gear when you downshift, you could lose control of your vehicle. You could injure yourself or others. Don’t shift down more than one gear at a time when you downshift. This chart shows when to shift to the next gear for the best fuel economy.
Page 91: Parking Brake
Parking Brake To set the parking brake, hold the brake pedal down and pull up on the parking brake lever. If the ignition is on, the brake system warning light will come on. To release the parking brake, hold the brake pedal down.
Page 92: Shifting Into Park (P)
Shifting Into Park (P) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 93: Leaving Your Vehicle With The Engine Running
Leaving Your Vehicle With the Engine Running CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch ﬁre.
Page 94: Torque Lock
Torque Lock If you are parking on a hill and you don’t shift your automatic transaxle into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl in the transaxle. You may ﬁnd it difficult to pull the shift lever out of PARK (P).
Page 95: Parking Your Vehicle
If you ever hold the brake pedal down but still can’t shift out of PARK (P), try this: 1. Turn the ignition to LOCK. Make sure the parking brake is applied. 2. Carefully pry the shift-lock override small, round cover from the ﬂoor-shift console, located to the right of the shift lever.
Page 96: Parking Over Things That Burn
Parking Over Things That Burn 2-32 CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Don’t park over papers, leaves, dry grass or other things that can burn.
Page 97: Engine Exhaust
Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you can’t see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • Your exhaust system sounds strange or different.
Page 98: Running Your Engine While You Are Parked
Running Your Engine While You Are Parked It’s better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 99: Mirrors
Mirrors Manual Rearview Mirror The inside rearview mirror is attached to your vehicle’s front windshield glass. If you do not have a sunroof, your vehicle’s inside rearview mirror may be equipped with reading lamps. If your vehicle is equipped with this mirror, there are two buttons located on the bottom of the mirror.
Page 100: Outside Remote Control Mirrors
Outside Remote Control Mirrors These controls are located to the left of your steering wheel on the instrument panel. To adjust either mirror, push the button labeled L (left) or R (right). Then use the arrows on the control pad to adjust the mirror.
Page 101: Storage Areas
Storage Areas Glove Box To open the glove box door, lift the latch. Always keep the glove box door closed while driving. Cupholder(s) There are two ﬁxed cupholders located in the console area between the two front seats. There are also two cupholders that fold out of the rear of the console storage unit.
Page 102: Luggage Carrier
How to Remove and Replace the Floor Mat To remove the ﬂoor mat, pull up on the rear of the mat to disconnect it from the locator hooks. To reinstall the ﬂoor mat, line up the openings in the ﬂoor mat over the locator hooks and push down into place.
Page 103 To adjust the position of the crossrails, do the following: 1. Turn the eight knobs counterclockwise to loosen the crossrails. 2. Slide the crossrails to the desired position for loading the luggage. 3. After adjusting the crossrails, be sure to tighten all the knobs by turning the knobs clockwise.
Page 104: Rear Storage Area
Rear Storage Area A storage area is located under the rear cargo area ﬂoor panel. Turn the two lock knobs on the ﬂoor panel to unlock the storage area access cover. Be sure to lock the access cover to close it securely. 2-40 Rear Cargo Accessory Track System...
Page 105: Cargo Cover
Cargo Cover To use the cargo cover, attach the side hooks of the cargo cover to the upper tie down hooks located along both sides of the rear cargo area. CAUTION: An improperly stored cargo cover could be thrown about the vehicle during a collision or sudden maneuver.
Page 106: Sunroof
Sunroof If your vehicle has a sunroof, you can tilt or open it. To tilt the sunroof, slide the sunshade rearward, then press the switch marked UP. Press the other end of the switch to lower the sunroof. Your ignition must be on for the switch to work.
Page 107: Instrument Panel
Section 3 Instrument Panel Overview ...3-2 Hazard Warning Flashers ...3-4 Other Warning Devices ...3-4 Horn ...3-5 Tilt Wheel ...3-5 Turn Signal/Multifunction Lever ...3-5 Exterior Lamps ...3-12 Interior Lamps ...3-14 Accessory Power Outlets ...3-17 Power Outlet 115 Volt Alternating Current ...3-18 Ashtrays and Cigarette Lighter ...3-19 Climate Controls ...3-19 Climate Control System ...3-19...
Page 108: Instrument Panel Overview
Instrument Panel Overview...
Page 109 The main components of your instrument panel are the following: A. Air Outlets. See Outlet Adjustment on page 3-22 . B. Instrument Panel Cluster. See Instrument Panel Cluster on page 3-26 . C. Hazard Warning Flasher Button. See Hazard Warning Flashers on page 3-4 . D.
Page 110: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. Your hazard warning button is located on the center of the instrument panel.
Page 111: Horn
Horn To sound the horn, press anywhere on the horn pad on your steering wheel. Tilt Wheel A tilt steering column allows you to adjust the steering column before you drive. You can also raise it to the highest level to give your legs more room when you exit and enter the vehicle.
Page 112: Turn And Lane-Change Signals
Turn and Lane-Change Signals The turn signal has an upward (for right) and a downward (for left) position. These positions allow you to signal a turn or a lane change. To signal a turn, move the lever all the way up or down. When the turn is ﬁnished, the lever will return automatically.
Page 113: Windshield Wipers
Windshield Wipers The lever on the right side of the steering column controls the windshield wipers and washer. The available positions are the following: OFF: The wipers are off. INT (Intermittent): Move the lever to INT to choose a delayed wiping cycle. In light rain or snow, you might want to use this position rather than continuous wiping.
Page 114: Cruise Control
Windshield Washer Pull the lever toward you to spray washer ﬂuid on the windshield. The spray will continue until you release the lever. The wipers will run a few times. See Windshield Washer Fluid on page 5-39 . To squirt washer ﬂuid on the rear window, twist the knob upward and downward as far as it will go.
Page 115 With cruise control, you can maintain a speed of 25 mph (40 km/h) or more without keeping your foot on the accelerator. This can really help on long trips. Cruise control does not work at speeds below 25 mph (40 km/h). CAUTION: •...
Page 116 Resuming a Set Speed Suppose the cruise control is set at a desired speed and then you apply the brake. This will shut off cruise control. But you won’t need to reset it. Unless you’re going less than 25 mph (40 km/h) you can push the lever up to RES/ACC (Resume/Accelerate).
Page 117 Reducing Speed While Using Cruise Control There are two ways to reduce your speed while using cruise control: • Push and hold the lever to SET/COAST until you reach the lower speed you want, then release it. • To slow down in very small amounts, push the lever down brieﬂy.
Page 118: Exterior Lamps
Exterior Lamps The lever on the left side of the steering column operates the exterior lamps. (Exterior Lamps): Turn the outside part of the lever with the symbol on it, to operate the lamps. 3-12 The exterior lamp switch has three positions: OFF: Turning the switch to this position turns off all lamps, except the Daytime Running Lamps (DRL).
Page 119: Automatic Headlamp System
Automatic Headlamp System Your vehicle is equipped with an automatic light sensor on the top left corner of the instrument panel, so be sure it is not covered or the headlamps will be on continuously. When it is dark enough outside, your automatic headlamp system will turn on your low-beam headlamps at the normal brightness along with other lamps such as the taillamps, sidemarker, parking lamps and...
Page 120: Interior Lamps
When it begins to get dark, the headlamps will automatically switch from DRL to the regular headlamps. See “Automatic Headlamp System” earlier in this section. When you turn the exterior lamp switch off, the regular lamps will go off and your headlamps will change to the reduced brightness of DRL provided it is not dark outside.
Page 121: Entry Lighting
The brightness of the instrument panel lights will decrease when the headlamps are on. It is recommended that the brightness level is kept at the maximum setting for all daytime driving to insure proper visibility. The interior light has the following positions: OFF: This position turns the light off.
Page 122: Reading Lamp
Reading Lamp If you have a sunroof, you will have a reading lamp near the sunroof switch. Press the button to turn the lamp on and press it again to turn it off. 3-16 If you do not have a sunroof, your vehicle’s inside rearview mirror may be equipped with reading lamps.
Page 123: Accessory Power Outlets
Accessory Power Outlets With the accessory power outlet, you can plug in auxiliary electrical equipment. The accessory power outlet is located in the center console storage area. To use the outlet, the ignition must be in ON or ACC. Pull down the small cover to access the outlet. Notice: When using an accessory power outlet, maximum electrical load must not exceed 15 amps.
Page 124: Power Outlet 115 Volt Alternating Current
Power Outlet 115 Volt Alternating Current With this power outlet, you can plug in auxiliary electrical equipment with a maximum limit of 115 VAC. If you try to use equipment that requires more than the limit, a protection circuit will cut the power supply. The power will automatically restart when equipment that operates within the limit is plugged in.
Page 125: Ashtrays And Cigarette Lighter
Ashtrays and Cigarette Lighter Notice: Don’t put papers or other ﬂammable items into your ashtrays. Hot cigarettes or other smoking materials could ignite them, causing a damaging ﬁre. To use the lighter, push the lighter in all the way and let go. When it’s ready, it will pop back out by itself.
Page 126 To change the current mode, select one of the following: (Vent): This mode directs air to the upper instrument panel outlets. (Bi-Level): This mode directs the air to the upper instrument panel outlets, and to the ﬂoor outlets. (Floor): This mode directs the air to the ﬂoor outlets and to the outboard outlets (for the side windows).
Page 127: Defogging And Defrosting
Defogging and Defrosting Fog on the inside of windows is a result of high humidity (moisture) condensing on the cool window glass. This can be minimized if the climate control system is used properly. There are two modes to clear fog or frost from your windshield.
Page 128: Outlet Adjustment
The rear window defogger will turn off automatically approximately 15 minutes after the button is pressed. The defogger can also be turned off by pressing the button again or by turning off the engine. Notice: Don’t use a razor blade or something else sharp on the inside of the rear window.
Page 129: Passenger Compartment Air Filter
Passenger Compartment Air Filter Passenger compartment air, both outside and recirculated air, is routed through a passenger compartment air ﬁlter. The ﬁlter removes certain contaminants from the air, including pollen and dust particles. Reductions in airﬂow, which may occur more quickly in dusty areas, indicate that the ﬁlter needs to be replaced early.
Page 130 3. Lift the snaps on the ﬁlter cover to remove the cover. 3-24 4. Remove the air ﬁlter. 5. Reverse the steps to install the new air ﬁlter. If you choose not to replace the air ﬁlter after removing it, using your vehicle without a ﬁlter won’t cause damage.
Page 131: Warning Lights, Gages And Indicators
Warning Lights, Gages and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 132: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re going, how much fuel is left in the tank and many other things you’ll need to drive safely and economically. United States Cluster Shown, Canada Similar 3-26...
Page 133: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in miles. You may wonder what happens if your vehicle needs a new odometer installed.
Page 134: Tachometer
Tachometer The tachometer shows engine speed in thousands of revolutions per minute (rpm). Notice: Do not operate the engine with the tachometer in the red area, or engine damage may occur. Temperature Display The outside air temperature is displayed on the center of the instrument panel, within the speedometer.
Page 135 Your vehicle also has a safety belt reminder light for the right front passenger position. This light is located on the center of the instrument panel, above the audio system. When the key is turned to ON or START, this light will come on as a reminder for the right front passenger to fasten the safety belt.
Page 136: Air Bag Readiness Light
Air Bag Readiness Light There is an air bag readiness light on the instrument panel, which shows the air bag symbol. The system checks the air bag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the air bag sensors, the air bag modules, the wiring and the diagnostic module.
Page 137: Charging System Light
Charging System Light This light will come on brieﬂy when you turn on the ignition, but the engine is not running, as a check to show you it is working. Then it should go out when the engine starts. If it stays on, or comes on while you are driving, you may have a problem with the electrical charging system.
Page 138: Anti-Lock Brake System Warning Light
If the light comes on while you are driving, pull off the road and stop carefully. You may notice that the pedal is harder to push. Or, the pedal may go closer to the ﬂoor. It may take longer to stop. If the light is still on, have the vehicle towed for service.
Page 139: Engine Coolant Temperature Gage
If the light stays on, turn the ignition to LOCK. Or, if the light comes on when you’re driving, stop as soon as possible and turn the ignition off. Then start the engine again to reset the system. If the light still stays on, or comes on again while you’re driving, your vehicle needs service.
Page 140: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light United States Your vehicle is equipped with a computer which monitors operation of the fuel, ignition and emission control systems. 3-34 This system is called OBD II (On-Board Diagnostics-Second Generation) and is intended to assure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 141: If The Light Is Flashing
Notice: Modiﬁcations made to the engine, transaxle, exhaust, intake or fuel system of your vehicle or replacement tires that do not match your vehicle’s original tires can affect your vehicle’s emission controls and may cause this light to come on. Modiﬁcations to these systems could lead to costly repairs not covered by your warranty.
Page 142: If The Light Is On Steady
If the Light Is On Steady You also may be able to correct the emission system malfunction by considering the following: Did you recently put fuel into your vehicle? If so, reinstall the fuel cap, making sure to fully install the cap.
Page 143 Emissions Inspection and Maintenance Programs Some state/provincial and local governments have or may begin programs to inspect the emission control equipment on your vehicle. Failure to pass this inspection could prevent you from getting a vehicle registration. Here are some things you need to know to help your vehicle pass an inspection: Your vehicle will not pass this inspection if the Check Engine light is on or not working properly.
Page 144: Oil Pressure Light
Oil Pressure Light If you have a problem with your oil, this light may stay on after you start your engine or come on when you are driving. This indicates that there is not enough oil pressure to keep your engine properly lubricated and cool. The engine could be low on oil, or have some other oil related problem.
Page 145: Cruise Control Light
Cruise Control Light The CRUISE light appears whenever you use the ON-OFF button to set your cruise control. See “Cruise Control” under Turn Signal/Multifunction Lever on page 3-5 . Overdrive Off Light Your automatic transaxle has overdrive. The light will come on whenever you turn off the overdrive.
Page 146: Fuel Gage
Fuel Gage United States Your fuel gage shows about how much fuel is in your tank. There is an arrow on the fuel gage that indicates that the fuel ﬁller door is on the left side of your vehicle. The fuel gage works only when the ignition switch is ON.
Page 147: Audio System(S)
Audio System(s) Notice: Before you add any sound equipment to your vehicle – like a tape player, CB radio, mobile telephone or two-way radio – be sure you can add what you want. If you can, it’s very important to do it properly.
Page 148: Radio With Cd
Radio with CD Your radio has a blinking red light that is used as a theft-deterrent feature. The light will blink whenever your ignition is off. Radio Data System (RDS) Your audio system is equipped with a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information.
Page 149: Finding A Station
Playing the Radio PWR (Power): Push this knob to turn the system on and off. VOL (Volume): Turn this knob to increase or to decrease volume. SCV (Speed-Compensated Volume): This button is inoperable on this radio. RCL (Recall): Push this knob to switch the display between the radio station frequency and the time.
Page 150: Setting Preset Stations
Setting Preset Stations The six numbered pushbuttons let you return to your favorite stations. You can set up to 30 stations (six FM1, six FM2, and six AM, six XM1 and six XM2 (USA only, if equipped), by performing the following steps: 1.
Page 151 Adjusting the Speakers (Balance/Fade) BAL (Balance): Press and release this button until BAL appears on the display. The SELECT LED indicator will light to show that the speakers can be adjusted. Turn the SELECT knob to move the sound toward the left or the right speakers.
Page 152: Rds Messages
Setting Preset PTYs (RDS Only) The six numbered pushbuttons let you return to your favorite program types (PTYs). These pushbuttons have factory PTY presets. You can set up to 12 PTYs (six FM1 and six FM2) by performing the following steps: 1.
Page 153: Radio Messages
TRAF (Traffic): If TRAF appears on the display, the tuned station broadcasts traffic announcements. To receive the traffic announcement from the tuned station, press this button. Brackets will be displayed around TRAF and when a traffic announcement comes on the tuned radio station you will hear it. If the current tuned station does not broadcast traffic announcements, press this button and the radio will seek to a station that does.
Page 154 Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) CH Off Air Channel not in service CH Unavail Channel no longer...
Page 155 Radio Display Message No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Locked Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Chk XMRcvr...
Page 156: Playing A Compact Disc
Playing a Compact Disc With the ignition on, insert a disc partway into the slot, label side up. The player will pull it in and the disc should begin playing. If you want to insert a CD when the ignition is off, ﬁrst press the eject symbol or push the RCL knob.
Page 157 SCAN : Press and hold one of the arrows for more than two seconds until SCAN and the track number appear on the display and you hear a beep. The disc will go to the next track, play for a few seconds, then go on to the next track.
Page 158: Radio With Six-Disc Cd
Radio with Six-Disc CD Your radio has a blinking red light that is used as a theft-deterrent feature. The light will blink whenever your ignition is off. Playing the Radio PWR (Power): Push this knob to turn the system on and off.
Page 159 Finding a Station BAND: Press this button to switch between FM1, FM2, or AM. The display will show your selection. TUNE: Turn this knob to select radio stations. SEEK : Press the right or the left arrow to go to the next or to the previous station and stay there.
Page 160: Setting The Tone (Bass/Treble)
Setting the Tone (Bass/Treble) AUDIO: Push the AUDIO knob until BASS, MID, or TREB appears on the display. Turn the knob to increase or to decrease. If a station is weak or noisy, you may want to decrease the treble. To adjust bass, midrange or treble to the middle position, select BASS, MID, or TREB and push and hold the AUDIO knob.
Page 161: Finding A Pty Station
Radio Data System (RDS) Your audio system is equipped with a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, your radio can do the following: • Seek to stations broadcasting the selected type of programming •...
Page 162 SCAN: You can also scan through the channels within a category by performing the following: 1. Press the P-TYPE button. P-TYPE and the last selected PTY will be displayed on the screen. 2. Select a category by turning the P-TYPE knob. 3.
Page 163 INFO (Information): If the current station has a message, INFO will appear on the display. Press this button to see the message. The message may display the artist and song title, call in phone numbers, etc. If the whole message is not displayed, parts of it will appear every three seconds.
Page 164 LOAD CD : Press the LOAD side of this button to load CDs into the compact disc player. This compact disc player will hold up to six discs. To insert one disc, do the following: 1. Turn the ignition on. 2.
Page 165 Playing a Speciﬁc Loaded Compact Disc For every CD loaded, a number will appear on the radio display. To play a speciﬁc CD, ﬁrst press the CD AUX button to start playing a CD. Then press the numbered pushbutton that corresponds to the CD you want to play.
Page 166 RDM (Random): With random, you can listen to the tracks in random, rather than sequential, order, on one disc or on all of the discs. To use random, do one of the following: • To play the tracks on the disc you are listening to in random order, press and release the RDM button.
Page 167: Using Song List Mode
Using Song List Mode The integrated six-disc CD changer has a feature called song list. This feature is capable of saving 20 track selections. To save tracks into the song list feature, perform the following steps: 1. Turn the CD player on and load it with at least one disc.
Page 168 After a track has been deleted, the remaining tracks are moved up the list. When another track is added to the song list, the track will be added to the end of the list. To delete the entire song list, perform the following steps: 1.
Page 169: Navigation/Radio System
Navigation/Radio System Navigation/Radio Display and Controls The display screen is located in the center of the instrument panel. Your vehicle may have an AM-FM navigation radio system that includes a Radio Data System (RDS) with program type selections (PTY) that will seek out the kind of music you want to listen to.
Page 170: Care Of Your Cds
XM™ Satellite Radio Service (USA Only) XM™ Satellite Radio gives you digital radio reception from coast to coast. Just as with FM, tall buildings or hills can interfere with satellite radio signals, causing the sound to come and go. Your radio may display NO SIGNAL to indicate interference.
Page 171: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunken Driving ...4-2 Control of a Vehicle ...4-5 Braking ...4-6 All-Wheel Drive (AWD) System ...4-9 Steering ...4-9 Off-Road Recovery ...4-12 Passing ...4-12 Loss of Control ...4-14 Driving at Night ...4-15 Driving in Rain and on Wet Roads ...4-16 City Driving ...4-19 Driving Your Vehicle...
Page 172: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 1-8 . Defensive driving really means “be ready for anything.”...
Page 173 Many adults — by some estimates, nearly half the adult population — choose never to drink alcohol, so they never drive after drinking. For persons under 21, it is against the law in every U.S. state to drink alcohol. There are good medical, psychological and developmental reasons for these laws.
Page 174 There is a gender difference, too. Women generally have a lower relative percentage of body water than men. Since alcohol is carried in body water, this means that a woman generally will reach a higher BAC level than a man of her same body weight will when each has the same number of drinks.
Page 175: Control Of A Vehicle
There is something else about drinking and driving that many people do not know. Medical research shows that alcohol in a person’s system can make crash injuries worse, especially injuries to the brain, spinal cord or heart. This means that when anyone who has been drinking —...
Page 176: Braking
Braking Braking action involves perception time and reaction time. First, you have to decide to push on the brake pedal. That is perception time. Then you have to bring up your foot and do it. That is reaction time. Average reaction time is about 3/4 of a second. But that is only an average.
Page 177: Anti-Lock Brake System
Anti-lock Brake System Your vehicle may have anti-lock brakes. ABS is an advanced electronic braking system that will help prevent a braking skid. United States If your vehicle has anti-lock brakes, this warning light on the instrument panel will come on brieﬂy when you start your vehicle.
Page 178 The anti-lock system can change the brake pressure faster than any driver could. The computer is programmed to make the most of available tire and road conditions. This can help you steer around the obstacle while braking hard. As you brake, your computer keeps receiving updates on wheel speed and controls braking pressure accordingly.
Page 179: Power Steering
Braking in Emergencies At some time, nearly every driver gets into a situation that requires hard braking. If you have anti-lock, you can steer and brake at the same time. However, if you do not have anti-lock, your ﬁrst reaction — to hit the brake pedal hard and hold it down —...
Page 180: Steering Tips
Steering Tips Driving on Curves It is important to take curves at a reasonable speed. A lot of the “driver lost control” accidents mentioned on the news happen on curves. Here is why: Experienced driver or beginner, each of us is subject to the same laws of physics when driving on curves.
Page 181: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 182: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you’re driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 183 • Do not get too close to the vehicle you want to pass while you are awaiting an opportunity. For one thing, following too closely reduces your area of vision, especially if you are following a larger vehicle. Also, you will not have adequate space if the vehicle ahead suddenly slows or stops.
Page 184: Loss Of Control
Loss of Control Let us review what driving experts say about what happens when the three control systems (brakes, steering and acceleration) do not have enough friction where the tires meet the road to do what the driver has asked. In any emergency, do not give up.
Page 185: Driving At Night
Driving at Night Night driving is more dangerous than day driving. One reason is that some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. Here are some tips on night driving. •...
Page 186: Driving In Rain And On Wet Roads
You can be temporarily blinded by approaching headlamps. It can take a second or two, or even several seconds, for your eyes to readjust to the dark. When you are faced with severe glare (as from a driver who doesn’t lower the high beams, or a vehicle with misaimed headlamps), slow down a little.
Page 187 The heavier the rain, the harder it is to see. Even if your windshield wiper blades are in good shape, a heavy rain can make it harder to see road signs and traffic signals, pavement markings, the edge of the road and even people walking.
Page 188: Driving Through Flowing Water
Hydroplaning Hydroplaning is dangerous. So much water can build up under your tires that they can actually ride on the water. This can happen if the road is wet enough and you’re going fast enough. When your vehicle is hydroplaning, it has little or no contact with the road. Hydroplaning doesn’t happen often.
Page 189: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You’ll want to watch out for what the other drivers are doing and pay attention to traffic signals. Here are ways to increase your safety in city driving: •...
Page 190: Freeway Driving
Freeway Driving Mile for mile, freeways (also called thruways, parkways, expressways, turnpikes or superhighways) are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 191: Before Leaving On A Long Trip
The exit ramp can be curved, sometimes quite sharply. The exit speed is usually posted. Reduce your speed according to your speedometer, not to your sense of motion. After driving for any distance at higher speeds, you may tend to think you are going slower than you actually are.
Page 192: Highway Hypnosis
Highway Hypnosis Is there actually such a condition as “highway hypnosis”? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
Page 193 • Know how to go down hills. The most important thing to know is this: let your engine do some of the slowing down. Shift to a lower gear when you go down a steep or long hill. CAUTION: If you do not shift down, your brakes could get so hot that they would not work well.
Page 194: Winter Driving
Winter Driving 4-24 Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You may want to put winter emergency supplies in your vehicle. Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth and a couple of reﬂective warning triangles.
Page 195 What’s the worst time for this? “Wet ice.” Very cold snow or ice can be slick and hard to drive on. But wet ice can be even more trouble because it may offer the least traction of all. You can get wet ice when it’s about freezing (32°F;...
Page 196: If You're Caught In A Blizzard
If You’re Caught in a Blizzard If you are stopped by heavy snow, you could be in a serious situation. You should probably stay with your vehicle unless you know for sure that you are near help and you can hike through the snow. Here are some things to do to summon help and keep yourself and your passengers safe: •...
Page 197 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You can not see it or smell it, so you might not know it is in your vehicle.
Page 198: If You Are Stuck: In Sand, Mud, Ice
If You Are Stuck: In Sand, Mud, Ice or Snow In order to free your vehicle when it is stuck, you will need to spin the wheels, but you don’t want to spin your wheels too fast. The method known as “rocking” can help you get out when you’re stuck, but you must use caution.
Page 199: Using The Recovery Hook
Using the Recovery Hook Your vehicle is equipped with a recovery hook. The recovery hook is provided at the front of your vehicle. It can only be used for pulling your vehicle out. CAUTION: The recovery hook, when used, is under a lot of force.
Page 200: Towing
Towing Towing Your Vehicle Consult your dealer or a professional towing service if you need to have your disabled vehicle towed. See Roadside Assistance Program on page 7-6 . If you want to tow your vehicle behind another vehicle for recreational purposes (such as behind a motorhome), see “Recreational Vehicle Towing”...
Page 201: Dinghy Towing
Dinghy Towing For front-wheel-drive vehicles with manual transaxles only do the following: When dinghy towing, be sure to follow the posted legal speed limit. 1. Put the shift lever in neutral. 2. Turn the ignition to ACC to avoid locking the steering wheel.
Page 202: Dolly Towing
Dolly Towing If your vehicle is a front-wheel drive vehicle it can be towed using a dolly. To tow your vehicle using a dolly, follow these steps: 1. Put the front wheels on a dolly. 2. Put the vehicle in PARK (P) for automatic transaxles and in neutral for manual transaxles.
Page 203 This is an example of what your vehicle’s Tire-Loading Information/Certiﬁcation label might look like. It is located in the glovebox and shows how much weight your vehicle may properly carry. The label tells you the proper size, and recommended inﬂation pressures for the tires on your vehicle.
Page 204: Towing A Trailer
Towing a Trailer CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well — or even at all.
Page 205: If You Do Decide To Pull A Trailer
You can ask your dealer for our trailering information or advice, or you can write us at: Pontiac-GMC Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 In Canada, write to:...
Page 206: Weight Of The Trailer Tongue
Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total or gross weight of your vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo you may carry in it, and the people who will be riding in the vehicle.
Page 207: Safety Chains
Hitches It’s important to have the correct hitch equipment. Crosswinds, large trucks going by and rough roads are a few reasons why you’ll need the right hitch. Here are some rules to follow: • Don’t let the steel in a hitch contact the aluminum on your bumper.
Page 208: Driving With A Trailer
Driving with a Trailer Towing a trailer requires a certain amount of experience. Before setting out for the open road, you’ll want to get to know your rig. Acquaint yourself with the feel of handling and braking with the added weight of the trailer. And always keep in mind that the vehicle you are driving is now a good deal longer and not nearly as responsive as your vehicle is by itself.
Page 209: Turn Signals When Towing A Trailer
Turn Signals When Towing a Trailer When you tow a trailer, your vehicle may need a different turn signal ﬂasher and/or extra wiring. Check with your dealer. The arrows on your instrument panel will ﬂash whenever you signal a turn or lane change.
Page 210: Maintenance Schedule
When You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you: • start your engine, • shift into a gear, and • release the parking brake. 2. Let up on the brake pedal. 3.
Page 211: Service And Appearance Care
Section 5 Service ...5-3 Doing Your Own Service Work ...5-3 Adding Equipment to the Outside of Your Vehicle ...5-4 Fuel ...5-4 Gasoline Octane ...5-4 Gasoline Speciﬁcations ...5-5 California Fuel ...5-5 Additives ...5-6 Fuels in Foreign Countries ...5-6 Filling Your Tank ...5-7 Filling a Portable Fuel Container ...5-9 Checking Things Under the Hood ...5-10 Hood Release ...5-10...
Page 212 Section 5 Appearance Care ...5-89 Cleaning the Inside of Your Vehicle ...5-89 Care of Safety Belts ...5-92 Weatherstrips ...5-92 Cleaning the Outside of Your Vehicle ...5-92 Sheet Metal Damage ...5-94 Finish Damage ...5-94 Underbody Maintenance ...5-95 Chemical Paint Spotting ...5-95 Vehicle Care/Appearance Materials ...5-95 Service and Appearance Care Vehicle Identiﬁcation ...5-97...
Page 213: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 214: Adding Equipment To The Outside Of
CAUTION: (Continued) • Be sure to use the proper nuts, bolts and other fasteners. “English” and “metric” fasteners can be easily confused. If you use the wrong fasteners, parts can later break or fall off. You could be hurt. Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airﬂow around it.
Page 215: Gasoline Speciﬁcations
Gasoline Speciﬁcations It is recommended that gasoline meet speciﬁcations which were developed by automobile manufacturers around the world and contained in the World-Wide Fuel Charter which is available from the Alliance of Automobile Manufacturers at www.autoalliance.org. Gasoline meeting these speciﬁcations could provide improved driveability and emission control system performance compared to other gasoline.
Page 216: Additives
Additives To provide cleaner air, all gasolines in the United States are now required to contain additives that will help prevent engine and fuel system deposits from forming, allowing your emission control system to work properly. You should not have to add anything to your fuel.
Page 217: Filling Your Tank
Filling Your Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling. Don’t smoke if you’re near fuel or refueling your vehicle.
Page 218 The fuel door release lever is located near the ﬂoor under the driver’s seat on the outboard side. While refueling, hang the fuel cap inside of the fuel door. To remove the fuel cap, turn it slowly to the left (counterclockwise).
Page 219: Filling A Portable Fuel Container
When you put the fuel cap back on, turn it to the right (clockwise) until you hear a clicking sound. Make sure you fully install the cap. The diagnostic system can determine if the fuel cap has been left off or improperly installed.
Page 220: Checking Things Under The Hood
Checking Things Under the Hood CAUTION: An electric fan under the hood can start up and injure you even when the engine is not running. Keep hands, clothing and tools away from any underhood electric fan. CAUTION: Things that burn can get on hot engine parts and start a ﬁre.
Page 221 2. Then go to the front of the vehicle. Release the secondary hood release by pulling up on the lever located near the middle of the hood. 3. Lift the hood. 4. Release the hood prop rod from its retainer and put the hood prop rod into the slot in the hood.
Page 222: Engine Compartment Overview
Engine Compartment Overview When you open the hood of the 1.8 L (Code 8) engine, you’ll see the following: 5-12...
Page 223 A. Windshield Washer Fluid Reservoir. See Windshield Washer Fluid on page 5-39 . B. Power Steering Fluid Reservoir. See Power Steering Fluid on page 5-38 . C. Radiator Pressure Cap. See Radiator Pressure Cap on page 5-29 . D. Engine Oil Dipstick. See Engine Oil on page 5-16 . E.
Page 224 When you open the hood of the 1.8 L (Code L) H.O. DOHC engine, you’ll see the following: 5-14...
Page 225 A. Windshield Washer Fluid Reservoir. See Windshield Washer Fluid on page 5-39 . B. Power Steering Fluid Reservoir. See Power Steering Fluid on page 5-38 . C. Radiator Pressure Cap. See Radiator Pressure Cap on page 5-29 . D. Engine Oil Dipstick. See Engine Oil on page 5-16 . E.
Page 226: Engine Oil
Engine Oil If the engine oil pressure light appears on the instrument cluster, it means you need to check your engine oil level right away. For more information, see Oil Pressure Light on page 3-38 . You should check your engine oil level regularly; this is an added reminder.
Page 227: When To Add Engine Oil
When to Add Engine Oil If the oil is at or below the hole at the tip of the dipstick, then you will need to add at least one quart of oil. But you must use the right kind. This section explains what kind of oil to use.
Page 228: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Look for two things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. You should look for and use only an oil that meets GM Standard GM6094M. 5-18...
Page 229: Engine Oil Additives
• SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle. However, if it is going to be 0°F (–18°C) or above and SAE 5W-30 is not available, you may use SAE 10W-30. These numbers on an oil container show its viscosity, or thickness.
Page 230: When To Change Engine Oil
When to Change Engine Oil If any one of these is true for you, use the short trip/city maintenance schedule: • Most trips are less than 5 miles (8 km). This is particularly important when outside temperatures are below freezing. •...
Page 231: What To Do With Used Oil
What to Do with Used Oil Used engine oil contains certain elements that may be unhealthy for your skin and could even cause cancer. Do not let used oil stay on your skin for very long. Clean your skin and nails with soap and water, or a good hand cleaner.
Page 232 To check or replace the ﬁlter, do the following: 1. Release the two clips that hold the cover down. 2. Lift the cover off. 3. Pull out the engine air cleaner/ﬁlter. 4. Install a new engine air cleaner/ﬁlter, if needed. 5.
Page 233: Automatic Transaxle Fluid
Automatic Transaxle Fluid When to Check and Change A good time to check your automatic transaxle ﬂuid level is when the engine oil is changed. Check the ﬂuid in the transaxle and differential every 30,000 miles (50 000 km). Change the ﬂuid every 60,000 miles (100 000 km) if the vehicle is mainly driven under one or more of these conditions: •...
Page 234 Checking the Fluid Level Prepare your vehicle as follows: • Park your vehicle on a level place. Keep the engine running. • With the parking brake applied, place the shift lever in PARK (P). • With your foot on the brake pedal, move the shift lever through each gear range, pausing for about three seconds in each range.
Page 235: Manual Transaxle Fluid
How to Check Because this operation can be difficult, you may choose to have this done at your Pontiac dealership service department. If you do it yourself, be sure to follow all the instructions here, or you could get a false reading.
Page 236: Hydraulic Clutch
Then, follow these steps: 1. Remove the ﬁller plug. 2. Check that the lubricant level is up to the bottom of the ﬁller plug hole. 3. If the ﬂuid level is good, install the plug and be sure it is fully seated. If the ﬂuid level is low, add more ﬂuid as described in the next steps.
Page 237: Engine Coolant
When to Check and What to Use Refer to the Maintenance Schedule to determine how often you should check the ﬂuid level in your master cylinder reservoir and for the proper ﬂuid. See Part B: Owner Checks and Services on page 6-19 and Part D: Recommended Fluids and Lubricants on page 6-26 .
Page 238: What To Use
What to Use Use a mixture of one-half clean, drinkable water and one-half half coolant that meets GM Speciﬁcation 1825-M, which won’t damage aluminum parts. You can also use a recycled coolant conforming to GM Speciﬁcation 1825-M with a complete coolant ﬂush and reﬁll.
Page 239: Radiator Pressure Cap
Adding Coolant If you need more coolant, add the proper coolant mixture at the coolant recovery tank, but be careful not to spill it. CAUTION: Turning the radiator pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
Page 240: Engine Overheating
Engine Overheating You will ﬁnd a coolant temperature gage on your vehicle’s instrument panel. See Engine Coolant Temperature Gage on page 3-33 . If Steam Is Coming From Your Engine 5-30 CAUTION: Steam from an overheated engine can burn you badly, even if you just open the hood. Stay away from the engine if you see or hear steam coming from it.
Page 241: If No Steam Is Coming From Your Engine
If No Steam Is Coming From Your Engine If you get an engine overheat warning but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: • Climb a long hill on a hot day.
Page 242: Cooling System
Cooling System When you decide it’s safe to lift the hood, here’s what you’ll see: A. Electric Engine Cooling Fan B. Engine Coolant Recovery Tank C. Radiator Pressure Cap 5-32 CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you.
Page 243 The coolant level should be at or above the FULL mark. If it isn’t, you may have a leak at the pressure cap or in the radiator hoses, heater hoses, radiator, water pump or somewhere else in the cooling system. If there seems to be no leak, with the engine on, check to see if the electric engine cooling fan is running.
Page 244 How to Add Coolant to the Coolant Recovery Tank If you haven’t found a problem yet, but the coolant level isn’t at or above the FULL mark, add a 50/50 mixture of clean, drinkable water and a proper coolant at the coolant recovery tank.
Page 245 CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine. When the coolant in the coolant recovery tank is at the FULL mark, start your vehicle.
Page 246: How To Add Coolant To The Radiator
How to Add Coolant to the Radiator 1. You can remove the radiator pressure cap when the cooling system, including the radiator pressure cap and upper radiator hose, is no longer hot. Turn the pressure cap slowly counterclockwise until it ﬁrst stops. (Don’t press down while turning the pressure cap.) If you hear a hiss, wait for that to stop.
Page 247 4. Then ﬁll the coolant recovery tank to the FULL mark. 5. Put the cap back on the coolant recovery tank, but leave the radiator pressure cap off. 6. Start the engine and let it run until you can feel the upper radiator hose getting hot.
Page 248: Power Steering Fluid
Power Steering Fluid When to Check Power Steering Fluid It is not necessary to regularly check power steering ﬂuid unless you suspect there is a leak in the system or you hear an unusual noise. A ﬂuid loss in this system could indicate a problem.
Page 249: Windshield Washer Fluid
Windshield Washer Fluid What to Use When you need windshield washer ﬂuid, be sure to read the manufacturer’s instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 250: Brakes
Notice: • When using concentrated washer ﬂuid, follow the manufacturer’s instructions for adding water. • Don’t mix water with ready-to-use washer ﬂuid. Water can cause the solution to freeze and damage your washer ﬂuid tank and other parts of the washer system. Also, water doesn’t clean as well as washer ﬂuid.
Page 251 So, it is not a good idea to “top off” your brake ﬂuid. Adding brake ﬂuid will not correct a leak. If you add ﬂuid when your linings are worn, then you will have too much ﬂuid when you get new brake linings. You should add (or remove) brake ﬂuid, as necessary, only when work is done on the brake hydraulic system.
Page 252 What to Add When you do need brake ﬂuid, use only DOT-3 brake ﬂuid. Use new brake ﬂuid from a sealed container only. See Part D: Recommended Fluids and Lubricants on page 6-26 . Always clean the brake ﬂuid reservoir cap and the area around the cap before removing it.
Page 253: Brake Wear
Brake Wear The GT series has four-wheel disc brakes. All other models have front disc brakes and rear drum brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving (except when you are pushing on the brake pedal ﬁrmly).
Page 254: Battery
Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Your vehicle was designed and tested with top-quality GM brake parts.
Page 255: Jump Starting
Jump Starting If your battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to follow the steps below to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 256 Notice: If you leave your radio on, it could be badly damaged. The repairs wouldn’t be covered by your warranty. 3. Turn off the ignition on both vehicles. Unplug unnecessary accessories plugged into the cigarette lighter. Turn off the radio and all lamps that aren’t needed.
Page 257 CAUTION: Fans or other moving engine parts can injure you badly. Keep your hands away from moving parts once the engine is running. 5. Check that the jumper cables don’t have loose or missing insulation. If they do, you could get a shock.
Page 258 7. Don’t let the other end touch metal. Connect it to the positive (+) terminal of the good battery. Use a remote positive (+) terminal if the vehicle has one. 5-48 8. Now connect the black negative ( ) cable to the negative terminal of the good battery.
Page 259 9. Connect the other end of the negative ( ) cable at least 18 inches (45 cm) away from the dead battery, but not near engine parts that move. The electrical connection is just as good there, and the chance of sparks getting back to the battery is much less.
Page 260 Jumper Cable Removal A. Heavy, Unpainted Metal Engine Part B. Good Battery C. Dead Battery 5-50 To disconnect the jumper cables from both vehicles, do the following: 1. Disconnect the black negative ( ) cable from the vehicle that had the dead battery. 2.
Page 261: All-Wheel Drive
All-Wheel Drive If you have an all-wheel-drive vehicle, be sure to perform the lubricant checks described in this section. However, it has two additional systems that need lubrication. Transfer Case (Power Transfer Unit) When to Check Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant.
Page 262: Bulb Replacement
Bulb Replacement For any bulb changing procedure not listed in this section, contact your dealer. For the type of bulb to use, see Replacement Bulbs on page 5-59 . Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb. You or others could be injured.
Page 263 To replace the headlamp bulb, do the following: 1. Open the hood and locate the lamp assembly. 2. Remove the rubber cover and socket from the headlamp. 5-53...
Page 264: Front Turn Signal Lamps
3. Release the retainer clip holding the bulb by pressing down and moving the metal retainer away from you. 4. Pull the bulb out of the ﬁxture. 5. Reverse the steps to install a new bulb. 5-54 Front Turn Signal Lamps To replace the front turn signal lamp bulbs, do the following: 1.
Page 265: Center High-Mounted Stoplamp (Chmsl)
Center High-Mounted Stoplamp (CHMSL) To replace the center high-mounted stoplamp bulb, do the following: 1. The bulb is located on the inside of the liftgate liftglass near the top. Remove the two clips on both sides of the cover and remove it. 2.
Page 266: Rear Combination Lamps
4. Pull the bulb straight out of the socket. 5. Reverse the previous steps to install a new bulb. 5-56 Rear Combination Lamps To replace the turn signal and brake lamp bulbs, do the following: A. Brake Lamp B. Turn Signal Lamp...
Page 267 2. Turn the bulb socket counterclockwise and pull it out of the lamp housing. 1. Remove the storage compartment cover in the rear cargo area of the vehicle to access the bulbs. 5-57...
Page 268: Back-Up Lamps
3. Pull the bulb straight out of the socket. 4. Reverse the previous steps to install a new bulb. 5. Reinstall the cover. 5-58 Back-Up Lamps The back-up lamp bulb is located below the rear combination lamps. To replace the back-up lamp bulb, do the following: 1.
Page 269: Replacement Bulbs
2. Turn the bulb socket counterclockwise and pull it out of the lamp housing. 3. Pull the bulb straight out of the socket. 4. Reverse the previous steps to install a new bulb. Replacement Bulbs Lamps Headlamp High-/Low-Beam Front Turn Signal Brake Lamp Back-Up Lamps Rear Turn Signal...
Page 270: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected at least twice a year for wear or cracking. See “Wiper Blade Check” under At Least Twice a Year on page 6-20 for more information. Replacement blades come in different types and are removed in different ways.
Page 271: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle’s Owner’s Manual and other glove compartment literature.
Page 272: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into it’s sidewall. The following illustration shows an example of a passenger car tire sidewall. 5-62...
Page 273 A. Tire Size B. Department of Transportation (DOT) C. Tire Identiﬁcation Number (TIN) D. Tire Ply Material E. Uniform Tire Quality Grading (UTQG) F. Maximum Cold Inﬂation Load Limit Tire Size: The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description.
Page 274: Tire Size
Tire Size The following illustration shows an example of a typical passenger car tire size. A. Passenger (P-Metric) Tire B. Tire Width C. Aspect Ratio D. Belt Rating E. Rim Diameter F. Load Range G. Speed Rating 5-64 Passenger (P-Metric) Tire: The United States version of a metric tire sizing system.
Page 275: Tire Terminology And Deﬁnitions
Tire Terminology and Deﬁnitions Air Pressure: The amount of air inside the tire pressing outward on each square inch of the tire. Air pressure is expressed in pounds per square inch (psi) or kilopascal (kPa). Accessory Weight: This means the combined weight of optional accessories, for example, automatic transmission, power steering, power brakes, power windows, power seats, radio and air conditioning.
Page 276 Load Index: An assigned number ranging from 1 to 279 that corresponds to the load carrying capacity of a tire. Maximum Load Rating: The load rating for a tire at the maximum permissible inﬂation pressure for that tire. Maximum Loaded Vehicle Weight: The sum of curb weight;...
Page 277: Inﬂation - Tire Pressure
Tread Width: The width of the tire’s tread. UTQGS: Uniform Tire Quality Grading Standards, a tire information system that provides consumers with ratings for a tire’s traction, temperature and treadwear. Ratings are determined by tire manufacturers using government testing procedures. The ratings are molded into the sidewall of the tire.
Page 278: Tire Inspection And Rotation
When to Check Check your tires once a month or more. Don’t forget your compact spare tire. It should be at 60 psi (420 kPa). How to Check Use a good quality pocket-type gage to check tire pressure. You can’t tell if your tires are properly inﬂated simply by looking at them.
Page 279 When rotating your tires, always use the correct rotation pattern shown here. Tires should only be moved from front to rear and rear to front on the same side of the vehicle. Don’t include the compact spare tire in your tire rotation. After the tires have been rotated, adjust the front and rear inﬂation pressures as shown on the Tire and Loading Information label.
Page 280: When It Is Time For New Tires
When It Is Time for New Tires One way to tell when it’s time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 mm) or less of tread remaining. 5-70 You need a new tire if any of the following statements are true:...
Page 281: Buying New Tires
Buying New Tires To ﬁnd out what kind and size of tires you need, look at the tire and loading information label. For more information about this label and where to ﬁnd it, see Loading Your Vehicle on page 4-32 . Make sure the replacements are the same size, load capacity, speed rating and construction type (bias, bias-belted or radial) as your original tires.
Page 282: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum selection width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the Unites States National Highway Traffic Safety Administration, which grades tires by treadwear, traction and temperature performance.
Page 283: Wheel Alignment And Tire Balance
Temperature — A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 284: Wheel Replacement
Wheel Replacement Replace any wheel that is bent, cracked or badly rusted or corroded. If wheel nuts keep coming loose, the wheel, wheel bolts and wheel nuts should be replaced. If the wheel leaks air, replace it (except some aluminum wheels, which can sometimes be repaired). See your dealer if any of these conditions exist.
Page 285: Used Replacement Wheels
Used Replacement Wheels CAUTION: Putting a used wheel on your vehicle is dangerous. You can’t know how it’s been used or how far it’s been driven. It could fail suddenly and cause a crash. If you have to replace a wheel, use a new GM original equipment wheel.
Page 286: If A Tire Goes Flat
If a Tire Goes Flat It’s unusual for a tire to “blowout” while you’re driving, especially if you maintain your tires properly. If air goes out of a tire, it’s much more likely to leak out slowly. But if you should ever have a “blowout,” here are a few tips about what to expect and what to do: If a front tire fails, the ﬂat tire will create a drag that pulls the vehicle toward that side.
Page 287: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning ﬂashers. CAUTION: Changing a tire can cause an injury. The vehicle can slip off the jack and roll over you or other people.
Page 288: Removing The Spare Tire And Tools
Removing the Spare Tire and Tools The jack, wheel wrench, jack handle and spare tire are stowed in the rear of the vehicle, underneath the ﬂoor of the cargo area. To remove the spare tire and tools do the following: 1.
Page 289 Notice: Make sure to place the hook in the proper location in order to avoid damaging the vehicle. Be sure to remove the hook when ﬁnished and place it back in its original position before closing the liftgate. 3. Remove the jack from the tray on the right side of the compartment and the jack handle and wheel wrench from the top side of the compartment.
Page 290 The tools you’ll be using include the jack (A), jack handle (B) and wheel wrench (C). 6. Attach the jack handle to the jack. 7. Turn the jack handle clockwise to raise the lift head. 5-80 Removing the Flat Tire and Installing the Spare Tire 1.
Page 291 2. Position the jack and raise the jack lift head to ﬁt over the car ﬂange between the two notches. CAUTION: Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off the jack you could be badly injured or killed.
Page 292 3. Raise the vehicle by turning the jack handle clockwise. Raise the vehicle far enough off the ground so there is enough room for the compact spare tire to ﬁt underneath the wheel well. 5-82 4. Remove all the wheel nuts and take off the ﬂat tire.
Page 293 CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after a time. The wheel could come off and cause an accident. When you change a wheel, remove any rust or dirt from the places where the wheel attaches to the vehicle.
Page 294 7. Lower the vehicle by turning the jack handle counterclockwise. Lower the jack completely. 8. Tighten the wheel nuts ﬁrmly in a crisscross sequence as shown. 5-84 CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off.
Page 295: Storing The Flat Tire And Tools
Storing the Flat Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. Return the jack, jack handle and wheel wrench to the storage area.
Page 296 5. Pass the belts through the center hole of the wheel. 6. Attach the other end of the belts to the rear, lower tie-down hooks. 5-86 7. Position the tire edge against the rear center end of the ﬂoor panel. Pull the end of the belts to make sure the tire is secure.
Page 297: Storing The Spare Tire And Tools
Storing the Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. A.
Page 298: Compact Spare Tire
Compact Spare Tire Although the compact spare tire was fully inﬂated when your vehicle was new, it can lose air after a time. Check the inﬂation pressure regularly. It should be 60 psi (420 kPa). After installing the compact spare on your vehicle, you should stop as soon as possible and make sure your spare tire is correctly inﬂated.
Page 299: Appearance Care
Appearance Care Remember, cleaning products can be hazardous. Some are toxic. Others can burst into ﬂames if you strike a match or get them on a hot part of the vehicle. Some are dangerous if you breathe their fumes in a closed space.
Page 300: Special Fabric Cleaning Problems
Here are some cleaning tips: • Always read the instructions on the cleaner label. • Clean up stains as soon as you can — before they set. • Carefully scrape off any excess stain. • Use a clean cloth or sponge, and change to a clean area often.
Page 301: Cleaning Vinyl
Cleaning Vinyl Use warm water and a clean cloth. • Rub with a clean, damp cloth to remove dirt. You may have to do this more than once. • Things like tar, asphalt and shoe polish will stain if you do not get them off quickly. Use a clean cloth and vinyl cleaner.
Page 302: Care Of Safety Belts
Care of Safety Belts Keep belts clean and dry. CAUTION: Do not bleach or dye safety belts. If you do, it may severely weaken them. In a crash, they might not be able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water.
Page 303: Finish Care
Cleaning Exterior Lamps/Lenses Use only lukewarm or cold water, a soft cloth and a car washing soap to clean exterior lamps and lenses. Follow instructions under “Washing Your Vehicle.” Finish Care Occasional waxing or mild polishing of your vehicle by hand may be necessary to remove residue from the paint ﬁnish.
Page 304: Sheet Metal Damage
Aluminum Wheels Keep your wheels clean using a soft clean cloth with mild soap and water. Rinse with clean water. After rinsing thoroughly, dry with a soft clean towel. A wax may then be applied. The surface of these wheels is similar to the painted surface of your vehicle.
Page 305: Underbody Maintenance
Underbody Maintenance Chemicals used for ice and snow removal and dust control can collect on the underbody. If these are not removed, corrosion and rust can develop on the underbody parts such as fuel lines, frame, ﬂoor pan and exhaust system even though they have corrosion protection.
Page 306 Vehicle Care/Appearance Materials (cont’d) Description Removes dust, ﬁngerprints, and surface Finish Enhancer contaminants. Spray on wipe off. Removes swirl marks, ﬁne scratches and other Swirl Remover Polish light surface contamination. Removes light scratches Cleaner Wax and protects ﬁnish. Cleans, shines and Foaming Tire Shine Low protects in one easy step, Gloss...
Page 307: Vehicle Identiﬁcation Number (Vin)
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
Page 308: Headlamp Wiring
Headlamp Wiring The headlamp wiring is protected by a circuit breaker. An electrical overload will cause the lamps to go on and off, or in some cases to remain off. If this happens, have your headlamp wiring checked right away. Windshield Wiper Fuses The windshield wiper motor is protected by a circuit breaker and a fuse.
Page 309: Instrument Panel Fuse Block
Instrument Panel Fuse Block The instrument panel fuse block is located underneath the instrument panel on the driver’s side of the vehicle. Fuses Usage Front Parking Lamps, Taillamps, TAIL License Plate Lamps, Instrument Panel Lights, Engine Control System On-Board Diagnostic System WIPER Windshield Wipers Charging System, Air Bag System,...
Page 310: Engine Compartment Fuse Block
Engine Compartment Fuse Block This engine compartment fuse block is located in the engine compartment on the driver’s side of the vehicle near the air cleaner. See Engine Compartment Overview on page 5-12 for more information on location. Fuses Usage Right Headlamp, Left Headlamp HEAD MAIN Fuses...
Page 311: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. Application Air Conditioning Refrigerant R134a Automatic Transaxle 1.8L Engine (Code 8) 1.8L Engine (Code 8) with AWD 1.8L Engine (Code L) Cooling System 1.8L Engine (Code 8) 1.8L H.O.
Page 312 Application Manual Transaxle Five-Speed Six-Speed Rear Differential Transfer Case Wheels and Tires Wheel Nut Torque All capacities are approximate. When adding, be sure to ﬁll to the approximate level, as recommended in this manual. See Part D: Recommended Fluids and Lubricants on page 6-26 . Engine 1.8L Engine 1.8L H.O.
Page 313: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Battery Engine Air Cleaner/Filter Engine Oil Filter Engine Oil Filter (Code 8) Engine Oil Filter (Code L) Passenger Compartment Air Filter PCV Valve PCV Valve (Code 8 base model) PCV Valve (Code 8 AWD Model) PCV Valve (Code L) Spark Plugs 1.8 L Engine (Code 8) 1.8 L Engine (Code L)
Page 314 NOTES 5-104...
Page 315 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 How This Section is Organized ...6-3 Part A: Scheduled Maintenance Services ...6-4 Using Your Maintenance Schedule ...6-4 Selecting the Right Schedule ...6-5 Short Trip/City Scheduled Maintenance ...6-7 Long Trip/Highway Scheduled Maintenance ...6-14 Part B: Owner Checks and Services ...6-19 At Each Fuel Fill ...6-19...
Page 316: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Maintenance intervals, checks, inspections and recommended ﬂuids and lubricants as prescribed in this...
Page 317: How This Section Is Organized
How This Section is Organized This maintenance schedule is divided into ﬁve parts: “Part A: Scheduled Maintenance Services” explains what to have done and how often. Some of these services can be complex, so unless you are technically qualiﬁed and have the necessary equipment, you should let your GM dealer’s service department do these jobs.
Page 318: Part A: Scheduled Maintenance Services
Part A: Scheduled Maintenance Services In this part are scheduled maintenance services which are to be performed at the mileage intervals speciﬁed. Using Your Maintenance Schedule We at General Motors want to keep your vehicle in good working condition. But we don’t know exactly how you’ll drive it.
Page 319: Selecting The Right Schedule
Selecting the Right Schedule First you’ll need to decide which of the two schedules is right for your vehicle. Here’s how to decide which schedule to follow: Short Trip/City Deﬁnition Follow the Short Trip/City Scheduled Maintenance if any one of these conditions is true for your vehicle: •...
Page 320: Long Trip/Highway Deﬁnition
At 60,000 Miles (100 000 km) (Or 48 Months, Whichever Occurs First) — Then Every 15,000 Miles (25 000 km) (or 12 Months, Whichever Occurs First): Engine Accessory Drive Belt Inspection. Every 120,000 Miles (200 000 km): Spark Plug Replacement. These intervals only summarize maintenance services.
Page 321: Short Trip/City Scheduled Maintenance
Short Trip/City Scheduled Maintenance The services shown in this schedule up to 100,000 miles (166 000 km) should be repeated after 100,000 miles (166 000 km) at the same intervals for the life of this vehicle. The service shown at 120,000 miles (200 000 km) should be repeated at the same interval after 120,000 miles (200 000 km) for the life of this vehicle.
Page 322 15,000 Miles (25 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Replace passenger compartment air ﬁlter. Change transfer case ﬂuid when doing frequent trailer towing. Change rear differential ﬂuid when doing frequent trailer towing.
Page 323 30,000 Miles (50 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Replace passenger compartment air ﬁlter. Replace engine air cleaner ﬁlter (or every 24 months, whichever occurs ﬁrst). An Emission Control Service. Inspect fuel tank, cap, cap gasket and lines for damage or leaks (or every 24 months, whichever occurs ﬁrst).
Page 324 39,000 Miles (65 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. 42,000 Miles (70 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Rotate tires.
Page 325 60,000 Miles (100 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Replace passenger compartment air ﬁlter. Inspect engine accessory drive belts (or every 48 months, whichever occurs ﬁrst). An Emission Control Service.
Page 326 66,000 Miles (110 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Rotate tires. See Tire Inspection and Rotation on page 5-68 for proper rotation pattern and additional information. (See footnote +.) Inspect engine air cleaner ﬁlter if you are driving in dusty conditions.
Page 327 84,000 Miles (140 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Rotate tires. See Tire Inspection and Rotation on page 5-68 for proper rotation pattern and additional information. (See footnote +.) Inspect engine air cleaner ﬁlter if you are driving in dusty conditions.
Page 328: Long Trip/Highway Scheduled Maintenance
93,000 Miles (155 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. 96,000 Miles (160 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Rotate tires.
Page 329 7,500 Miles (12 500 km) Change engine oil and ﬁlter (or every 12 months, whichever occurs ﬁrst). An Emission Control Service. Rotate tires. See Tire Inspection and Rotation on page 5-68 for proper rotation pattern and additional information. (See footnote +.) 15,000 Miles (25 000 km) Change engine oil and ﬁlter (or every 12 months, whichever occurs ﬁrst).
Page 330 37,500 Miles (62 500 km) Change engine oil and ﬁlter (or every 12 months, whichever occurs ﬁrst). An Emission Control Service. Rotate tires. See Tire Inspection and Rotation on page 5-68 for proper rotation pattern and additional information. (See footnote +.) 45,000 Miles (75 000 km) Change engine oil and ﬁlter (or every 12 months, whichever occurs ﬁrst).
Page 331 Change manual transaxle ﬂuid every 30,000 miles (50 000 km) only if your vehicle is used to tow a trailer. Change automatic transaxle ﬂuid every 60,000 miles (100 000 km) if the vehicle is mainly driven under one or more of these conditions: −...
Page 332 90,000 Miles (150 000 km) Change engine oil and ﬁlter (or every 12 months, whichever occurs ﬁrst). An Emission Control Service. Replace passenger compartment air ﬁlter. Replace engine air cleaner ﬁlter. An Emission Control Service. Inspect fuel tank, cap, cap gasket and lines for damage or leaks (or every 24 months, whichever occurs ﬁrst).
Page 333: Part B: Owner Checks And Services
Part B: Owner Checks and Services Listed in this part are owner checks and services which should be performed at the intervals speciﬁed to help ensure the safety, dependability and emission control performance of your vehicle. Be sure any necessary repairs are completed at once. Whenever any ﬂuids or lubricants are added to your vehicle, make sure they are the proper ones, as shown in Part D.
Page 334: At Least Twice A Year
At Least Twice a Year Restraint System Check Make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 335: At Least Once A Year
At Least Once a Year Key Lock Cylinders Service Lubricate the key lock cylinders with the lubricant speciﬁed in Part D. Seat Operation Check Make sure the head restraints stay in position and all seat latches lock. Check that the recliner holds by pushing and pulling the seatback while it is reclined.
Page 336: Ignition Transaxle Lock Check
Automatic Transaxle Shift Lock Control System Check CAUTION: When you are doing this check, the vehicle could move suddenly. If it does, you or others could be injured. Follow the steps below. 1. Before you start, be sure you have enough room around the vehicle.
Page 337: Underbody Flushing Service
Parking Brake and Automatic Transaxle Park (P) Mechanism Check CAUTION: When you are doing this check, your vehicle could begin to move. You or others could be injured and property could be damaged. Make sure there is room in front of your vehicle in case it begins to roll.
Page 338: Part C: Periodic Maintenance Inspections
Part C: Periodic Maintenance Inspections Listed in this part are inspections and services which should be performed at least twice a year (for instance, each spring and fall). You should let your dealer’s service department do these jobs. Make sure any necessary repairs are completed at once.
Page 339: Engine Cooling System Inspection
Engine Cooling System Inspection Inspect the hoses and have them replaced if they are cracked, swollen or deteriorated. Inspect all pipes, ﬁttings and clamps; replace as needed. Clean the outside of the radiator and air conditioning condenser. To help ensure proper operation, a pressure test of the cooling system and pressure cap is recommended at least once a year.
Page 340: Part D: Recommended Fluids And Lubricants
Part D: Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines Engine Oil starburst symbol.
Page 341 Usage Fluid/Lubricant Chassis Lubricant (GM Part No. Manual U.S. 12377985, in Canada Transaxle Shift 88901242) or lubricant meeting Linkage requirements of NLGI #2, Category LB or GC-LB. Chassis Lubricant (GM Part No. U.S. 12377985, in Canada Clutch Linkage 88901242) or lubricant meeting Pivot Points requirements of NLGI #2, Category LB or GC-LB.
Page 342: Part E: Maintenance Record
Part E: Maintenance Record After the scheduled services are performed, record the date, odometer reading and who performed the service and any additional information from “Owner Checks and Services” or “Periodic Maintenance” on the following record pages. Also, you should retain all maintenance receipts. Maintenance Record Odometer Date...
Page 343 Maintenance Record (cont’d) Odometer Date Serviced By Maintenance Record Reading 6-29...
Page 344 Maintenance Record (cont’d) Odometer Date Serviced By Maintenance Record Reading 6-30...
Page 345: Customer Assistance Information
Section 7 Customer Assistance Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-4 Customer Assistance for Text Telephone (TTY) Users ...7-4 Customer Assistance Offices ...7-4 GM Mobility Program for Persons with Disabilities ...7-6 Roadside Assistance Program ...7-6 Courtesy Transportation ...7-8 Customer Assistance Information Reporting Safety Defects ...7-10 Reporting Safety Defects to the...
Page 346: Customer Assistance Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Pontiac. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 347 STEP THREE: Both General Motors and your dealer are committed to making sure you are completely satisﬁed with your new vehicle. However, if you continue to remain unsatisﬁed after following the procedure outlined in Steps One and Two, you should ﬁle with the BBB Auto Line Program to enforce any additional rights you may have.
Page 348: Online Owner Center
Customer Assistance Offices Pontiac encourages customers to call the toll-free number for assistance. If a U.S. customer wishes to write to Pontiac, the letter should be addressed to Pontiac’s Customer Assistance Center. United States – Customer Assistance Pontiac-GMC Customer Assistance Center P.O.
Page 349: Overseas – Customer Assistance
From Puerto Rico: 1-800-496-9992 (English) 1-800-496-9993 (Spanish) Fax Number: 313-381-0022 From U.S. Virgin Islands: 1-800-496-9994 Fax Number: 313-381-0022 Canada – Customer Assistance General Motors of Canada Limited Customer Communication Centre, 163-005 1908 Colonel Sam Drive Oshawa, Ontario L1H 8P7 1-800-263-3777 (English) 1-800-263-7854 (French) 1-800-263-3830 (For Text Telephone devices (TTYs))
Page 350: Gm Mobility Program For Persons With Disabilities
Roadside Assistance Program Security While You Travel 1-800-ROADSIDE (1-800-762-3743) As the proud owner of a new Pontiac vehicle, you are automatically enrolled in the Pontiac Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road.
Page 351 • Vehicle license plate number Pontiac reserves the right to limit services or reimbursement to an owner or driver when, in Pontiac’s judgement, the claims become excessive in frequency or type of occurrence. While we hope you never have the occasion to use our service, it is added security while traveling for you and your family.
Page 352: Courtesy Transportation
Canada or the United States. Please refer to the Warranty and Owner Assistance Information book. Courtesy Transportation Pontiac has always exempliﬁed quality and value in its offering of motor vehicles. To enhance your ownership experience, we and our participating dealers are proud to offer Courtesy Transportation, a customer support program for new vehicles.
Page 353: Additional Program Information
Public Transportation or Fuel Reimbursement If your vehicle requires overnight warranty repairs, reimbursement up to $30 per day (ﬁve days maximum) may be available for the use of public transportation such as taxi or bus. In addition, should you arrange transportation through a friend or relative, reimbursement for reasonable fuel expenses up to $10 per day (ﬁve day maximum) may be available.
Page 354: Reporting Safety Defects
Reporting Safety Defects Reporting Safety Defects to the United States Government If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA), in addition to notifying General Motors.
Page 355: Reporting Safety Defects To General Motors
In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you’ll notify us. Please call us at 1-800-762-2737, or write: Pontiac-GMC Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 In Canada, please call us at 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 356: Service Bulletins
Service Bulletins Service Bulletins give technical service information needed to knowledgeably service General Motors cars and trucks. Each bulletin contains instructions to assist in the diagnosis and service of your vehicle. In Canada, information pertaining to Product Service Bulletins can be obtained by contacting your General Motors dealer or by calling 1-800-GM-DRIVE (1-800-463-7483).
Page 357 Accessory Power Outlets ... 3-17 Adding Washer Fluid ... 5-39 Additional Program Information ... 7-9 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-97 Adjusting the Speakers (Balance/Fade) ... 3-45, 3-54 Air Bag ... 3-30 Readiness Light ... 3-30 Air Bag System, Supplemental Restraint System (SRS) ...
Page 358 Backing Up ... 4-38 Battery ... 5-44 Battery Replacement ... 2-6 Before Leaving on a Long Trip ... 4-21 Body Lubrication Service ... 6-21 Brake ... 2-27 Parking ... 2-27 System Inspection ... 6-25 System Warning Light ... 3-31 Brake Fluid ... 5-40 Brake Wear ...
Page 359 Child Restraints ... 1-33 Child Restraint Systems ... 1-33 Infants and Young Children ... 1-29 Lower Anchorages and Top Tethers for Children (LATCH System) ... 1-39 Older Children ... 1-27 Securing a Child Restraint Designed for the LATCH System ... 1-41 Securing a Child Restraint in a Rear Seat Position ...
Page 360 Customer Assistance Information (cont.) Reporting Safety Defects to the United States Government ... 7-10 Roadside Assistance Program ... 7-6 Service Publications Ordering Information ... 7-11 Daytime Running Lamps ... 3-13 Defensive Driving ... 4-2 Defogging and Defrosting ... 3-21 Dinghy Towing ... 4-31 Disarming the System ...
Page 361 Engine (cont.) Exhaust ... 2-33 Oil ... 5-16 Overheating ... 5-30 Starting ... 2-18 Engine Compartment Fuse Block ... 5-100 Engine Coolant Level Check ... 6-19 Engine Cooling When Trailer Towing ... 4-40 Engine Oil Additives ... 5-19 Engine Oil Level Check ... 6-19 Entry Lighting ...
Page 362 Gage ... 3-33 Engine Coolant Temperature ... 3-33 Fuel ... 3-40 Speedometer ... 3-27 Tachometer ... 3-28 Gasoline ... 5-4 Octane ... 5-4 Speciﬁcations ... 5-5 Glove Box ... 2-37 GM Mobility Program for Persons with Disabilities ... 7-6 Hazard Warning Flashers ... 3-4 Head Restraints ...
Page 363 Ignition Transaxle Lock Check ... 6-22 Infants and Young Children, Restraints ... 1-29 Inﬂation — Tire Pressure ... 5-67 Inspection ... 6-25 Brake System ... 6-25 Engine Cooling System ... 6-25 Exhaust System ... 6-24 Fuel System ... 6-24 Part C - Periodic Maintenance ... 6-24 Steering, Suspension and Front Drive Axle Boot and Seal ...
Page 364 Light (cont.) Safety Belt Reminder ... 3-28 Loading Your Vehicle ... 4-32 Locks ... 2-7 Door ... 2-7 Leaving Your Vehicle ... 2-9 Power Door ... 2-8 Rear Door Security Locks ... 2-8 Long Trip/Highway Deﬁnition ... 6-6 Long Trip/Highway Intervals ... 6-6 Long Trip/Highway Scheduled Maintenance ...
Page 365 Mirrors (cont.) Outside Remote Control Mirrors ... 2-36 MyGMLink.com ... 7-4 Navigation/Radio System ... 3-63 New Vehicle Break-In ... 2-16 Normal Maintenance Replacement Parts ... 5-103 Odometer ... 3-27 Off-Road Recovery ... 4-12 Oil ... 5-16 Engine ... 5-16 Pressure Light ... 3-38 Older Children, Restraints ...
Page 366 Power ... 3-17 Accessory Outlets ... 3-17 Door Locks ... 2-8 Electrical System ... 5-98 Outlet 115 Volt Alternating Current ... 3-18 Steering Fluid ... 5-38 Windows ... 2-12 Pretensioners, Safety Belt ... 1-26 Questions and Answers About Safety Belts ... 1-13 Radiator Pressure Cap ...
Page 367 Restraint Systems ... 1-56 Checking ... 1-56 Replacing Parts ... 1-57 Right Front Passenger Position, Safety Belts ... 1-22 Roadside ... 7-6 Assistance Program ... 7-6 Rocking Your Vehicle To Get It Out ... 4-28 Running Your Engine While You Are Parked ... 2-34 Safety Belt ...
Page 368 Shifting Out of Park (P) ... 2-30 Short Trip/City Deﬁnition ... 6-5 Short Trip/City Intervals ... 6-5 Short Trip/City Scheduled Maintenance ... 6-7 Shoulder Belt Height Adjuster ... 1-16 Six-Speed ... 2-24 Skidding ... 4-14 Some Other Rainy Weather Tips ... 4-18 Special Fabric Cleaning Problems ...
Page 369 Tires (cont.) If a Tire Goes Flat ... 5-76 Inﬂation — Tire Pressure ... 5-67 Inspection and Rotation ... 5-68 Uniform Tire Quality Grading ... 5-72 Wheel Alignment and Tire Balance ... 5-73 Wheel Replacement ... 5-74 When It Is Time for New Tires ... 5-70 To Use the Engine Coolant Heater ...
Page 370 Warning Lights, Gages and Indicators ... 3-25 Warnings ... 3-4 Hazard Warning Flashers ... 3-4 Other Warning Devices ... 3-4 Safety and Symbols ... iii Vehicle Damage ... iv Washer Fluid, Low Warning Light ... 3-39 Washing Your Vehicle ... 5-92 Weatherstrip Lubrication ...

Pontiac 2004 Vibe Owner's Manual

Section 1 Seats and Restraint Systems

Seats and Restraint Systems

Front Seats

Rear Seats

Safety Belts

Child Restraints

Supplemental Restraint System (SRS)

Restraint System Check

Section 2 Features and Controls

Features and Controls

Keys

Doors and Locks

Windows

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

Storage Areas

Sunroof

Section 3 Instrument Panel

Instrument Panel

Instrument Panel Overview

Climate Controls

Warning Lights, Gages and Indicators

Audio System(S)

Section 4 Driving Your Vehicle

Driving Your Vehicle

Your Driving, the Road, and Your Vehicle

Towing

Section 5 Service and Appearance Care

Service and Appearance Care

Service

Fuel

All-Wheel Drive

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

Appearance Care

Electrical System

Capacities and Speciﬁcations

Normal Maintenance Replacement Parts

Quick Links

Chapters

Related Manuals for Pontiac 2004 Vibe

Summary of Contents for Pontiac 2004 Vibe
