6.7 Power Supply

(1) Power adapter
Input: AC 100V-240V~ 1.5A 50-60Hz
Output: DC 24V±5%, 2.1A, A-1009-3P interface
Adapter Manufacturers: Dongguan Turn Max Electronic Co Ltd
Adapter Model: TM-K072V-2403000PD

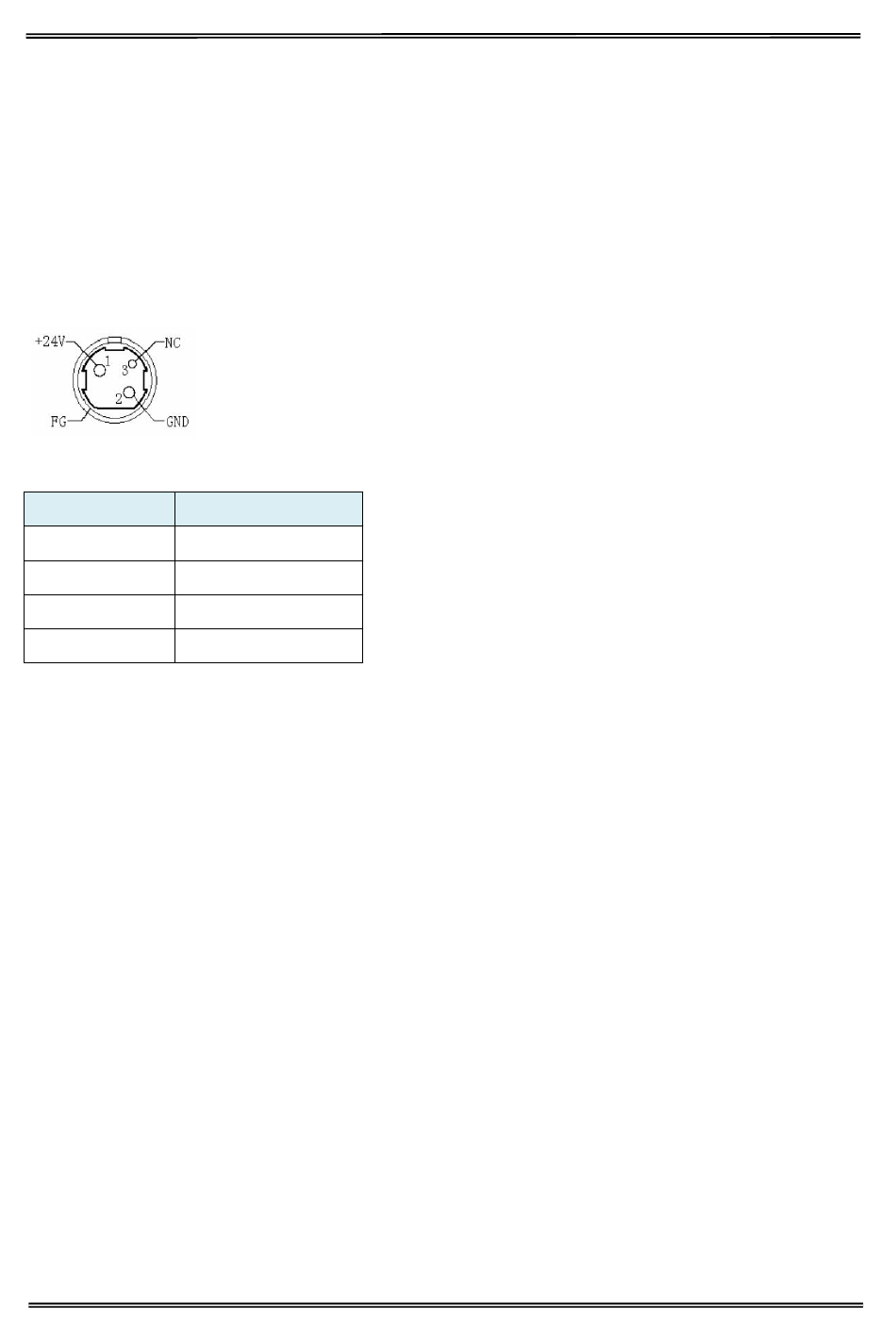

(2) Power Supply connector diagram
(3) Power Socket pin assignment
Pin Number
1
2
3
SHELL
(4) Power Supply interface type
Printer - Unetop DC-002 or similar products
Computer - Unetop DP-002 or similar products
Signal Name
+24 V
GND
N.C
F.G.
