Parts

Reverse Side

― The colour and shape of parts may differ from what is shown.
Specifications are subject to change without notice to improve quality.

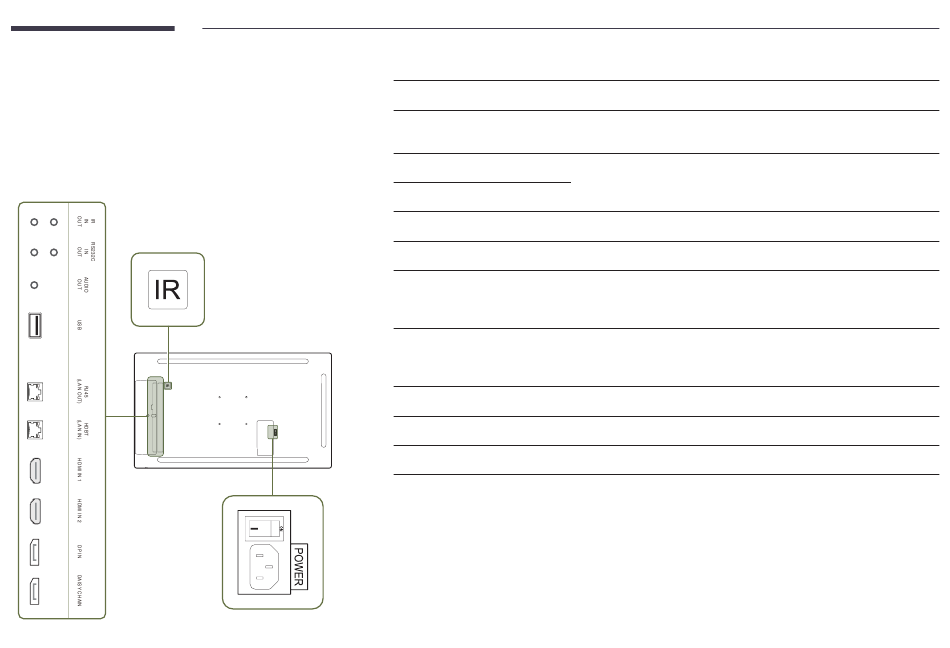

Port
IR IN
IR OUT
RS232C IN
RS232C OUT
AUDIO OUT
USB
Stick the receiver of an
RJ45 (LAN OUT)
external IR cable to this
location when the cable is not
used or the product is moved.
HDBT (LAN IN)
HDMI IN 1, HDMI IN 2
DP IN
DAISY CHAIN
Description
Connects to an external IR cable that receives signals from the remote control.
Supplies through loopout the remote control input signals that are received
from an external IR cable.
Connects to MDC using an RS232C adapter.
Outputs sound to an audio device via an audio cable.
Connect to a USB memory device.
- Wired LAN connection port used to connect an external device such as a
laptop to connect to the Internet.
- Connects to MDC using a LAN cable.
- Sends the HDMI signal to a connected LAN cable using an HDBaseT
transmitter.
- Connects to MDC using a LAN cable.
Connects to a source device using a HDMI cable or HDMI-DVI cable.
Connects to a PC using a DP cable.
Connects to another product using a daisy chain (DP port) cable.
