Denver WCT-8010 Instruction Manual

Wild camera
Hide thumbs Also See for WCT-8010:
Table of Contents

Advertisement

Quick Links

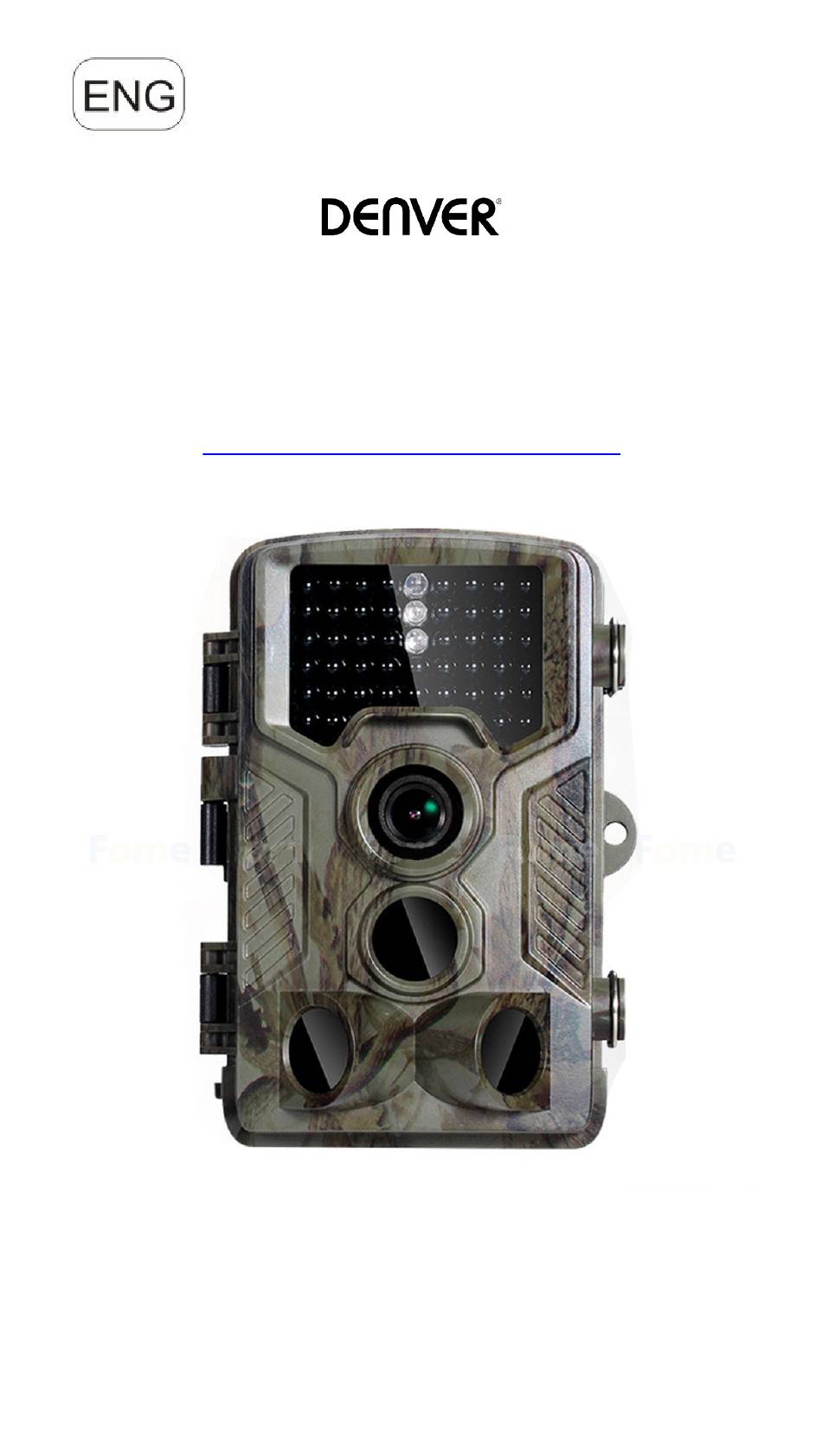

Wild Camera
DENVER WCT-8010
Instruction Manual
WWW.DENVER-ELECTRONICS.COM
ENG-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WCT-8010 and is the answer not in the manual?

Questions and answers

Related Manuals for Denver WCT-8010

Summary of Contents for Denver WCT-8010

  • Page 1 Wild Camera DENVER WCT-8010 Instruction Manual WWW.DENVER-ELECTRONICS.COM ENG-1...

  • Page 2: Table Of Contents

    Table of Contents 1. Instructions ......................3 1.1 General Description ..................3 1.2 Camera Body Interface ................3 1.3 Camera components and features ............. 3 1.4 Shooting Information Display ..............4 1.5 Supported Format ..................4 2. Cautions ......................4 3.Easy Operation ....................

  • Page 3: Instructions

    1. Instructions 1.1 General Description This digital trail camera is a surveillance camera working automatically. It can be triggered at once by any movement of human (or animals) in a certain region of interested (ROI) monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 12M pixels) or records 1080p HD video clips.

  • Page 4: Shooting Information Display

    1.4 Shooting Information Display When the camera is turned on (the power switch is slid to TEST position), the shooting information will be displayed in the monitor. 1.5 Supported Format Item Format Photo Video File Format FAT32 Here are some important notices. You don’t need to concern about the file system format of the camera unless you have problems with reading the Micro SD-card by your other equipment.

  • Page 5: Easy Operation

    position. It is recommended to format the SD-card by the camera when used at the first time. The camera will be in USB mode when connected to a USB port of a computer. In this case, the SD-card functions as a removable disk. Please ensure sufficient power when having firmware upgrade, otherwise the upgrade process could be interrupted incorrectly.

  • Page 6: Enter Into The Test Mode

    or any other heat source. These may cause false triggers. 2. The height from ground for placing the camera should 1 meter with the object. For example for deer waste height is good size appropriately. In general, one to two meters are preferred. Slide the power switch to the ON position to power on the camera and enter into the ON mode.

  • Page 7: Advanced Operations

    4 Advanced Operations From the basic operations of the camera in previous chapter, we know that the camera has three basic operation modes: 1. OFF mode: Power switch is at OFF position (Left). 2. ON mode: Power switch is at ON position (Right). 3.

  • Page 8: System Setting

    4.1.3 System Setting 4.1.4 Default Default Settings are listed as below: Setting Default Items Mode Camera Camera, Video, Camera&Video Resolution 12MP, 8MP ,5MP Interpolated (Camera) Interval 1 Seconds 1-30 Seconds,1-30 Minutes Multi Single Single,3,6,9 Pictures 100,200,400 Resolution 1080P 1080P, 720P, WVGA (Video) Video Length 10s,30s,60s,90s...

  • Page 9: Set Camera Mode

    Video Size, Multi, Video Length, Delay, and Timer. 4.1.6 Set Camera Mode There are three camera modes: Camera, Video and Camera + Video. The way to set the camera mode is via setting menu. The following shows how to set camera mode to Video, provided that the previous option is Photo: a) Press MENU to display the setting menu.

  • Page 10: Set Multi

    a) Press MENU to display the setting menu. b) Press right enter into “system”. c) Press DOWN to select Date/Time. d) Press OK to Display Date/Time Interface, Press UP and DOWN to change the Value. e) Press down the select switch to save all current setting, then press MENU to return to info display.

  • Page 11: Set Timer

    e) Press down the select switch to save the current setting, then press MENU to return to info display. Press MENU to cancel setting and return to info display. 4.1.16 Set Timer This parameter defines a certain time lapse in a day when The Camera can be triggered. In the rest of the time the device is shut off.

  • Page 12: File Numbering

    4.3 File Numbering Images and videos are separately saved in the pre-named folder (104MEDIA). File numbering continues by adding one to the last number for each new image or video. The saving name is like PTDC0001.JPB or PTDC0001.AVI. Through the suffix you can distinguish whether the file is an image(with suffix.jpg)or a video(with suffix.avi).

  • Page 13: Appendix : Technical Specifications

    Appendix Ⅰ: Technical Specifications Image Sensor Type(True Megapixels) 8 Mega Pixels Color CMOS Memory SD Card 8MB~32GB Lens F=3.1; FOV=108 ° Size 135mm * 95mm * 85 mm IR Filter: Full Automatic IR Filter TFT Display Screen: 2.0 inch PIR Sensor Sight Angle 120 Degrees PIR Sensing Distance 65ft/20m...
  • Page 14 ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S Electric and electronic equipment contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment) is not handled correctly. Electric and electronic equipment is marked with the crossed out trash can symbol, seen above.
