Summary of Contents for AG Neovo RX-22E

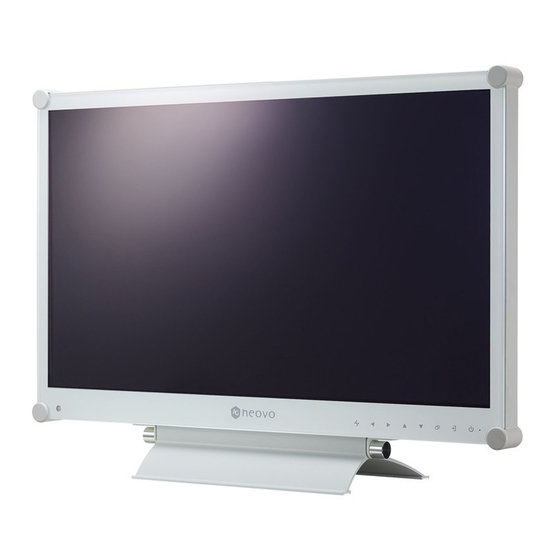

- Page 1 RX-22E & RX-24E LED-Backlit Display User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Contents FCC Declaimers ............................4 WEEE ............................... 5 Notice ..............................6 Cautions When Setting Up ........................6 Cautions When Using ..........................7 Cleaning and Maintenance ........................7 Notice for the LCD Display ........................8 1.1 Package Contents ..........................9 1.2 Wall Mounting Installation Preparation .................... - Page 3 5.10 INPUT SELECT ..........................40 6.1 Warning Messages ..........................41 6.2 Troubleshooting ..........................42 6.3 Transporting the LCD Display ......................43 7.1 Display Specifications ........................44 7.2 Display Dimensions ..........................45 7.2.1 RX-22E Dimensions ........................ 45 7.2.2 RX-24E Dimensions ........................ 45...
-
Page 4: Fcc Declaimers
SAFETY INFORMATION This FCC Class-B compliant digital device complies with the Interference-Causing Equipment Regulations of Canada. FCC Declaimers This device complies with Section 15 of the FCC listing. The operation procedures must meet the following conditions: (1) the device must not cause any damaging interference; and (2) this device must accept any received interference, including any unpredictable interference that may possibly occur. -
Page 5: Weee
SAFETY INFORMATION WEEE Information for users applicable in European Union countries. The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources. -
Page 6: Notice
PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 7: Cautions When Using
PRECAUTIONS Cautions When Using Use only the power cord supplied with the LCD display. The power outlet should be installed near the LCD Warning: display and be easily accessible. Unplug the power cord If an extension cord is used with the LCD display, from the power outlet and ensure that the total current consumption plugged refer to qualified service... -
Page 8: Notice For The Lcd Display
PRECAUTIONS Notice for the LCD Display In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time. -
Page 9: Package Contents
Warranty card Note: Must use only the supplied power adapter: RX-22E & RX-24E ♦ Lite-on Technology Corporation Quick Start Guide RX-22E & RX-24E LED-Backlit Display Model no.: PA-1041-0 RX-22E/RX-24E_Quick Guide_V010 www.agneovo.com Rating: 12V/3.33A Power cord VGA cable Audio cable Power adapter Note: ♦... -
Page 10: Wall Mounting Installation Preparation
♦ Use only the 75 x 75 mm and base stand from the 100 x 100 mm wall mount kit LCD display. recommended by AG Neovo. Detach the base ♦ Secure the LCD display on a stand. solid wall strong enough to bear... -
Page 11: Lcd Display Overview
PRODUCT DESCRIPTION 1.3 LCD Display Overview 1.3.1 Front View and Keypad Buttons Display screen UP: Hot Key: Screen Freeze The LCD display screen is protected by • During OSD menu selection, press to select NeoV Optical Glass. an option or adjust the settings. AUTO: Hotkey: For VGA input signal source, DOWN: During OSD menu selection, press press to perform auto adjustment. -
Page 12: Rear View
PRODUCT DESCRIPTION 1.3.2 Rear View S-VIDEO CVBS-1 CVBS-2 AUDIO AUDIO DC IN HDMI DisplayPort AUDIO IN RS-232 DC power input COMPOSITE Video input/output connectors (1) Use to connect the power adapter. Use to connect composite cables for CVBS DVI connector input/output signal. -
Page 13: Connecting The Power
CHAPTER 2: MAKING CONNECTIONS 2.1 Connecting the Power Connect the power cord to the power adapter. Connect the power adapter to the DC power input at the rear of the LCD display. Connect the power cord plug to a power outlet or a power supply. DC IN Caution: ♦... -
Page 14: Connecting Input Source Signals
MAKING CONNECTIONS 2.2 Connecting Input Source Signals 2.2.1 Connecting a Computer Using VGA Cables Connect one end of a VGA cable to the VGA connector of the LCD display and the other end to the VGA connector of the computer. Using DVI Cables Connect one end of a DVI (DVI-D) cable to the DVI connector of the LCD display and the other end to the DVI connector of the computer. -
Page 15: Usin Rs-232 Cables
MAKING CONNECTIONS Using RS-232 Cables Connect one end of an RS-232 cable to the RS-232 connector of the LCD display and the other end to the RS-232 connector of the computer. RS-232 Connecting an Audio Device Connect one end of an audio cable to the audio port of the LCD display and the other end to the audio out port of the computer. -
Page 16: Connecting A Camera Or Video Device
MAKING CONNECTIONS 2.2.2 Connecting a Camera or Video Device Using CVBS Cables Connect one end of a CVBS cable CVBS-1 to the COMPOSITE connectors of the LCD display and the other end to CVBS-2 the COMPOSITE connectors of your device. AUDIO For audio input, connect an RCA cable to the audio in connector of... -
Page 17: Using Hdmi Cables
MAKING CONNECTIONS Using HDMI Cables Connect one end of an HDMI cable to the HDMI connector of the LCD display and the other end to the HDMI connector of your device. HDMI Using DisplayPort Cables Connect one end of a DisplayPort cable to the DisplayPort connector of the LCD display and the other end to the DisplayPort connector of your device. -
Page 18: Connecting A Usb Storage Device (For Firmware Update)
MAKING CONNECTIONS 2.3 Connecting a USB Storage Device (For Firmware Update) Do any of the following to connect a USB storage device to the USB connector of the LCD: • Connect the USB storage device directly to the USB connector of the LCD (as illustrated below). •... -
Page 19: Turning On The Power
CHAPTER 3: USING THE LCD DISPLAY 3.1 Turning on the Power Note: ♦ The LCD display still consumes POWER button power as long as the power LED indicator cord is connected to the power outlet. Disconnect the power Connect the power cord to the power adapter. Then cord to completely cut off connect the power adapter to the DC power input at the power. -
Page 20: Adjusting The Volume
USING THE LCD DISPLAY 3.3 Adjusting the Volume VOLUME buttons Touch the buttons to call out the volume bar. Touch the button to increase volume or the button to decrease volume. 3.3.1 Muting the Audio Touch the and the buttons simultaneously to mute or unmute the audio. 3.4 Locking the OSD Menu Lock the OSD menu to protect the LCD display from unauthorised users or from accidentally pressing the keypad. -
Page 21: Using Freeze Function
USING THE LCD DISPLAY 3.5 Using FREEZE Function The FREEZE function allows you to freeze the screen image but still continues real-time playback until the image is unfreeze. Touch the button to activate screen freeze, the screen freeze message is displayed on the screen. Note: ♦... -
Page 22: Using The Osd Menu
CHAPTER 4: ON SCREEN DISPLAY MENU 4.1 Using the OSD Menu Operation Display the main menu screen. Touch N T S C 6 0 H z B R I G H T N E S S B R I G H T N E S S C O N T R A S T C O L O U R T E M P . - Page 23 ON SCREEN DISPLAY MENU Operation Select the submenu item. Touch the buttons. 6 0 H z B R I G H T N E S S T N E S S C O N T R A S T T E M P . B A C K L I G H T S E T T I N G B L A C K L E V E L...
-
Page 24: Osd Menu Tree
ON SCREEN DISPLAY MENU 4.2 OSD Menu Tree N T S C 6 0 H z B R I G H T N E S S B R I G H T N E S S C O N T R A S T C O L O U R T E M P . - Page 25 ON SCREEN DISPLAY MENU Main Menu Submenu Remarks 4. ASPECT RATIO • ASPECT RATIO Refer to page 33. • H. ZOOM • V. ZOOM • OVERSCAN 5. ANTI-BURN-IN • ENABLE Refer to page 34. • INTERVAL (HOURS) • MODE 6. OSD SETTING •...
- Page 26 ON SCREEN DISPLAY MENU Main Menu Submenu Remarks 12. INFORMATION Displays settings information such as Input, Resolution, Horizontal and Vertical Frequency, Timing mode, and Firmware version.
-
Page 27: Brightness
CHAPTER 5: ADJUSTING THE LCD DISPLAY 5.1 BRIGHTNESS 1. Touch to call out the OSD window. N T S C 6 0 H z B R I G H T N E S S B R I G H T N E S S 2. - Page 28 ADJUSTING THE LCD DISPLAY Original Setting High Setting Low Setting BRIGHTNESS CONTRAST BLACK LEVEL...
-
Page 29: Colour Temp
ADJUSTING THE LCD DISPLAY 5.2 COLOUR TEMP. 1. Touch to call out the OSD window. N T S C 6 0 H z C O L O U R S E T T I N G N E U T R A L B R I G H T N E S S 2. -
Page 30: Image Setting
ADJUSTING THE LCD DISPLAY 5.3 IMAGE SETTING 1. Touch to call out the OSD window. N T S C 6 0 H z S H A R P N E S S B R I G H T N E S S 2. - Page 31 ADJUSTING THE LCD DISPLAY Item Function Operation Range Adjusts black and white levels for video. FULL Touch the button to Note: This menu option is only LIMIT select the setting. available if the input source is HDMI or DP. Signal source from PC - PC signal at a full range (Grayscale 0-255) state: COLOUR RANGE Monitor OSD colour range: Full Monitor OSD colour range: Limit...
- Page 32 ADJUSTING THE LCD DISPLAY Item Function Operation Range H. POSITION Moves the screen image to the left (Horizontal Position) or right. V. POSITION Moves the screen image up or down. (Vertical Position) Adjusts the phase timing to Touch the button to synchronise with the video signal.
-
Page 33: Aspect Ratio
ADJUSTING THE LCD DISPLAY 5.4 ASPECT RATIO 1. Touch to call out the OSD window. N T S C 6 0 H z A S P E C T R A T I O F U L L B R I G H T N E S S 2. -
Page 34: Anti-Burn-In
ADJUSTING THE LCD DISPLAY 5.5 ANTI-BURN-IN 1. Touch to call out the OSD window. N T S C 6 0 H z E N A B L E O F F B R I G H T N E S S 2. -
Page 35: Osd Setting
ADJUSTING THE LCD DISPLAY 5.6 OSD SETTING 1. Touch to call out the OSD window. N T S C 6 0 H z T R A N S P A R E N C Y B R I G H T N E S S 2. -
Page 36: Audio Setting
ADJUSTING THE LCD DISPLAY 5.7 AUDIO SETTING 1. Touch to call out the OSD window. N T S C 6 0 H z V O L U M E B R I G H T N E S S 2. Select AUDIO SETTING menu, then A U D I O C O L O U R T E M P . -
Page 37: System
ADJUSTING THE LCD DISPLAY 5.8 SYSTEM 1. Touch to call out the OSD window. N T S C 6 0 H z P O W E R S A V I N G O F F B R I G H T N E S S 2. - Page 38 Note: This menu option is only available if the input source is HDMI or DP. Enables or disables the logo feature. If the setting is set to ON, the AG Neovo logo is LOGO briefly displayed after the display is powered Turns the LED indicator on or off while using the LCD monitor.
-
Page 39: Eco Smart
ADJUSTING THE LCD DISPLAY 5.9 ECO SMART With the built-in EcoSmart sensor, users can enable the Eco Smart feature to automatically adjust the LCD screen brightness according to the ambient light. This feature comforts the eyes and helps optimise energy efficiency. -
Page 40: Input Select
ADJUSTING THE LCD DISPLAY 5.10 INPUT SELECT 1. Touch to call out the OSD window. N T S C 6 0 H z V G A P R E S S B R I G H T N E S S 2. -
Page 41: Warning Messages
CHAPTER 6: APPENDIX 6.1 Warning Messages Warning Messages Cause Solution The resolution or the refresh rate of • Change the resolution or the the graphics card of the computer refresh rate of the graphics I N P U T S I G N A L O U T O F R A N G E is set too high. -
Page 42: Troubleshooting
APPENDIX 6.2 Troubleshooting Problem Possible Cause and Solution No picture. • Check if the LCD display is turned ON. • Check if the power adapter is properly connected to the LCD display. • LED indicator is OFF. • Check if the power cord is plugged into the power outlet. •... -
Page 43: Transporting The Lcd Display
APPENDIX 6.3 Transporting the LCD Display To transport the LCD display for repair or shipment, place the display in its original packaging carton. Put all the accessories in the box (if necessary). Place the two foam cushions on each side of the LCD display for protection. Place the LCD display down in the box. -
Page 44: Display Specifications
CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications RX-22E RX-24E Panel Panel Size 21.5” 23.6” Max. Resolution FHD 1920 x 1080 Pixel Pitch 0.2480 mm 0.2715 mm Brightness 250cd/m Contrast Ratio 20,000,000 :1 (DCR) Viewing Angle (H/V) 178°/178° Display Colour 16.7M Response Time... -
Page 45: Display Dimensions
75mm 75mm 155mm 227.4mm 7.2.2 RX-24E Dimensions 282.4mm 53.5mm 32.6mm 100mm 562.4mm 396.8mm 352.6mm 100mm 75mm 75mm 155mm 227.4mm Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2017 AG Neovo. All rights reserved. RX-22E/RX-24E_UM_V010...
