Telstra Huawei eSpace 8950 Phone Manual

Telstra Huawei eSpace 8950 Phone Guide
The eSpace 8950 is an Android-based video
phone that features a sleek, elegant design.
With a wide-viewing touchscreen, eSpace
8950 delivers a superior high-definition (HD)
video calling and conferencing experience.

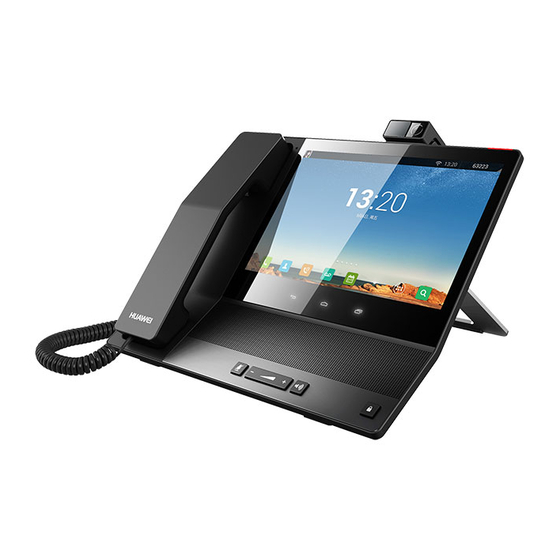

Huawei eSpace 8950 Phone
Microphone
Handset
1. Setup
If you are required to initially configure your IP
phone you will be advised of the log in
credentials by Telstra. This information only
needs to be entered once via the log in screen.
Logging Into your Phone:
When you connect your phone to the network
the log in screen will appear.
Enter the Phone credentials given to you by
Telstra in the Account and Password fields.
Account = your phone number
Password = given to you by Telstra
Tap Remember Password
Tap Log in
Huawei eSpace 8950 Phone Guide | May 2017
You will see a series of messages display on
the screen.
"03xxxxxxxx downloading the configuration
file"
Camera
"The system is now being upgraded and will
restart"
"Log In will continue to retry"
Interactive
Touch Screen
The Log In procees is complete when your
phone number appears in the status bar of the
Return, Home and
home screen. The Process should take 2 – 3
Recent soft keys
minutes.
If your phone is deployed on a non-Cisco
Mute, Volume and
Speaker Buttons
network there is an additional step which needs
to be performed so that the phone can find the
Voice VLAN. You only need to imput this detail
once. However if you perform a factory reset on
your phone you will have to enter this detail
again.
Voice VLAN Setting
Drag downwards on the Status Bar (middle)
Tap Settings
Scroll downwards and Tap Network Security
The Administrators Password dialog box will
appear on your screen.
Enter admin123 as the password
Tap OK
Tap VLAN
Page 1
Enter the VLAN ID and the VLAN Priority as
shown below
Tap OK
Tap the Return soft key
2. Check your Phone Firmware Version
If you need to check which version of Firmware
your phone is using:
From the Home screen
Drag downwards on the Status Bar
Tap Settings
Scroll downwards and Tap About Phone
Scroll downwards to view Firmware – the
Firmware Version will be listed after the phone
name e.g. V200R003C00SPCg00
Tap the Return soft key
3. Camera
Your Huawei eSpace 8950 comes with a USB
camera to allow you to access video calls or
conference services. The camera comes with a
sliding screen which you can close, if you prefer
not to show video.
