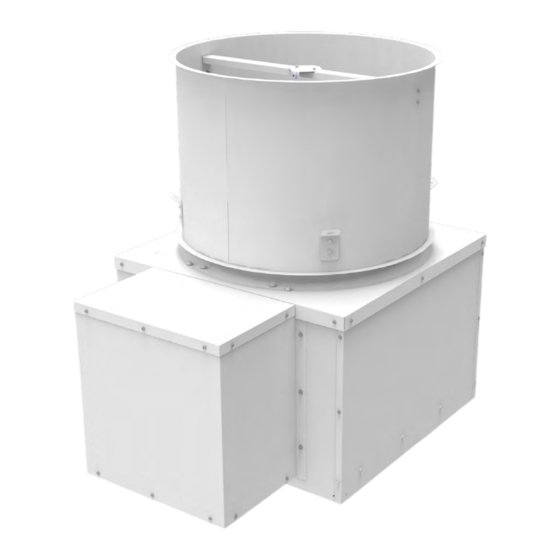

RAU / RAUMO
Roof Axial Upblast Ventilator
OPERATION AND MAINTENANCE MANUAL
IMPORTANT! Read before proceeding!
The information contained herein is, to the best of our knowledge, accurate and
applicable for proper operation and installation of the specified equipment at
the time this document entered service. Before proceeding, it is recommended
that you check for a more current version of this Installation Operation Manual
(IOM) on our website at www.pennbarry.com.
Read carefully before attempting to assemble, install, operate or maintain
the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury
and/or property damage! Retain instructions for future reference.
Advertisement
Related Manuals for PennBarry RAU
Summary of Contents for PennBarry RAU

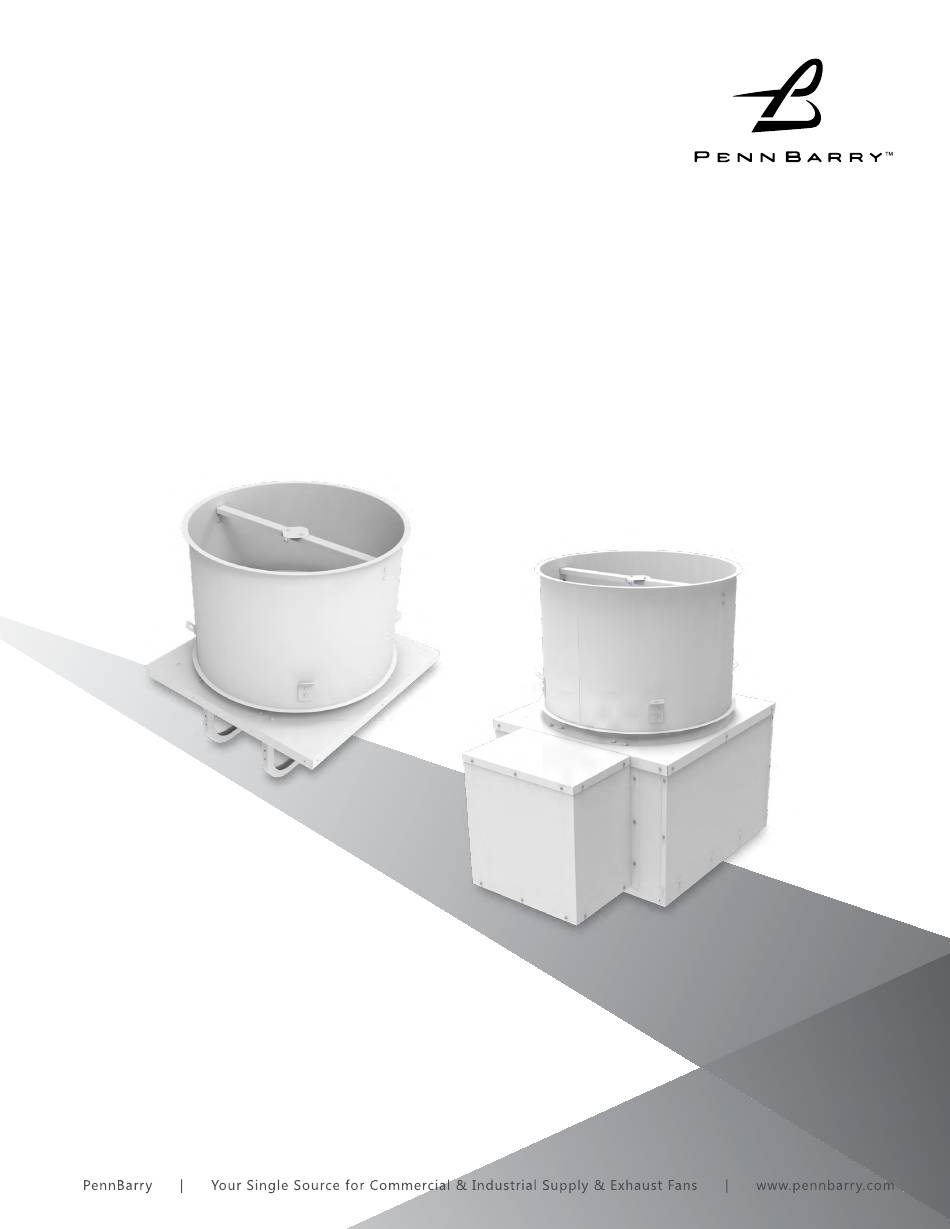

- Page 1 Before proceeding, it is recommended that you check for a more current version of this Installation Operation Manual (IOM) on our website at www.pennbarry.com. Read carefully before attempting to assemble, install, operate or maintain the product described.
- Page 2 TABLE OF CONTENTS INTRODUCTION AND INSTALLATION START-UP AND OPERATION MAINTENANCE, HIDDEN DANGER, AND SPECIAL PURPOSE SYSTEMS PARTS REPLACEMENT AND TROUBLESHOOTING CHECKLIST www.PennBarry.com...
- Page 3 Receiving And Handling PennBarry fans are carefully inspected before leaving the factory. When the unit is received, inspect for any signs of tampering. Inspect the unit for any damage that may have occurred during transit and check for loose, missing or damaged parts. Mishandled units can void the warranty provisions.
- Page 4 For safety, a lockable disconnect switch, UL rated for HP and voltage, should be located near the fan so power can be positively disconnected while servicing the unit. CAUTION Check for free rotation of the ventilator impeller. www.PennBarry.com...
- Page 5 With air systems in full operation, measure current input (AMPS) to motor and compare with nameplate rating to determine if motor is operating under safe load conditions. It is normal for new belts to stretch slightly soon after installation. Therefore, new belts must be retensioned after the first 48 hours of operation. www.PennBarry.com...
- Page 6 Gulfcrown EP-1 Below 32°F (0°C) Imperial Oil Unirex EP-1 Shell Alvania R-1 Energrease MPMK11 Gulf Gulfcrown EP-2 Imperial Oil Unirex EP-2 32°F to 150°F (0°C to 66° C) Shell Alvania R-3 Sun Oil Sun Prestige 42 Texaco Regal AFB2 www.PennBarry.com...
- Page 7 Explosive, corrosive, high temperatures, etc. may require special construction, inspection and maintenance. It is necessary to observe the fan manufacturer’s recommendations and limitations concerning the type of material to be handled by the fan and its application to special conditions. www.PennBarry.com...
- Page 8 Exchange, repair or replacement will be provided on a no charge basis if the motor is defective within the warranty period. The PennBarry representative in your area will provide a name and address of an authorized service station if requested.
- Page 9 PennBarry is proud to be your preferred manufacturer of commercial and industrial fans and blowers. Learn how PennBarry can assist you in your next application by contacting your PennBarry Representative or visiting us on the web at www.pennbarry.com. PennBarry | www.pennbarry.com | pennbarrysales@pennbarry.com | tel: 972.212.4700 | fax: 972.212.4702 PennBarry reserves the right to make changes at any time, without notice, to models, construction, specifications, options and availability.
