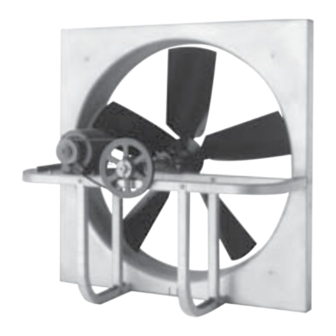

Breezeway Panel Fans
Direct & Belt Drive
OPERATION & MAINTENANCE MANUAL
IMPORTANT! Read before proceeding!
Please read and save these instructions. Read carefully before attempting to
assemble, install, operate or maintain the product described. Protect yourself
and others by observing all safety information. Failure to comply with instructions
could result in personal injury and/or property damage! Retain instructions for
future reference.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PennBarry Breezeway BX
Summary of Contents for PennBarry Breezeway BX

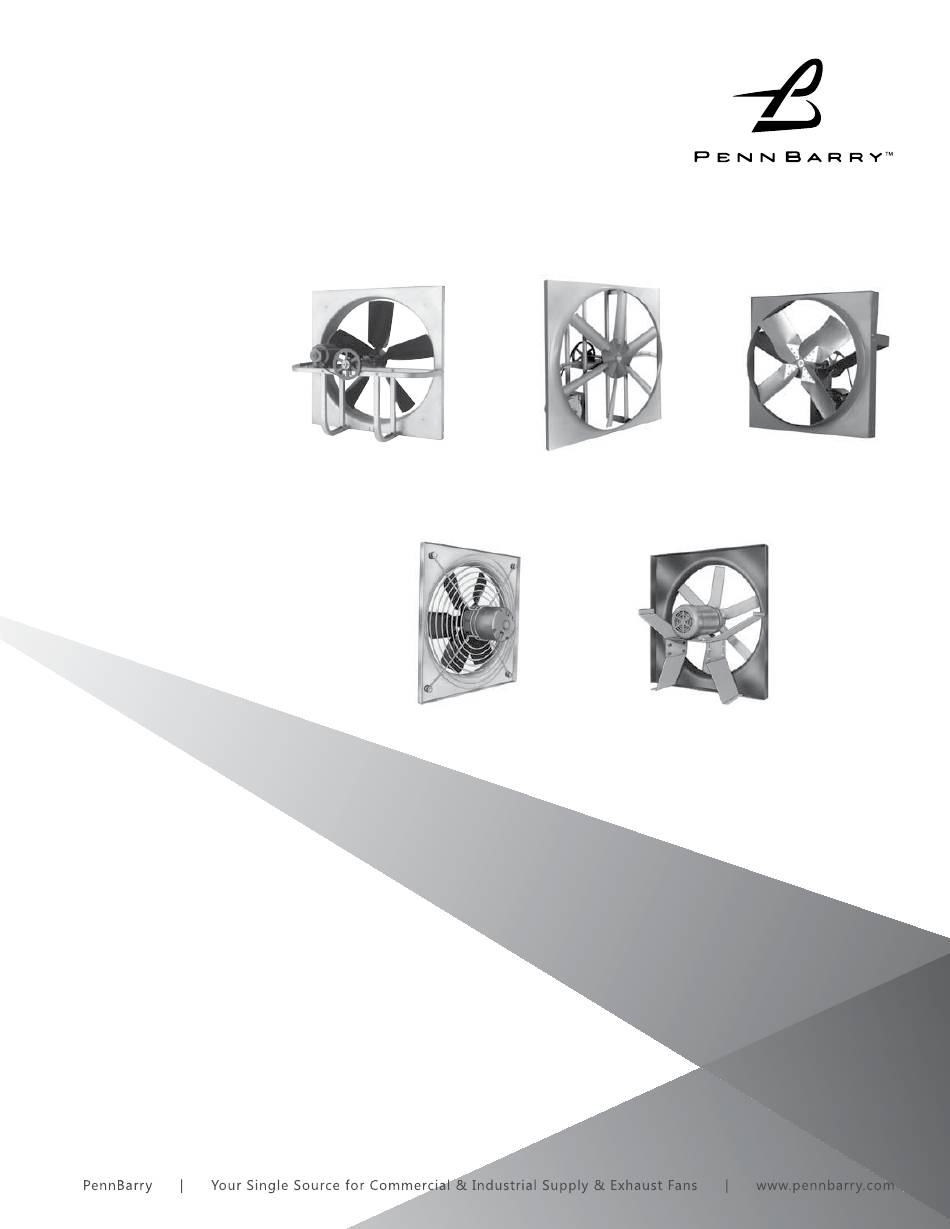

- Page 1 Breezeway Panel Fans Direct & Belt Drive OPERATION & MAINTENANCE MANUAL IMPORTANT! Read before proceeding! Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION START-UP AND OPERATION MAINTENANCE TROUBLESHOOTING CHECKLIST 10-11 WALL MOUNTING SLEEVE ASSEMBLY WEATHERSHIELD ASSEMBLY 2 PIECE WALL MOUNTING SLEEVE/WEATHER SHIELD GUARD ASSEMBLY 54” & 60” 14 REAR/FRONT GUARD ASSEMBLY www.PennBarry.com... -
Page 3: Introduction
Receiving and Handling PennBarry fans are carefully inspected before leaving the factory. When the unit is received, inspect for any signs of tampering. Inspect the unit for any damage that may have occurred during transit and check for loose, missing or damaged parts. Mishandled units can void the warranty provisions. - Page 4 7’ above the floor require guarding as specified in the Occupational Safety and Health Act (OSHA). UL listed fans, to maintain their personal safety listing, must be installed not less than 10 feet above the floor. PennBarry recommends the use of guards on all exposed non-ducted fans.
- Page 5 Figure 1 for the proper mounting arrangements. Secure the damper to the wall opening without undue twisting which may distort the frame. Check for free operation. If dampers are motor operated type, ascertain the proper voltage is present on motor terminals. The fan is now ready for service. www.PennBarry.com...
-
Page 6: Start-Up And Operation
Make sure there is no foreign or loose material in ductwork leading to and from fan or in the fan itself. Properly secure all safety guards. Secure all access doors to fan and ductwork. Check line voltage with motor nameplate. m. Check wiring. www.PennBarry.com... - Page 7 Environments that are explosive, corrosive, subject to high temperatures, etc., may require special construction, inspection and maintenance. It is necessary to observe the fan manufacturer’s recommendations and limitations concerning the type of material to be handled by the fan and its application to special conditions. www.PennBarry.com...
-
Page 8: Maintenance
If grease relief fittings are provided, remove them when performing maintenance to allow grease to flow out. Whenever possible, apply grease while the motor is running. This practice should not supersede any safety considerations. DO NOT OVERGREASE, as most lubricants deteriorate motor windings, thereby reducing motor life. www.PennBarry.com... - Page 9 Unprotected fans located less than 7’ above the floor also require guarding as specified in the Occupational Safety and Health Act (OSHA). PennBarry recommends the use of guards on all exposed nonducted fans, ceiling and wall mounted. www.PennBarry.com...
-
Page 10: Troubleshooting Checklist
Exchange, repair or replacement will be provided on a no charge basis if the motor is defective within the warranty period. The PennBarry representative in your area will provide a name and address of an authorized service station if requested. - Page 11 Panel Venturi Orifice Fan Blade (Cast Aluminum or Fabricated Steel) Ball Bearing Motor Structural Supports Motor Mounting Plate Fan Shaft and Bearings (Belt Drive Only) Belt and Pulleys (Belt Drive Only) Figure 5: Direct Drive Figure 6: Belt Drive www.PennBarry.com...
-
Page 12: Wall Mounting Sleeve Assembly
1/4-20 Whiz Nut NOTES: 1. Make sure all bends are to the outside. 2. Use caulk to seal all seams. * 3. Varies by model side. **4. This hardware is used to attach the fan (not illustrated) into wall sleeve. www.PennBarry.com... -
Page 13: Weathershield Assembly
Weather Cover Top #1 Weather Cover Top #2 Weather Cover Bottom 1/4-20 X 3/4 Self Tapping Screw NOTES: 1. Make sure all bends are to the outside. 2. Use caulk to seal all seams. * 3. Varies by model side. www.PennBarry.com... -
Page 14: Piece Wall Mounting Sleeve/Weather Shield Guard Assembly 54" & 60
1/4-20 X 3/4 Self Tapping Screw Screen Guard 3/8-16 X 1” Whiz Bolt 3/8-16 Whiz Nut .390 X 1.875 Diameter Washer NOTES: * 1. Equally space hardware connecting both halves of guard. 2. Guards 24 through 48 are 1 piece with no assembly required. www.PennBarry.com... -
Page 15: Rear/Front Guard Assembly
3. Use caulk to seal all seams. 4. Varies by model size. ** 5. Guards 24 through 48 are 1 piece with no assembly required. 54 & 60 are 2 pieces. *** 6. Equally space hardware connecting both halves of guard (54 & 60). www.PennBarry.com... - Page 16 PennBarry is proud to be your preferred manufacturer of commercial and industrial fans and blowers. Learn how PennBarry can assist you in your next application by contacting your PennBarry Representative or visiting us on the web at www.pennbarry.com. PennBarry | www.pennbarry.com | pennbarrysales@pennbarry.com | tel: 972.212.4700 | fax: 972.212.4702 PennBarry reserves the right to make changes at any time, without notice, to models, construction, specifications, options and availability.
