- Page 1 FUMEX Upblast Roof Exhausters PRODUCT GUIDE PennBarry Your Single Source for Commercial & Industrial Supply & Exhaust Fans www.pennbarry.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION CERTIFICATIONS & LISTINGS FEATURES & BENEFITS OPTIONS & ACCESSORIES 7-12 MOTOR AVAILABILITY 13-14 DIRECT DRIVE | DIMENSIONS BELT DRIVE | DIMENSIONS FAN SELECTIONS 17-18 www.PennBarry.com... -
Page 3: Introduction

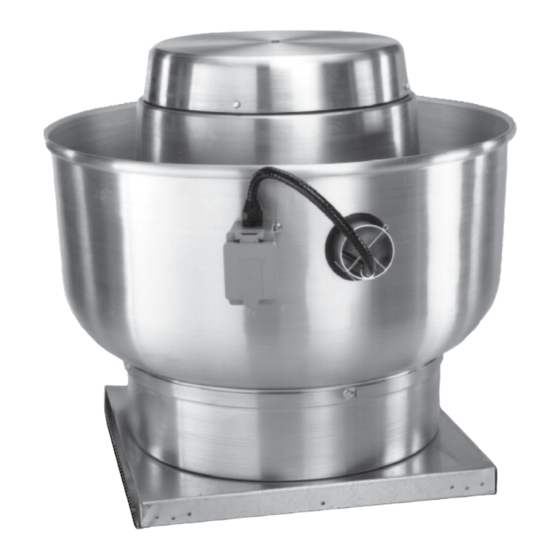

Fumex Series of Centrifugal Fans Fumex centrifugal fans are designed for medium to high pressure applications and are available in a range of capacities. They can be either roof or wall mounted. While suitable for general ventilation, Fumex fans are specifically designed to discharge contaminated or grease-laden air or fumes up and away from building surfaces. -
Page 4: Certifications & Listings
Certification Fumex fans carry the UL label, UL705 (ZACT/ ZACT7), file #E28413. Fumex fans with the “Fatrap” option carry the UL label, UL762 (YZHW/ YZHW7), file #MH10684. Fumex fans with the heat and smoke removal option carry the UL label,... -
Page 5: Features & Benefits
Each size is carefully engineered to match the motor to the wheel capacity. Sound Performance Fumex units deliver outstanding air performance with minimal noise and have the lowest AMCA licensed sound performance in the industry. -
Page 6: Features & Benefits
These enhanced units have Gplus™ motor selection up to 2 HP (available on single phase and three phase) and are available up to size 24. Design enhancements to Direct Drive Fumex models significantly improve air performance, while Gplus™ EC motors offer higher efficiency, and quieter, more reliable operation. -
Page 7: Options & Accessories
To meet local requirements 277V transformers are available for all direct drive units. The transformers are step-down and will step the voltage down to 120V. Shipped loose for field installation. Finishes Coatings such as Polyester Powder Coat, Epoxy Powder Coat, Phenolic Epoxy Powder Coat, and others are available. See the coatings brochure for details. www.PennBarry.com... - Page 8 (3 ½”) the assembly is easily manipulated and reduces the impact on overall installation height. This accessory is available for use with most models for either factory built or existing roof curbs. Fumex Base...
- Page 9 A variety of sizes of prefabricated roof curbs are available. Galvanized steel unibeam curbs are the most popular. For a complete listing of all curb types and sizes available, see the latest PennBarry Ventilation Curb brochure. Please note that NFPA 96 installations require a specific curb height.
- Page 10 OPTIONS & ACCESSORIES Fumex Curb T (sq.) 1 1 /2" 18 " MIN. Vented S elf St andard Fl ashing w/C ant R o (sq.) A (sq.) Model A SQ Ro(3) SQ Damper Size SQ Galv. Steel Gauge FX08S/R 18.5 8.75...
- Page 11 • UL 762 Listing: Fatrap configured Fumex fans are listed at 400°F — 100°F higher than UL requirements. The high temperature rating is the result of the fan’s highly efficient forced motor cooling capability. Three direct drive (sizes 13 – 18) and all belt drive models are listed.
-
Page 12: Options & Accessories
The UL standard requires the fan to run at 500°F for 4 hours (IRI) and 1000°F for 15 minutes (SBCCI). PennBarry Heat and Smoke Removal configured Fumex units are listed at 500°F for 4 hours and 1000°F for 1 hour. The additional 45 minutes at 1000°F will buy precious time in the event of a fire. -
Page 13: Motor Availability
All Green Plus motors come in open enclosure for usage with 115V-208V/230V, single phase, 50/60 Hz applications. 1-Phase Model 110-120V 110-120V 208-480V FX08VGP FX08S/RGP FX08QGP FX10VGP FX10S/RGP FX10QGP FX11V/S/RGP FX11QGP FX13V/S/RGP FX13QGP FX16VGP FX16S/RGP FX16Q1GP FX16Q2GP FX18VGP www.PennBarry.com... - Page 14 Variable Speed Motor Control PennBarry offers Lek-Trol™ solid state controllers to alter the high speed of most direct drive motors by as much as 50%. If variable speed is required, check the Lek-Trol™ availability table below to verify that controllers exist for the fan model selected. Remember, Lek-Trol™...
-
Page 15: Direct Drive | Dimensions
Fumex direct drive models are available in six sizes (8, 10, 11, 13, 16, and 18). Their capacities are up to 4500 CFM, with static pressures up to 1 1/2”. -
Page 16: Belt Drive | Dimensions
(2) Add 11 lbs. for Heat and Smoke option (3) Add 20 lbs. for Heat and Smoke option (4) Add 55 lbs. for Heat and Smoke option (5) Add 65 lbs. for Heat and Smoke option (6) Add 110 lbs. for Heat and Smoke option www.PennBarry.com... -
Page 17: Fan Selections
FAN SELECTIONS Model FX = Fumex centrifugal roof exhaust upblast fan Construction Application Drive Type Unit Size B = Belt 8, 81, 10, 101, 11, 12, 121, 13, 131, 14, E = Exhaust / Relief D = Direct 141, 16, 161, 18, 181, 24, 241, 27, 30,... -
Page 18: Fan Selections
None 94 = Charcoal B = Hardware & shaft Paint/Coating X = Special H = Hardware * Colors only available for polyester None S = 304SS Shaft powder coat F = Epoxy powder coat (light gray) X = Special www.PennBarry.com... - Page 19 PennBarry reserves the right to make changes at any time, without notice, to models, construction, specifications, options and availability. This document illustrates the appearance of PennBarry products at the time of publication. View the latest updates on the PennBarry website.
