Triplett RHT01 User Manual

Temperature pen

User Manual

RHT01

Humidity / Temperature Pen

Introduction

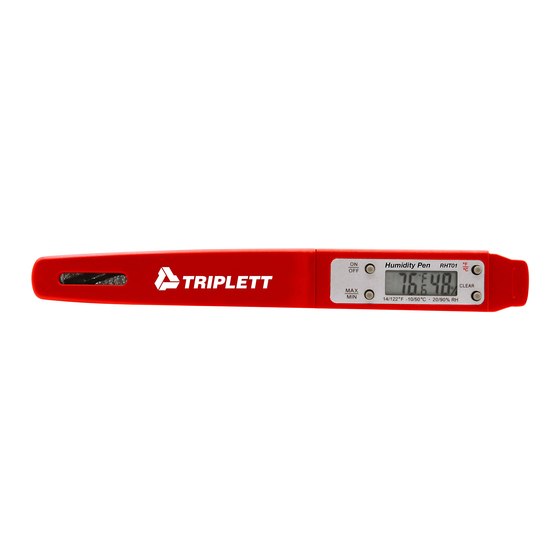

Congratulations on your purchase of the Triplett RHT01 Humidity/Temperature Pen.

Proper use and care of this meter will provide years of reliable service.

Instructions

Press the ON/OFF key to turn the Pen On or Off.

Press the C/F Key to select the temperature units.

Press the MAX/MIN key once to view the highest temperature and relative humidity

readings. An up arrow ▲will appear on the left side of the display to indicate

that the MAX mode is active.

Press the MAX/MIN key a second time to view the lowest temperature and humidity

readings. A down arrow ▼will appear on the left side of the display to indicate

that the unit is in the MIN mode.

Press the MAX/MIN key a third time to exit the MAX/MIN mode and return to normal

operation

With the down or the up arrow visible on the display (indicating that the Pen is in the

MAX/MIN mode), press the CLEAR key to erase the stored MAX/MIN temperature and

relative humidity readings. When the readings have been erased the display will indicate all

dashes ( - - - - ). New MAX/MIN readings will start recording within 3 seconds of the Clear

function.-+
