Summary of Contents for Triplett EPC175

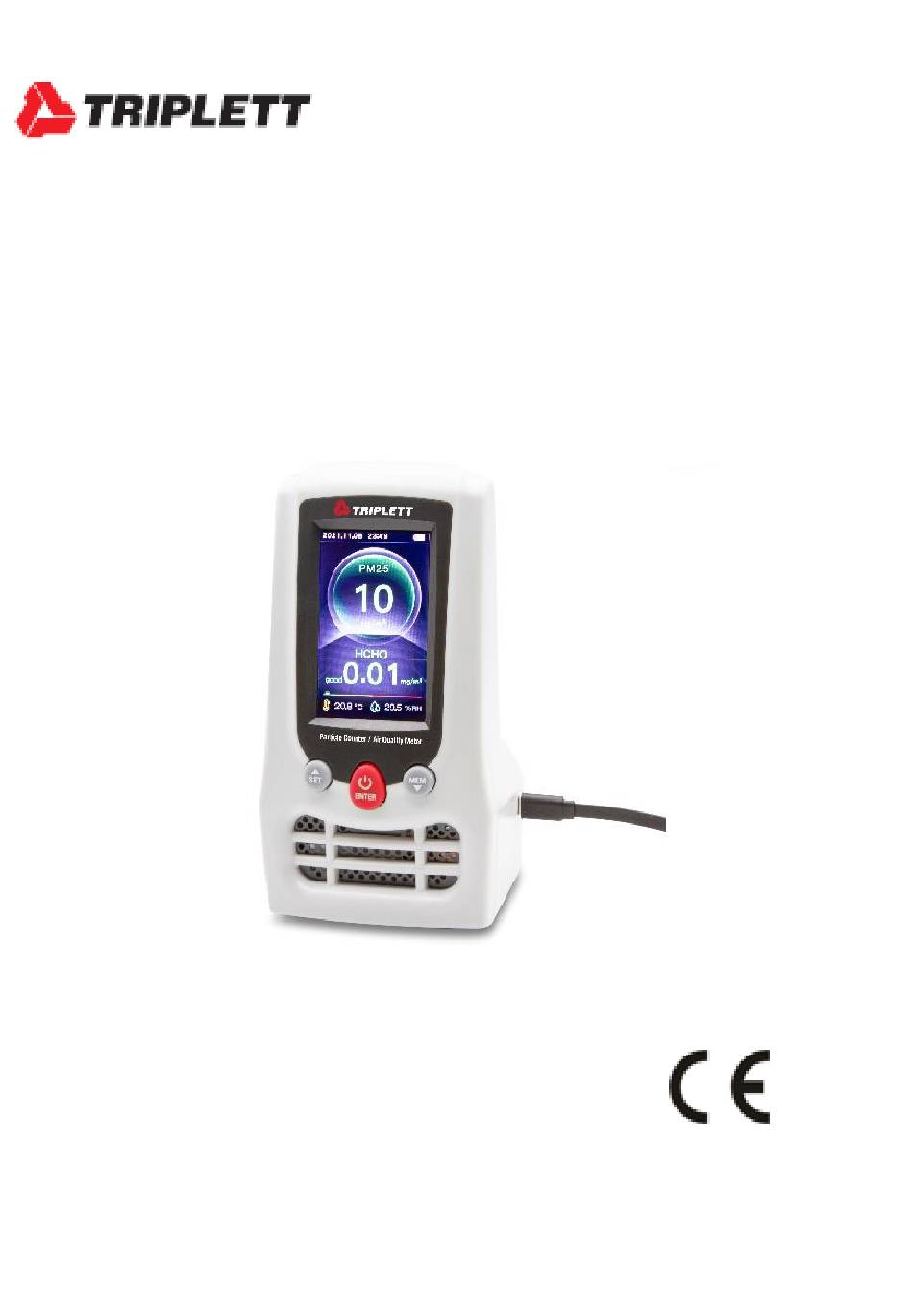

- Page 1 User Manual EPC175 Particle Counter/Air Quality Meter...
-
Page 2: Meter Description

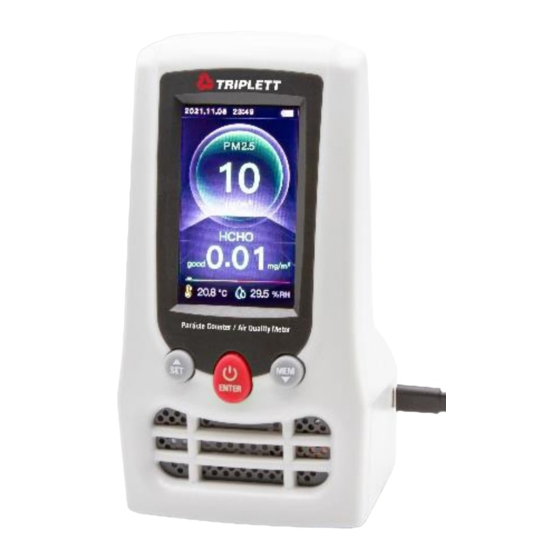

Introduction Congratulations on your purchase of the Triplett EPC175 Particle Counter/Air Quality Meter. This device is a particle counter/ air quality detector that includes several measurement types. It can detect PM2.5, PM10, HCHO, TVOC, temperature and humidity. This device uses a laser weight scattering test method and includes a professional structure design and fan. -
Page 3: Operation
Set/Up Button: Long press to enter/exit the settings page; Short press to switch measurement displaying in measure page, or to turn on in settings/memory page. ON/OFF/ENTER Button: Long press to startup/shutdown; Short press to enter/exit in settings/memory page. ... - Page 4 After powered ON and start up the meter will display and measure data continuously. The measurements consist of PM2.5, PM10, TVOC, HCHO, temperature and humidity readings. The meter will refresh the screen and toggle between a display of PM10, TVOC, and HCHO every 15 seconds.
- Page 5 Auto Power OFF (APO), Sleep and Wake-Up Modes Auto Power OFF/Sleep Mode The meter can be set to auto power off or auto sleep. If there are long intervals without change in operation, the meter can auto power off or auto sleep to save consumption.
- Page 6 In static MEMORY page, the meter displays the static curve of measurement data, a SHORT PRESS of the Up/Down button will view the detail of historical data one by one. The meter can record memory data as many as 5000 points, which contents include PM2.5, PM10 and record times.
- Page 7 Alarm Settings Alarms can be set for the start point of PM2.5 alarm as 10ug/m3, 35ug/m3, 75ug/m3, 150ug/m3, 200ug/m3 or no alarm, which default is 35ug/m3. If PM2.5 alarm is enable, the meter will beep when concentration of PM2.5 is so high as to beyond the set start point of PM2.5 alarm.
- Page 8 PM10 Concentration and Corresponding Index Color Table Color Green Yellow Orange Purple Deep Purple 400~500 Concentration 0~75μ 75~150μ 150~300μ 300~400μ >500μ μg/m Air Quality Good Normal Mild Middle Heavy Serious Polluted Polluted Polluted Polluted PM10、CO2、HCHO、TVOC Concentration and Corresponding Index Color Table Color Green Orange...
- Page 9 Specifications Particle Measure Particle Channels PM2.5/PM10 0 ~ 2000 μg/m3 Mass Concentration Range Resolution 1μg/m3 HCHO Range 0.00~5.00 mg/m3 ±5% F.S Accuracy Resolution 0.01 mg/m3 TVOC Measure Range 0.00~9.99 mg/m3 ±5% F.S Accuracy Resolution 0.01 mg/m3 Temperature & Humidity Measure Temperature Range -20 ~ 70℃...
-
Page 10: Warranty
Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase.
