Summary of Contents for Caple WC6112

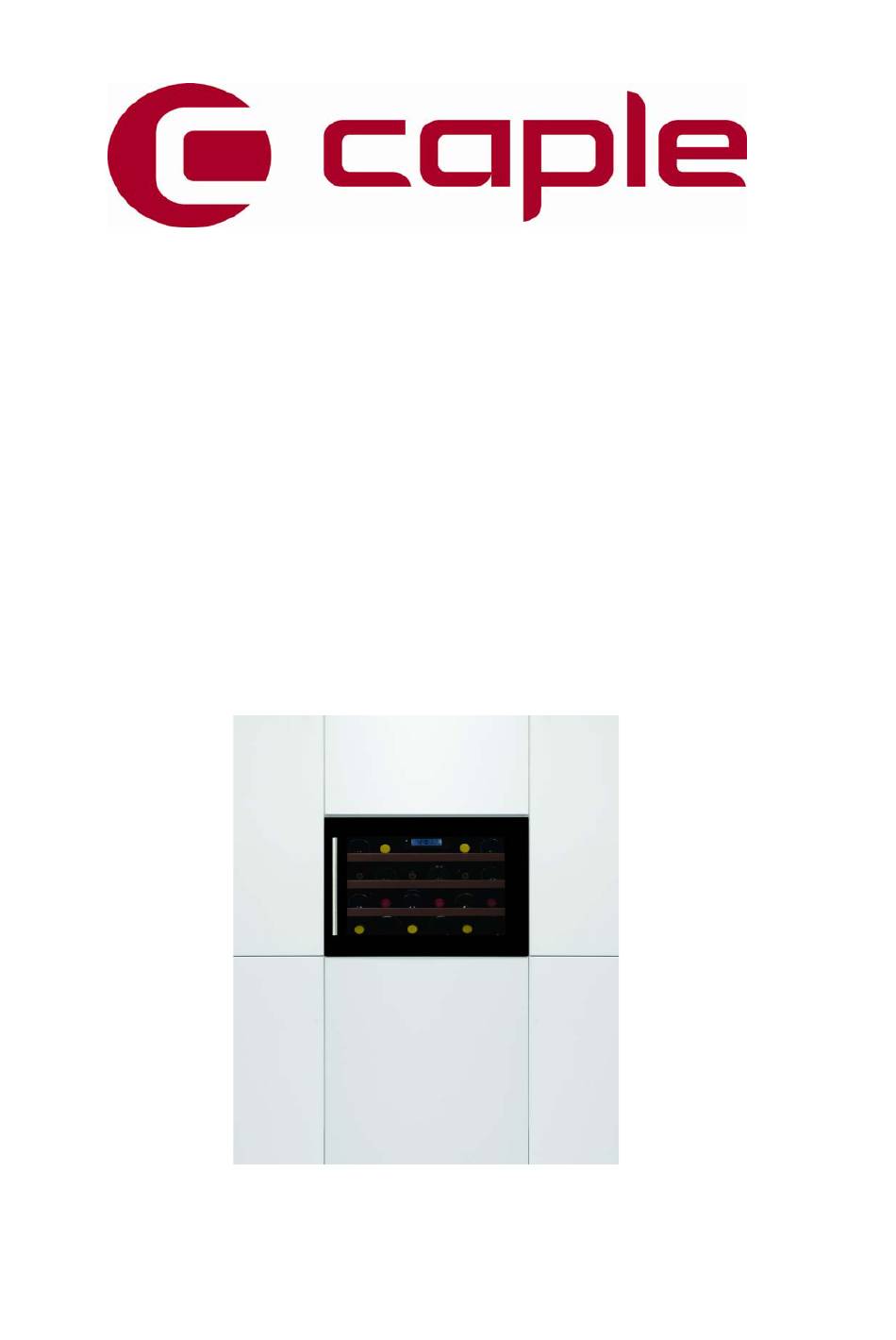

- Page 1 WC6112 Caple 60cm in-column wine cabinet Technical information...
- Page 3 WC6112 - Caple 60cm in-column wine cabinet Item Part Code Description DG2-14 Power cord DG22-476 support bar of tank water DG13-447 water box DG1-72 Compressor QP2-22 BB35-125 DRB-16N61A1 DG3-205 PCB board DG6-7 Transformer DG12-91-1 Condenser DG26-125 Cabinet DG13-268 Decorative nail...
- Page 5 Computer Controlled Wine Cellar WC6111 WC6112 Service Manual Here below we listed various faults while using the wine cellar, and the method of check-up and solve these default, and find the information of the correspondent page. Statement: (Fig.4 ) shows the reference figure Fig4 ( →6.1.6 ) shows the reference item 6.1.6.
- Page 6 5. How to diagnose the fault. ——————————————————— 6 6. Gist on disassembly. ————————————————————— 8 7. How to maintain the default. ————————————————— 14 1. Safety rules on operation of repairing (Rules must be obeyed). To avoid the accident during maintain the wine cooler, and make sure the product is safety, rules must be obeyed list below.
- Page 7 Danger ·Please make sure to discharge the rest refrigerant in the parts. ·When discharging refrigerant, make sure that it never go to the fire place and drain to outdoors. Tell the customers that they never close to the discharge place and the fire is forbidden.
- Page 8 Danger ·During repairing, the power plug should be disconnected. Before remove, install, replace parts disconnect the power plug. ·Attention don’t get electric shock. When checking current, voltage or charging never touch the connectors. When changing the parts, don’t touch the charged parts within three minutes after disconnect the plug.
- Page 9 1MΩ. Make sure the power cord and plug never be pinched on rear of the wine cooler. Exchange the power cord when it damaged. Clean the flake of the plug when it dirty. Notice ·Attention the hot. The running or just stop compressor and the pipe sometimes are very hot. And the heating or just stop heater is very hot.
- Page 10 2. Electrical circuit diagram. 3. Cooling system diagram. 6/23...
- Page 11 4. Name and function on control panel. • “ ” Press ‘▲’，the setting temp will raise up in 1. • • “ ” Press ‘▼’，the setting temp will lower down in 1. • “ ”Press one time, the light on, press again, the light off, it is not effect by the door switch. Press it and hold on •...
- Page 12 b. In the readout display setting temp mode, press the ‘▲’ or ‘▼’, the systems enter the temperature setting mode and the setting temperature twinkling. Five seconds twinkling after stopping adjust temperature, the readout stop twinkling and the readout show setting temperature, the temperature setting mode end. 5.
- Page 13 high b Check it the capillary jam Clean or replace the capillary. Repair the wiring or replace the c Check it the inner fan run normally fan. Repair the wiring or replace the a Check it the inner fan run normally Inner temperature too fan.
- Page 14 If the inner light can be turn on Check the power source (power cord, Display err code Refer to 5.2 The starter have power input? The starter failed The protector have power input? The protector failed Abnormality Check the current of the compressor Compressor fault.
- Page 15 6. Gist on disassembly. Warning: Disconnect the power plug before maintain the wine cooler. Gist on disassembling the inner cabinet. 6.1.1. How to remove the shelves. Push the shelf to the end, and revolve the shelf on either side, make the stopper on the out of the guiding rail, then pull the shelf out(Fig.1).
- Page 16 A: Capillary joint B: Evaporator joint C: Fan connector D: Evaporator Fig.3 6.1.3． How to remove the evaporator The process of removing the evaporator: remove all shelves→ remove the air-duct board → remove the inner air-duct board→ separate the evaporator from the compressor and dry filter on the joints.
- Page 17 Inner air-duct Screws fixing board inner fan Inner fan Fig.4 6.1.5. How to remove the electrical box The process of removing the electrical box: Remove all shelves → loose the fixing screws → disconnect the connectors → remove the controlled box loose the fixing screws and the box loose, disconnect the Remove the shelves (Fig.1);...
- Page 18 1>. Disconnect all connectors, remove the controlled box, prize the clasp to take the front cover with display PCB by using the slotted screwdriver. (Fig.6) 2>．Remove four screws fixing display PCB, take away the display PCB. ( Fig.7) Slotted Fig.6 Fig.7 screwdrive Controlled...
- Page 19 Gist on disassembly outside the cabinet. 6.2.1．How to remove the power box and transformer. The process of removing power box: Remove the screws fixing power box → remove the power box. The process of removing transformer: Remove the screws fixing power box → remove the power box →...
- Page 20 The process of removing the power PCB: Remove the power box → disconnect the connectors → remove the power PCB. Disconnect all connectors, then press the barb one by one pull the PCB upward, remove the power PCB.(Notice:It is better to press the barbs by using the cuspate plier). ( Fig.10) Fig.10 Barb...
- Page 21 6.2.3．How to remove the compressor. The process of removing the compressor: Separate the pipe connect to the compressor→ remove the electrical cover of compressor → disconnect the connectors →remove the compressor Heat the joints C,D, and disconnect the pipe by using plier, remove the electrical box of the compressor, disconnect the connecting wiring, then remove the four basic screws fixing compressor, remove the compressor.(Fig.12)
- Page 22 Heat the F, G （Fig.12 ）, and disconnect the pipe from the joints by using the plier, remove the screws (1,2,3), take apart the condenser H. (Fig.12) 7. How to maintain the default. It should take approximate 3 hours to reach the lowest setting temperature of about 5℃ for an empty unit (assuming ambient temp of 32 degrees centigrade and continuous operation).
-
Page 23: Noise Problem
), before compressor(Fig.12), if it is OK, then check the soldering point of the evaporator(Fig.3 ( →6.1.2 ) check please remove the air-duct board, please see the remove method and procedure in c. If all the soldering point in b is not leaking, there are two possibility, one is leakage in the inner condenser (or anti- dew pipe), another is the damage on the spare parts in the cooling system. - Page 24 compressor is too tight or loose, it will cause noise. The settlement is to change new shock （→6.2.3） absorption rubber or adjust fixing screws. 2 Fan noise When the fans are running , the vanes are circumrotating rapidly and the air flows, which 1>.
- Page 25 （→7.3） Solution: Clean the cooling system pipe, vacuumize it and recharge with refrigerant see 7.9. Evaporator freezing. Because the door seal is not air-proof, or the door is not closed well, cause much water fill in the cabinet, and the water got frozen when it encounter the cold air, sometimes the ice is too thick, and it will block the fan or broken the fan.
- Page 26 1 >．After turning on the power, if the LED display shows the temperature is similar with the ambient temperature, it is normal, if abnormal, please remove the electrical box, check the sensor insert whether reliable (Fig.11). If the insert is reliable, it is the sensor’s fault, remove the air-duct board and replace the sensor with the same module (Fig.1, Fig.2 ,Fig.3);...
- Page 27 connect the ends and wrap the ends with insulating tape. (Fig.17& Fig.17.1) Fig.16 Fig.16.1 scissors Screws Fig.17 Fig.17.1 Insulating tape 12mm（strip）*4 4 >．If above process finis, it still fault, that means the wiring damaged in the foam, you have to have another wiring along the bottom and back of the cabinet to connect the switch.
