Summary of Contents for Caple WC6215

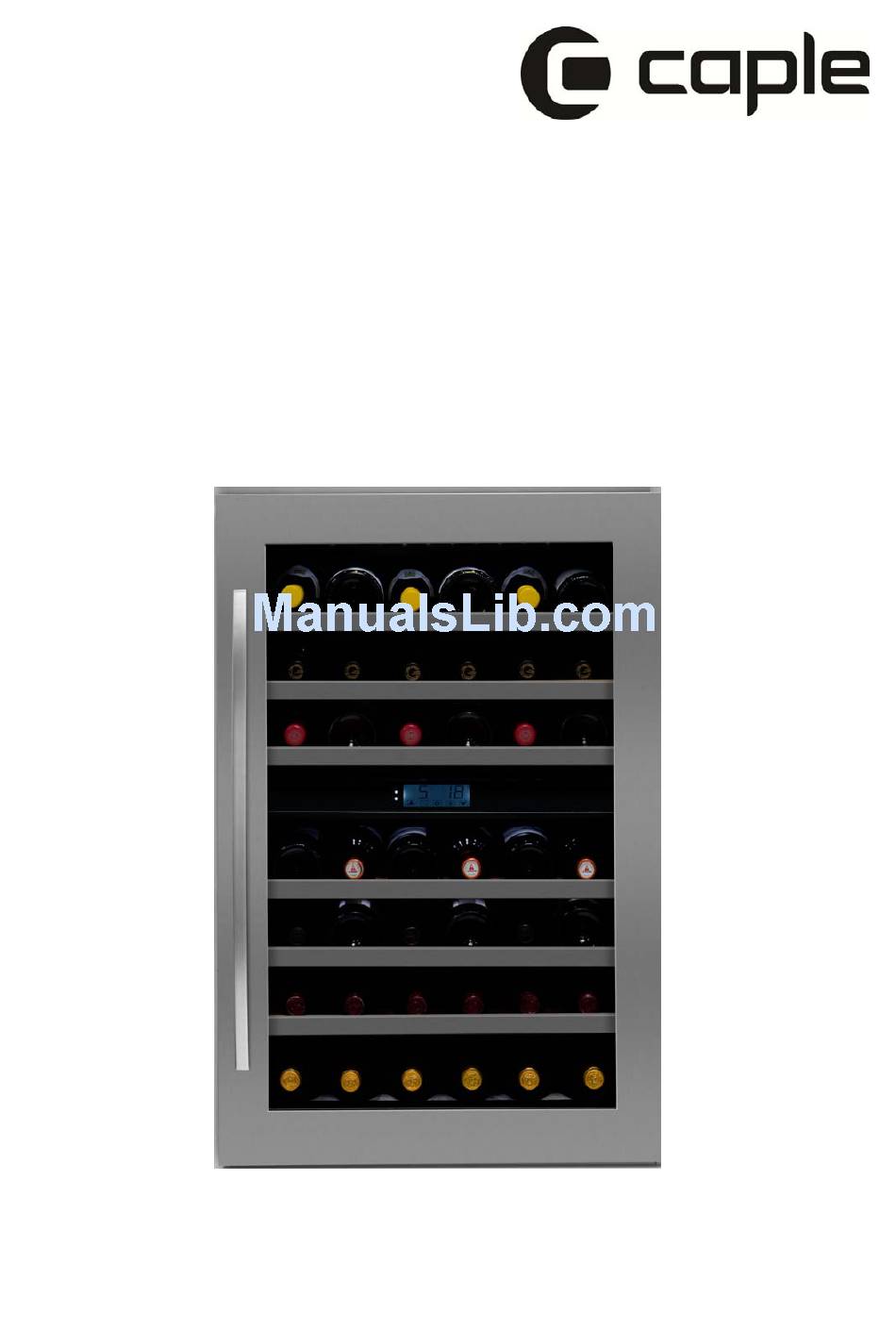

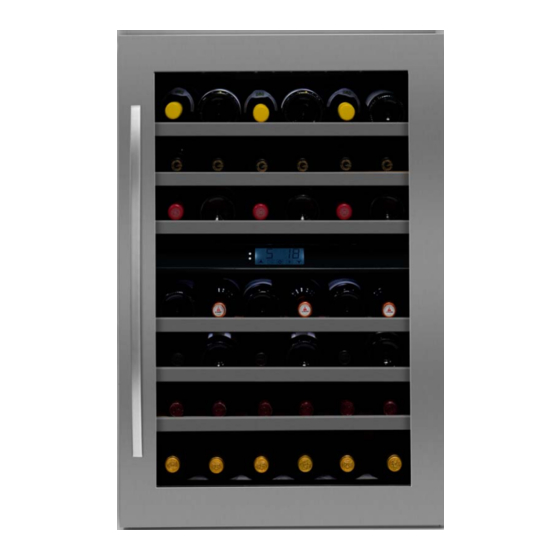

- Page 1 Instruction manual for in-column wine cabinet Model code: WC6215 Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk...
-
Page 2: Important Safety Instructions
Touching the compressor with the hand. If the supply cord is damaged, it must be replaced by a Caple Service agent or a similarly qualified person in order to avoid a hazard. -
Page 3: Installation Instructions
Plug the Wine cabinet into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorised Caple service centre. Attention •... -
Page 4: Operating Your Wine Cabinet
OPERATING YOUR WINE CABINET AND SETTING THE TEMPERATURE CONTROL Please use the cabinet within a ambient temperature of 5-32 ºC. If the ambient temperature is higher or lower than this, it will cause a temperature fluctuation in the cabinet, impairing its performance. Controls LCD touch panel. - Page 5 Setting The Temperature Controls • The temperature setting range as below: Upper compartment: 5～10ºC Lower compartment: 10～18ºC • The factory set temperature is as below: Upper compartment: 6 ºC Lower compartment: 12ºC • When the system enters the temperature set up. With each press on the button, the temperature setting of the upper zone will increase by 1 ℃...
- Page 6 Storage diagram Total: 42 bottles (Max) (for 750 ml Bordeaux bottles) Shelves • To prevent damaging the door gasket, make sure to have the door fully opened when pulling shelves out of the rail compartment. • For easy access to the storage content, you must pull the shelves approximately 1/3 out of the rail compartment, however this unit was designed with a notch on each sides of the shelf tracks to prevent bottles from falling.
- Page 7 How to change the door opening This appliance has reversible doors but is delivered with a right hinged door. The left hand hinge kit comes with the unit (in the box), should you wish to reverse the hinge on your unit.
- Page 8 Incline the wine cabinet 45 degrees, take out right lower hinge’s screws with screwdriver (Fig.1) 2. Level the wine cabinet, hold the door and take out right upper hinge’s screws with screwdriver. Then take out the door and rotate 180 degree (Fig.2 & Fig.3 & Fig.4) 3.
-
Page 9: Care And Maintenance
1. After installing wine cellar into cabinet, please adjust limited block (a) close to cabinet (b) Please fix the 3 screws through the limited block (a) into the cabinet (b) to fix into place. Please find below picture for reference a、Limited block b、Cabinet c、Screw... - Page 10 Moving Your Wine cabinet • Remove all items. • Securely tape down all loose items (shelves) inside your appliance. • Wind the adjustable leg up into the base to avoid damage. • Tape the door shut. • Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item.
-
Page 11: Troubleshooting Guide
PROBLEMS WITH YOUR WINE CABINET? You can solve many common Wine cabinet problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the service centre. TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE... -
Page 12: Humidity Maintenance System
DEFROSTING/CONDENSATION Your wine cellar is designed with an “Auto-cycle” defrost system. When the RUN cycle is OFF, the refrigerated surface of the wine cellar (interior rear wall) defrosts automatically. The defrost water is channelled into a drain pan which is located at the back of the wine cellar next to the compressor from where it evaporates.
