Summary of Contents for Lincoln 1997 Continental

  • Page 2 Table of Contents...

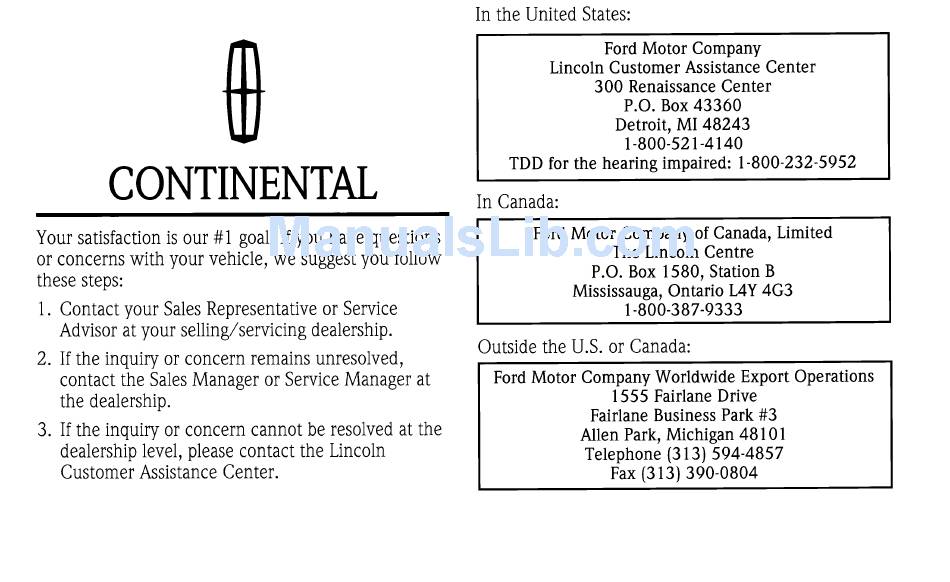

  • Page 6 Introduction Ford’s Commitment to You At Ford Motor Company, excellence is the continuous commitment to achieve the best result possible. It is dedication to learning what you want, determination to develop the right concept, and execution of that concept with care, precision, and attention to detail.
  • Page 7 Things to Know About Using This Guide Congratulations on the purchase of your new vehicle. This guide has information about the equipment and the options for your new vehicle. You may not have bought all of the options available to you. If you do not know which information applies to your vehicle, talk to your dealer.
  • Page 8 Canada, Limited, Service Publications, P.O. Box 1580, Station B, Mississauga, Ontario L4Y 4G3. The Lincoln Commitment The Lincoln Commitment is more than the prestige of owning a superior luxury automobile, it is a comprehensive owner benefits package that is designed to provide you with services to support your every driving need.
  • Page 9 If you lose your Warranty Information Booklet, you can get a new one free of charge. Contact any Ford or Lincoln-Mercury dealer, or refer to the addresses and phone numbers on the first page of this Owner’s Guide.
  • Page 10 When you buy Ford ESP, you receive peace-of-mind protection throughout the United States and Canada, provided by a network of more than 5,100 participating Ford Motor Company dealers. NOTE: Repairs performed outside the United States and Canada are not eligible for ESP coverage. This information is subject to change.
  • Page 11 Instrumentation The instrument panel (dashboard) on your vehicle is divided into several different sections. The illustrations on the following pages show the major parts of the instrument panel that are described in this chapter. Some items shown may not be on all vehicles.
  • Page 12 Instrument panel...
  • Page 13 Instrument cluster...
  • Page 14 The following warning lights and gauges are on the instrument cluster. All of the warning lights and gauges alert you to possible problems with your vehicle. Indicator Lights and Chimes Safety Belt Warning Light and Chime This warning light and chime remind you to fasten your safety belt.
  • Page 15: Anti-Lock Brake System Warning Light

    This light comes on when the parking brake is set, or if it is not set, it comes on briefly when you turn the ignition to the START position. It normally goes off shortly after the engine starts and you release the parking brake.
  • Page 16 Engine Oil Pressure Warning Light This light indicates the engine’s oil pressure, not the oil level. However, if your engine’s oil level is low, it could affect the oil pressure. The light will come on briefly when you turn your key to the START and ON position.
  • Page 17 Traction Control Active Light (If equipped) This light comes on when the Traction Control system begins applying and releasing the brakes and adjusting the engine characteristics to limit a wheelspin condition. It will be lit for a minimum of six seconds or for the duration of the Traction Control event.
  • Page 18 This light illuminates every time you turn the ignition to the ON or START position (engine off). The light should go off when the engine starts and the alternator begins to charge. If the light stays on or illuminates when the engine is running, have the electrical system checked as soon as possible.
  • Page 19 High Beam Light This light illuminates when the headlamps are turned to high beam or when you flash the lights. Chime for Headlamps On This chime sounds if the driver or any passenger door is open when the parking lamps or headlamps are on.
  • Page 20: The Instrument Cluster

    If the light fails to illuminate, continues to flash, remains on, or you hear a beeping sound, have the system serviced at your Ford or Lincoln-Mercury dealer immediately. Anti-Theft Alarm Light (If equipped) This light flashes on and off when the ignition is turned to the OFF position and any door is opened.
  • Page 21: Engine Coolant Temperature Gauge

    Odometer The odometer tells you the total number of miles (kilometers) your vehicle has been driven. If the odometer displays the word Error, please contact your dealer for service. Speedometer The speedometer tells you how many miles (kilometers) per hour your vehicle is moving. Tachometer The tachometer displays the approximate engine revolutions per minute (rpm), or how fast the...
  • Page 22: Fuel Gauge

    3. Let the engine cool. DO NOT REMOVE COOLANT SYSTEM FILL CAP UNTIL THE ENGINE IS COOL. 4. Check the coolant level following the instructions on checking and adding coolant to your engine, see Engine Coolant in the Index. If you do not follow these instructions, you or others could be injured.
  • Page 23 You can select different features for the M/C to display by using the message center control buttons located to the right of the instrument cluster. You will hear a tone when you press one of these buttons. However, if the M/C detects a warning from any of the monitored systems, then the M/C will display the appropriate warning message.
  • Page 24 These features are controlled by the message center (M/C) control buttons located to the right of the instrument cluster. System Check Pressing the SYSTEM CHECK button causes the M/C to cycle through a status of each of the systems being monitored. For each of the monitored systems, the M/C will indicate either an OK message or a warning message for three seconds.
  • Page 25 Warning messages that have been reset are divided into two categories. They will reappear on the display ten minutes from the reset or they will not reappear until an ignition OFF-ON cycle has been completed. This reappearing of warning messages is a reminder that these warning conditions still exist within the vehicle.
  • Page 26 DTE/ECON Pressing this button a first time will display approximately how many miles you can drive before you run out of fuel, or in other words the Distance To Empty (DTE). To ensure accuracy, turn the ignition OFF when you fill the tank. Pressing this button a second time will allow you to display your Average Fuel Economy in miles/gallon or liters/100 kilometers.
  • Page 27 RIDE/STEER Pressing this button once will allow you to adjust your RIDE CONTROL settings, between NORMAL, PLUSH and FIRM. The settings are changed by pressing the SELECT button while RIDE CONTROL is displayed. Pressing the RIDE/STEER button a second time will allow you to adjust the STEERING EFFORT settings between NORMAL, LOW, and HIGH.
  • Page 28 Pressing MENU again will allow you to enable or disable the HORN CHIRP feature. When HORN CHIRP is ON the horn will briefly sound when the Remote Entry Key Fob LOCK button is pressed. This verifies the doors have been locked and the ANTI-THEFT system has been armed (if equipped).
  • Page 29: Electronic Sound Systems

    Electronic Sound Systems Luxury Audio System (Analog)
  • Page 30 Luxury Audio System (Digital)
  • Page 31 Luxury Audio System Using the Controls on Your New Radio How to turn the radio on and off Press the “VOL/PUSH ON” knob to turn the radio on. Press again to turn it off. How to adjust the volume Turn the “VOL/PUSH ON” knob clockwise to increase the volume and counter-clockwise to decrease the volume.
  • Page 32 Manual tuning adjusts your radio to any allowable broadcast frequency, whether or not a station is present on that frequency. (See All About Radio Frequencies in this section.) Using the “SEEK” function Press the right a side of the “SEEK” button to select the next listenable station up the frequency band.
  • Page 33 Using the Automatic Memory Store feature (“AUTOSET”) If the memory buttons have been set, either by using the Auto Memory Load feature or if you have set them manually, the system is prepared to let you use a convenient feature called Automatic Memory Store.
  • Page 34 Adjusting the tone balance of your radio Increasing or decreasing bass and treble response Push the “BASS/TREB” popout knob to gain access to the bass and treble controls. Bass control allows you to adjust the lower, bass frequencies to your preference. The outer ring of the “BASS/TREB”...
  • Page 35 Using the Digital Signal Processing (DSP) Feature Push the “( a DSP b )” button to activate the feature. The display will indicate which signal mode is in effect. To change the signal mode press either the left ( b ) or right ( a ) side of the selector button (located under the “( a DSP b )”...
  • Page 36 NOTE: Do not attempt to adapt any other type of antenna system to your audio system. Using the Controls of Your Cassette Tape Player NOTE: Radio power must be on to use the cassette tape player. How to insert a tape Your cassette tape player is equipped with power loading.
  • Page 37 Rewinding the tape To rewind the tape, press the “REW” button. The radio will automatically begin playing while the tape is rewinding. The light above the “REW” button will blink while in the rewind mode. Press “REW” again or press the “TAPE” button to stop rewinding.
  • Page 38 How to store the tape Press the “AM/FM” button to stop the tape player and resume radio play. Using the Dolby B noise reduction feature NOTE: Noise reduction system manufactured under license from Dolby Labs Licensing Corporation. “Dolby” and double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
  • Page 39 Protect cassettes from exposure to direct sunlight, high humidity and extreme heat or cold. If they are exposed to extreme conditions, allow them to reach a moderate temperature before playing. If a tape is loose inside the cassette, tighten it before playing by putting your finger or a pencil into one of the holes and turning the hub until the tape is tight.
  • Page 40 Loading Instructions 1. Open Compact Disc Changer unit by sliding door to the right (Figure 1). Figure 1 2. Push the i button to eject the disc “magazine” (holds 6 discs) (Figure 2). Figure 2...
  • Page 41 3. Load discs into the disc magazine slots (numbered 1 through 6) one at a time with labeled surfaces upward, starting with bottom slot number 1 (Figure 3). Figure 3 4. Insert loaded disc magazine into chamber unit with the arrow on top of the disc magazine pointing toward the changer (Figure 4).
  • Page 42 The Compact Disc Changer unit is now ready to play using the controls of your Luxury Audio System. How to Operate the Ford 6-CD Changer Using the Controls on the Radio If your vehicle is equipped with the Ford 6-CD Changer System, you can operate it through the controls of your Luxury Audio System.
  • Page 43 During these functions, the display will indicate the disc number. How to change the track being played Press the right ( a ) side of the “SEEK” button to seek forward to the next track of current disc. After the last track has been completed, the CD player automatically wraps back to the first track of the current disc.
  • Page 44 Operating the “SCAN” function Press the “SCAN” button to enter the scan mode. The CD player will begin scanning the disc, stopping on each listenable track for approximately an eight second sampling. This continues until you press the “SCAN” button a second time. Operating the Shuffle and Scan features simultaneously Both the shuffle and scan features can be activated...
  • Page 45 Do not insert more than one disc into each disc slot of the disc magazine. Doing so may damage the discs, disc magazine or the disc changer. Do not insert anything other than discs into the disc magazine. WARNING The laser beam used in the compact disc player is harmful to the eyes.
  • Page 46 Different manufacturers of compact discs may produce discs with different dimensions or tolerances, some of which may not be within industry standards or in accordance with the CD format. Because of this, a new disc that is free of dust and scratches could be defective and may not play on your Ford Compact Disc Player.
  • Page 47 Terrain The terrain (hilly, mountainous, tall buildings) of the area over which the signal travels may prevent the FM signal from being noise-free. Repeated pops and hisses which are heard during an otherwise clear broadcast can occur near the station because of the “line of sight” characteristic of FM radio waves.
  • Page 48 When several broadcast towers are present (common in metropolitan areas), several stations may overload the receiver, resulting in considerable station changing, mixing and distortion. Automatic gain control circuitry for both AM and FM bands has been incorporated into this system to reduce strong signal capture and overload.
  • Page 49: Controls And Features

    Controls and Features The Climate Control System Electronic Automatic Temperature Control System The Electronic Automatic Temperature Control (EATC) module is located at the center of the instrument panel and operates only when the key is in the ON position. The EATC feature maintains the temperature you select and automatically controls the airflow for your comfort.
  • Page 50 The automatic temperature control system To turn your EATC on, push the AUTOMATIC button or any of the six override buttons along the bottom of the control. To turn your EATC off, press the OFF button. When the system is off, the display window will be blank (dark) except when OUTSIDE TEMP has been selected.
  • Page 51 If you want continuous maximum cooling, push the BLUE button until 60˚F (16˚C) is shown in the display window. Your EATC will cool at maximum and disregard the 60˚F (16˚C) setting until you select a warmer temperature with the RED button. If you want continuous maximum heating, push the RED button until 90˚F (32˚C) is shown in the display window.
  • Page 52 The AUTO temperature display When in AUTOMATIC and weather conditions require heat, air will be sent to the floor. But, a feature is included in your EATC to prevent blowing cold air to the floor if the engine coolant is not warm enough to allow heating.
  • Page 53 The normally selected temperature range is between 68˚F (20˚C) and 78˚F (26˚C). Changing the temperature setting by several degrees outside this range or overriding to 60˚F (16˚C) or 90˚F (32˚C) will not speed up the heating or cooling process. Temperature display Press MAX A/C and DEF at the same time to switch between Fahrenheit and Celsius.
  • Page 54 When you move the thumbwheel, the fan speed will go to manual control. The display window will show the H symbol in the upper left corner along with the selected temperature and operating function. You can override the fan speed at any time. If you use the thumbwheel to override the fan speed, the EATC will continue to control the temperature but you control the fan speed.
  • Page 55 return to automatic fan control, press the AUTOMATIC button. The EATC will return to Automatic operation. If you want to return to any override function, press the button for that function. The fan speed will continue to be automatically controlled. Manual override buttons Your EATC has six buttons which allow you to make special selections.
  • Page 56 PNL & FLR button Push this button to get air from the floor and instrument panel registers at the same time. The display will show the set temperature and the words PNL and FLR. Depending on the selected temperature, the air will be automatically heated or cooled.
  • Page 57 OUTSIDE TEMP button By pressing this button the temperature of the air outside of the vehicle will show in the display. The outside temperature will continue to be displayed until the OUTSIDE TEMP button is pressed again to cancel. If the selected temperature setting is changed while the outside temperature is displayed, the new selected temperature will be displayed for 4 seconds after it is changed.
  • Page 58: Passenger Compartment Air Filter

    NOTE: The outside temperature reading is most accurate when the vehicle is moving. Higher readings may be obtained when the vehicle is not moving. The readings that you get may not agree with temperatures given on the radio due to differences in vehicle and station locations.
  • Page 59 Rear Window Defroster and Heated Sideview Mirrors The rear window and heated outside mirrors defroster switch activates the defroster for the rear window to clear frost, fog, or thin ice from both the inside and outside of the rear window and activates the heated outside rearview mirrors.
  • Page 60: The Interior And Exterior Lights

    After approximately 10 minutes, the defroster will turn off. If the window or mirrors are still not clear, turn the defroster on again. The defroster will turn off when the ignition key is turned to the OFF or START position. The heating elements are bonded to the inside of the rear window.
  • Page 61 Turning On the Exterior Lights To turn on the headlamps, parking lamps, side markers, license plate lamps and tail lamps, use the rotary control that is to the left of the steering wheel. The knob for the exterior lights To turn on the parking lamps, tail lamps, side markers, and license plate lamps, turn the knob clockwise to the first position.
  • Page 62 The autolamp switch on the left side of the instrument panel To use the autolamp: 1. Make sure the headlamp control is in the OFF position. If the control for the headlamps is ON, you cancel the autolamp. If the autolamp is active, the headlamp system will come on immediately after starting your vehicle.
  • Page 63 To turn the autolamp off, push the switch down until the message center display reaches OFF. Turning On Interior Lights/Instrument Panel Illumination You can brighten or dim the lights in the instrument panel and the compass display in the inside rearview mirror (if equipped) with the PANEL DIM switch located on the instrument panel.
  • Page 64 Clock The digital clock 1. To set the hour, press and hold the hour button. When the desired hour appears, release the button. 2. To set the minutes, press and hold the minute button. When the desired minute appears, release the button. Road Calibrated Suspension Your Continental is equipped with a ride control system that is designed to read disturbances in the...
  • Page 66 NOTE: The combination of FIRM RIDE CONTROL and LOW STEERING EFFORT is undesirable and cannot be selected. Ignition Understanding the Positions of the Ignition The positions of the key in the ignition ACC allows some of your vehicle’s electrical accessories such as the radio and the windshield wipers to operate while the engine is not running.
  • Page 67 ON allows you to test your vehicle’s warning lights (except the brake system warning light) to make sure they work before you start the engine. The key returns to the ON position once the engine is started and remains in this position while the engine runs.
  • Page 68 The Turn Signal Lever You can use the turn signal lever on the left side of the steering column to: operate the turn signals and cornering lamps turn the high beams on/off flash the lights turn the windshield wipers and washer on/off The turn signal lever...
  • Page 69: Turn Signals

    Turn Signals Move the lever up to signal a right turn. Move it down to signal a left turn. The corresponding indicator light in the instrument cluster will flash. If the turn signal stays on after you turn, move the lever back to the center (off) position.
  • Page 70: Windshield Wipers And Washer

    Windshield Wipers and Washer To turn on the windshield wipers, the ignition key must be turned to the ON or ACC position. Rotate the knob towards “S” to activate the wipers. The first seven detents are interval wipe positions, the eighth detent is the LO position and the ninth detent is the HI position.
  • Page 71: Windshield Washer

    If the washer does not work, check the washer fluid level and fill it if it is low. See the Maintenance and Care chapter. If there is enough fluid, consult your nearest Ford or Lincoln-Mercury dealer. Do not try to clean the windshield when the...
  • Page 72 Hazard Flasher The hazard flasher serves as a warning to other drivers to be careful when approaching or passing your vehicle. The control switch for the hazard flashers...
  • Page 73 Horn To sound the horn, push the center pad area of the steering wheel. The horn on the steering wheel.
  • Page 74: Tilt Steering

    Tilt Steering WARNING Never adjust the steering wheel when the vehicle is moving. The lever to tilt the steering wheel...
  • Page 75: Speed Control

    To change the position of the steering wheel, pull the release lever on the column toward you. Tip the steering wheel to the desired position. Release the lever to lock the steering wheel in place. Speed Control The speed of the vehicle cannot be automatically controlled until the vehicle speed is at or above 30 mph (48 km/h).
  • Page 76 The speed control switches on the steering wheel To Turn Speed Control Off Press OFF, OR Turn off the vehicle ignition. Once speed control is switched off, the previously programmed set speed will be erased. To Turn Speed Control On Press ON To Set a Speed Press SET ACCEL.
  • Page 77 WARNING To keep your vehicle under control, do not use speed control in heavy traffic or on roads that are winding, slippery, or unpaved. To Set a Higher Set Speed Press and hold SET ACCEL. Release the switch when the desired vehicle speed is reached. OR Press and release SET ACCEL.
  • Page 78 Lincoln RESCU System (If equipped) Lincoln RESCU runs a self-test when you start your vehicle. During this test, the Lincoln RESCU warning light, located in the overhead console, will briefly illuminate. If a problem is detected during the self-check, the light will remain lit and the message “RESCU FAILURE”...
  • Page 79: Quick Summary

    It is important that you understand the capability of your Lincoln RESCU System prior to initiating an activation. See Important Things to Know About Your Lincoln RESCU System later in this chapter for details. Quick Summary To utilize your vehicle’s RESCU system, YOUR CELLULAR PHONE MUST BE ACTIVATED.
  • Page 80: General Description

    Positioning System (GPS) technology and the nation’s cellular phone network to track vehicle location and, at the touch of a button, put you in voice contact with the Lincoln Security Response Center. Two buttons in the overhead console will activate the system.
  • Page 81 The Overhead Console When you select a button, the vehicle’s cellular phone will automatically place a data call to the response center’s central computer. Once contact is made, an electronic data message will be transmitted. This data message will include: Type of alarm (roadside or emergency) Vehicle Identification Number (VIN) Latitude and longitude coordinates...
  • Page 82 The Roadside Assistance button When this button is pressed, the Lincoln Security Response Center relays details of your situation and your location to the United States Auto Club (USAC) via a three-way phone call. The response center/USAC will: dispatch the appropriate service vehicle to your location.
  • Page 83 911 or other emergency services may provide a faster response. Activation and Deactivation When either of the two Lincoln RESCU buttons is pressed, a warning light, located in the overhead console, will begin to flash and status messages will be displayed on the vehicle’s message center,...
  • Page 84 Lincoln Security Response Center. (See Automatic Redial later in this chapter for exceptions.) Operation will continue even if the vehicle is turned off during an activation (although visual feedback via the Message Center will not be available in this situation).
  • Page 85 Message Center (low washer fluid, low oil, door ajar, etc.), they must be cleared in order to view the LINCOLN RESCU messages. To clear the vehicle messages, press the Message Center RESET button, which is located to the right of the display.
  • Page 86 Location Data Retransmit Capability During an activation, the Lincoln Security Response Center operator has the capability to initiate a retransmission of the electronic data message. This may be necessary to ensure a more precise determination of vehicle location or to track a vehicle that is moving.
  • Page 87 Inoperative if battery discharged or disconnected Lincoln RESCU is powered by the vehicle’s battery and will not operate if the battery is discharged or disconnected. Potentially inoperative if vehicle involved...
  • Page 88 Positioning capability temporarily degraded after battery reconnect When your vehicle is started, the Lincoln RESCU GPS receiver begins the process of determining vehicle location. The receiver will search the sky and attempt to acquire signals from all visible satellites. A real-time clock and an almanac containing detailed information about the satellite constellation are stored in the on-board computer’s...
  • Page 89 (PIN). In this situation, the user is required to enter the pin with any phone calls made over the network. The Lincoln RESCU System is not compatible with the PIN feature. At the time your phone is activated, ask your carrier to assign you a phone number that does not require a personal identification number entry.
  • Page 90 In this situation, you can provide the operator with the number you are dialing (Lincoln Security Response Center at 1-800-334-1327) and your credit card number or ask to be connected to the local 911 or other...
  • Page 91 Registration Requirement You are required to register with the Lincoln Security Response Center shortly after receiving your vehicle. The registration process is simple and can be accomplished by calling the Lincoln Security Response Center at 1-800-334-1327. Alternatively, the registration process can be completed on-line during an acquaintance period activation.
  • Page 92 1-800 phone call to the Lincoln Security Response Center. After your initial service period expires, you may be required to pay a monitoring service fee. Your dealer can provide you with specific information regarding post initial service period service fees.
  • Page 93 Turning On the Lamps Map Lamps Your vehicle has a map lamp for the passenger and one for the driver. The map lamps on vehicles equipped with a moon roof The map lamps on the inside roof of the car To turn on the map lamps, push the switches in front of each lamp.
  • Page 94 Rear Courtesy/Reading Lamps Your vehicle has two rear passenger courtesy/reading lamps. The courtesy lamp lights when any door is opened or when the instrument panel dimmer switch is turned to the courtesy lamp position or if either front door outside handle is lifted with the door locked.
  • Page 95 Moon Roof (If equipped) You can move the moon roof back to open the glass panel, or you can tilt it up to ventilate the vehicle. The roof console ROOF switch is used to open and close the moon roof. Press and hold the switch until the desired position is reached.
  • Page 96 To close from vent position, press and hold the switch rearward. Occasionally wiping the outside guide rail covers of the moon roof with a clean cloth will help keep the moon roof working properly. The moon roof WARNING Do not let children play with the moon roof.
  • Page 97 The automatic dimming inside rearview mirror (optional) The sensitivity level of the mirrors can be adjusted by moving the switch on the inside rearview mirror between the OFF and MAX positions. MAX is the most sensitive setting and bright headlamps far away will cause the mirrors to automatically darken.
  • Page 98: Sun Visors

    Sun Visors Using the Sun Visors Your vehicle has special sun visors. Besides the regular sun visor, you have a second visor. By using both the regular sun visor and the second visor, you shield the sun from both the front and the side of the vehicle at the same time.
  • Page 99: Homelink Universal Transmitter

    HomeLink Universal Transmitter (If equipped) The HomeLink Universal Transmitter provides a convenient way to replace up to three hand-held transmitters with a single built-in device. This innovative feature will learn the radio frequency codes of most current transmitters to operate garage doors and gates.
  • Page 100 Programming If after repeated attempts you do not successfully program the HomeLink Universal Transmitter to learn the signal of the hand-help transmitter, call toll-free for customer assistance: 1-800-355-3515. 1. If you have previously programmed your HomeLink Transmitter, proceed to step 2. Otherwise, hold down the two outside buttons on the HomeLink Transmitter until the red light begins to flash.
  • Page 101 4. Using both hands, push the hand-held transmitter button and the desired button on the HomeLink Transmitter. Continue to press both buttons through step 5. 5. Hold down both buttons until you see the red light on the HomeLink Transmitter flash, first slowly and then rapidly.
  • Page 102 To determine if you have one of these systems, depress the button on the HomeLink Transmitter that you programmed. If the red light on the HomeLink Transmitter flashes rapidly for 1-2 seconds, then remains on, your garage door opener has a rolling code system. Training a Garage Door Opener Equipped with “Rolling Codes”...
  • Page 103 Return to the HomeLink Transmitter in the vehicle, and depress the programmed HomeLink button for the duration of the rapid flash of the HomeLink’s red light, (1-2 seconds). Release the button, and re-press the button to confirm that the HomeLink Transmitter has been trained to the receiver.
  • Page 104 The Electronic Compass (If equipped) The electronic compass The compass is mounted to the inside rear view mirror. The display is in the upper right hand corner of the mirror glass. The display will show one of the following directions: N, NE, E, SE, S, SW, W, and NW. The brightness of the compass display is controlled by the instrument panel dimming switch.
  • Page 105 Compass-Calibration 1. For optimum calibration, switch off all non-essential electrical accessories (rear window defrost, heater/air conditioning, map lamps, wipers, etc.) and ensure all doors are shut. 2. Drive to an open, level area away from large metallic objects or structures. 3.
  • Page 106 2. Insert an appropriate diameter rod (paper clip) into the right switch access hole underneath the compass module and gently press the right button for 1-2 seconds until “ZONE” and the current zone setting appear in the display. 3. Release the right button. 4.
  • Page 107 Doors Childproof Locks for the Rear Doors In addition to power locks, your vehicle has childproof locks for the rear doors. If you set these locks, the rear doors cannot be opened from the inside of the vehicle. The doors can still be opened from the outside when the lock knobs are raised.
  • Page 108 To set the childproof lock on each rear door, open the rear door. Find the lever at the black label with the word LOCKED in white letters. Move the lever up. To release the childproof lock, open the rear door from the outside and move the lever down.
  • Page 109 Illuminated Entry System with Theater Lighting The interior lights will illuminate for approximately 25 seconds when any button on the keyless entry pad is pressed or the remote entry system UNLOCK button is pushed. Using the Power Windows Each door has a power control that opens and closes the window on that door.
  • Page 110 To lock out all window switches except the master controls, press the window lock switch once. To restore control to the individual windows, press the switch again. There is also an Express Down feature on the driver’s power window. This feature can be activated through the menu functions of your Message Center.
  • Page 111 The Ride/Steering menu is located in the Message Center. The RIDE display allows you to adjust the suspension feel to FIRM, NORMAL, or PLUSH. Pressing the Ride/Steering menu switch again brings the STEERING display. This allows you to adjust steering effort to LOW, NORMAL, or HIGH. For more information on ride/steering options, see Road Calibrated Suspension later in this chapter.
  • Page 112 REVERSE MIRROR - when the vehicle is shifted to REVERSE, the outside rearview mirrors tilt down. This provides an improved view of the side of the vehicle and curb area when backing up. When you shift out of REVERSE, the mirrors return to their previous positions.
  • Page 113 NOTE: Please note that even though the driver’s Personality Memory may be recalled using remote or keyless entry, the seats and mirrors will not move to the driver’s set positions until the driver’s door is opened. Memory Switches Pressing either the Memory 1 or Memory 2 switch on the driver’s door will also recall the Personality Memory settings as selected, providing your vehicle is in P (Park) or N (Neutral).
  • Page 114 Turning Personality OFF The Personality Memory feature can be turned off using the Memory OFF switch on the driver’s door. The amber indicator light will be lit when the feature is turned OFF. Pressing either the Memory 1 or Memory 2 switch will turn on the Personality Memory feature and recall the saved settings.
  • Page 115 WARNING The right side view mirror makes objects appear smaller and farther away than they actually are. The electric remote control mirror switch To adjust the side mirrors: 1. Find the control switch in the driver’s door panel. 2. Select the right or left mirror by moving the selector switch to R or L.
  • Page 116 Heated Mirror Feature Both mirrors are heated whenever the Electric Rear Window Defroster is turned on. Do not remove ice from the mirrors with a scraper or you could damage them. If the outside mirror glass is frozen in place, do not attempt to readjust or move the mirror glass or damage may result.
  • Page 117 For information about the cellular phone in your vehicle, refer to the Cellular Phone User’s Manual provided with your phone. For further questions about your Lincoln cellular phone, contact the Ford Cellular System at 1-800-367-3013(U.S.). In Canada, please contact your dealer.
  • Page 118: Floor Mat

    Cupholder With Full Console The cupholder provides a space for your cup. Mini console cupholders Six passenger vehicles are equipped with a mini console that is located within the ashtray panel. To open the panel, press on the front of it and release. It will open automatically.
  • Page 119 Removing the Floor Mat Lift floor mat just forward of retention post and rotate rearward to disengage from retention post. The positive retention floor mat...
  • Page 120 Trunk Opening the Trunk Manually Locate the trunk lock in the rear reflector to the right of the license plate to insert the key. Turn the key to the right to open the trunk. The trunk lock cylinder Using the Power Trunk Release You can use your power trunk release feature in three ways: With your electric trunk release, you can open the...
  • Page 121 The remote control for the trunk The trunk lid cannot be opened if your vehicle is moving faster than three mph (five km/h). Cargo Storage System (If equipped) Your vehicle may be equipped with a cargo storage system. It was designed to allow you to use all available space in your trunk while permitting easy loading and unloading.
  • Page 122: Keyless Entry System

    The cargo storage system To operate: 1. Grasp and squeeze the release handle to move the cargo storage system rearward. 2. Place groceries, packages, etc. in the cargo storage system. 3. Grasp and squeeze the release handle to move the cargo storage system forward until it locks into place.
  • Page 123 The keyless entry buttons When you bought your vehicle, you were given a computer code that operates the system for your vehicle. For your convenience, we have duplicated this code in three places. The code is: on your owner’s wallet card found in the glove compartment taped to the trunk lid’s right hinge support bar taped to the computer module in your driver’s...
  • Page 124 1. To unlock the driver’s door, enter the factory code or your personal code. All codes have five (5) numbers. After you press the fifth number, the driver’s door unlocks. 2. To unlock all passenger doors, press the 3/4 button within five (5) seconds of unlocking the driver’s door or trunk, or re-enter the code to open the driver’s door, then press 3/4.
  • Page 125 The Autolock feature will repeat when: the ignition key remains in the ON position someone remains sitting in the driver’s seat or a heavy object is on the seat a door is opened and then closed the vehicle is in a forward gear, and you exceed three mph (five km/h).
  • Page 126: Remote Entry System

    The keyless entry system registers this new code. To open your vehicle, you can now use either code. To erase all of the personal entry codes and remote entry transmitters programmed to a vehicle: 1. Enter the original permanent code. 2.
  • Page 127: Locking The Doors

    The personal alarm feature operates only with the ignition off. The LOCK, UNLOCK and TRUNK features work whenever your vehicle is in Park or Neutral. Remote entry transmitter Unlocking the doors and opening the trunk To unlock the driver’s door, press the UNLOCK control.
  • Page 128 Replacement batteries can be purchased at most pharmacies, watch stores or at your Ford or Lincoln-Mercury dealer. NOTE: The operating range of the remote entry system can also be affected by weather conditions...
  • Page 129 When installing the new batteries, be sure to place the positive (+) side down as marked. Snap the two halves back together. Replacement/additional transmitters In the event a transmitter is lost, a new one may be purchased from your dealer. To program replacement or additional transmitters you must have all the transmitters intended for use on your vehicle.
  • Page 130: Battery Saver

    NOTE: All transmitters to be used on your vehicle must be programmed/reprogrammed at the same time. Battery Saver When the ignition is turned off, the vehicle will turn off battery voltage to the interior lights after 45 minutes. This will prevent draining of the battery if those lights have been left on inadvertently or if a door is not completely closed.
  • Page 131: Arming The System

    To tell the difference between a PANIC alarm and a triggered Anti-Theft alarm: only the Anti-Theft alarm will cause the alarm indicator light (located in the center of the instrument cluster) to flash on and off. only the Anti-Theft alarm will prevent the engine from starting.
  • Page 132 You can also arm the anti-theft system with the factory installed remote entry system or the keyless entry system by following this sequence: 1. Remove the key from the ignition. 2. Close all of the doors. 3. Press the remote entry transmitter LOCK control or press the last two buttons (7/8, 9/0) of the keyless entry keypad to lock the doors.
  • Page 133 Triggering the Alarm System The armed system will be triggered if: any door is opened without disarming the system (see previous paragraphs), or the trunk lock cylinder is removed NOTE: You can open the trunk with your key without setting off the alarm. the hood is opened.
  • Page 134: Seating And Safety Restraints

    Seating and Safety Restraints Seats Head Restraints If you use them properly, head restraints will help protect your head and neck in a collision. A head restraint should be placed as high as possible behind your head without interfering with your vision.
  • Page 135 Adjusting the Seats WARNING Never adjust the driver’s seat or seatback when the vehicle is moving. WARNING Always drive and ride with your seatback upright and the lap belt snug and low across the hips. WARNING Do not pile cargo higher than the seatbacks to avoid injuring people in a collision or sudden stop.
  • Page 136 The power reclining seat switch on the driver’s side Power Lumbar Support With this feature, you can position a lumbar support pad in the seatback. The seat controls for the lumbar support on the driver’s seat Heated Seats (If equipped) The driver’s and front passenger’s Heated Seats are controlled by the HEATED SEATS panel, which is located directly below the climate control panel.
  • Page 137 NOTE: Leaving the Heated Seat turned on when you shut the vehicle off will not continue to heat the seat. The heated seat controls To operate the Heated Seat System: 1. Select mode. “Both” to heat the seat back and seat cushion “Back”...
  • Page 138 Important Safety Belt Information The use of safety belts helps to restrain you and your passengers in case of a collision. In most states and in Canada, the law requires their use. Safety belts provide best restraint when: the seatback is upright the occupant is sitting upright (not slouched) the lap belt is snug and low on the hips the shoulder belt is snug against the chest...
  • Page 139 WARNING Each seating position in your vehicle has a specific safety belt assembly which is made up of one buckle and one tongue that are designed to be used as a pair. 1) Use the shoulder belt on the outside shoulder only. Never wear the shoulder belt under the arm.
  • Page 140: Combination Lap And Shoulder Belts

    WARNING Never let a passenger hold a child on his or her lap while the vehicle is moving. The passenger cannot protect the child from injury in a collision. WARNING Lock the doors of your vehicle before driving to lessen the risk of the door coming open in a collision.
  • Page 141: Shoulder Belt Height Adjustment

    While the belt retracts, guide the tongue to its original position to prevent it from striking you or the vehicle. Unfastening the lap/shoulder belts Shoulder Belt Height Adjustment Driver and right front passenger You can adjust the shoulder belt height to one of five (5) positions.
  • Page 142 Figure 1 — The shoulder belt height adjuster Figure 2 — The shoulder belt height adjuster...
  • Page 143 WARNING Position the shoulder belt height adjuster so that the belt rests across the middle of your shoulder. Be sure the shoulder belt is properly positioned on your shoulder each time you use the belt. If the shoulder belt is off your shoulder, on your upper arm or neck, there is a greater risk of severe injury in a collision.
  • Page 144: Lap Belts

    WARNING Rear-facing child seats or infant carriers should never be placed in the front seats. This mode must be used when installing a child seat on the front passenger seat and rear seats where dual locking retractors are provided. To switch the retractor from the emergency locking mode to the automatic locking mode, perform the following steps:...
  • Page 145: Safety Belt Extension Assembly

    Unfastening the lap belts in the center front seating position NOTE: Be sure to read and understand Important Safety Belt Information in this chapter. Pull the belt across your hips and insert the tongue into the correct buckle on your seat until you hear a snap and feel it lock.
  • Page 146: Safety Belt Maintenance

    on the label. Also, use the safety belt extension only if the safety belt is too short for you when fully extended. Do not use extension to change the fit of the shoulder belt across the torso. WARNING Failure to follow these instructions will affect the performance of the safety belts and increase the risk of personal injury.
  • Page 147 Failure to follow these instructions may increase the risk of personal injury in the event of a collision. WARNING Do not attempt to service, repair, or modify the air bag Supplemental Restraint System or its fuses. See your Ford or Lincoln-Mercury dealer.
  • Page 148 WARNING If you are close to an inflating air bag, it could seriously injure you. Position your seat such that it is as far back from the steering wheel as possible but still allows you to properly control the vehicle. Children and Air Bags NOTE: For additional important safety information on the proper use of seat belts, child seats, and...
  • Page 149 the burnt propellant. This is normal. The residue may consist of cornstarch or talcum powder (which is used to lubricate the air bag) or sodium compounds, such as sodium carbonates (e.g. baking soda) that result from the combustion process that inflates the air bag.
  • Page 150 Disposal of Air Bags and Air Bag Equipped Vehicles For disposal of air bags or air bag equipped vehicles, see your local Ford or Lincoln-Mercury dealer. Air bags MUST BE disposed of by qualified personnel.
  • Page 151: Safety Restraints For Children

    Safety Restraints for Children In the U.S. and Canada, you are required by law to use safety restraints for children. If small children ride in your vehicle — this generally includes children who are four years old or younger and who weigh 40 pounds (18 kg) or less —...
  • Page 152 WARNING Safety belts and seats can become hot in a vehicle that has been closed up in sunny weather; they could burn a small child. Check seat covers and buckles before you place a child anywhere near them. WARNING Do not leave children, unreliable adults, or pets unattended in your vehicle.
  • Page 153 WARNING When using forward-facing child seats move the passenger seat as far back from the instrument panel as possible. Never secure rear-facing child seats or infant carriers in the front seat. All child restraint systems are designed to be secured in vehicle seats by lap belts or by the lap portion of a lap-shoulder belt.
  • Page 154 Installing Safety Seats in the Front and Rear Seating Positions Your vehicle is equipped with a dual locking mode retractor on the shoulder belt portion of the combination lap/shoulder safety belt for the front seat passenger and rear passengers. If you choose to install a child safety seat in the front seating position, move vehicle seat as far back as possible.
  • Page 155 2. Pull down on shoulder belt, then grasp shoulder belt and lap belt together. See Figure...
  • Page 156 3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions. See Figure 2. Be sure that the belt webbing is not twisted. Routing the lap/shoulder belt...
  • Page 157 4. Insert the belt tongue into the proper buckle for that seating position until you hear and feel the latch engage. See Figure 3. Make sure tongue is latched securely to buckle by pulling on tongue. Buckling the belt.
  • Page 158 5. Grasp the shoulder portion of the belt and pull downward until all of the belt is extracted and a click is heard. At this time, the retractor is in the automatic locking mode (child restraint mode). See Figure 4. NOTE: The dual locking mode retractor must be in the automatic locking mode to properly restrain a child seat.
  • Page 159 6. Allow the belt to retract. A clicking sound will be heard as the belt retracts. This indicates the retractor is in the automatic locking mode. Pull on the lap belt portion across the child seat towards the buckle and continue to pull up on the shoulder belt portion while pushing down on the child seat allowing the shoulder belt to retract to remove any slack in the seat belt.
  • Page 160 7. Before placing the child in the child seat, forcibly tilt the seat from side to side and in forward directions to make sure that the seat is securely held in place. See Figure 7.
  • Page 161 Checking that the seat is secure 8. Double check that the retractor is in the automatic locking mode. Try to pull more belt out of the retractor. If you cannot, the belt is in the automatic locking mode. See Figure 8.
  • Page 162 Checking the retractor 9. Check to make sure that the child seat is properly secured prior to each use. If the retractor is not locked, repeat steps 6 through NOTE: To remove the retractor from automatic lock mode, allow seat belt to retract fully to its stowed position and the retractor will automatically switch back to the vehicle sensitive locking mode for normal adult usage.
  • Page 163 3. Route the tongue and webbing through the child seat according to the child seat manufacturer’s instructions. 4. Insert the belt tongue into the proper buckle for the center seating position until you hear a snap and feel it latch. Make sure the tongue is securely fastened to the buckle by pulling on tongue.
  • Page 164 Additional kits can be obtained and installed at no charge from any Ford or Lincoln-Mercury dealer. Tether strap anchorage locations (rear center seating position only) Refer to Figures 1 and 2.
  • Page 165: Safety Belts For Children

    2. Install the tether strap bracket located directly below the cover. Refer to Figure 2. If the center seating position is not being used, the cover should be kept closed for a neat appearance. Figure 2 Safety Belts for Children Children who are too large for child safety seats should always wear safety belts.
  • Page 166 To improve the fit of lap and shoulder belts on children who have outgrown child safety seats, Ford recommends use of a belt-positioning booster seat that is labelled as conforming to all Federal motor vehicle safety standards. Belt-positioning booster seats raise the child and provide a shorter, firmer seating cushion that encourages safer seating posture and better fit of lap and shoulder belts on the child.
  • Page 167: Starting Your Vehicle

    Starting Fuel-Injected Engines When starting a fuel-injected engine, the most important thing to remember is to avoid pressing down on the accelerator before or during starting. Only use the accelerator when you have problems getting your vehicle started. See Starting Your Engine in this chapter for details about when to use the accelerator while you start your vehicle.
  • Page 168: Starting Your Engine

    3. Make sure that the gearshift is in P (Park) and the parking brake is set before you turn the key. Before you start your vehicle, you should test the warning lights on the instrument panel to make sure that they work. Refer to the Instrumentation chapter.
  • Page 169 For a warm engine: Do not hold the key in the START position for more than five (5) seconds at a time. If the engine does not start within five (5) seconds on the first try, turn the key to the OFF position. Wait a few seconds after the starter stops, then try again.
  • Page 170 A computer system controls the engine’s idle speed. When you start your vehicle, the engine’s idle speed normally runs higher than when it is warmed up. These faster engine speeds will make your vehicle move slightly faster than its normal idle speed. It should, however, slow down after a short time.
  • Page 171 WARNING To prevent electrical shock, do not use your heater with ungrounded electrical systems or two-pronged (cheater) adapters. For best results, plug the heater in at least three hours before you start your vehicle. Using the heater for longer than three hours will not damage the engine, so you can plug it in at night to start your vehicle the following morning.
  • Page 172 WARNING If you smell exhaust fumes inside your vehicle, have your dealer inspect your vehicle immediately. Do not drive if you smell exhaust fumes. Have the exhaust and body ventilation systems checked whenever: your vehicle is raised for service the sound of the exhaust system changes your vehicle has been damaged in a collision Improve your ventilation by keeping all air inlet vents clear of snow, leaves, and other debris.
  • Page 173 Driving Brakes Applying the Brakes Your vehicle has anti-lock disc brakes on all four wheels. They adjust automatically as the brake pads wear down. When you press down hard on the brake pedal, the wheels will not lock and slide. The Anti-lock Brake System (ABS) automatically starts releasing and reapplying the front brakes independently and the rear brakes together whenever your wheels start to...
  • Page 174: Parking Brake

    Do not drive with your foot resting on the brake pedal; you will wear out the linings and increase your vehicle’s stopping distance. Brake rotor damage may also eventually occur. NOTE: If you are driving down a long or steep hill, shift to a lower gear and do not apply your brakes continuously.
  • Page 175 The parking brake WARNING Always set the parking brake fully and make sure the gearshift is latched in P (Park). Turn off the ignition whenever you leave your vehicle. WARNING If the parking brake is fully released, but the Brake System light remains on, have the brakes checked immediately.
  • Page 176 You have an automatic release for the parking brake. The parking brake should automatically unlock when you move the gearshift to any forward gear while the engine is running. However, the automatic release does not work when the gearshift is in reverse, neutral or park. To manually release the parking brake, pull the BRAKE RELEASE handle located on the lower left corner of the instrument panel.
  • Page 177 During the Traction Control function, which most often occurs during low speed acceleration on slippery surfaces, a noise may be heard coming from the engine compartment. This is normal and may last for a few seconds during the acceleration of the vehicle.
  • Page 178 A shutoff switch is located behind an access panel in the left side of the trunk. If this switch is in the OFF position, the rear air suspension system will remain at a constant state, not adjusting for varying loads or driving conditions. Normal vehicle operation does not require any action by the driver.
  • Page 179: Steering Your Vehicle

    Steering Your Vehicle Your vehicle comes with power steering. Power steering uses energy from the engine to help steer your vehicle. If the amount of effort needed to steer your vehicle changes, check your steering effort selection in the Message Center. If this is not the problem, have the power steering system checked.
  • Page 180 Putting Your Vehicle in Gear Your vehicle’s gearshift can be on the column or on the console. WARNING Hold the brake pedal down while you move the gearshift lever from position to position. If you do not hold the brake pedal down, your vehicle may move unexpectedly and injure someone.
  • Page 181 If you need to shift out of P (Park) by using the alternate procedure described above, it is possible that a fuse has blown and that your brakelamps may also not be functional. Please refer to the Servicing Your Continental chapter for instructions on checking and replacing fuses.
  • Page 182 Using a console-mounted gearshift (If equipped) The console-mounted gearshift...
  • Page 183 The console-mounted gearshift thumb button and brake pedal must be depressed to move the gearshift lever out of P (Park). The thumb button pops out automatically when the gearshift latches into position. Once the gearshift is secure, gradually release the brake pedal and use the accelerator as necessary.
  • Page 184 When to use D (Drive) D (Drive) eliminates the excessive shifting between third and fourth gears that your vehicle sometimes does when you are traveling through hilly terrain in j Overdrive. It also gives more engine braking to slow your vehicle on downgrades than j Overdrive.
  • Page 185 The gearshift will lock when you turn the key to the LOCK position. When the gearshift is in any position except P (Park), the ignition key cannot be turned to the LOCK position or removed from the steering column. To remove the key, the gearshift lever must be in P (Park).
  • Page 186 Limiting Your Vehicle’s Load The load that you add to your vehicle must not exceed the maximum load stated on the Safety Compliance Certification Decal attached to the left front door pillar. To figure the weight of your vehicle’s load, add the weights of: the driver and passengers luggage and any other items that you put in...
  • Page 187: Trailer Towing

    If your vehicle exceeds the GVWR, remove cargo from your vehicle accordingly. If your vehicle exceeds the GAWR for either axle, shift the load or remove cargo accordingly. WARNING Improper distribution of your vehicle’s load or carrying weight in excess of the amount shown on the tire decal can cause rapid tire wear or loss of vehicle control.
  • Page 188 WARNING Towing trailers beyond the maximum recommended gross trailer weight exceeds the limit of the vehicle and could result in engine damage, transaxle damage, structural damage, loss of control, and personal injury. WARNING Do not tow a trailer when using a temporary spare tire.
  • Page 189 If you are not certain that you are using the right equipment in the proper manner, see your Ford or Lincoln-Mercury dealer. Do not use hitches that clamp onto your vehicle’s bumper. The bumper is not designed to bear the load.
  • Page 190 Connecting the trailer’s brakes Electric brakes and manual, automatic, or surge-type hydraulic brakes are safe if you install them properly and adjust them according to the manufacturer’s instructions. Be sure that your trailer’s brakes meet local and federal regulations. Separate trailer brakes of adequate size should be used for trailers weighing over 1,000 lbs.
  • Page 191 Driving While You Tow Be especially careful when driving while you tow a trailer. Never drive faster than 45 mph (70 km/h) when you tow in hilly country on hot days. Also, anticipate stops so that you can brake gradually. Towing a trailer increases the load on the engine and transaxle, particularly in hilly country and with heavier trailers.
  • Page 192: Roadside Emergencies

    Roadside Emergencies Hazard Flashers The flashers work whether your vehicle is running or not. The flashers work for up to two hours when the battery is fully charged and in good condition without draining the battery excessively. If the flashers run for longer than two hours or if the battery is not fully charged, the battery can be drained.
  • Page 193 WARNING If you see or smell fuel, do not reset the switch or try to start your vehicle. Have all the passengers get out of the vehicle and call the local fire department or a towing service. If your engine cranks but does not start after a collision or substantial jolt: 1.
  • Page 194 The instrument panel fuse panel location...
  • Page 195 The instrument panel fuse panel...
  • Page 196 The Instrument Panel Fuses...
  • Page 199 These, like fuses, open when the circuit load exceeds their amperage rating. High current fuses may be purchased from your Ford or Lincoln-Mercury dealer. The high current fuse panel is located in the engine compartment on the left-hand fender apron.
  • Page 200 The high current fuse panel location...
  • Page 201 The high current fuse panel...
  • Page 202 The high current fuses...
  • Page 204: Checking And Replacing Fuses

    Checking and Replacing Fuses If you need to check a fuse, follow these steps: 1. Find the fuse panel underneath the instrument panel to the left of the steering column. Squeeze together the two areas indicated by the arrows and pull down to remove the cover. 2.
  • Page 205 4. Replace the fuse with one that has the right amperage rating. (See the following charts.) WARNING Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.
  • Page 206: Changing A Tire

    Changing a Tire If you get a flat tire while you are driving, do not apply the brake heavily. Instead, gradually decrease the speed. Hold the steering wheel firmly and slowly move to a safe place on the side of the road. Park on a level spot, turn off the ignition, set the parking brake, and turn on the hazard flashers.
  • Page 207: Spare Tire Location

    use the wheel for any other type of vehicle. drive through an automatic car wash with this tire. Because the temporary spare tire is smaller than a conventional tire, it reduces the ground clearance. Your vehicle may get caught in the rails and it could be damaged.
  • Page 208 To remove the spare tire: 1. Remove the spare tire cover. 2. Unscrew the wing-nut holding down the spare tire. 3. Lift out the spare tire and jack kit. Preparing to Change the Tire 1. Make sure that your vehicle will not move or roll.
  • Page 209 2. Get out the spare tire and jack. WARNING To avoid injury, never run the engine with one wheel off the ground, such as when changing a tire. 3. Remove the center ornament from the aluminum wheel with the tapered end of the wheel nut wrench which came with your vehicle.
  • Page 210 The notches for the jack 2. Turn the jack handle clockwise until the wheel clears the ground. Remove the wheel lug nuts. 3. Replace the flat tire with the spare tire, making sure that the air valve stem is facing outward. 4.
  • Page 211 (not the dealer) to get a replacement key. NOTE: If entire lug wrench/lug nut key assembly is lost, see your nearest Ford or Lincoln-Mercury dealer who has access to a master set of keys. NOTE: DO NOT USE A POWER IMPACT...
  • Page 212: Jump-Starting Your Vehicle

    The anti-theft lug nut and key Removing the anti-theft lug nut Insert the key over the locking lug nut. Make sure that you hold the key square to the lug nut. If you hold the key on an angle, you may damage the key and the lug nut.
  • Page 213 WARNING To protect yourself when charging a battery, always shield your face and eyes. Make sure that you can breathe fresh air. WARNING Applying too much pressure on the ends when lifting a battery could cause acid to spill. Lift the battery with a carrier or with your hands on the opposite corners.
  • Page 214: Preparing Your Vehicle

    Preparing Your Vehicle 1. Your vehicle has a 12-volt starting system, so you need to use a 12-volt jumper system. You will damage your starting motor, ignition system, and other electrical parts if you connect them to a 24-volt power supply (either two 12-volt batteries in series or a 24-volt generator set).
  • Page 215 Connecting the jumper cables 1. Connect one end of the first jumper cable to the positive (+) terminal of the discharged battery. (You can connect either jumper cable to the positive (+) terminal, as long as you use the same cable for both positive terminals.) Most jumper cables have a red cable and a black cable.
  • Page 216 The engine with jumper cables...
  • Page 217 Jump-Starting 1. Make sure that the jumper cables are not in the way of moving engine parts, then start the booster vehicle. Run the engine at a moderate speed. 2. Let the discharged battery charge for a few minutes and then start the disabled vehicle. It may take a couple of tries before the vehicle starts.
  • Page 218: Towing Your Vehicle

    Towing Your Vehicle If you need to have your vehicle towed, contact a professional towing service or, if you are a member, your roadside assistance center. Typical towing options include wheel lift towing or flat bed towing. Front towing...
  • Page 219 (out of gas, need a tow, etc.) or emergency assistance (involved in an accident, report a crime or fire, require medical attention, etc.). See Lincoln RESCU System in the Features chapter for more information.
  • Page 220: Maintenance And Care

    Maintenance and Care Service Made Easy Ford has two goals for servicing your vehicle. 1. When we can, we design parts that do not need to be serviced. 2. We want to make servicing your vehicle as easy as possible. To help you: We highlight do-it-yourself items in yellow in the engine compartment so that you can find them easily.
  • Page 221 Use only recommended fuels, lubricants, fluids, and service parts conforming to Ford specifications. Motorcraft parts are designed and built to provide the best performance in your vehicle. Using these parts for replacement is your assurance that Ford-built quality stays in your vehicle. NOTE: Always dispose of used automotive fluids in a responsible manner.
  • Page 222 Precautions When Servicing Your Vehicle Be especially careful when inspecting or servicing your vehicle. Here are some general precautions for your safety: Do not work on a hot engine. The engine cooling fan may come on unexpectedly. Always turn the engine off and let it cool. WARNING The cooling fan is automatic and may come on at any time.
  • Page 223 Working with the engine off: 1. Set the parking brake fully and make sure that the gearshift is securely latched in P (Park). 2. Remove the key from the ignition after you turn the engine off. 3. Block the wheels. This will prevent your vehicle from moving unexpectedly.
  • Page 224 Opening the Hood 1. Inside the vehicle, pull the hood release handle located under the bottom left corner of the instrument panel. The hood release under the instrument panel...
  • Page 225: Engine Compartment

    2. Go to the front of the vehicle and release the auxiliary latch that is located under the hood at the center of the vehicle. The auxiliary latch under the front edge of the hood 3. Lift the hood until the lift cylinders hold it open.
  • Page 226 Engine compartment service points...
  • Page 227 Engine Oil Recommendations We recommend using Motorcraft oil or an equivalent oil meeting Ford Specification WSS-M2C153-F and displaying the American Petroleum Institute CERTIFICATION MARK on the front of the container. The API Certification Mark Never use: “Non-Detergent” oils Oils labeled API SA, SB, SC, SD, SE, SF or SG Additional engine oil additives, oil treatments or engine treatments Engine oils with an SAE 5W-30 viscosity are...
  • Page 228 Checking and Adding Engine Oil Since the proper amount of engine oil is important for safe engine operation, check the oil using the dipstick each time you put fuel in your vehicle. Remember the engine must be off, the oil must be warm and the vehicle must be parked on level ground.
  • Page 229 It may be necessary to add some oil between oil changes. Make sure you use a CERTIFIED engine oil of the preferred viscosity. Your vehicle’s warranty coverage may not apply if engine damage is caused by the use of improper engine oil. Add engine oil through the oil filler cap highlighted in yellow.
  • Page 230: Brake Fluid

    WARNING Continuous contact with USED motor oil has caused cancer in laboratory mice. Protect your skin by washing with soap and water. Brake Fluid Under normal circumstances, your vehicle should not use up brake fluid rapidly. However, expect the level of the brake fluid to slowly fall as you put more mileage on your vehicle and the brake linings wear.
  • Page 231: Windshield Washer Fluid

    If you find that the fluid level is excessively low — below the seam or ridge on the outside of the plastic reservoir — have the brake system inspected. WARNING Do not let the reservoir for the master cylinder run dry. This may cause the brakes to fail.
  • Page 232: Engine Coolant

    WARNING Do not put windshield washer fluid in the container for the engine coolant. Use specially formulated windshield washer fluid rather than plain water, because specially formulated washer fluids contain additives that dissolve road grime. For safety reasons, washer fluids containing an appropriate antifreeze such as methanol should be used in freezing weather (temperatures below 32˚F [0˚C]).
  • Page 233: Adding Engine Coolant

    The engine coolant reservoir Your vehicle’s coolant protects your engine from overheating in the summer and from freezing in the winter. Check the level of the coolant at least once a month. Simply look at the engine coolant reservoir located in the engine compartment. To locate the reservoir, see the diagram of your vehicle’s engine under Engine Type, in this chapter.
  • Page 234 If sprayed on the windshield, engine coolant could make it difficult to see through the windshield. When the engine is cool, add a 50/50 mixture of engine coolant and water to the engine coolant recovery reservoir — DO NOT ADD DIRECTLY TO THE RADIATOR.
  • Page 235 Recycled engine coolant Ford Motor Company recommends that Ford and Lincoln-Mercury dealers use recycled engine coolant produced by Ford-approved processes. Not all coolant recycling processes produce coolant which meets Ford specification ESE-M97B44-A, and use of such coolant may harm engine and cooling system components.
  • Page 236 Engine Coolant Refill Procedure Proper procedures for a complete coolant drain and flush of the cooling system can be found in the Car Service Manual. Following these recommended procedures will ensure that the specified coolant level and a 50/50 or appropriate mixture of coolant and water is maintained.
  • Page 237 Select maximum heater temperature and fan speed settings. Position control to discharge air at A/C vents in instrument panel. Start engine and allow to idle. While engine is idling, feel for hot air at A/C vents. NOTE: IF AIR DISCHARGE REMAINS COOL AND ENGINE TEMPERATURE GAUGE DOES NOT MOVE, SHUT ENGINE OFF IMMEDIATELY.
  • Page 238: Power Steering Fluid

    Power Steering Fluid Check the level of the power steering fluid at least twice a year (i.e., every Spring and Fall). Checking and Adding Power Steering Fluid 1. Start the engine and let it run until the power steering fluid reaches normal operating temperature.
  • Page 239: Automatic Transaxle Fluid

    The power steering fluid reservoir Use only MERCON ATF power steering fluid. If the power steering fluid is low, do not drive your vehicle for a long period of time before adding fluid. This can damage the power steering pump. Automatic Transaxle Fluid Under normal circumstances, you do not need to check the fluid level of the transaxle, since your...
  • Page 240 Checking the Automatic Transaxle Fluid With the vehicle on a level surface and the brake fully applied, start the engine and move the gear shift selector through all of the gears allowing sufficient time for each position to engage. Securely latch the gear shift selector in the P (Park) position.
  • Page 241 Adding Automatic Transaxle Fluid Before adding any fluid, be sure that the correct type will be used. Correct type is shown on the dipstick. Add fluid in 1/2 pint (.25L) increments through the filler tube to bring the level to the correct area on the dipstick.
  • Page 242 The low-maintenance battery has removable vent caps for checking the electrolyte level and adding water. The electrolyte level should be checked at least every 24 months or 24,000 miles (40,000 km) in temperatures up to 90˚F (32˚C) and more often in temperatures above 90˚F (32˚C). Keep the electrolyte level in each cell up to the level indicator.
  • Page 243: Wiper Blades

    If you do not let the engine relearn its idle, the idle quality of your vehicle may be adversely affected until the idle is relearned. Your vehicle will eventually relearn its idle while you drive it, but it takes much longer than if you use the previous procedure.
  • Page 244: Wiper Blade Replacement

    Wiper blade replacement If the wiper blades still do not work properly after you clean them, you may need to replace the wiper blade assembly or the blade element. When replacing the wiper blade assembly, blade refill, or wiper arm always use a Motorcraft part or equivalent.
  • Page 245 Pressure Alert System Each of your SecuriTires is monitored by a low tire pressure sensor. A warning will appear in the overhead console when the pressure in one of your tires drops below acceptable levels or if the system has malfunctioned. The Low Tire Pressure warning in the overhead console THIS DEVICE COMPLIES WITH FCC RULES,...
  • Page 246 If the warning remains on after you have adjusted the tires to recommended air pressure levels, take your vehicle to an authorized Lincoln/Mercury dealer for service. Flat Tire Warning If the sensors detect a tire pressure lower than 10 psi (68 kps), the “Low Tire Pressure” warning will flash repeatedly in the overhead console and the message “Warning Low Tire Pressure”...
  • Page 247 It is recommended that you always have your SecuriTires serviced by an authorized Michelin tire dealer. Each SecuriTire is equipped with a pressure sensor around the wheel rim. This sensor could be damaged when removing and installing the tire. Servicing a SecuriTire at locations other than your Michelin tire dealer may adversely affect your warranty.
  • Page 248: Tire Rotation

    Tire Rotation Because your vehicle’s front and rear tires perform different jobs, they often wear differently. To make sure your tires wear evenly and last longer, rotate them as indicated in the following diagram. Do not include the spare tire as part of your rotation.
  • Page 249 Replacing the Tires Replace any tires that show wear bands. When your tire shows a wear band, it has only 1/16 inch (2 mm) of tread left. A worn-out tire Because your vehicle’s tires may wear unevenly, you may need to replace them before a wear band appears across the entire tread.
  • Page 250: Traction A B C

    Information About Tire Quality Grades New vehicles are fitted with tires that have their Tire Quality Grade (described below) molded into the tire’s sidewall. These Tire Quality Grades are determined by standards that the United States Department of Transportation has set. Tire Quality Grades apply to new pneumatic tires for use on passenger cars.
  • Page 251 WARNING The traction grade assigned to this tire is based on braking (straightahead) traction tests and does not include cornering (turning) traction. Temperature A B C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel.
  • Page 252: Filling The Fuel Tank

    WARNING Snow tires must be the same size and grade as the tires you currently have on your vehicle. Filling the Fuel Tank The fuel filler door cannot be opened from outside the vehicle. To unlatch the fuel door, push on the fuel door button located on the driver side door trim.
  • Page 253 Fuel door release — manual override 1. After opening the fuel filler door, remove the cap carefully and slowly by turning it counterclockwise 1/2 to 3/4 turn. If a hissing sound is heard, wait until it stops, then continue turning until the cap is free. WARNING The fuel system may be under pressure.
  • Page 254 WARNING If you do not use the proper fuel cap, the pressure in the fuel tank can damage the fuel system or cause it to work improperly in a collision. NOTE: If you replace your fuel cap with an aftermarket fuel filler cap, the customer warranty may be void for any damage to the fuel tank and/or fuel system.
  • Page 255 Typical octane rating label Do not be concerned if your vehicle sometimes knocks lightly. However, if it knocks heavily under most driving conditions on the recommended octane fuel, see your dealer or a qualified service technician to prevent any engine damage. Fuel quality If you are experiencing starting, rough idle or hesitation problems try a different brand of fuel.
  • Page 256 Safety Information Relating to Automotive Fuels WARNING Automotive fuels can cause serious injury or death if misused or mishandled. Turn vehicle off when refueling. Do not smoke when refueling. Fuels are extremely flammable. Do not siphon any fuel by mouth. WARNING Gasoline or gasoline blended with methanol can cause blindness and...
  • Page 257: Running Out Of Fuel

    Running Out of Fuel NOTE: Avoid running out of fuel because this situation may have an adverse effect on modern powertrain components. You may need to crank the engine several times before the fuel system starts to pump fuel from the tank to the engine.
  • Page 258 English: MPG = (total miles)/(gallons used). Metric: L/100K = (liters used) x 100/(total kilometers) Comparisons With Environmental Protection Agency (EPA) and Transport Canada (TC) Fuel Economy Estimates EPA fuel economy figures are obtained from laboratory tests under simulated road conditions and may not reflect the actual conditions you experience or your style of driving.
  • Page 259: Emission Control System

    The following procedures require only a tire gauge, a rag, an oil can spout and windshield washer fluid. Check the engine oil at every refueling stop Clean the windshield, outside mirrors and headlights Check windshield washer fluid Check tires for excessive wear or worn edges Check the tire pressure at least monthly Emission Control System Your vehicle is equipped with three (3) catalytic...
  • Page 260 Have the services listed in the Maintenance Schedule booklet performed according to the specified schedule. The scheduled maintenance services are required because they are considered essential to the life and performance of your vehicle and to its emissions system. In general, maintenance, replacement, or service of the emissions control devices or systems in your new Ford Motor Company vehicle or engine may be performed at your expense by any automotive...
  • Page 261 Do not make any unauthorized changes to your vehicle or engine. Changes that cause more unburned fuel to reach the exhaust system can increase the temperature of the engine or exhaust system. By law, anyone who manufactures, repairs, services, sells, leases, trades vehicles, or supervises a fleet of vehicles is not permitted to intentionally remove an emission control device or prevent it from working.
  • Page 262 The driving modes required to reach the ready condition consist of a minimum of 30 minutes of city and highway driving as described below: At least twenty minutes driving in stop and go, city type traffic with at least four idle periods. At least ten minutes of driving on an expressway or highway.
  • Page 263 Headlamp Bulb The headlamps on your vehicle use replaceable bulbs. When the lamp burns out, simply replace the bulb, rather than the whole lamp. WARNING Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass.
  • Page 264 3. At the back of the headlamp, pull back and up slightly on the two right angle brackets to release the headlamp assembly from the vehicle. 4. Carefully pull the headlamp assembly away from the vehicle to expose the back of the bulb and wiring connector.
  • Page 265 5. Hold the headlamp assembly snugly against the vehicle and push down on the right angle brackets to lock the lamp into position. 6. Install the plastic sight shield. 7. Turn the headlamps on and make sure that they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again.
  • Page 266 Before adjusting your headlamps, you must make sure that the air suspension has been adjusted to the proper ride height. In order to do this: 1. Position the vehicle on a level surface. 2. Make sure the air suspension switch in the luggage compartment is in the ON position.
  • Page 267 Horizontal aim adjustment 1. Open the hood and lift the front end cover from its velcro attachments. Locate the horizontal level indicator and adjustment screw. 2. Use a 4mm socket and ratchet to turn the horizontal adjusting screw until the horizontal indicator is in line with the “0”...
  • Page 268 Bulb specifications...
  • Page 269: Cleaning Your Vehicle

    Cleaning Your Vehicle Washing and Polishing Your Vehicle Wash the outside of your vehicle, including the underside, with a mild detergent. DO NOT: Wash your vehicle with hot water Wash your vehicle while it sits in direct sunlight Wash your vehicle while the body is hot Pollen, bird droppings and tree sap can damage the paint, especially in hot weather.
  • Page 270 Cleaning Plastic Parts Some of your vehicle’s exterior trim parts are plastic. Clean with a tar and road oil remover if necessary. Use a vinyl cleaner for routine cleaning. Do not clean plastic parts with thinners, solvents or petroleum-based cleaners. If you have your vehicle rustproofed, remove oversprayed rustproofing with a tar and road oil remover.
  • Page 271 Cleaning the Seats Leather For routine cleaning, wipe the surface with a soft, damp cloth. For more thorough cleaning, wipe the surface with a leather and vinyl cleaner or a mild soap. Wipe the surface with a damp, soft cloth, then dry and buff with a dry, soft cloth.
  • Page 272: Capacities And Specifications

    Capacities and Specifications Refill Capacities, Motorcraft Parts, and Lubricant Specifications Motorcraft Parts...
  • Page 273 Fluid Specifications and Capacities...
  • Page 274 Lubricant Specifications...
  • Page 275: Vehicle Storage

    NOTE: Rear axle lube quantities must be replaced every 100,000 miles (160,000 km) or if the axle has been submerged in water. Otherwise, the lube should not be checked or changed unless a leak is suspected or repair required. Vehicle Storage Maintenance Tips If you plan on storing your vehicle for an extended period of time (60 days or more), refer to the...
  • Page 276 Engine Start engine every 15 days. Run at fast idle until it reaches normal operating temperature. With your foot on the brake, shift through all the gears while the engine is running. Fuel system Fill fuel tank with high-quality, premium unleaded fuel until the first automatic shutoff of the fuel pump nozzle.
  • Page 277 Battery Check and recharge as necessary. Keep connections clean and covered with a light coat of grease. If storing your vehicle for more than 30 days without recharging the battery, disconnect the battery cables to ensure battery charge is maintained for quick starting. NOTE: If battery cables are disconnected, it will be necessary to reset any memory features (eg.
  • Page 278: Customer Assistance

    Ford recommends taking your vehicle to your selling dealer who wants to ensure your continued satisfaction. You may, however, take your vehicle to any authorized Ford or Lincoln-Mercury dealer. In most cases, your dealer will be able to resolve your concern.
  • Page 279: The Dispute Settlement Board

    If you have any questions or concerns that the dealership cannot answer, contact the Customer Assistance Center. If you still have a complaint involving a warranty dispute, you may wish to contact the Dispute Settlement Board (U.S. only) or the Canadian Motor Vehicle Arbitration Plan (CAMVAP) in Canada.
  • Page 280 What Kind of Cases Does the Board Review? The Board reviews all warranty performance complaints on Ford, Mercury and Lincoln cars and Ford and Mercury light trucks under the new vehicle limited warranty that have not been resolved by either a dealer or Ford Motor Company,...
  • Page 281 How does the Board Work? The Board consists of: three consumer representatives a Ford or Lincoln/Mercury dealer Consumer candidates for Board membership are recruited and trained by an independent consulting firm. Dealers are chosen because of their business leadership qualities.
  • Page 282 a brief summary of the action taken with the dealer and Ford Motor Company the names (if known) of all the people you contacted at the dealership a description of the action you expect to resolve your concern Should your case NOT qualify for review, a letter of explanation will be mailed to you.
  • Page 283 If you live in Canada and have any questions or concerns that the dealership cannot answer, contact the Lincoln Centre. Please have the following information available when contacting the Lincoln Centre: your telephone number (both business and home) the name of the dealer and the city where the...
  • Page 284: Canada Only

    Vehicle Identification Number (VIN/Serial Number) Mediation/Arbitration Program (Canada Only) In those cases where you continue to feel that the efforts by Ford and the dealer to resolve a factory-related vehicle service concern have been unsatisfactory, Ford of Canada participates in an impartial third party mediation/arbitration program administered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
  • Page 285 Getting Help Outside the U.S. and Canada Before you export your vehicle to a foreign country, contact the appropriate foreign embassy or consulate to make sure local regulations do not prevent you from registering your vehicle. Officials at the embassy can also help you decide whether you should import your vehicle to that country.
  • Page 286 If your vehicle must be serviced while you are traveling or living in Central or South America, the Caribbean, or the Middle East, contact the nearest Ford dealership. If the dealership cannot help you, write to: If you are in other foreign countries, contact the nearest Ford dealership.
  • Page 287 Accessories Ford Accessories for Your Vehicle A wide selection of accessories is available through your local authorized dealer. These fine accessories have been engineered specifically to fulfill your automotive needs. They are custom designed to complement the style and aerodynamic appearance of your Ford-built vehicle.
  • Page 288 NOTE: When adding accessories, equipment, passengers, and luggage to your vehicle, do not exceed the total weight capacity of the vehicle or of the front or rear axle (GVWR, GAWR as shown on the Safety Compliance Certification Label). Consult your dealer for specific weight information.
  • Page 289 NOTE: The Federal Communications Commission (FCC) or the Canadian Radio Telecommunications Commission (CRTC) regulates the use of mobile communications systems — such as two-way radios, telephones, and theft alarms — that are equipped with radio transmitters. Any such equipment installed in your vehicle should comply with FCC or CRTC regulations and should be installed only by a qualified technician.
  • Page 296 Front Exterior View...
  • Page 297 Rear Exterior View...
  • Page 298 Entrance View...
  • Page 299 Driver’s Door...
  • Page 300 Instrument Panel...
  • Page 301 Instrument Cluster...
  • Page 302 Trunk...
  • Page 303 Engine Compartment...
  • Page 304 Index ABS warning light (see Anti-lock brake system) ... . Accessory position on the ignition ..Accident damage ... . 220 Air bag supplemental restraint system .
  • Page 305 Anti-theft system (continued) disarming an untriggered system ..128 disarming a triggered system..129 triggering ... warning light ... . Appeals (see Dispute settlement board) .
  • Page 306 description ... . . 229 specifications ... . 273 Brakes ....171 adjustment .
  • Page 307 Child safety restraints ..148 child safety belts ... 162 child safety seats ... 149 Child safety seats .
  • Page 308 Clutch fluid reservoir ... . 229 specifications ... . 273 Cold engine starting ..166 Combination lap and shoulder belts .
  • Page 309 Electronic sound system (continued) warranty and service information ..Electronic stereo cassette radio (see Electronic sound system) ..Electronic stereo radio (see Electronic sound system) ... . Emergencies, roadside fuel .
  • Page 310 checking and adding ..227 check oil warning light ..dipstick ....227 disposal .
  • Page 311 Fuel cap (continued) replacing ....251 Fuel filler door ... . . 251 remote release ... . 251 Fuel filter, specifications .
  • Page 312 calculating ... . . 184 definition ....183 driving with a heavy load ..183 location .
  • Page 313 Jack ....206 operation ... positioning ..storage .
  • Page 314 rear ABS ....safety belt....service engine soon ..theft system .
  • Page 315 On-board diagnostic (OBD II) system . . . 260 Overdrive ....181 Overseas offices ... . 286 Panic alarm feature, remote entry system .
  • Page 316 replacement/additional transmitters . . . 125 replacing the batteries ..124 Reporting safety defects ..277 Restraints, safety (see Safety restraints) adult ... . . child .
  • Page 317 Safety seats for children (continued) in rear seat ... . . 149 tether anchorage hardware ..160 Seat belts (see Safety restraints) ..135 Seats .
  • Page 318 Steering wheel horn ....locking ....tilting ....Storage compartments, center console .
  • Page 319 Trailer towing (continued) trailer lamps... . . 188 Transaxle automatic operation ..fluid, checking and adding (automatic) ..fluid, refill capacities .
  • Page 320 Warm engine, starting..166 Warning chimes headlamps on ... . key in ignition ... . safety belt.
  • Page 321 Service Station Information...

Table of Contents
