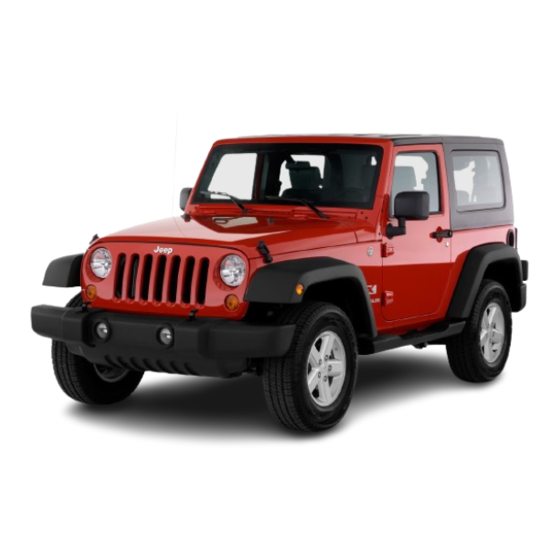

Jeep 2009 Wrangler Owner's Manual

Jeep 2009 Wrangler Owner's Manual

Hide thumbs Also See for 2009 Wrangler:

Owenrs manual (502 pages)

,

Owner's manual (476 pages)

,

Brochure & specs (30 pages)

page of 496

/ 496
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

Download this manual See also: Owenrs Manual, Warranty Information Booklet

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the 2009 Wrangler and is the answer not in the manual?

Questions and answers

Summary of Contents for Jeep 2009 Wrangler

Page 2 With respect to any Vehicles Sold in Canada, the name Chrysler LLC shall be deemed to be deleted and the name Chrysler Canada Inc. used in substitution therefor. Drunken driving is one of the most frequent causes of accidents. Your driving ability can be seriously impaired with blood alcohol levels far below the legal minimum.
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION ............3 INTRODUCTION THINGS TO KNOW BEFORE STARTING YOUR VEHICLE UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
Page 5 CONTENTS Introduction ......4 Rollover Warning ..... . . 5 How To Use This Manual .
Page 6: Introduction
4 INTRODUCTION INTRODUCTION Congratulations on selecting your new Chrysler LLC vehicle. Be assured that it represents precision workman- ship, distinctive styling, and high quality - all essentials that are traditional to our vehicles. This is a specialized utility vehicle designed for both on-road and off-road use.
Page 7: Rollover Warning
the instructions and recommendations in this manual will help assure safe and enjoyable operation of your vehicle. NOTE: After you read the manual, it should be stored in the vehicle for convenient referencing and remain with the vehicle when sold, so that the new owner will be aware of all safety warnings.
Page 8: How To Use This Manual
6 INTRODUCTION Do not attempt sharp turns, abrupt maneuvers, or other unsafe driving actions that can cause loss of vehicle control. Failure to operate this vehicle safely may result in an accident, rollover of the vehicle, and severe or fatal injury.
Page 9 INTRODUCTION 7...
Page 10: Warnings And Cautions
8 INTRODUCTION WARNINGS AND CAUTIONS This Owner’s Manual contains WARNINGS against op- erating procedures that could result in an accident or bodily injury. It also contains CAUTIONS against proce- dures that could result in damage to your vehicle. If you do not read this entire manual, you may miss important information.
Page 11: Things To Know Before Starting Your Vehicle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CONTENTS A Word About Your Keys ....12 Ignition Key Removal ....12 Key-In-Ignition Reminder .
Page 12 10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Using The Panic Alarm ....21 To Turn Off “Flash Lights With Lock” ..21 Programming Additional Transmitters .
Page 13 Rear Center Lap/Shoulder Belt Retractor Lockout (Four-Door Models Only) ..44 Adjustable Upper Shoulder Belt Anchorage ......45 Seat Belt Pretensioners .
Page 14: Things To Know Before Starting Your Vehicle
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD ABOUT YOUR KEYS The keys for your new vehicle are enclosed in a plastic bag with the key code number on it. If you received your keys without the bag, ask your authorized dealer to give you the number.
Page 15: Key-In-Ignition Reminder
Manual Transmission — If Equipped 1. Turn the ignition switch to the ACC (ACCESSORY) position. 2. Push the ignition key inward. 3. Turn the ignition key to the LOCK position, and remove the key. WARNING! Leaving unattended children in a vehicle is danger- ous for a number of reasons.
Page 16: To Manually Lock The Steering Wheel
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To Manually Lock the Steering Wheel With the engine running, rotate the steering wheel one– half revolution from the straight ahead position, turn off the engine, and remove the key. Rotate the steering wheel slightly in both directions until the lock engages.
Page 17: Replacement Keys
If the Vehicle Security Light turns on during normal vehicle operation (vehicle running for longer than 10 sec- onds), it indicates that there is a fault in the electronics. Should this occur, have the vehicle serviced as soon as possible by an authorized dealer. NOTE: •...
Page 18: Customer Key Programming
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE dealer or by following the customer key programming procedure. This procedure consists of programming a blank key to the vehicle electronics. A blank key is one that has never been programmed. NOTE: When having the Sentry Key System serviced, bring all vehicle keys with you to an authorized dealer.
Page 19: General Information
The new Sentry Key is programmed. The Remote Keyless Entry (RKE) transmitter will also be pro- grammed during this procedure. Repeat this procedure to program up to eight keys. If you do not have a programmed Sentry Key , contact your authorized dealer for details.
Page 20: Rearming The System
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE differences in the horn. In case one should go off in the future, you will need to know which mode has been activated in order to deactivate it. Rearming The System If something triggers the alarm, and no action is taken to disarm it, the Vehicle Security Alarm will turn off the horn after three minutes, turn off all of the visual signals after 15 minutes, and then the Vehicle Security Alarm will...
Page 21: Illuminated Entry
button on the RKE transmitter to disarm the Vehicle Security Alarm. You may also accidentally disarm the Vehicle Security Alarm by unlocking the driver’s door with the key and then locking it. The door will be locked but the Vehicle Security Alarm will not arm. ILLUMINATED ENTRY The interior lights will come on when you open any door.
Page 22: To Unlock The Doors And Swing Gate
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To Unlock the Doors and Swing Gate Press and release the RKE transmitter UNLOCK button once to unlock the driver’s door only, or twice to unlock all the doors and swing gate. When the RKE transmitter UNLOCK button is pressed, the Illuminated Entry will initiate and the parking lights will flash twice.
Page 23: To Lock The Doors And Swing Gate
To Lock the Doors and Swing Gate Press and release the LOCK button on the RKE transmit- ter to lock all doors. The turn signals will flash and the horn will chirp once to acknowledge the lock signal. If desired, the “Sound Horn On Lock” feature can be turned on or off using the following steps: 1.
Page 24: Programming Additional Transmitters
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. While the UNLOCK button is pressed, (after four seconds) press the RKE transmitter LOCK button. Re- lease both buttons. 3. Test the “Flash Lights With Lock” feature outside of the vehicle, by pressing the RKE transmitter LOCK button with the ignition in the LOCK position, and the key removed.
Page 25: Transmitter Battery Replacement
If your RKE transmitter fails to operate from a normal distance, check for these two conditions: 1. Weak battery in the RKE transmitter. The expected life of battery is five years. 2. Closeness to a radio transmitter such as a radio station tower, airport transmitter, military base, and some mobile or CB radios.
Page 26: Remote Starting System - If Equipped
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: If the RKE transmitter is equipped with a screw, reinstall and tighten the screw until snug. REMOTE STARTING SYSTEM — IF EQUIPPED This system uses the Remote Keyless Entry (RKE) transmitter to start the engine conve- niently from outside the vehicle while still maintaining security.
Page 27 To Enter Remote Start Press and release the REMOTE START button on the RKE transmitter twice, within five sec- onds. The parking lights will flash and the horn will chirp twice (if programmed). Then, the engine will start and the vehicle will remain in the Remote Start mode for a 15-minute cycle.
Page 28: Doors
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To Exit Remote Start Mode and Drive the Vehicle Before the end of the 15-minute cycle, press and release the UNLOCK button on the RKE transmitter to unlock the doors and disarm the Vehicle Security Alarm (if equipped).
Page 29: Upper Half Door Window Installation - If Equipped
Upper Half Door Window Installation — If Equipped 1. Grasp the half door window and line up pins into pockets in lower door. 2. Push down to ensure the half door window is fully seated. Front Door Removal 1. Remove the hinge pin screws from the upper and lower outside hinges (using a #T50 Torx head driver).
Page 30 28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: If the red latch on the connector is locked, push the red latch to the right until you can only see the latch on one end (right) of the connector. This will unlock the connector tab, allowing the tab to be pressed down and enabling the harness to be disconnected.
Page 31: Rear Door Removal (Four-Door Models)
Rear Door Removal (Four-Door Models) 1. Remove the hinge pin screws from the upper and lower outside hinges (using a #T50 Torx head driver). THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29 2. Slide the front seat(s) fully forward. 3. Remove the trim access door from the bottom of B-pillar.
Page 32: Door Locks
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: If the red latch on the connector is locked, push the red latch to the right until you can only see the latch on one end (right) of the connector. This will unlock the connector tab, allowing the tab to be pressed down and enabling the harness to be disconnected.
Page 33 Manual Door Lock THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31 WARNING! • For personal security reasons and safety in an accident, lock the vehicle doors when you drive, as well as when you park and leave the vehicle. • Never leave children alone in a vehicle. Leaving unattended children in a vehicle is dangerous for a number of reasons.
Page 34: Power Door Locks - If Equipped
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Power Door Locks — If Equipped The door lock switch is located on each front door panel. Press the switch downward to lock the doors, and upward to unlock the doors. Power Door Lock Switch WARNING! •...
Page 35: Automatic Door Locks
2. The transmission was in gear and the vehicle speed returned to 0 mph (0 km/h). 3. The transmission shift lever is in NEUTRAL or PARK. 4. The driver door is opened. 5. The doors were not previously unlocked. 6. The vehicle speed is 0 mph (0 km/h). Automatic Unlock Doors on Exit Programming The “Automatic Unlock Doors On Exit”...
Page 36: Windows
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 6. The doors were not previously locked using the power door lock switch or Remote Keyless Entry (RKE) transmitter. Automatic Door Locks Programming The “Automatic Door Locks” feature can be enabled or disabled as follows: 1.
Page 37 Power Window Switches Window Lockout Switch (Four-Door Models Only) The window lockout switch (located between the win- dow switches) allows you to disable the rear window switches that are located on the back of the center floor THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35 console.
Page 38: Rear Power Windows (Four-Door Models Only)
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Rear Power Windows (Four-Door Models Only) The rear passenger window switches are located on the back of the center floor console. Rear Power Window Switches (Four-Door Models) Wind Buffeting Wind buffeting can be described as the perception of pressure on the ears or a helicopter-type sound in the ears.
Page 39 Gate Handle NOTE: Close the rear flip-up window before attempting to close the swing gate (hard top models only). THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37 CAUTION! Do not press on rear wiper blade when closing the rear flip-up window, as damage to the blade will result.
Page 40: Occupant Restraints
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE OCCUPANT RESTRAINTS Some of the most important safety features in your vehicle are the restraint systems. These include the front and rear seat belts for the driver and all passengers, front airbags for both the driver and front passenger, and side airbags (if equipped) for both the driver and front passenger.
Page 41: Lap/Shoulder Belts
inside of the vehicle. Everyone in a motor vehicle should be belted at all times to reduce or prevent injuries. Lap/Shoulder Belts All seating positions in your vehicle have combination lap/shoulder belts. The belt webbing retractor is de- signed to lock during very sudden stops or collisions. This feature allows the shoulder part of the belt to move freely with you under normal conditions.
Page 42 40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! (Continued) • Two people should never be belted into a single seat belt. People belted together can crash into one another in an accident, hurting one another badly. Never use a lap/shoulder belt or a lap belt for more than one person, no matter what their size.
Page 43 Inserting Latch Plate into Buckle THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41 WARNING! • A belt that is buckled into the wrong buckle will not protect you properly. The lap portion could ride too high on your body, possibly causing internal injuries.
Page 44 42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! (Continued) • A shoulder belt placed behind will not protect you from injury during a collision. You are more likely to hit your head in a collision if you do not wear your shoulder belt.
Page 45 WARNING! • A lap belt worn too high can increase the risk of internal injury in a collision. The belt forces won’t be at the strong hip and pelvic bones, but across your abdomen. Always wear the lap belt as low as possible and keep it snug.
Page 46: Rear Center Lap/Shoulder Belt Retractor Lockout (Four-Door Models Only)
44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Rear Center Lap/Shoulder Belt Retractor Lockout (Four-Door Models Only) This feature is designed to lock the retractor whenever the 60% rear seatback is not fully latched. This prevents someone from wearing the rear center lap/shoulder belt when the rear seatback is not fully latched.
Page 47: Adjustable Upper Shoulder Belt Anchorage
Adjustable Upper Shoulder Belt Anchorage In the front seat positions, the shoulder belt anchorage can be adjusted upward or downward to position the belt away from your neck. Push in on the anchorage near your outside shoulder and slide it up or down to reach the position that serves you best.
Page 48: Enhanced Seat Belt Use Reminder System (Beltalert )
46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE occupant early in a collision. Pretensioners work for all size occupants, including those in child restraints. NOTE: These devices are not a substitute for proper seat belt placement by the occupant. The seat belt must still be worn snugly and positioned properly.
Page 49: Seat Belts And Pregnant Women
3. Within 60 seconds of starting the vehicle, unbuckle and then re-buckle the driver’s seat belt at least three times within 10 seconds, ending with the seat belt buckled. 4. Turn the ignition key to the OFF position. A single chime will sound to signify that you have successfully completed the programming.
Page 50: Supplemental Restraint Systems (Srs)
48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! Using a seat belt extender when not needed can increase the risk of injury in a collision. Only use when the seat belt is not long enough when it is worn low and snug, and in the recommended seating positions.
Page 51 The front airbags have a multistage inflator design. This may allow the airbag to have different rates of inflation that are based on collision severity. If the vehicle is equipped with side airbags, they are located inside the driver and front passenger seats, and their covers are also labeled SRS.
Page 52 50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! (Continued) • If your vehicle is equipped with side airbags, do not attach cupholders or any other objects on or around the door. The inflating side airbag could drive the objects into occupants, causing serious injury.
Page 53 Infants in rear facing child restraints should NEVER ride in the front seat of a vehicle with a passenger airbag. An airbag deployment could cause severe injury or death to infants in that position. Children that are not big enough to properly wear the vehicle seat belt should be secured in the rear seat, in a child restraint or belt-positioning booster seat.
Page 54 52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! • Relying on the airbags alone could lead to more severe injuries in a collision. The airbags work with your seat belt to restrain you properly. In some collisions, the airbags won’t deploy at all. Always wear your seat belts even though you have airbags.
Page 55 • Driver Seat Track Position Sensors • Driver and Front Passenger Seat Belt Pretensioner How the Airbag System Works • The Occupant Restraint Control (ORC) Module de- termines if a frontal or side collision is severe enough to require the front and/or side airbags to inflate. The front airbag inflators are designed to provide different rates of airbag inflation from direction provided by the ORC.
Page 56 54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • The Driver and Passenger Airbag/Inflator Units are located in the center of the steering wheel and the right side of the instrument panel. When the ORC detects a collision requiring the airbags, it signals the inflator units.
Page 57 • The Knee Impact Bolsters help protect the knees of the driver and the front passenger, and position every- one for the best interaction with the front airbag. If a Deployment Occurs The airbag system is designed to deploy when the Occupant Restraint Control (ORC) Module detects a moderate-to-severe frontal collision, to help restrain the driver and front passenger, and then to immediately...
Page 58 56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • It is not advisable to drive your vehicle after the airbags have deployed. If you are involved in another collision, the airbags will not be in place to protect you. WARNING! Deployed airbags and seat belt pretensioners cannot protect you in another collision.
Page 59 Maintaining Your Airbag System WARNING! • Modifications to any part of the airbag system could cause it to fail when you need it. You could be injured if the airbag system is not there to protect you. Do not modify the components or wiring, including adding any kind of badges or stickers to the steering wheel hub trim cover or the upper right side of the instrument panel.
Page 60 58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE deceleration data during and/or after airbag deploy- ment. EDR data are ONLY recorded if an airbag deploys, or nearly deploys, and are otherwise unavailable. NOTE: 1. A near-deployment event occurs when the airbag sensor detects severe vehicle deceleration usually indica- tive of a crash, but not severe enough to warrant airbag deployment.
Page 61 1. Used for research purposes, such as to match data with a particular crash record in an aggregate database, provided confidentiality of personal data is thereafter preserved. 2. Used in defense of litigation involving a Chrysler LLC product. 3. Requested by police under a legal warrant. 4.
Page 62: Child Restraint
60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Child Restraint Everyone in your vehicle needs to be buckled up at all times, including babies and children. Every state in the United States and all Canadian provinces require that small children ride in proper restraint systems. This is the law, and you can be prosecuted for ignoring it.
Page 63 • The infant carrier is only used rearward-facing in the vehicle. It is recommended for children who weigh up to about 20 lbs (9 kg). “Convertible” child seats often have a higher weight limit in the rearward-facing direction than infant carriers do, so they can be used rearward-facing by children who weigh more than 20 lbs (9 kg) but are less than one year old.
Page 64 62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Here are some tips for getting the most out of your child restraint: • Before buying any restraint system, make sure that it has a label certifying that it meets all applicable Safety Standards.
Page 65 • Buckle the child into the restraint exactly as the manufacturer’s instructions tell you. • When your child restraint is not in use, secure it in the vehicle with the seat belt or remove it from the vehicle. Do not leave it loose in the vehicle. In a sudden stop or collision, it could strike the occupants or seatbacks and cause serious personal injury.
Page 66 64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • The lap portion should be low on the hips and as snug as possible. • Check belt fit periodically. A child’s squirming or slouching can move the belt out of position. •...
Page 67 NOTE: If your child restraint seat is not LATCH- compatible, install the restraint using the vehicle seat belts. WARNING! An incorrectly anchored tether strap could lead to increased head motion and possible injury to the child. Use only the anchor position directly behind the child seat to secure a child restraint top tether strap.
Page 68 66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE of reach of children. It is recommended that before installing the child restraint, buckle the seat belt so the seat belt is tucked behind the child restraint and out of reach. If the buckled seat belt interferes with the child restraint installation, instead of tucking the seat belt behind the child restraint, route the seat belt through the child restraint belt path and then buckle it.
Page 69 Again, carefully follow the installation instructions that were provided with the child restraint system. The rear seat lower anchorages are round bars, located at the rear of the seat cushion where it meets the seatback, and are visible when you lean into the rear seat to install the child restraint.
Page 70 68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE In addition, there are tether strap anchorages behind each rear seating position located on the back of the seat. Latch Anchorages (Four-Door Models) Tether Strap Mounting (Two-Door Models)
Page 71 Tether Strap Mounting (Four-Door Models) Many, but not all restraint systems will be equipped with separate straps on each side, with each having a hook or connector for attachment to the lower anchorage and a means for adjusting the tension of the strap. Forward- facing toddler restraints and some rear-facing infant restraints will also be equipped with a tether strap having THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69...
Page 72 70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! Improper installation of a child restraint to the LATCH anchorages can lead to failure of an infant or child restraint. The child could be badly injured or killed. Follow the manufacturer’s directions exactly when installing an infant or child restraint.
Page 73 Tether Strap Mounting (Four-Door Models) Route the tether strap over the seatback and attach the hook to the tether anchor located on the back of the seat. For the outboard seating positions, route the tether under the head rest, and attach the hook to the tether anchor located on the back of the seat.
Page 74: Engine Break-In Recommendations
72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ENGINE BREAK-IN RECOMMENDATIONS A long break-in period is not required for the engine in your vehicle. Drive moderately during the first 300 miles (500 km). After the initial 60 miles (100 km), speeds up to 50 or 55 mph (80 or 90 km/h) are desirable.
Page 75: Safety Tips
SAFETY TIPS Transporting Passengers NEVER TRANSPORT PASSENGERS IN THE CARGO AREA. WARNING! • It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seri- ously injured or killed.
Page 76: Safety Checks You Should Make Inside The Vehicle
74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If you are required to drive with the trunk/liftgate open, make sure that all windows are closed and the climate control BLOWER switch is set at high speed. DO NOT use the recirculation mode. The best protection against carbon monoxide entry into the vehicle body is a properly maintained engine exhaust system.
Page 77: Periodic Safety Checks You Should Make Outside The Vehicle
Defroster Check operation by selecting the defrost mode and place the blower control on high speed. You should be able to feel the air directed against the windshield. See your authorized dealer for service if your defroster is inoperable. Periodic Safety Checks You Should Make Outside the Vehicle Tires Examine tires for excessive tread wear and uneven wear...
Page 79: Understanding The Features Of Your Vehicle
UNDERSTANDING THE FEATURES OF YOUR VEHICLE CONTENTS Mirrors ......81 Inside Day/Night Mirror ....81 Outside Mirrors .
Page 80 78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To Raise The Rear Seat ....92 To Open And Close The Hood ... . . 93 Lights .
Page 81 Manual Transmission ....104 To Accelerate For Passing ....104 Electrical Power Outlet ....105 Cupholders .
Page 82: Understanding The Features Of Your Vehicle
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Door Frame Installation — Four-Door Models ......128 Soft Top —...
Page 83: Mirrors
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81 MIRRORS Inside Day/Night Mirror A two-point pivot system allows for horizontal and vertical adjustment of the mirror. The mirror should be adjusted to center on the view through the rear window. Headlight glare can be reduced by moving the small control under the mirror to the night position (toward the rear of the vehicle).
Page 84: Outside Mirrors
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Outside Mirrors To receive maximum benefit, adjust the outside mirror(s) to center on the adjacent lane of traffic with a slight overlap of the view obtained on the inside mirror. Outside Rearview Mirror WARNING! •...
Page 85: Seats
Voice Recognition Button (uconnect phone) When you press this button, a “Not Equipped with uconnect ” message will display on your radio screen. Phone Button (uconnect phone) When you press this button, a “Not Equipped with uconnect ” message will display on your radio screen. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83 SEATS Front Seat Adjustment...
Page 86: Manual Seat Height Adjustment - If Equipped
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! Adjusting a seat while the vehicle is moving is dangerous. The sudden movement of the seat could cause you to lose control. The seat belt might not be properly adjusted and you could be injured. Only adjust a seat while the vehicle is parked.
Page 87: Front Seatback Recline
Front Seatback Recline Lean forward before lifting the handle, then lean back to the desired position and release the handle. Lift the handle to return the seatback to an upright position. Recline Lever UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85 Front Easy Entry Seats —...
Page 88 86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Easy Entry Combination Lever — If Equipped Easy Entry Seat...
Page 89: Head Restraints
Easy Entry Seat With Combination Lever — If Equipped 1. To return the seat to a sitting position, rotate the seatback upright until it locks. 2. Push the seat rearward until the track locks. NOTE: • The front driver seat has a full recliner memory, which UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87 will allow the seatback to be returned to its original position.
Page 90: Fold And Tumble Rear Seat - Two Door Models
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The restraints may be raised without pushing in the button. The rear head restraints are not adjustable. Adjustable Head Restraints Fold and Tumble Rear Seat — Two Door Models NOTE: • Prior to folding the rear seat, it may be necessary to reposition the front seats.
Page 91: Removing The Rear Seat - Two Door Models
2. Slowly flip the entire seat forward. Folding Rear Seat 3. Return the seat to the normal position. 4. Raise the rear seatback using the assist strap and firmly lock the seat into position. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89 Removing the Rear Seat —...
Page 92 90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 1. Remove the three rear subwoofer (if equipped) mounting nuts using a 15 mm socket. Subwoofer 2. Unplug the electrical connector from the rear sub- woofer (if equipped). 3. Fold the rear seat forward following steps 1 through 3 under “Fold and Tumble Rear Seat”...
Page 93: Replacing The Rear Seat - Two Door Models
Replacing the Rear Seat — Two Door Models Reverse the steps for removing the seat. WARNING! • To help protect against personal injury, passengers should not be seated in the rear cargo area with the rear seat folded down or removed from the ve- hicle.
Page 94: To Raise The Rear Seat
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To Fold Down the Rear Seat Locate the pull strap (lower outboard side of seat), and pull it toward you until the seatback releases. Pull Strap To Raise the Rear Seat Raise the seatback and lock it into place. If interference from the cargo area prevents the seatback from fully locking, you will have difficulty returning the seat to its proper position.
Page 95: To Open And Close The Hood
TO OPEN AND CLOSE THE HOOD Release both the hood latches. Hood Latch UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93 Raise the hood and locate the safety latch, located in the middle of the hood opening. Push the latch to the left side of the vehicle, to open the hood.
Page 96: Lights
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE LIGHTS Multifunction Lever The multifunction lever controls the operation of the parking lights, headlights, headlight beam selection, passing light, fog lights, instrument panel light dimming and turn signals. The lever is located on the left side of the steering column.
Page 97: Lights-On Reminder
To change the brightness of the instrument panel lights, rotate the center portion of the multifunction lever up or down. NOTE: • Lens fogging can occur under certain atmospheric conditions. This will usually clear as atmospheric conditions change to allow the condensation to change back into a vapor.
Page 98: Turn Signals
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Turn Signals Move the multifunction lever up or down, and the arrows on each side of the instrument cluster flash, to show proper operation of the front and rear turn signal lights. If either light has a very fast flash rate, check for a defective outside light bulb.
Page 99 upward detent position, or if equipped, when the UN- LOCK button is pressed on the Remote Keyless Entry (RKE) transmitter. Also, the rear cargo lamp may be turned on by pressing the lens. Press the lens a second time to turn the light off. Cargo Lamp UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97 When a door is open and the interior lights are on,...
Page 100: Windshield Wipers And Washers
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Daytime Brightness Feature Certain instrument panel components (instrument clus- ter, radio display) can be illuminated at full brightness during the daytime. This can be helpful when driving with your headlights on during the daytime, such as in a parade or a funeral procession.
Page 101: Intermittent Wiper System
CAUTION! In cold weather, always turn off the wiper switch and allow the wipers to return to the park position before turning off the engine. If the wiper switch is left on and the wipers freeze to the windshield, damage to the wiper motor may occur when the vehicle is restarted.
Page 102: Windshield Washers
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Windshield Washers To use the washer, pull the lever toward you and hold while spray is desired. If the lever is pulled while in the delay range, the wiper will operate for two wipe cycles after the lever is released, and then resume the intermit- tent interval previously selected.
Page 103 Push down on the lever to unlock the steering column. With one hand firmly on the steering wheel, move the steering column up or down, as desired. Pull upwards on the lever to lock the column firmly in place. Tilt Steering Column UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101 WARNING! Tilting the steering column while the vehicle is...
Page 104: Electronic Speed Control - If Equipped
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ELECTRONIC SPEED CONTROL — IF EQUIPPED Electronic Speed Control takes over the accelerator op- eration at speeds greater than 35 mph (56 km/h). The Electronic Speed Control lever is located on the right side of the steering wheel.
Page 105: To Set A Desired Speed
WARNING! Leaving the Electronic Speed Control system on when not in use is dangerous. You could accidentally set the system or cause it to go faster than you want. You could lose control and have an accident. Always leave the Electronic Speed Control system off when you are not using it.
Page 106: Manual Transmission
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE tapping the Electronic Speed Control lever three times will increase speed by 3 mph (4.8 km/h), etc. To decrease speed while Electronic Speed Control is on, push down and hold SET DECEL. Release the Electronic Speed Control lever when the desired speed is reached, and the new speed will be set.
Page 107: Electrical Power Outlet
On steep hills, a greater speed loss or gain and/or more frequent downshifts (auto transmission only) may occur so it may be preferable to drive without Electronic Speed Control. ELECTRICAL POWER OUTLET There are two 12-Volt (DC) auxiliary power outlets that can provide up to 160 Watts (13 Amps) of current for accessories designed for use with the standard power outlet adapters.
Page 108 106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! To avoid serious injury or death: • Do not insert any objects into the receptacles. • Do not touch with wet hands. • Close the lid when not in use and while driving the vehicle.
Page 109: Cupholders
CUPHOLDERS Front Cupholders The front cupholders are located in the center console. Front Cupholders NOTE: The front cupholder insert is removable for cleaning. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107 Rear Cupholders The rear cupholders are located on the back of the center console.
Page 110: Storage
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE STORAGE Console Storage Compartment To lock or unlock the storage compartment, insert igni- tion the key and turn. To open the storage compartment, press the latch and lift the cover. Center Console Rear Storage Compartment The rear storage compartment cover is held by a spring- loaded latch.
Page 111: Dual Top - If Equipped
Rear Storage Cover DUAL TOP — IF EQUIPPED If your vehicle is equipped with a Dual Top, you must remove one of the tops from the vehicle. If the soft top is removed, the pivot brackets must also be removed from the sport bar.
Page 112 110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 2. Remove the hard top. Refer to “Freedom Top Three- Piece Modular Hard Top — Front/Rear Panel Removal” later in this section. 3. Remove the soft top bow assembly pivot bracket screws (two per side) using a #T30 Torx head driver. 4.
Page 113: Installing The Soft Top
6. Reinstall the hard top. Refer to “Freedom Top Three- Piece Modular Hard Top — Front/Rear Panel Installa- tion” later in this section. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111 Installing the Soft Top NOTE: The following procedures are for first time set up only.
Page 114 112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 3. Install the door frames. Refer to “Door Frame” in this section. 4. If the soft top has been removed, follow these steps to reinstall the soft top. If the soft top is on the vehicle, proceed to step #5.
Page 115 d. Screw the pivot screws back into place using a #T30 Torx head driver. Secure them until they are snug, being careful not to cross-thread the screws or over- tighten. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113 CAUTION! Do not overtighten the screws. You can strip the screws if they are overtightened.
Page 116: Freedom Top Three-Piece Modular Hard Top - If Equipped
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: Be sure the wire harness in the left rear corner is not tangled in the soft top bows before you lift the top. 6. Unsnap and remove the black boot cover. This cover should be discarded.
Page 117: Front Panel(S) Removal
CAUTION! Failure to follow these cautions may cause interior water damage, stains or mildew: • It is recommended that the top be free of water prior to panel removal. Removing the top, opening a door or lowering a window while the top is wet may allow water to drip into the vehicles interior.
Page 118 116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 3. Turn the rear L-shaped lock (located above the shoul- der belt anchorage). 4. Turn the rear fasteners (knobs) (located on the over- head speaker bar assembly) counter-clockwise until they can be removed.
Page 119: Front Panel(S) Installation
5. Unlatch the header panel latch located at the top of the windshield. 6. Remove the panel. To remove the right panel, follow the steps above except for Step 2. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117 Front Panel(s) Installation NOTE: Set the panels on the windshield frame so that there is no overhang.
Page 120: Front Panel(S) Installation Only (With Rear Hard Top Removed)
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Front Panel(s) Installation Only (With Rear Hard Top Removed) 1. Turn the left and right panels over and move the spacer block (located on the rear of the panel) upward 90 degrees. NOTE: The front panel(s) must be positioned properly to ensure sealing.
Page 121 4. Remove the six Torx head screws that secure the hard top to the vehicle (along the interior bodyside) using a #40 Torx head driver. 5. Open the swing gate all the way to ensure clearance of the rear window glass. Lift the rear window glass. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119 6.
Page 122 120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! Make sure the storage cap is installed to prevent foreign materials from entering the washer tube and clogging system, and also to prevent fluid from being sprayed into the rear of the vehicle. 8.
Page 123: Rear Hard Top Installation
Rear Hard Top Installation NOTE: If the door frames are installed from soft top usage, they must be removed prior to installation of the hard top. 1. Inspect the hard top seals for damage and replace if necessary. 2. Install the hard top using the same steps for removal in reverse order.
Page 124: Door Frame Removal - Two-Door Models
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! (Continued) • Careless handling and storage of the removable door frame(s) may damage the seals, causing water to leak into the vehicle’s interior. • The door frame(s) must be positioned properly to ensure sealing.
Page 125 2. Place one hand on the upper rear and one hand on the front of the door frame. 3. Pull the frame toward you with your rearward hand to remove the frame from the vehicle. 4. Screw the knobs back into the door frame and fold for storage.
Page 126: Door Frame Installation - Two-Door Models
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Door Frame Installation — Two-Door Models 1. Unfold door frame and unscrew thumbscrews. 2. Set the door frame pin into the hole on top of the body side, behind the door opening. 3. After the door frame pin has been set into the body side hole, carefully set the front of the door frame into the rubber seal at the top of the windshield.
Page 127: Door Frame Removal - Four-Door Models
5. Starting with the front knob, screw in and tighten both knobs. Repeat on the other side. Door Frame Removal — Four-Door Models 1. Unscrew and remove the two forward most door frame attachment knobs. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125 WARNING! Use both hands to remove the door frames.
Page 128 126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 2. Place one hand on the upper rear and one hand on the upper front of the front door frame. 3. Pull the frame toward you with your front hand to remove the frame from the vehicle. 4.
Page 129 5. Place one hand on the upper rear and one hand on the upper front of the rear door frame. Pull the frame toward you with your rear hand to remove the frame from the vehicle. 6. Screw the knob back into the door frame and fold for storage.
Page 130 128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Door Frame Installation — Four-Door Models 1. Install the rear door frame first. 2. Set the door frame pin into the hole on top of the body side, just behind the rear door opening. 3.
Page 131 5. Carefully set the front of the front door frame in the rubber seal at the top of the windshield. Then, clip the front of the door rail over the side bar making sure that the material for the side bar cover is not pinched by the door frame.
Page 132: Soft Top - Two Door Models
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE SOFT TOP — TWO DOOR MODELS Please visit the owners section of Jeep.com for instruc- tional videos. CAUTION! The soft top is not designed to carry any additional loads such as roof racks, spare tires, building, hunt- ing, or camping supplies, and/or luggage, etc.
Page 133 CAUTION! (Continued) • Refer to “Appearance Care for Fabric Top Models” in Section 7 of this manual. It contains important information on cleaning and caring for your vehi- cle’s fabric top. • Do not use any tools (screwdrivers, etc.) to pry or force any of the clamps, clips, or retainers securing the soft top.
Page 134 132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! Failure to follow these cautions may cause interior water damage, stains or mildew on the top material: • It is recommended that the top be free of water prior to opening it. Operating the top, opening a door or lowering a window while the top is wet may allow water to drip into the vehicle’s interior.
Page 135: Folding Down The Soft Top
Folding Down The Soft Top 1 — Header Bow 2 — 2–Bow 3 — 3–Bow 4 — Sail Panel 5 — Plastic Retainer UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133 6 — Body Side Retainer 7 — Quarter Window 8 — Check Strap 9 —...
Page 136 134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 1 — Zipper Start 2 — Zipper Finish 3 — Swing Gate Bar 4 — Swing Gate Brackets 5 — Sail Panels...
Page 137 NOTE: Clean side and rear windows before removal to assist in preventing scratching during removal of the soft top. If zippers are difficult to operate due to road dust, etc., clean them with a mild soap solution and a small brush.
Page 138 136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 3. Unclip and move the sun visors to the side. 4. Release the header latches and leave the hooks in the loops on the windshield. 5. Open the swing gate. 6. Before unzipping the rear window, release the first 3 in (7.6 cm) of both sail panels from the channel.
Page 139 • Unzip the rear window starting at the right lower corner of the window. Pull the zipper up, across the top and down to the left lower corner. Zipper pulls will stay on the rear window. Pull down on the rear window to disengage it from the zipper on the top cover.
Page 140 138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 10. Finish releasing the sail panel retainers from the body side channel at the rear corners of the vehicle. NOTE: When releasing the sail panel retainers, it is helpful to pull down on the rear roof bow. 11.
Page 141 12. The swing gate brackets do not need to be removed unless the hard top is being installed. To remove the swing gate brackets, pull the front of the bracket forward while rolling the entire bracket back in toward the vehicle to disengage.
Page 142 140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 14. Make sure the plastic sleeves are slid forward over the Sunrider link (Sunrider Models only). 15. Unlatch the side bows from both door rails (Sun- rider Models only). 16. Before lowering the top, open the swing gate to prevent possible damage to the rear center high-mounted brake light.
Page 143 NOTE: Help from another person will ease this opera- tion. 17. Tuck the fabric and the check straps between the bows and as far inward as possible. This will keep any portion of the top from flapping outside of the vehicle. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141 When the top is completely down, position the drip rails so they make a “v-shape”;...
Page 144: Putting Up The Soft Top
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Putting Up The Soft Top 1 — Header Bow 2 — 2– Bow 3 — 3–Bow 4 — Sail Panel 5 — Plastic Retainer 6 — Body Side Retainer 7 — Quarter Window 8 —...
Page 145 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143 1 — Zipper Start 2 — Zipper Finish 3 — Swing Gate Bar 4 — Swing Gate Brackets 5 — Sail Panels...
Page 146 144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 1. Unclip and move the sun visors to the side. 2. Install door frames, if removed. Refer to “Door Frame” in this section. 3. Make sure the plastic sleeve is slid rearward over Sunrider link (Sunrider Models only).
Page 147 6. Make sure the Sunrider bracket on the side bows latches to the door rails (Sunrider Models only). 7. Open the header latches and engage the hook on each side onto the windshield loops (do not close the latches). UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145 8.
Page 148 146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 9. Move to the rear of the vehicle and gently pull the sail panels over the rear roof bow. 10. Partially install the sail panel retainers into the body side channel, leaving the last 3 in (7.6 cm) toward the rear window loose (on both sides).
Page 149 11. To install the side windows, affix the window tem- porarily by attaching to the Velcro in the rear corner. Start the zipper but close only about 1 in (2.5 cm). UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147 12. Insert the front retainer of the window into the door channel, making sure the retainer is fully seated and properly positioned on the door frame.
Page 150 148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 1 — Incorrect Insertion 2 — Correct Insertion 13. Insert the retainer along the bottom edge of the window into the bottom side channel, beginning at the front and working to the rear of the vehicle. Finish by closing the zipper completely and attaching the Velcro along the top and rear of the window.
Page 151 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149 14. Locate the black swing gate bar. Slide the swing gate bar over the receiver at the bottom inside of the rear window. The spongy part of the seal should be down and pointed outward to seal with the swing gate when closed.
Page 152 150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 15. Install the rear window by starting both zipper ends at the lower left corner of the rear window opening. Ensure that the zippers are properly started and aligned before zipping to prevent damage.
Page 153 16. Run the zipper fully around to the right side of the window. 17. Grasp the swing gate bar and position it into the swing gate brackets. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151 18. Apply downward pressure on the top corner of the rear soft top bow (3–bow), then complete attaching the sail panel retainers into the body side channel.
Page 154: Soft Top (Four-Door Models)
20. Close the header latches and return the sun visors to their secured position. SOFT TOP (FOUR-DOOR MODELS) Please visit the owner’s section of Jeep.com for instruc- tional videos. CAUTION! The soft top is not designed to carry any additional loads such as roof racks, spare tires, building, hunt- ing, or camping supplies, and/or luggage, etc.
Page 155 Place the vehicle in a warm area. Pull steadily on the top fabric. The vinyl will stretch back to its original size and the top can then be snapped into place. If the tempera- ture is 41°F (5°C) or below, do not attempt to put the top down or roll the rear or side curtains.
Page 156 154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! • Do not drive the vehicle with the rear window curtain up unless the side curtains are also open. Dangerous exhaust gases which can kill could enter the vehicle. • The fabric upper doors and fabric top are designed only for protection against the elements.
Page 157 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155 NOTE: Do not remove any of the three attachment knobs unless you are planning on installing the hard top.
Page 158: Folding Down The Soft Top
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Folding Down The Soft Top 1 — Header Bow 2 — 2–Bow 3 — 3–Bow 4 — 4–Bow 5 — Sail Panel 6 — Body Side Retainer 7 — Quarter Window 8 — Check Strap 9 —...
Page 159 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157 1 — Zipper Start 2 — Zipper Finish 3 — Swing Gate Bar 4 — Swing Gate Brackets 5 — Sail Panels...
Page 160 158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: Clean side and rear windows before removal to assist in preventing scratching during removal of the soft top. If zippers are difficult to operate due to road dust, etc., clean them with a mild soap solution and a small brush.
Page 161 3. Unclip and move the sun visors to the side. 4. Release the header latches and hooks from the loops on the windshield frame. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159 5. Open the swing gate. 6. Before unzipping the rear window, release the first 3 in (7.6 cm) of both sail panels from the channel.
Page 162 160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Unzip the rear window starting at the right lower corner of the window. Pull the zipper up, across the top and down to the left lower corner. Zipper pulls will stay on the rear window. Pull down on the rear window to disengage it from the zipper on the top cover.
Page 163 10. Finish releasing the sail panel retainers from the body side channel at the rear corners of the vehicle. NOTE: When releasing the sail panel retainers, it is helpful to pull down on the rear roof bow. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161 11.
Page 164 162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 12. The swing gate brackets do not need to be removed unless the hard top is being installed. To remove the swing gate brackets, pull the front of the bracket forward while rolling the entire bracket back in toward the vehicle to disengage.
Page 165 14. Fold back the front section of the top, pulling the fabric rearward. Gently rest the header on top of the rear portion of the deck. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163 15. Fold the top material so that the plastic retainers form a “W”...
Page 166 164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 16. Release the side bows by pressing down on the latch above the front of the rear door. Push the top rearward to disengage. Repeat this step on the other side. 17. Before lowering the top, open the swing gate to prevent possible damage to the rear center high-mounted brake light.
Page 167 NOTE: Help from another person will ease this opera- tion. 19. Tuck the fabric and the check straps between the bows as far inside as possible. This will keep any portion of the top from flapping outside of the vehicle. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165 20.
Page 168: Putting Up The Soft Top
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Putting Up The Soft Top 1 — Header Bow 2 — 2–Bow 3 — 3–Bow 4 — 4–Bow 5 — Sail Panel 6 — Body Side Retainer 7 — Quarter Window 8 — Check Strap 9 —...
Page 169 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167 1 — Zipper Start 2 — Zipper Finish 3 — Swing Gate Bar 4 — Swing Gate Brackets 5 — Sail Panels...
Page 170 168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: Be extremely careful when putting up the soft top to prevent the doors from getting scratched. It may be helpful to open the rear doors. 1. Install the door frames, if removed. Refer to “Door Frame”...
Page 171 5. Insert the slider feature of the knuckles into the door frame tracks and slide the top forward. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169 6. Ensure that the top locks into the Sunrider locking mechanisms that are located above the front of the rear doors.
Page 172 170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 7. Unclip and move the sun visors to the side. 8. Standing on the side of the vehicle, lift the top by the side bow until it rests on the windshield frame. 9. Before attaching the header latches, be sure the top retainers above the doors do not get trapped between the top and the door frame.
Page 173 10. Open the header latches and engage the hook on each side onto the windshield loops (do not close the latches). UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171 11. If the swing gate brackets were removed, install them by hooking the rear edge of the bracket on the interior side of the body channel.
Page 174 172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 12. Ensure that the straps are positioned correctly before pulling the sail panels over the rear roof bow (4–bow). Partially install the sail panel retainers into the body side channel, leaving the last 3 in (7.6 cm) toward the rear window loose (on both sides).
Page 175 13. To install the side windows, affix the window tem- porarily by attaching it to the Velcro in the upper rear corner. Start the zipper but close only about 1 in (2.5 cm). UNDERSTANDING THE FEATURES OF YOUR VEHICLE 173 14.
Page 176 174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 1 — Incorrect Insertion 2 — Correct Insertion 15. Insert the retainer along the bottom edge of the window into the bottom side channel, beginning at the front and working to the rear of the vehicle. Finish by closing the zipper completely and attaching the Velcro along the top and rear of the window.
Page 177 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175 16. Locate the black swing gate bar. Slide the swing gate bar over the receiver at the bottom inside of the rear window. The spongy part of the seal should be down and pointed outward to seal with the swing gate when closed.
Page 178 176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 17. Install the rear window by starting both zipper ends at the lower left corner of the rear window opening. Ensure that the zippers are properly started and aligned before zipping to prevent damage. 18.
Page 179 21. Open the doors and insert the top retainers into the channels in the door frame above the doors, starting at the front and working toward the rear of the vehicle. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177 22. Ensure the plastic retainer is tucked in properly at the B-pillar and not pinching the seal.
Page 180: Sunrider (Two-Door Models)
178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 23. Close the header latches and return the sun visors to their secured position. SUNRIDER (TWO-DOOR MODELS) — IF EQUIPPED CAUTION! Operating the top, opening a door or lowering a window while the top is wet may allow water to drip into the vehicle’s interior.
Page 181: Opening The Sunrider
Opening the Sunrider 1. Insert your finger behind the plastic retainer. Pull down and roll the retainer out of the channel. Repeat this on the other side. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179 2. Unclip and move the sun visors to the side. 3.
Page 182 180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 4. Slide the plastic sleeve forward. 5. Grasp the header and lift the top back. Make sure the material is folded back as shown. NOTE: The Sunrider latch on the door rail should not be activated for Sunrider use.
Page 183: Closing The Sunrider
6. Locate the straps to secure the side bows. Wrap the straps around the bows as shown. Repeat on the other side. 7. Reposition the sun visors. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181 Closing the Sunrider 1. Remove the straps from the side bows. 2.
Page 184: Sunrider (Four-Door Models)
182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE SUNRIDER (FOUR-DOOR MODELS) — IF EQUIPPED CAUTION! Operating the top, opening a door or lowering a window while the top is wet may allow water to drip into the vehicle’s interior. NOTE: If you are going to be driving faster than 40 mph (64 km/h) with the Sunrider feature open, it is recom- mended that you remove the rear window of the vehicle.
Page 185 3. Release the header latches from the loops on the windshield frame. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 183 4. Grasp the front side bow behind the header, and lift the top.
Page 186 184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 5. Fold back the front section of the top and gently rest the header on top of the rear portion of the deck. 6. Fold the top material so that the plastic retainers form a “W”...
Page 187: Folding Windshield
To Close Perform the above steps in the opposite order. NOTE: Failure to fold the fabric rearward will allow the material to sag and may block the rearview mirror. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 185 FOLDING WINDSHIELD The fold-down windshield and removable side bars on your vehicle are structural elements that can provide some protection in some accidents.
Page 188 186 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Raise the windshield and reinstall the side bars as soon as the task that required their removal is completed and before you return to on-road driving. Both you and your passenger should wear seat belts at all times, on-road and off-road, regardless of whether the windshield is raised or folded down.
Page 189: Lowering The Windshield And Removing Side Bars
Lowering the Windshield and Removing Side Bars 1. Lower the fabric top or remove the hard top following the instructions in this manual. NOTE: To assist in properly reinstalling side bars, mark the original locations prior to removing. 2. Remove the two top hex bolts (13 mm), and the one side hex bolt (13 mm) visible through the trim (Do not remove plastic corner trim, sun visor bolts, or sport bar covering).
Page 190 188 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: Pull side bar out horizontally when removing. CAUTION! Do not remove the head impact foam from the side bars, as damage to the foam may result. NOTE: Store all of the mounting bolts in their original threaded holes and tighten for safekeeping.
Page 191 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 189 7. Remove the windshield wiper arms by first pulling the wiper away from the windshield and out to the “lock” position. Unsnap the wiper arm nut caps, and remove the retaining nuts. Lift the wiper arms off and store them in the center console or securely behind the rear seat.
Page 192: Raising The Windshield And Replacing Side Bars
190 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 9. Lower the windshield gently until it contacts the rubber hood bumpers. 10. Secure the windshield by passing a cinch strap through the footman hoop on the center of the hood and on the center of the windshield frame. Tighten the strap to secure the windshield in place.
Page 193 3. Attach the front of the side bar to the windshield frame. • Install the top two hex bolts (13 mm) first, then the lower side hex bolt (13 mm). The lower side bolt will not align until the top two bolts are installed. 4.
Page 194: Rear Window Features - Hard Top Only
192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE REAR WINDOW FEATURES — HARD TOP ONLY Rear Window Wiper/Washer — If Equipped A rotary ring switch on the control lever (located on the right side of the steering column), controls the operation of the rear wiper/washer function.
Page 195: Rear Window Defroster - If Equipped
If the rear wiper is operating when the ignition is turned to the LOCK position, the wiper will automatically return to the “Park” position. When the vehicle is restarted, the wiper will resume function at whichever position the switch is set at. Rear Window Defroster —...
Page 197 UNDERSTANDING YOUR INSTRUMENT PANEL CONTENTS Instrument Panel Features ....198 Instrument Cluster ....199 Instrument Cluster Description .
Page 198 196 UNDERSTANDING YOUR INSTRUMENT PANEL Sales Code (RER/REN) — AM/FM/CD/DVD Radio – If Equipped ....232 Operating Instructions — Voice Recognition System (VR) —...
Page 199 Selecting uconnect studios (Satellite) Mode ......257 Satellite Antenna ..... 257 Reception Quality .
Page 200: Instrument Panel Features
198 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT PANEL FEATURES 1 — Air Outlet 2 — Instrument Cluster 3 — Horn 4 — Radio 5 — Glove Compartment 6 — Climate Controls 7 — Power Outlet 8 — Lower Switch Bank 9 — Auxiliary Power Outlet / Cigar Lighter...
Page 201: Instrument Cluster
UNDERSTANDING YOUR INSTRUMENT PANEL 199 INSTRUMENT CLUSTER...
Page 202: Instrument Cluster Description
200 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT CLUSTER DESCRIPTION 1. Fuel Gauge The pointer shows the level of fuel in the fuel tank. NOTE: When the ignition switch is turned to OFF, the fuel gauge, voltmeter, oil pressure and temperature gauges may not show accurate readings. When the engine is not running, turn the ignition switch to ON to obtain accurate readings.
Page 203 7. Seat Belt Reminder Light A warning chime and an indicator light will alert you to buckle the seat belts. When the belt is buckled, the chime will stop, but the light will stay on for about six seconds, until it times out. 8.
Page 204 202 UNDERSTANDING YOUR INSTRUMENT PANEL indicate that the parking brake is applied, that the brake fluid level is low, or that there is a problem with the anti-lock brake system reservoir. If the light remains on when the parking brake has been disengaged, and the fluid level is at the full mark on the master cylinder reservoir, it indicates a possible brake hydraulic system malfunction or that a problem with the...
Page 205 Vehicles equipped with the Anti-Lock Brake System (ABS), are also equipped with Electronic Brake Force Distribution (EBD). In the event of an EBD failure, the Brake Warning Light will turn on along with the ABS Light. Immediate repair to the ABS system is required. Operation of the Brake Warning Light can be checked by turning the ignition switch from the OFF position to the ON position.
Page 206 204 UNDERSTANDING YOUR INSTRUMENT PANEL 14. Rear Axle Lock Indicator — If Equipped This light indicates when the rear axle lock has been activated. 15. Tachometer Indicates the engine speed in revolutions per minute (RPM). CAUTION! Do not operate the engine with the tachometer pointer in the red area.
Page 207 CAUTION! Driving with a hot engine cooling system could damage your vehicle. If temperature gauge reads “H” pull over and stop the vehicle. Idle the vehicle with the air conditioner turned off until the pointer drops back into the normal range. If the pointer remains on the “H”...
Page 208 206 UNDERSTANDING YOUR INSTRUMENT PANEL 21. Odometer / Trip Odometer Reset Button Press this button to change the display from odometer to either of the two trip odometer settings. Trip A or Trip B will appear when in the trip odometer mode. Press and hold the button for two seconds to reset the trip odometer to 0 miles or kilometers.
Page 209 maintain correct tire pressure, even if under-inflation has not reached the level to trigger illumination of the TPMS low tire pressure telltale. Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly.
Page 210 208 UNDERSTANDING YOUR INSTRUMENT PANEL U.S. federal regulations require that upon transfer of vehicle ownership, the seller certify to the purchaser the correct mileage that the vehicle has been driven. There- fore, if the odometer reading is changed during repair or replacement, be sure to keep a record of the reading before and after the service so the correct mileage can be determined.
Page 211 cluster. To reset the oil change indicator system (after performing the scheduled maintenance), refer to the following procedure: 1. Turn the ignition switch to the ON position (Do not start the engine). 2. Fully depress the accelerator pedal slowly three times within 10 seconds.
Page 212 210 UNDERSTANDING YOUR INSTRUMENT PANEL 26. Electronic Stability Program (ESP) Indicator Light / Traction Control System (TCS) Indicator Light If the Electronic Stability Program (ESP) / Traction Control System (TCS) Indicator Light begins to flash during acceleration, ease up on the accelerator and apply as little throttle as possible.
Page 213 30. Electronic Throttle Control (ETC) Light This light informs you of a problem with the Electronic Throttle Control (ETC) system. If a problem is detected while the engine is run- ning, the light will either stay on or flash depending on the nature of the problem. Cycle the ignition key when the vehicle is safely and completely stopped and the shift lever is placed in the PARK position.
Page 214: Compass And Trip Computer - If Equipped
212 UNDERSTANDING YOUR INSTRUMENT PANEL COMPASS AND TRIP COMPUTER — IF EQUIPPED The Compass/Trip Computer is located in the instru- ment cluster. It features a driver-interactive display (dis- plays information such as outside temperature, compass direction, and trip information). Control Buttons Press and release the left button (on the instrument cluster) to access the computer displays.
Page 215: Compass Temperature Display
Estimated Range (DTE) This display shows the estimated distance that can be traveled with the fuel remaining in the tank. This esti- mated distance is based on the most recent trip informa- tion: (Average Fuel Economy) x (Fuel Remaining). This display cannot be reset. Elapsed Time (ET) This display shows the accumulated ignition ON time since the last reset.
Page 216 214 UNDERSTANDING YOUR INSTRUMENT PANEL Compass Calibration The compass on your vehicle will automatically calibrate when new, and will continuously adjust itself over the life of the vehicle. If the CAL indicator is on (or flashing), drive slowly (under 10 MPH) in an open area until the CAL indicator is off.
Page 217 If the compass appears erratic or inaccurate and the variance has been properly set, you may wish to manu- ally recalibrate the compass. To manually calibrate the compass: 1. First enter the variance mode. Press and hold the left button (located on the instrument cluster) for approxi- mately 10 seconds to enter the variance mode, and release the button when the VAR (Compass Variance) symbol appears.
Page 218 216 UNDERSTANDING YOUR INSTRUMENT PANEL the variance mode and release the button when the VAR symbol appears. The current variance value will also be displayed. To change the zone, press the left button once to increment the zone. The default is Zone 8. After Zone 15, the values will wrap around to Zone 1.
Page 219: Sales Code Req - Am/Fm Stereo Radio And 6-Disc Cd/Dvd Changer (Mp3/Wma Aux Jack)
SALES CODE REQ — AM/FM STEREO RADIO AND 6–DISC CD/DVD CHANGER (MP3/WMA AUX JACK) NOTE: The radio sales code is located on the lower right side of the radio faceplate. REQ Radio UNDERSTANDING YOUR INSTRUMENT PANEL 217 Operating Instructions - Radio Mode NOTE: The ignition switch must be in the ON or ACC position to operate the radio.
Page 220 218 UNDERSTANDING YOUR INSTRUMENT PANEL to seek up and the left switch to seek down. The radio will remain tuned to the new station until you make another selection. Holding either button will bypass stations without stopping until you release it. SCAN Button Pressing the SCAN button causes the tuner to search for the next listenable station in AM, FM or Satellite (if...
Page 221 4. Adjust the minutes using the right side TUNE/ SCROLL control knob. Press the TUNE/SCROLL control knob to save the time change. 5. To exit, press any button/knob or wait five seconds. The clock can also be set by pressing the SETUP button and selecting the “SET HOME CLOCK”...
Page 222: Music Type Button
220 UNDERSTANDING YOUR INSTRUMENT PANEL Push the rotary TUNE/SCROLL control knob a fourth time and BALANCE will display. Turn the TUNE/ SCROLL control knob to the right or left to adjust the sound level from the right or left side speakers. Push the rotary TUNE/SCROLL control knob a fifth time and FADE will display.
Page 223 16-Digit Character Program Type Personality Public Rhythm and Blues Religious Music Rel Musc Religious Talk Rock Soft Soft Rock Soft Rhythm and Blues Soft R & B Sports Talk Top 40 Weather UNDERSTANDING YOUR INSTRUMENT PANEL 221 By pressing the SEEK button when the Music Type icon is displayed, the radio will be tuned to the next frequency Display station with the same selected Music Type name.
Page 224 222 UNDERSTANDING YOUR INSTRUMENT PANEL • DISC Play/Pause - You can toggle between playing the DVD and pausing the DVD by pushing the SELECT button (if equipped). • DVD Play Options - Selecting the DVD Play Options will display the following: •...
Page 225 TUNE/SCROLL control knob to adjust the minutes. Press the TUNE/SCROLL control knob again to save changes. • Player Defaults - Selecting this item will allow the user to scroll through the following items and set defaults according to customer preference. Menu Language —...
Page 226 224 UNDERSTANDING YOUR INSTRUMENT PANEL Aspect Ratio — If Equipped Selecting this item allows you to choose between wide screen, pan scan, and letter box. AutoPlay — If Equipped When this is set to On and a DVD video is inserted, it will bypass the DVD menu screen and automatically play the movie.
Page 227: Operation Instructions - (Disc Mode For Cd And Mp3/Wma Audio Play, Dvd-Video)
Every time a preset button is used, a corresponding button number will display. Buttons 1 - 6 These buttons tune the radio to the stations that you commit to pushbutton memory {12 AM, 12 FM, and 12 Satellite (if equipped) stations}. DISC Button Pressing the DISC button will allow you to switch from AM/FM modes to Disc modes.
Page 228 226 UNDERSTANDING YOUR INSTRUMENT PANEL Radio display will show LOADING DISC when the disc is loading and “READING DISC” when the radio is reading the disc. CAUTION! This CD player will accept 4–3/4 in (12 cm) discs only. The use of other sized discs may damage the CD player mechanism.
Page 229: Notes On Playing Mp3/Wma Files
RW/FF (CD MODE) Press and hold FF (Fast Forward) and the CD player will begin to fast forward until FF is released, or RW or another CD button is pressed. The RW (Rewind) button works in a similar manner. AM or FM Button (CD MODE) Switches the radio into the AM or FM radio mode.
Page 230 228 UNDERSTANDING YOUR INSTRUMENT PANEL Multisession disc formats are supported by the radio. Multisession discs may contain combinations of normal CD audio tracks and computer files (including MP3/ WMA files). Discs created with an option such as keep disc open after writing are most likely multisession discs.
Page 231: List Button (Disc Mode For Mp3/Wma Play)
ID3 Tag information for artist, song title, and album title are supported for ID3 version 1 tags. ID3 version 2 is not supported by the radios. Playlist files are not supported. MP3 Pro files are not supported. Playback of MP3/WMA Files When a medium containing MP3/WMA data is loaded, the radio checks all files on the medium.
Page 232: Info Button (Disc Mode For Mp3/Wma Play)
230 UNDERSTANDING YOUR INSTRUMENT PANEL INFO Button (DISC Mode for MP3/WMA Play) Pressing the INFO button repeatedly will scroll through the following TAG information: Song Title, Artist, File Name, and Folder Name (if available). Press the INFO button once more to return to elapsed time priority mode.
Page 233 TIME Button (Auxiliary Mode) Press the TIME button to change the display from elapsed playing time to time of day. The time of day will display for five seconds. RW/FF (Auxiliary Mode) No function. SET Button (Auxiliary Mode) No function. Operating Instructions —...
Page 234: Sales Code (Rer/Ren) - Am/Fm/Cd/Dvd Radio - If Equipped
232 UNDERSTANDING YOUR INSTRUMENT PANEL intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. DTS™ DTS™ and DTS™ 2.0 are trademarks of Digital The- ater Systems, Inc. SALES CODE (RER/REN) — AM/FM/CD/DVD RADIO –...
Page 235 To Manually Set the Clock — RER/REN 1. Turn on the radio. 2. Touch the screen where the time is displayed. 3. Touch the screen where “User Clock” is displayed. The clock setting menu will appear on the screen. 4. To move the hour forward, touch the screen where the word “Hour”...
Page 236 234 UNDERSTANDING YOUR INSTRUMENT PANEL Show Time if Radio is Off When selected, this feature will display the time of day on the touch screen when the radio is turned off. Proceed as follows to change the current setting: 1. Turn on the radio. 2.
Page 237: Sales Code Res - Am/Fm Stereo Radio With Cd Player (Mp3 Aux Jack)
SALES CODE RES — AM/FM STEREO RADIO WITH CD PLAYER (MP3 AUX JACK) NOTE: The radio sales code is located on the lower right side of the radio faceplate. RES Radio UNDERSTANDING YOUR INSTRUMENT PANEL 235 Operating Instructions — Radio Mode NOTE: The ignition switch must be in the ON or ACC position to operate the radio.
Page 238 236 UNDERSTANDING YOUR INSTRUMENT PANEL SEEK Buttons Press and release the SEEK buttons to search for the next listenable station in AM/FM mode. Press the right switch to seek up and the left switch to seek down. The radio will remain tuned to the new station until you make another selection.
Page 239 Push the rotary TUNE/SCROLL control knob a second time and MID will display. Turn the TUNE/SCROLL control knob to the right or left to increase or decrease the mid-range tones. Push the rotary TUNE/SCROLL control knob a third time and TREBLE will display. Turn the TUNE/SCROLL control knob to the right or left to increase or decrease the treble tones.
Page 240: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play
238 UNDERSTANDING YOUR INSTRUMENT PANEL SET 2 in both AM and FM. This allows a total of 12 AM and 12 FM stations to be stored into pushbutton memory. The stations stored in SET 2 memory can be selected by pressing the pushbutton twice.
Page 241 If you insert a disc with the ignition ON and the radio ON, the unit will switch from radio to CD mode and begin to play when you insert the disc. The display will show the track number, and index time in minutes and seconds.
Page 242: Notes On Playing Mp3 Files
240 UNDERSTANDING YOUR INSTRUMENT PANEL the current selection. Pressing and holding the SEEK button will allow faster scrolling through the tracks in CD and MP3 modes. TIME Button Press this button to change the display from a large CD playing time display to a small CD playing time display. RW/FF Press and hold the FF (Fast Forward) button and the CD player will begin to fast forward until FF is released, or...
Page 243 Supported Medium Formats (File Systems) The medium formats supported by the radio are ISO 9660 Level 1 and Level 2 and includes the Joliet extension. When reading discs recorded using formats other than ISO 9660 Level 1 and Level 2, the radio may fail to read files properly and may be unable to play the file nor- mally.
Page 244 242 UNDERSTANDING YOUR INSTRUMENT PANEL Supported MP3 File Formats The radio will recognize only files with the *.MP3 exten- sion as MP3 files. Non-MP3 files named with the *.MP3 extension may cause playback problems. The radio is designed to recognize the file as an invalid MP3 and will not play the file.
Page 245: Operation Instructions - Auxiliary Mode
Playback of MP3 Files When a medium containing MP3 data is loaded, the radio checks all files on the medium. If the medium contains a lot of folders or files, the radio will take more time to start playing the MP3 files. Loading times for playback of MP3 files may be affected by the following: •...
Page 246: Sales Code Res/Rsc - Am/Fm Stereo Radio With Cd Player (Mp3 Aux Jack) And Sirius Radio
244 UNDERSTANDING YOUR INSTRUMENT PANEL SALES CODE RES/RSC — AM/FM STEREO RADIO WITH CD PLAYER (MP3 AUX JACK) AND SIRIUS RADIO NOTE: The radio sales code is located on the lower right side of the radio faceplate. RES/RSC Radio Operating Instructions — Radio Mode NOTE: The ignition switch must be in the ON or ACC position to operate the radio.
Page 247 to seek up and the left switch to seek down. The radio will remain tuned to the new station until you make another selection. Holding either button will bypass stations without stopping until you release it. Voice Recognition System (Radio) — If Equipped Refer to “Voice Recognition System (VR)”...
Page 248 246 UNDERSTANDING YOUR INSTRUMENT PANEL 5. To exit, press any button/knob or wait five seconds. The clock can also be set by pressing the SETUP button. For vehicles equipped with satellite radio, press the SETUP button, use the TUNE/SCROLL control to select SET CLOCK, and then follow the above procedure, starting at Step 2.
Page 249 Push the rotary TUNE/SCROLL control knob a fourth time and BALANCE will display. Turn the TUNE/ SCROLL control knob to the right or left to adjust the sound level from the right or left side speakers. Push the rotary TUNE/SCROLL control knob a fifth time and FADE will display.
Page 250 248 UNDERSTANDING YOUR INSTRUMENT PANEL 16-Digit Character Program Type Personality Public Rhythm and Blues Religious Music Religious Talk Rock Soft Soft Rock Soft Rhythm and Blues Sports Talk Top 40 Weather By pressing the SEEK button when the Music Type icon is displayed, the radio will be tuned to the next frequency Display station with the same selected Music Type name.
Page 251: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play
AM/FM Button Press the button to select either AM or FM mode. SET/RND Button — To Set the Pushbutton Memory When you are receiving a station that you wish to commit to pushbutton memory, press the SET/RND button. The symbol SET 1 will now show in the display window.
Page 252 250 UNDERSTANDING YOUR INSTRUMENT PANEL • This radio is capable of playing compact discs (CD), recordable compact discs (CD-R), rewritable compact discs (CD-RW), compact discs with MP3 tracks and multisession compact discs with CD and MP3 tracks. Inserting Compact Disc(s) Gently insert one CD into the CD player with the CD label facing up.
Page 253 If you have ejected a disc and have not removed it within 10 seconds, it will be reloaded. If the CD is not removed, the radio will reinsert the CD but will not play it. A disc can be ejected with the radio and ignition OFF. NOTE: Ejecting with the ignition OFF is not allowed on convertible or soft-top models (if equipped).
Page 254: Notes On Playing Mp3 Files
252 UNDERSTANDING YOUR INSTRUMENT PANEL Notes On Playing MP3 Files The radio can play MP3 files; however, acceptable MP3 file recording media and formats are limited. When writing MP3 files, pay attention to the following restric- tions. Supported Media (Disc Types) The MP3 file recording media supported by the radio are CDDA, CD-R, CD-RW, MP3, and CDDA+MP3.
Page 255 Discs created with an option such as keep disc open after writing are most likely multisession discs. The use of multisession for CD audio or MP3 playback may result in longer disc loading times. Supported MP3 File Formats The radio will recognize only files with the *.MP3 exten- sion as MP3 files.
Page 256: List Button (Cd Mode For Mp3 Play)
254 UNDERSTANDING YOUR INSTRUMENT PANEL Playback of MP3 Files When a medium containing MP3 data is loaded, the radio checks all files on the medium. If the medium contains a lot of folders or files, the radio will take more time to start playing the MP3 files.
Page 257: Uconnect Studios (Satellite Radio) - If Equipped
Press and hold the INFO button again for three seconds to return to elapsed time display. Operation Instructions - Auxiliary Mode The auxiliary (AUX) jack is an audio input jack which allows the user to plug in a portable device such as an MP3 player or cassette player and utilize the vehicle’s audio system to amplify the source and play through the vehicle speakers.
Page 258: System Activation
256 UNDERSTANDING YOUR INSTRUMENT PANEL sports, news, entertainment, and programming for chil- dren, directly from its satellites and broadcasting studios. NOTE: Sirius service is not available in Hawaii and has limited coverage in Alaska. System Activation Sirius Satellite Radio service is pre-activated and you may begin listening immediately to the one year of audio service that is included with the factory-installed satellite radio system in your vehicle.
Page 259: Selecting Uconnect Studios (Satellite) Mode
ESN/SID Access With REN/RER Radios While in SAT mode, press the MENU button on the radio faceplate. Next, touch the SUBSCRIPTION tab on the touch screen. All the ESNs that apply to your vehicle will display. ESN/SID Access With REU Radio While in SAT mode, press the MENU button on the radio faceplate.
Page 260: Operating Instructions - Uconnect Studios (Satellite) Mode
258 UNDERSTANDING YOUR INSTRUMENT PANEL • Driving under wide bridges or along tall buildings can cause intermittent reception. • Placing objects over or too close to the antenna can cause signal blockage. Operating Instructions — uconnect studios (Satellite) Mode NOTE: The ignition switch must be in the ON or ACC position to operate the radio.
Page 261 RW/FF Pressing the RW (Rewind) or FF (Fast Forward) buttons causes the tuner to search for the next channel in the direction of the arrows. TUNE Control (Rotary) Turn the rotary TUNE/SCROLL control knob clockwise to increase or counterclockwise to decrease the channel. MUSIC TYPE Button —...
Page 262: Operating Instructions - Uconnect Phone (If Equipped)
260 UNDERSTANDING YOUR INSTRUMENT PANEL SETUP Button Pressing the SETUP button allows you to select the following items: • Display Sirius ID number — Press the AUDIO/ SELECT button to display the Sirius ID number. This number is used to activate, deactivate, or change the Sirius subscription.
Page 263: Operating Instructions - Video Entertainment System (Ves)™ (If Equipped)
Operating Instructions — Video Entertainment System (VES)™ (If Equipped) Refer to separate “Video Entertainment System (VES)™ Guide.” CD/DVD MAINTENANCE To keep a CD/DVD in good condition, take the following precautions: 1. Handle the disc by its edge; avoid touching the surface.
Page 264: Climate Controls
262 UNDERSTANDING YOUR INSTRUMENT PANEL CLIMATE CONTROLS Manual Heater Only The controls for the heating/ventilation system in this vehicle consist of a series of rotary knobs. These comfort controls can be set to obtain the desired interior condi- tions. Climate Controls Mode Control The mode control allows you to choose from several pat-...
Page 265 NOTE: There is a difference in temperature between the upper and lower outlets for added comfort. The warmer air goes to the floor outlets. This feature gives improved comfort during sunny but cool conditions. Floor Air is directed through the floor outlets and side window demist outlets with a small amount through the defrost outlet.
Page 266: Manual Heating And Air Conditioning System - If Equipped
264 UNDERSTANDING YOUR INSTRUMENT PANEL Temperature Control Use this control (right rotary knob) to regulate the temperature of the air inside the passenger compartment. The blue area of the scale indicates cooler temperatures while the red area indicates warmer temperatures. Manual Heating and Air Conditioning System —...
Page 267 Mode Control The mode control allows you to choose from several pat- terns of air distribution as identified by the symbols. Panel Air is directed through the outlets in the instrument panel. These outlets can be adjusted to direct airflow. Bi-Level Air is directed through the panel and floor outlets.
Page 268 266 UNDERSTANDING YOUR INSTRUMENT PANEL Defrost Air is directed through the windshield and side window demist outlets. Use this mode with maxi- mum fan and temperature settings for best windshield and side window defrosting. NOTE: The air conditioning compressor operates in both Mix and Defrost even if the fan switch is not in the A/C position.
Page 269 NOTE: If your air conditioning performance seems lower than expected, check the front of the A/C con- denser: located in front of the radiator, for an accumula- tion of dirt or insects. Clean with a gentle water spray from behind the radiator and through the condenser. Fabric front fascia protectors may reduce air flow to the condenser, reducing air conditioning performance.
Page 270: Air Conditioning
268 UNDERSTANDING YOUR INSTRUMENT PANEL Air Conditioning Normal Operation Press this button to engage the air conditioning. A light will illumi- nate when the air conditioning system is engaged. Once the air conditioning is engaged, use a combination of the mode control, fan speed control, and tempera- ture control to achieve your de- sired interior temperature.
Page 271: Operating Tips
Operating Tips Window Fogging Windows will fog on the inside when the humidity inside the vehicle is high. This often occurs in mild or cool temperatures when it’s rainy or humid. In most cases turning on the air-conditioning (pressing the snowflake button) will clear the fog.
Page 272 270 UNDERSTANDING YOUR INSTRUMENT PANEL Winter Operation When operating the system during the winter months, make sure the air intake, located directly in front of the windshield, is free of ice, slush, snow, or other obstructions. Vacation Storage Anytime you store your vehicle or keep it out of service (i.e., vacation) for two weeks or more, run the air conditioning system at idle for about five minutes in the fresh air and high blower setting.
Page 273: Starting And Operating
STARTING AND OPERATING CONTENTS Starting Procedures ....275 Manual Transmission ....275 Automatic Transmission .
Page 274 272 STARTING AND OPERATING Four–Wheel Drive Operation (Command- Trac™ Or Rock-Trac™) — If Equipped ..289 Operating Instructions/Precautions ..289 Shift Positions ..... . 291 Shifting Procedure .
Page 275 Electronic Brake Control System ... 316 Anti-Lock Brake System (ABS) ... 316 Traction Control System (TCS) ... 317 Brake Assist System (BAS) .
Page 276 274 STARTING AND OPERATING Tire Pressure Monitor System (TPMS) ..347 Base System ......350 General Information .
Page 277: Starting Procedures
STARTING PROCEDURES Before starting your vehicle, adjust your seat, adjust both inside and outside mirrors, and fasten your seat belts. WARNING! Do not leave children or animals inside parked vehicles in hot weather. Interior heat buildup may cause serious injury or death. Manual Transmission Apply the parking brake, place the shift lever in NEU- TRAL, and press the clutch pedal before starting the...
Page 278: Starting And Operating
276 STARTING AND OPERATING Tip Start Feature — Automatic Transmission Only Turn the ignition switch to the START position and release it as soon as the starter engages. The starter motor will continue to run, but will automatically disengage itself when the engine is running. If the engine fails to start, the starter will disengage automatically in 10 sec- onds.
Page 279 WARNING! (Continued) • Do not attempt to push or tow your vehicle to get it started. Vehicles equipped with an automatic transmission cannot be started this way. Unburned fuel could enter the catalytic converter and, once the engine has started, ignite and damage the converter and vehicle.
Page 280: After Starting
278 STARTING AND OPERATING If the engine shows no sign of starting after two 15– second periods of cranking with the accelerator pedal held to the floor, repeat the “Normal Starting” or “Ex- treme Cold Weather” procedures. With Tip Start — Automatic Transmission Only If the engine fails to start after you have followed the “Normal Starting”...
Page 281: Engine Block Heater - If Equipped
ENGINE BLOCK HEATER — IF EQUIPPED The engine block heater warms the engine, and permits quicker starts in cold weather. Connect the cord to a standard 110-115 Volt AC electrical outlet with a grounded, three-wire extension cord. The engine block heater cord is found under the hood bundled in front of the battery tray.
Page 282: Shifting
280 STARTING AND OPERATING NOTE: During cold weather, you may experience in- creased effort in shifting until the transmission fluid warms up. This is normal. Shift Pattern Shifting Fully press the clutch pedal before shifting gears. As you release the clutch pedal, lightly press the accelerator pedal.
Page 283: Downshifting
Manual Transmission Shift Speeds in MPH (KM/H) Engine Speeds 1 to 2 2 to 3 3 to 4 4 to 5 5 to 6 3.8L Accel. 15 (24) (39) Cruise 10 (16) (31) Downshifting Moving from a high gear down to a lower gear is recommended to preserve brakes when driving down steep hills.
Page 284: Reverse Shifting
282 STARTING AND OPERATING Maximum Recommended Downshift Speeds CAUTION! Failure to follow the maximum recommended down- shifting speeds may cause the engine to overspeed and/or damage the clutch disc, even if the clutch pedal is pressed. Manual Transmission Downshift Speeds in MPH (KM/H) Gear Selec-...
Page 285: Automatic Transmission - If Equipped
AUTOMATIC TRANSMISSION — IF EQUIPPED CAUTION! Damage to the transmission may occur if the follow- ing precautions are not observed: • Shift into PARK only after the vehicle has come to a complete stop. • Shift into or out of REVERSE only after the vehicle has come to a complete stop and the engine is at idle speed.
Page 286: Brake/Transmission Interlock Manual Override
284 STARTING AND OPERATING Brake/Transmission Interlock Manual Override Your vehicle may be equipped with a shift lock manual override. The manual override may be used in the event that the shift lever should fail to move from PARK with the key in the ON position and the brake pedal pressed. To operate the shift lock manual override, perform the following steps: 1.
Page 287: Automatic Transmission With Overdrive
Automatic Transmission with Overdrive Shifting from DRIVE to PARK or REVERSE (or from P or R to D) should be done only after the accelerator pedal is released and the vehicle is stopped. Be sure to keep your foot on the brake when moving the shift lever between these gears.
Page 288 286 STARTING AND OPERATING WARNING! • Never use the PARK position as a substitute for the parking brake. Always apply the parking brake fully when parked to guard against vehicle movement and possible injury or damage. • It is dangerous to move the shift lever out of PARK or NEUTRAL if the engine speed is higher than the idle speed.
Page 289 • The O/D OFF switch has not been activated. • Vehicle speed is above approximately 30 mph (48 km/h). When frequent transmission shifting occurs while using Overdrive, such as when operating the vehicle under heavy load conditions (for example, in hilly terrain, strong head winds, or trailer towing), turning off over- drive will improve performance and extend transmission life by reducing excessive shifting and heat buildup.
Page 290 288 STARTING AND OPERATING second time restores the Overdrive function. The lockout feature is useful when towing a trailer or carrying a heavy load. 2 (Second) This range is used for moderate grades and to assist braking on dry pavement or in mud and snow. The vehicle begins from a stop in low gear with automatic upshift to 2nd gear.
Page 291: Four-Wheel Drive Operation (Command-Trac™ Or Rock-Trac™) - If Equipped
Torque Converter Clutch A feature designed to improve fuel economy has been added to the automatic transmission of this vehicle. A clutch within the torque converter engages automatically at calibrated speeds. This may result in a slightly differ- ent feeling or response during normal operation in high gear.
Page 292 290 STARTING AND OPERATING rear wheels to rotate at the same speed. This is accom- plished by simply moving the shift lever to one of these positions. The 4H and 4L positions are intended for loose, slippery road surfaces only and not intended for normal driving.
Page 293: Shift Positions
WARNING! You or others could be injured if you leave the vehicle unattended with the transfer case in the N (Neutral) position without first fully engaging the parking brake. The transfer case N (Neutral) position disengages both the front and rear driveshaft from the powertrain, and will allow the vehicle to move regardless of the transmission position.
Page 294: Shifting Procedure
292 STARTING AND OPERATING 4L Position This range locks the front and rear driveshafts together, forcing the front and rear wheels to rotate at the same speed. This range (4L) provides additional traction and maximum pulling power for loose, slippery road surfaces only.
Page 295: Trac-Lok™ Rear Axle - If Equipped
WARNING! Failure to engage a position completely can cause transfer case damage or loss of power and vehicle control. You could have an injury accident. Do not drive the vehicle unless the transfer case is fully engaged. TRAC-LOK™ REAR AXLE — IF EQUIPPED The Trac-Lok™...
Page 296: Axle Lock (Tru-Lok™) - Rubicon Models
294 STARTING AND OPERATING AXLE LOCK (TRU–LOK™) — RUBICON MODELS The AXLE LOCK switch is located on the lower switch bank (below the climate controls). Axle Lock Switch This feature will only activate when the following con- ditions are met: •...
Page 297: Rear Axle Lock (Four-Wheel Drive Non-Rubicon Models) - If Equipped
REAR AXLE LOCK (FOUR-WHEEL DRIVE NON-RUBICON MODELS) — IF EQUIPPED The REAR AXLE LOCK switch is located on the lower switch bank (below the climate controls). This feature will only activate when the following con- ditions are met: • Key in ignition, vehicle in 4L (Low) range. •...
Page 298 296 STARTING AND OPERATING This system is controlled by the SWAY BAR switch located on the lower switch bank (below the climate controls). Sway Bar Switch Press the SWAY BAR switch to activate the system. Press the switch again to deactivate the system. The “Sway Bar Indicator Light”...
Page 299: On-Road Driving Tips
To disconnect the stabilizer/sway bar, shift to either 4H or 4L (refer to “Four-Wheel Drive Operation” in this section) and press the SWAY BAR switch to obtain the off-road position. The “Sway Bar Indicator Light” will flash until the stabilizer/sway bar has been fully discon- nected.
Page 300: Off-Road Driving Tips
298 STARTING AND OPERATING An advantage of the higher ground clearance is a better view of the road, allowing you to anticipate problems. They are not designed for cornering at the same speeds as conventional two-wheel drive vehicles any more than low-slung sports cars are designed to perform satisfacto- rily in off-road conditions.
Page 301: The Basics Of Off-Road Driving
3. Remove the side step assembly. The Basics of Off-Road Driving You will encounter many types of terrain driving off- road. You should be familiar with the terrain and area before proceeding. There are many types of surface conditions: hard-packed dirt, gravel, rocks, grass, sand, mud, snow and ice.
Page 302: When To Use 4L (Low) Range
300 STARTING AND OPERATING WARNING! Always wear your seat belt and firmly tie down cargo. Unsecured cargo can become projectiles in an off-road situation. When to Use 4L (Low) Range When off-road driving, shift into 4L (Low) for additional traction and control on slippery or difficult terrain, ascending or descending steep hills, and to increase low speed pulling power.
Page 303 CAUTION! On icy or slippery roads, do not downshift at high engine RPM or vehicle speeds, because engine brak- ing may cause skidding and loss of control. Deep mud creates a great deal of suction around the tires and is very difficult to get through. You should use 2nd gear (manual transmission), or DRIVE (automatic trans- mission), with the transfer case in the 4L (Low) position to maintain your momentum.
Page 304: Crossing Obstacles (Rocks And Other High Points)
302 STARTING AND OPERATING CAUTION! Reduced tire pressures may cause tire unseating and total loss of air pressure. To reduce the risk of tire unseating, while at a reduced tire pressure, reduce your speed and avoid sharp turns or abrupt maneu- vers.
Page 305 Crossing Large Rocks When approaching large rocks, choose a path which ensures you drive over the largest of them with your tires. This will lift your undercarriage over the obstacle. The tread of the tire is tougher and thicker than the side wall and is designed to take the abuse.
Page 306: Hill Climbing
304 STARTING AND OPERATING on top of the log while the other just starts to climb the log. While climbing the log, modulate your brake and accelerator to avoid spinning the log out from under your tires. Then ease the vehicle off the log using your brakes. CAUTION! Do not attempt to cross a log with a greater diameter than the running ground clearance or the vehicle will...
Page 307 Before Climbing A Steep Hill As you approach a hill, consider its grade or steepness. Determine if it is too steep. Look to see what the traction is on the hill side trail. Is the trail straight up and down? What is on top and the other side? Are there ruts, rocks, branches or other obstacles on the path? Can you safely recover the vehicle if something goes wrong? If every-...
Page 308 306 STARTING AND OPERATING Driving Downhill Before driving down a steep hill, you need to determine if it is too steep for a safe descent. What is the surface traction? Is the grade too steep to maintain a slow, controlled descent? Are there obstacles? Is it a straight descent? Is there plenty of distance at the base of the hill to regain control if the vehicle descends to fast? If you feel confident in your ability to proceed, then make sure you...
Page 309: Driving Through Water
engine braking to control the descent and apply your brakes, if necessary, but do not allow the tires to lock. WARNING! If the engine stalls or you lose headway or cannot make it to the top of a steep hill or grade, never attempt to turn around.
Page 310 308 STARTING AND OPERATING CAUTION! • Water ingestion into the axles, transmission, trans- fer case, engine or vehicle interior can occur if you drive too fast or through too deep of water. Water can cause permanent damage to engine, driveline or other vehicle components, and your brakes will be less effective once wet and/or muddy.
Page 311 CAUTION! Muddy waters can reduce the cooling system effec- tiveness by depositing debris onto the radiator. Crossing Ditches, Streams, Shallow Rivers or Other Flowing Water Flowing water can be extremely dangerous. Never at- tempt to cross a fast running stream or river even in shallow water.
Page 312: After Driving Off-Road
310 STARTING AND OPERATING After Driving Off-Road Off-road operation puts more stress on your vehicle than does most on-road driving. After going off-road, it is always a good idea to check for damage. That way you can get any problems taken care of right away and have your vehicle ready when you need it.
Page 313: Power Steering
• If you experience unusual vibration after driving in mud, slush or similar conditions, check the wheels for impacted material. Impacted material can cause a wheel imbalance and freeing the wheels of it will correct the situation. POWER STEERING The standard power steering system will give you good vehicle response and increased ease of maneuverability in tight spaces.
Page 314: Power Steering Fluid Check
312 STARTING AND OPERATING Power Steering Fluid Check Checking the power steering fluid level at a defined service interval is not required. The fluid should only be checked if a leak is suspected, abnormal noises are apparent, and/or the system is not functioning as antici- pated.
Page 315: Parking Brake
PARKING BRAKE NOTE: This vehicle is not equipped with a self- adjusting parking brake system. Refer to the “Mainte- nance Schedule” in Section 8 of this manual for the proper maintenance intervals. To set the parking brake, pull the lever up as firmly as possible.
Page 316: Anti-Lock Brake System
314 STARTING AND OPERATING WARNING! • Always fully apply the parking brake when leav- ing your vehicle, or it may roll and cause damage or injury. Also, be certain to leave an automatic transmission in PARK, a manual transmission in REVERSE or 1st gear.
Page 317 The Anti-Lock Brake System conducts a low speed self- test at about 12 mph (20 km/h). If for any reason your foot is on the brake when the vehicle reaches 12 mph (20 km/h), this check will be delayed until 25 mph (40 km/h).
Page 318: Electronic Brake Control System
316 STARTING AND OPERATING WARNING! (Continued) • The capabilities of an ABS-equipped vehicle must never be exploited in a reckless or dangerous manner which could jeopardize the user’s safety or the safety of others. CAUTION! The Anti-Lock Brake System is subject to possible detrimental effects of electronic interference caused by improperly installed aftermarket radios or tele- phones.
Page 319: Traction Control System (Tcs)
WARNING! The Anti-Lock Brake System (ABS) cannot prevent the natural laws of physics from acting on the ve- hicle, nor can they increase the traction afforded by prevailing road conditions. The ABS cannot prevent accidents, including those resulting from excessive speed in turns, driving on very slippery surfaces, or hydroplaning.
Page 320: Hill Start Assist (Hsa)
318 STARTING AND OPERATING benefit of the system, you must apply continuous brak- ing pressure during the stopping sequence. Do not reduce brake pedal pressure unless braking is no longer desired. Once the brake pedal is released, the BAS is deactivated.
Page 321 WARNING! If the clutch pedal (manual transmission only) re- mains pressed during the application of the throttle, the HSA will disengage allowing the vehicle to roll down the incline. This could cause a collision with another vehicle or object. To avoid this, do not apply throttle while pressing the clutch pedal until you are ready to release the clutch.
Page 322 320 STARTING AND OPERATING HSA on Automatic Transmission Vehicles The system will work in REVERSE, and all forward gears on vehicles equipped with an automatic transmission. The system will not activate if the vehicle is placed in NEUTRAL. HSA on Manual Transmission Vehicles The system will work in REVERSE, forward gears, and NEUTRAL on manual transmission equipped vehicles.
Page 323: Electronic Roll Mitigation (Erm)
WARNING! (Continued) • HSA is not a parking brake. If you stop the vehicle on a hill without putting the transmission in PARK and using the parking brake, it will roll down the hill and could cause a collision with another vehicle or object.
Page 324: Electronic Stability Program (Esp)
322 STARTING AND OPERATING speed of the vehicle. When ERM determines that the rate of change of the steering wheel angle and vehicle’s speed are sufficient to potentially cause wheel lift, it applies the appropriate brake and may reduce engine power to lessen the chance that wheel lift will occur.
Page 325 counteracting the over/under steer condition. Engine power may also be reduced to help the vehicle maintain the desired path. ESP uses sensors in the vehicle to determine the vehicle path intended by the driver and compares it to the actual path of the vehicle.
Page 326 324 STARTING AND OPERATING The ESP system has three available operating modes in 4H range. The system has one operating mode in 4L range. Two-wheel drive vehicles and four-wheel drive vehicles in 2H range have two operating modes. 4H Range (4WD Models) or 2WD Models This is the normal operating mode for ESP in 4H and 2WD vehicles.
Page 327 NOTE: To improve the vehicle’s traction when driving with snow chains, or starting off in deep snow, sand, or gravel, it may be desirable to switch to the “Partial Off” mode by pressing the ESP OFF switch. Once the situation requiring ESP to be switched to the “Partial Off”...
Page 328 326 STARTING AND OPERATING WARNING! With the ESP switched off, the enhanced vehicle stability offered by ESP and ERM are unavailable. In an emergency evasive maneuver, the ESP and ERM systems will not engage to assist in maintaining stability. The “Full Off” ESP mode is intended for off-road use only.
Page 329 WARNING! With the ESP switched off, the enhanced vehicle stability offered by ESP and ERM are unavailable. In an emergency evasive maneuver, the ESP and ERM systems will not engage to assist in maintaining stability. The “Full Off” mode is intended for off- road use only.
Page 330: Esp/Bas Warning Light
328 STARTING AND OPERATING The following procedure will disable (or re-enable) ESP functionality in the vehicle: 1. Shift the transfer case into the 4H range position. 2. Turn the steering wheel until it is centered and the wheels are pointed straight ahead. 3.
Page 331: Trailer Sway Control (Tsc)
If the “ESP/BAS Warning Light” comes on continuously with the engine running, a malfunction has been detected in either the ESP or the BAS system, or both. If this light remains on after several ignition cycles, and the vehicle has been driven several miles/kilometers at speeds greater than 30 mph (48 km/h), see your authorized dealer as soon as possible to have the problem diagnosed and corrected.
Page 332: Tire Safety Information
330 STARTING AND OPERATING WARNING! If TSC activates while driving, slow the vehicle down, stop at the nearest safe location, and adjust the trailer load to eliminate trailer sway. TIRE SAFETY INFORMATION Tire Markings 1 — U.S. DOT Safety Stan- 4 —...
Page 333 NOTE: • P (Passenger) - Metric tire sizing is based on U.S. design standards. P-Metric tires have the letter “P” molded into the sidewall preceding the size designa- tion. Example: P215/65R15 95H. • European-Metric tire sizing is based on European design standards.
Page 334 332 STARTING AND OPERATING Tire Sizing Chart Size Designation: P = Passenger Car tire size based on U.S. design standards ...blank... = Passenger Car tire based on European design standards LT = Light Truck tire based on U.S. design standards T = Temporary spare tire 31 = Overall diameter in inches (in) 215 = Section width in millimeters (mm)
Page 335 Service Description: 95 = Load Index — A numerical code associated with the maximum load a tire can carry H = Speed Symbol — A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions —...
Page 336: Tire Identification Number (Tin)
334 STARTING AND OPERATING Tire Identification Number (TIN) The TIN may be found on one or both sides of the tire, however, the date code may only be on one side. Tires with white sidewalls will have the full TIN, including the date code, located on the white sidewall side of the tire.
Page 337: Tire Loading And Tire Pressure
STARTING AND OPERATING 335 Tire Loading and Tire Pressure Tire Placard Location Tire Placard Location (Four-Door Models) Tire Placard Location (Two-Door Models)
Page 338 336 STARTING AND OPERATING Tire and Loading Information Placard Tire and Loading Information Placard This placard tells you important information about the: 1) number of people that can be carried in the vehicle 2) total weight your vehicle can carry 3) tire size designed for your vehicle 4) cold tire inflation pressures for the front, rear, and spare tires.
Page 339 Steps for Determining Correct Load Limit 1. Locate the statement “The combined weight of occu- pants and cargo should never exceed XXX kg or XXX lbs” on your vehicle’s placard. 2. Determine the combined weight of the driver and passengers that will be riding in your vehicle. 3.
Page 340 338 STARTING AND OPERATING...
Page 341: Tires - General Information
WARNING! Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the recommended load capacity for your vehicle. Never overload them. TIRES — GENERAL INFORMATION Tire Pressure Proper tire inflation pressure is essential to the safe and satisfactory operation of your vehicle.
Page 342: Tire Inflation Pressures
340 STARTING AND OPERATING Economy Tire Inflation Pressures Improper inflation pressures can cause uneven wear patterns to develop across the tire tread. These abnormal wear patterns will reduce tread life resulting in a need for earlier tire replacement. Under-inflation also increases tire rolling resistance and results in higher fuel consumption.
Page 343 Tire Placard Location (Four-Door Models) Tire pressure should be checked and adjusted as well as inspected for signs of tire wear or visible damage, at least once a month. Use a good quality pocket-type gauge to check tire pressure. Do not make a visual judgement when determining proper inflation.
Page 344: Tire Pressures For High-Speed Operation
342 STARTING AND OPERATING Tire pressures change by approximately 1 psi (7 kPa) per 12° F (7° C) of air temperature change. Keep this in mind when checking tire pressure inside a garage, especially in the Winter. Example: If garage temperature = 68° F (20° C) and the outside temperature = 32°...
Page 345: Radial-Ply Tires
Radial-Ply Tires WARNING! Combining radial ply tires with other types of tires on your vehicle will cause your vehicle to handle poorly. The instability could cause an accident. Al- ways use radial tires in sets of four. Never combine them with other types of tires. Cuts and punctures in radial tires are repairable only in the tread area because of sidewall flexing.
Page 346: Tread Wear Indicators
344 STARTING AND OPERATING Tread Wear Indicators Tread wear indicators are in the original equipment tires to help you in determining when your tires should be re- placed. 1 — Worn Tire 2 — New Tire These indicators are molded into the bottom of the tread grooves.
Page 347: Replacement Tires
Keep unmounted tires in a cool, dry place with as little exposure to light as possible. Protect tires from contact with oil, grease and gasoline. Replacement Tires The tires on your new vehicle provide a balance of many characteristics. They should be inspected regularly for wear and correct cold tire inflation pressure.
Page 348: Tire Chains
346 STARTING AND OPERATING WARNING! (Continued) • Failure to equip your vehicle with tires having adequate speed capability can result in sudden tire failure and loss of vehicle control. CAUTION! Replacing original tires with tires of a different size may result in false speedometer and odometer read- ings.
Page 349: Tire Rotation Recommendations
TIRE ROTATION RECOMMENDATIONS Tires on the front and rear axles of vehicles operate at different loads and perform different steering, handling, and braking functions. For these reasons, they wear at unequal rates, and develop irregular wear patterns. These effects can be reduced by timely rotation of tires. The benefits of rotation are especially worthwhile with aggressive tread designs such as those on On/Off Road type tires.
Page 350 348 STARTING AND OPERATING when the outside temperature decreases, the tire pressure will decrease. Tire pressure should always be set based on cold inflation tire pressure. This is defined as the tire pressure after a vehicle has not been driven for more than three hours, or driven less than 1 mile (1.6 km) after a three-hour period.
Page 351 30 psi (207 kPa), but the “Tire Pressure Monitoring Telltale Light” will still be ON. In this situation, the “Tire Pressure Monitoring Telltale Light” will turn OFF only after the tires have been inflated to the vehicle’s recom- mended cold placard pressure value. CAUTION! •...
Page 352: Base System
350 STARTING AND OPERATING • The TPMS is not a substitute for proper tire mainte- nance, and it is the driver’s responsibility to maintain correct tire pressure, even if under-inflation has not reached the level to trigger illumination of the “Tire Pressure Monitoring Telltale Light.”...
Page 353 each tire to the vehicle’s recommended cold placard pressure value. The system will automatically update and the “Tire Pressure Monitoring Telltale Light” will extinguish once the updated tire pressures have been received. The vehicle may need to be driven for up to 20 minutes above 15 mph (25 km/h) to receive this information.
Page 354: General Information
352 STARTING AND OPERATING NOTE: If your vehicle is not equipped with a matching full-size spare wheel and tire assembly, it does not have a tire pressure monitoring sensor in the spare tire. The TPMS will not be able to monitor the tire pressure. If you install the spare tire in place of a road tire that has a pressure below the low-pressure warning limit, upon the next ignition key cycle, a chime will sound and the “Tire...
Page 355: Fuel Requirements
FUEL REQUIREMENTS All engines are designed to meet all emis- sions regulations and provide excellent fuel economy and performance when us- ing high quality unleaded “regular” gaso- line having an octane rating of 87. The use of premium gasoline is not recommended, as it will not provide any benefit over regular gasoline in these engines.
Page 356: Gasoline/Oxygenate Blends
354 STARTING AND OPERATING Gasoline/Oxygenate Blends Some fuel suppliers blend unleaded gasoline with oxy- genates such as 10% ethanol, MTBE, and ETBE. Oxygen- ates are required in some areas of the country during the winter months to reduce carbon monoxide emissions. Fuels blended with these oxygenates may be used in your vehicle.
Page 357: Mmt In Gasoline
• disconnect and reconnect the battery to reset the engine controller memory More extensive repairs will be required for prolonged exposure to E-85 fuel. MMT In Gasoline MMT is a manganese containing metallic additive that is blended into some gasoline to increase the octane num- ber.
Page 358: Fuel System Cautions
356 STARTING AND OPERATING Fuel System Cautions CAUTION! Follow these guidelines to maintain your vehicle’s performance: • The use of leaded gasoline is prohibited by Federal law. Using leaded gasoline can impair engine perfor- mance, and damage the emission control system. •...
Page 359: Adding Fuel
stopped in an open area with the engine running for more than a short period, adjust the ventilation system to force fresh, outside air into the vehicle. • Guard against carbon monoxide with proper mainte- nance. Have the exhaust system inspected every time the vehicle is raised.
Page 360 358 STARTING AND OPERATING sound is heard. This is an indication that the gas cap is properly tightened. Press the odometer reset button to turn the message off. If the problem persists, the message will appear the next time the vehicle is started. This might indicate a damaged cap.
Page 361: Vehicle Loading
WARNING! A fire may result if gasoline is pumped into a portable container that is inside of a vehicle. You could be burned. Always place gas containers on the ground while filling. VEHICLE LOADING Certification Label As required by National Highway Traffic Safety Admin- istration regulations, your vehicle has a certification label affixed to the driver’s side door or B-Pillar.
Page 362 360 STARTING AND OPERATING Each axle’s GAWR is determined by the components in the system with the lowest load carrying capacity (axle, springs, tires, or wheels). Heavier axles or suspension components, sometimes specified by purchasers for in- creased durability, does not necessarily increase the ve- hicle’s GVWR.
Page 363: Trailer Towing
the front or rear axles has been exceeded, but the total load is within the specified GVWR. If so, weight must be shifted from front to rear, or rear to front, as appropriate until the specified weight limitations are met. Store the heavier items down low and be sure that the weight is distributed equally.
Page 364 362 STARTING AND OPERATING Gross Trailer Weight (GTW) The GTW is the weight of the trailer plus the weight of all cargo, consumables and equipment (permanent or tem- porary) loaded in or on the trailer in its loaded and ready for operation condition. The recommended way to measure GTW is to put your fully-loaded trailer on a vehicle scale.
Page 365 tongue. It typically provides adjustable friction associ- ated with the telescoping motion to dampen any un- wanted trailer swaying motions while traveling. Weight-Carrying Hitch A weight-carrying hitch supports the trailer tongue weight, just as if it were luggage located at a hitch ball or some other connecting point of the vehicle.
Page 366: Trailer Hitch Classification
364 STARTING AND OPERATING Trailer Hitch Classification The following chart provides the industry standard for the maximum trailer weight a given trailer hitch class can tow and should be used to assist you in selecting the correct trailer hitch for your intended towing condition. Refer to the Trailer Towing Weights (Maximum Trailer Weight Ratings) chart for the Max.
Page 367: Trailer Towing Weights (Maximum Trailer Weight Ratings)
Trailer Towing Weights (Maximum Trailer Weight Ratings) The following chart provides the maximum trailer weight ratings towable for your given drivetrain. Engine/ Axle Model Transmis- sion 3.8L/ 3.21 2–Door Manual X Model (4WD) 3.8L/ 3.73 2–Door Manual X Model (4WD) 3.8L/ 3.73 2–Door...
Page 368 366 STARTING AND OPERATING Engine/ Axle Model Transmis- sion 3.8L/ 3.73 2–Door Manual Sahara Model (4WD) 3.8L/ 3.73 2–Door Automatic Sahara Model (4WD) 3.8L/ 4.10 2–Door Manual Rubicon Model (4WD) 3.8L/ 4.10 2–Door Automatic Rubicon Model (4WD) GCWR (Gross Frontal Area Combined Wt.
Page 369 Engine/ Axle Model Transmis- sion 3.8L/ 3.73 4–Door 7,734 lbs (3 508 kg) 32 sq ft (2.97 sq m) Automatic X Model (2WD) 3.8L/ 3.73 4–Door 7,893 lbs (3 580 kg) 32 sq ft (2.97 sq m) Automatic Sahara Model (2WD) 3.8L/ 3.21...
Page 370 368 STARTING AND OPERATING Engine/ Axle Model Transmis- sion 3.8L/ 3.21 4–Door Manual Sahara Model (4WD) 3.8L/ 3.73 4–Door Manual Sahara Model (4WD) 3.8L/ 3.73 4–Door Automatic Sahara Model (4WD) 3.8L/ 4.10 4–Door Manual Rubicon Model (4WD) GCWR (Gross Frontal Area Combined Wt.
Page 371 Engine/ Axle Model Transmis- sion 3.8L/ 4.10 4–Door Automatic Rubicon Model (4WD) Refer to local laws for maximum trailer towing speeds. NOTE: The trailer tongue weight must be considered as part of the combined weight of occupants and cargo, and should never exceed the weight referenced on the Tire and Loading Information placard.
Page 372: Trailer And Trailer Tongue Weight
370 STARTING AND OPERATING Trailer and Trailer Tongue Weight Always load a trailer with 60% to 65% of the weight in the front of the trailer. This places 10% to 15% of the Gross Trailer Weight (GTW) on the tow hitch of your vehicle.
Page 373: Towing Requirements
NOTE: Remember that everything put into or on the trailer adds to the load on your vehicle. Also, additional factory-installed options, or authorized dealer-installed options, must be considered as part of the total load on your vehicle. Refer to the Tire and Loading Information placard in the “Tire Safety Information”...
Page 374 372 STARTING AND OPERATING • When hauling cargo or towing a trailer, do not over- load your vehicle or trailer. Overloading can cause a loss of control, poor performance or damage to the brakes, axle, engine, transmission, steering, suspen- sion, chassis structure or tires. •...
Page 375 − Proper tire inflation pressures are essential to the safe and satisfactory operation of your vehicle. Refer to “Tires–General Information” in this section for proper tire inflation procedures. − Check the trailer tires for proper tire inflation pres- sures before trailer usage. −...
Page 376 374 STARTING AND OPERATING CAUTION! If the trailer weighs more than 1,000 lbs (454 kg) loaded, it should have its own brakes and they should be of adequate capacity. Failure to do this could lead to accelerated brake lining wear, higher brake pedal effort, and longer stopping distances.
Page 377: Towing Tips
The electrical connections are all complete to the vehicle but you must mate the harness to a trailer connector. Refer to the following illustration. Four-Pin Connector 1 — Female Pins 4 — Park 2 — Male Pin 5 — Left Stop/Turn 3 —...
Page 378 376 STARTING AND OPERATING The automatic transmission fluid and filter should be changed if you REGULARLY tow a trailer for more than 45 minutes of continuous operation. Refer to the “Main- tenance Schedule” in Section 8 of this manual for the proper maintenance intervals.
Page 379: Recreational Towing (Behind Motorhome, Etc.)
RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) CAUTION! Front or rear wheel lifts should not be used. Internal damage to the transmission or transfer case will occur if a front or rear wheel lift is used when recreational towing. Towing – Two-Wheel Drive Models Recreational towing is allowed ONLY if the rear drive- shaft is removed.
Page 380 378 STARTING AND OPERATING Use the following procedure to prepare your vehicle for recreational towing. CAUTION! It is necessary to follow these steps to be certain that the transfer case is fully in N (Neutral) before recre- ational towing to prevent damage to internal parts. 1.
Page 381 CAUTION! Damage to the transmission may occur if the trans- mission is shifted into PARK with the transfer case in N (Neutral) and the engine running. With the trans- fer case in N (Neutral) ensure that the engine is off prior to shifting the transmission into PARK (refer to steps 8 –...
Page 383: What To Do In Emergencies
WHAT TO DO IN EMERGENCIES CONTENTS Hazard Warning Flasher ....382 If Your Engine Overheats ....382 Jacking And Tire Changing .
Page 384: Hazard Warning Flasher
382 WHAT TO DO IN EMERGENCIES HAZARD WARNING FLASHER The Hazard Warning flasher switch is located on the lower switch bank below the climate controls. Press the switch to turn on the Hazard Warning flasher. When the switch is activated, all directional turn signals will flash on and off to warn oncoming traffic of an emergency.
Page 385: Jacking And Tire Changing
NOTE: There are steps that you can take to slow down an impending overheat condition: • If your air conditioner (A/C) is on, turn it off. The A/C system adds heat to the engine cooling system and turning the A/C can help remove this heat. •...
Page 386: Jack Location
384 WHAT TO DO IN EMERGENCIES Jack Location The jack and lug wrench are located in the rear storage compartment. Refer to “Storage” in Section 3 of this manual. Jack Storage Spare Tire Stowage To remove the spare tire from the carrier, remove the tire cover, if equipped, and remove the lug nuts with the lug wrench turning them counterclockwise.
Page 387: Jacking Instructions
2. Set the parking brake. 3. Shift the automatic transmission into PARK, or a manual transmission into REVERSE. 4. Turn the ignition to LOCK. 5. Turn on the Hazard Warning flasher. 6. Block both the front and rear of the wheel diagonally opposite of the jack- ing position.
Page 388 386 WHAT TO DO IN EMERGENCIES WARNING! (Continued) • Do not let anyone sit in the vehicle when it is on a jack. • Do not get under the vehicle when it is on a jack. • Only use the jack in the positions indicated and for lifting this vehicle during a tire change.
Page 389 Jacking Locations 1 — Rear Jacking Location 2 — Front Jacking Location 5. Raise the vehicle by turning the jack screw to the right. Raise the vehicle only until the tire just clears the surface and enough clearance is obtained to install the spare tire. Minimum tire lift provides maximum stability.
Page 390: Jump-Starting
388 WHAT TO DO IN EMERGENCIES wheel nut tightness is 95 ft lbs (130 N·m). If in doubt about the correct tightness, have them checked with a torque wrench by your authorized dealer or at a service station. 10. Remove the jack assembly and wheel blocks. WARNING! A loose tire or jack, thrown forward in a collision or hard stop, could endanger the occupants of the ve-...
Page 391 1. Remove all metal jewelry such as watch bands or bracelets which might make an unintended electrical contact. 2. Park the booster vehicle within cable reach but with- out letting the vehicles touch. Set the parking brake on both vehicles, shift the automatic transmission into PARK, or the manual transmission into NEUTRAL, and turn the ignition to LOCK.
Page 392 390 WHAT TO DO IN EMERGENCIES WARNING! Any procedure other than above could result in: • Personal injury caused by electrolyte squirting out the battery vent. • Personal injury or property damage due to battery explosion. • Damage to the charging system of the booster vehicle or of the immobilized vehicle.
Page 393: Emergency Tow Hooks - If Equipped
EMERGENCY TOW HOOKS — IF EQUIPPED If your vehicle is equipped with tow hooks, they are mounted in the front and the rear. CAUTION! Tow hooks are for emergency use only, to rescue a vehicle stranded off road. Do not use tow hooks for tow truck hookup or highway towing.
Page 395: Maintaining Your Vehicle
MAINTAINING YOUR VEHICLE CONTENTS Engine Compartment – 3.8L ....395 Onboard Diagnostic System — OBD II ..396 Loose Fuel Filler Cap Message ... 396 Emissions Inspection And Maintenance Programs .
Page 396 394 MAINTAINING YOUR VEHICLE Brake System ..... . . 415 Automatic Transmission — If Equipped ..417 Hydraulic Clutch Fluid —...
Page 397: Engine Compartment - 3.8L
ENGINE COMPARTMENT – 3.8L 1 — Integrated Power Module 2 — Battery 3 — Automatic Transmission Dipstick 4 — Engine Oil Fill 5 — Engine Oil Dipstick 6 — Brake Fluid Reservoir MAINTAINING YOUR VEHICLE 395 7 — Washer Fluid Reservoir 8 —...
Page 398: Onboard Diagnostic System - Obd Ii
396 MAINTAINING YOUR VEHICLE ONBOARD DIAGNOSTIC SYSTEM — OBD II Your vehicle is equipped with a sophisticated onboard diagnostic system called OBD II. This system monitors the performance of the emissions, engine, and automatic transmission control systems. When these systems are operating properly, your vehicle will provide excellent performance and fuel economy, as well as engine emis- sions well within current government regulations.
Page 399: Emissions Inspection And Maintenance Programs
gas cap is properly tightened. Press the odometer reset button to turn the message off. If the problem persists, the message will appear the next time the vehicle is started. This might indicate a damaged cap. If the prob- lem is detected twice in a row, the system will turn on the “Malfunction Indicator Light.”...
Page 400: Replacement Parts
398 MAINTAINING YOUR VEHICLE 5. Approximately 15 seconds later, one of two things will happen: a. The MIL will flash for about 10 seconds and then return to being fully illuminated until you turn OFF the ignition or start the engine. This means that your vehicle’s OBD II system is not ready and you should not proceed to the I/M station.
Page 401: Maintenance Procedures
your vehicle. Refer to these manuals before attempting any procedure yourself. NOTE: Intentional tampering with emissions control systems can result in civil penalties being assessed against you. WARNING! You can be badly injured working on or around a motor vehicle. Only do service work for which you have the knowledge and the proper equipment.
Page 402: Engine Oil
400 MAINTAINING YOUR VEHICLE CAUTION! (Continued) • Your vehicle has been built with improved fluids that protect the performance and durability of your vehicle and also allow extended maintenance intervals. Do not use chemical flushes in these components as the chemicals can damage your engine, transmission, power steering or air condi- tioning.
Page 403 Change Engine Oil The oil change indicator system will remind you that it is time to take your vehicle in for scheduled maintenance. Refer to the “Maintenance Schedule” in Section 8 for information on this system. NOTE: Under no circumstances should oil change intervals exceed 6,000 miles (10 000 km) or six months, whichever occurs first.
Page 404: Engine Oil Filter
402 MAINTAINING YOUR VEHICLE Engine Oil Viscosity (SAE Grade) SAE 5W-20 engine oil is recommended for all operating temperatures. This engine oil improves low temperature starting and vehicle fuel economy. The engine oil filler cap also shows the recommended engine oil viscosity for your engine. For information on engine oil filler cap location, refer to “Engine Compart- ment”...
Page 405: Engine Air Cleaner Filter
Engine Oil Filter Selection All of the manufacturer’s engines have a full-flow type disposable oil filter. Use a filter of this type for replace- ment. The quality of replacement filters varies consider- ably. Only high quality filters should be used to assure most efficient service.
Page 406: Air Conditioner Maintenance
404 MAINTAINING YOUR VEHICLE CAUTION! It is essential when replacing the cables on the battery that the positive cable is attached to the positive post and the negative cable is attached to the negative post. Battery posts are marked (+) positive and negative (-) and are identified on the battery case.
Page 407: Body Lubrication
WARNING! • Use only refrigerants and compressor lubricants approved by the manufacturer for your air condi- tioning system. Some unapproved refrigerants are flammable and can explode, injuring you. Other unapproved refrigerants or lubricants can cause the system to fail, requiring costly repairs. Refer to Section 3 of the Warranty Information Book for further warranty information.
Page 408: Windshield Wiper Blades
406 MAINTAINING YOUR VEHICLE attention should also be given to hood latching compo- nents to ensure proper function. When performing other underhood services, the hood latch, release mechanism and safety catch should be cleaned and lubricated. The external lock cylinders should be lubricated twice a year, preferably in the Fall and Spring.
Page 409: Exhaust System
some washer fluid and apply it to a cloth or towel and wipe clean the wiper blades; this will help blade perfor- mance. To prevent freeze-up of your windshield washer system in cold weather, select a solution or mixture that meets or exceeds the temperature range of your climate.
Page 410 408 MAINTAINING YOUR VEHICLE CAUTION! The catalytic converter requires the use of unleaded fuel only. Leaded gasoline will destroy the effective- ness of the catalyst as an emissions control device and may seriously reduce engine performance and cause serious damage to the engine. Under normal operating conditions, the catalytic con- verter will not require maintenance.
Page 411 WARNING! A hot exhaust system can start a fire if you park over materials that can burn. Such materials might be grass or leaves coming into contact with your exhaust system. Do not park or operate your vehicle in areas where your exhaust system can contact anything that can burn.
Page 412: Cooling System
410 MAINTAINING YOUR VEHICLE Cooling System WARNING! You or others can be badly burned by hot engine coolant (antifreeze) or steam from your radiator. If you see or hear steam coming from under the hood, do not open the hood until the radiator has had time to cool.
Page 413 Cooling System — Drain, Flush, and Refill If the engine coolant (antifreeze) is dirty and contains a considerable amount of sediment, clean and flush with reliable cooling system cleaner. Follow with a thorough rinsing to remove all deposits and chemicals. Properly dispose of the old engine coolant (antifreeze).
Page 414 412 MAINTAINING YOUR VEHICLE CAUTION! (Continued) • This vehicle has not been designed for use with Propylene Glycol based engine coolant (anti- freeze). Use of Propylene Glycol base engine cool- ant (antifreeze) is not recommended. Adding Engine Coolant Your vehicle has been built with an improved engine coolant (antifreeze) that allows extended maintenance intervals.
Page 415 NOTE: Mixing engine coolant (antifreeze) types will decrease the life of the engine coolant (antifreeze) and will require more frequent engine coolant (antifreeze) changes. Cooling System Pressure Cap The cap must be fully tightened to prevent loss of engine coolant (antifreeze), and to ensure that engine coolant (antifreeze) will return to the radiator from the coolant reserve tank.
Page 416 414 MAINTAINING YOUR VEHICLE to remain in puddles on the ground. If ingested by a child or pet, seek emergency assistance immediately. Clean up any ground spills immediately. Engine Coolant Level The coolant bottle provides a quick visual method for determining that the coolant level is adequate.
Page 417: Brake System
• Check the engine coolant (antifreeze) freeze point in the radiator and in the coolant recovery bottle. If engine coolant (antifreeze) needs to be added, the contents of the coolant recovery bottle must also be protected against freezing. • If frequent engine coolant (antifreeze) additions are required, or if the level in the recovery bottle does not drop when the engine cools, the cooling system should be pressure-tested for leaks.
Page 418 416 MAINTAINING YOUR VEHICLE WARNING! Riding the brakes can lead to brake failure and possibly an accident. Driving with your foot resting or riding on the brake pedal can result in abnormally high brake temperatures, excessive lining wear, and possible brake damage. You would not have your full braking capacity in an emergency.
Page 419: Automatic Transmission - If Equipped
WARNING! (Continued) • Overfilling the brake fluid reservoir can result in spilling brake fluid on hot engine parts and the brake fluid catching fire. • Use only brake fluid that has been in a tightly closed container (both as to bottles and the master cylinder remaining covered) to avoid contamina- tion from foreign matter or moisture.
Page 420 418 MAINTAINING YOUR VEHICLE CAUTION! Using a transmission fluid other than the manufac- turer’s recommended fluid may cause deterioration in transmission shift quality and/or torque converter shudder. Using a transmission fluid other than the manufacturer’s recommended fluid will result in more frequent fluid and filter changes.
Page 421 adding any quantity of oil through the dipstick tube, wait a minimum of two minutes for the oil to fully drain into the transmission before rechecking the fluid level. NOTE: If it is necessary to check the transmission below the operating temperature, the fluid level should be between the two cold (lower) holes on the dipstick with the fluid at approximately 70°...
Page 422: Hydraulic Clutch Fluid - Manual Transmission
420 MAINTAINING YOUR VEHICLE CAUTION! Do not use chemical flushes in your transmission as the chemicals can damage your transmission compo- nents. Such damage is not covered by the New Vehicle Limited Warranty. Hydraulic Clutch Fluid — Manual Transmission The clutch hydraulic system is a sealed maintenance-free system.
Page 423: Front/Rear Axle Fluid
Adding Fluid Fluid should be added only at filler hole until fluid begins to run out of the hole. Drain First remove the fill plug (B), then the drain plug (C). The recommended tightening torque for the drain and fill plugs is 15 to 25 ft lbs (20 to 34 N·m).
Page 424: Maintenance After Off-Road Driving
422 MAINTAINING YOUR VEHICLE Selection of Lubricant Use only manufacturer’s recommended fluid. Refer to “Fluids, Lubricants, and Genuine Parts” in this section for the correct fluid type. Maintenance After Off-Road Driving After extended operation in mud, sand or water, or similar dirty conditions, have your brake drums, brake linings, and axle joints inspected and cleaned as soon as possible.
Page 425 corrosive to the metal in your vehicle. Outside parking, which exposes your vehicle to airborne contaminants, road surfaces on which the vehicle is operated, extreme hot or cold weather and other extreme conditions will have an adverse effect on paint, metal trim, and under- body protection.
Page 426 424 MAINTAINING YOUR VEHICLE • Avoid using abrasive compounds and power buffing that may diminish the gloss or thin out the paint finish. CAUTION! • Do not use abrasive or strong cleaning materials such as steel wool or scouring powder, which will scratch metal and painted surfaces.
Page 427 • Use MOPAR Touch-Up Paint or equivalent on scratches or chips as soon as possible. Your authorized dealer has touch-up paint to match the color of your vehicle. Wheel and Wheel Trim Care All wheels and wheel trim, especially aluminum and chrome-plated wheels, should be cleaned regularly with a mild soap and water to prevent corrosion.
Page 428 426 MAINTAINING YOUR VEHICLE Interior Care Use MOPAR Total Clean or equivalent to clean fabric upholstery and carpeting. Interior Trim should be cleaned starting with a damp cloth, a damp cloth with MOPAR Total Clean or equiva- lent, then MOPAR Spot & Stain Remover or equivalent if absolutely necessary.
Page 429 Cleaning Plastic Instrument Cluster Lenses The lenses in front of the instruments in this vehicle are molded in clear plastic. When cleaning the lenses, care must be taken to avoid scratching the plastic. 1. Clean with a wet, soft rag. A mild soap solution may be used, but do not use high alcohol content or abrasive cleaners.
Page 430 428 MAINTAINING YOUR VEHICLE • Be especially careful when washing the windows by following the directions for “Care of Fabric Top Windows.” WASHING — Use MOPAR Car Wash or mild soap suds, lukewarm water, and a brush with soft bristles. If extra cleaning is required, use MOPAR Cloth Top Cleaner or a mild foaming cleaner on the entire top, but support the top from underneath.
Page 431 MOPAR Jeep Soft Glass Window Cleaner will safely clean all plastic windows without scratching. It removes fine scratches to improve visibility and provides UV protection to help prevent yellowing.
Page 432: Fuses
430 MAINTAINING YOUR VEHICLE experienced, work the MOPAR Soft Top Zipper Cleaner and Lubricant into the zipper slide. Several applications may be required before the zipper comes free. 6. Never paste stickers, gummed labels or any tape to the windows. Adhesives are hard to remove and may dam- age the windows.
Page 433 Cavity Cartridge Mini Fuse Fuse 25 Amp Driver Door Node Natural 25 Amp Passenger Door Node Natural 40 Amp Anti-Lock Brake System Green (ABS) Pump Feed/ESP 30 Amp Anti-Lock Brake System Pink (ABS) Valve Feed/ESP — — 40 Amp PZEV Sec Motor Feed/ Green Flex Fuel 30 Amp...
Page 434 432 MAINTAINING YOUR VEHICLE Cavity Cartridge Mini Fuse Fuse 15 Amp Center High-Mounted Blue Stop Light (CHMSL)/ Switch Stop Lamp Feed 20 Amp Relay Trailer Lighting Yellow (Stop) 20 Amp Frt/Rear Axle Locker Yellow Relay — — — — 20 Amp Power Outlet #1/Rain Yellow Sensor...
Page 435 Cavity Cartridge Mini Fuse Fuse 20 Amp Ignition Off Draw— Yellow Cabin Compartment Node (IOD-CCN), Wireless Control Mod- ule (WCM), SIREN, Multifunction Control Switch (MULTIFCTN 20 Amp Trailer Tow (Export Yellow Only) Description Cavity Cartridge Fuse MAINTAINING YOUR VEHICLE 433 Mini Description Fuse...
Page 436 434 MAINTAINING YOUR VEHICLE Cavity Cartridge Mini Fuse Fuse 10 Amp Occupant Restraint Controller (ORC) 15 Amp Left Tail/License/Park Blue Lamp (LT-TAIL/LIC/ PRK LMP) 15 Amp Right Tail/Park/Run Blue Lamp (RT-TAIL/PRK/ RUN LMP) 25 Amp Auto Shut Down (ASD Natural #1 and #2) 15 Amp Cabin Compartment...
Page 437 Cavity Cartridge Mini Fuse Fuse 15 Amp Wiper Motor Frt, J1962 Blue Diagnostic Feed 20 Amp Backup Lamps (B/U Yellow LAMPS) 10 Amp Occupant Restraint Controller (ORC), TT EUROPE 10 Amp Next Generation Con- troller (NGC), Global Powertrain Engine Controller (GPEC) 10 Amp Park Assist (PRK ASST), Heater Ventila-...
Page 438: Vehicle Storage
436 MAINTAINING YOUR VEHICLE CAUTION! • When installing the Integrated Power Module cover, it is important to ensure the cover is prop- erly positioned and fully latched. Failure to do so may allow water to get into the Integrated Power Module, and possibly result in an electrical system failure.
Page 439: Replacement Bulbs - If Equipped
REPLACEMENT BULBS — IF EQUIPPED Interior Lamps Auto. Trans. Indicator Lamp ....658 Heater Control Lamps (2)....194 Rocker Switch Indicator Lamp (Rear Window Defogger, and Rear Wash/Wipe).
Page 440: Front Park/Turn Signal
438 MAINTAINING YOUR VEHICLE 4. Turn both park and turn signal socket assemblies 1/4 turn counterclockwise and remove. 5. Remove the four screws holding the metal retaining ring. 6. Remove the lamp from the collar. 7. Grasp the bulb and turn 1/4 turn counterclockwise. 8.
Page 441: Front Side Marker
Front Side Marker 1. Reach under the front fender flare and locate the front side marker socket. 2. Turn the socket assembly counterclockwise 1/3 turn and remove it from the housing. Pull the bulb straight from the socket to replace. Front Fog Lamp 1.
Page 442: Center High-Mounted Stop Lamp (Chmsl)
440 MAINTAINING YOUR VEHICLE 3. Rotate the appropriate socket 1/4 turn counterclock- wise, then remove it from the housing. 4. Pull the bulb straight from the socket to replace. Center High-Mounted Stop Lamp (CHMSL) The stop lamp is mounted on a bracket that extends upward from the tailgate behind the spare tire.
Page 443: Fluid Capacities
FLUID CAPACITIES Fuel (Approximate) — 2 Door Models Fuel (Approximate) — 4 Door Models Engine Oil with Filter 3.8 Liter Engine Cooling System * 3.8 Liter Engine (MOPAR Antifreeze/Engine Coolant 5 Year/100,000 Mile Formula or equivalent) * Includes coolant recovery bottle filled to MAX level. MAINTAINING YOUR VEHICLE 441 U.S.
Page 444: Fluids, Lubricants And Genuine Parts
442 MAINTAINING YOUR VEHICLE FLUIDS, LUBRICANTS AND GENUINE PARTS Engine Component Engine Coolant Engine Oil Engine Oil Filter Spark Plugs Fuel Selection Fluid, Lubricant, or Genuine Part MOPAR Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Organic Additive Technology) Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of Chrysler Material Standard MS-6395.
Page 445: Chassis
Chassis Component Automatic Transmission Manual Transmission Transfer Case Axle Differential (Front) Axle Differential (Rear) Brake Master Cylinder Power Steering Reservoir Fluid, Lubricant, or Genuine Part MOPAR ATF+4 Automatic Transmission Fluid MOPAR Manual Transmission Lubricant or equivalent (meeting the re- quirements of Chrysler Material Standard MS-9224). MOPAR ATF+4 Automatic Transmission Fluid MOPAR Gear &...
Page 447: Maintenance Schedules
MAINTENANCE SCHEDULES CONTENTS Emissions Control System Maintenance ..446 Maintenance Schedule ....446 Required Maintenance Intervals ..448...
Page 448: Emissions Control System Maintenance
446 MAINTENANCE SCHEDULES EMISSIONS CONTROL SYSTEM MAINTENANCE The Scheduled Maintenance services listed in bold type must be done at the times or mileages specified to ensure the continued proper functioning of the emissions control system. These and all other maintenance services in- cluded in this manual, should be done to provide best vehicle performance and reliability.
Page 449 • Change your engine oil more often if you drive your vehicle off-road for an extended period of time. • Under no circumstances should oil change intervals exceed 6,000 miles (10 000 km) or six months, which- ever comes first. Your dealer will reset the oil change indicator message after completing the scheduled oil change.
Page 450 448 MAINTENANCE SCHEDULES • Check all lights and other electrical items for correct operation. At Each Oil Change • Change the engine oil filter. • Inspect the brake hoses and lines. • Check the manual transmission fluid level. CAUTION! Failure to perform the required maintenance items may result in damage to the vehicle.
Page 451 6,000 Miles (10,000 km) or 6 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. Odometer Reading Date Repair Order # Dealer Code Signature Authorized Chrysler Dealer 12,000 Miles (20,000 km) or 12 Months Maintenance Service Schedule ❏...
Page 452: Service Schedule
450 MAINTENANCE SCHEDULES 18,000 Miles (30,000 km) or 18 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ Inspect the front & rear axle fluid, change if using your vehicle for police, taxi, fleet, off-road or frequent trailer towing.
Page 453 30,000 Miles (50,000 km) or 30 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ Replace the engine air cleaner filter. ❏ Change the manual transmission fluid if using your vehicle for any of the following: trailer towing, snow plowing, heavy loading, taxi, police, delivery service (commercial service), off-road, desert operation or more than 50% of your driving is at sustained high speeds during hot weather, above 90°F (32°C).
Page 454 452 MAINTENANCE SCHEDULES 36,000 Miles (60,000 km) or 36 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the engine air cleaner filter, replace if necessary.
Page 455 48,000 Miles (80,000 km) or 48 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the engine air cleaner filter, replace if necessary. ❏...
Page 456 454 MAINTENANCE SCHEDULES 60,000 Miles (100,000 km) or 60 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ Replace the engine air cleaner filter. ❏ Inspect the brake linings, replace if necessary. ❏...
Page 457 66,000 Miles (110,000 km) or 66 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. Odometer Reading Date Repair Order # Dealer Code Signature Authorized Chrysler Dealer 72,000 Miles (120,000 km) or 72 Months Maintenance Service Schedule ❏...
Page 458 456 MAINTENANCE SCHEDULES 78,000 Miles (130,000 km) or 78 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. Odometer Reading Repair Order # Dealer Code Signature Authorized Chrysler Dealer 84,000 Miles (140,000 km) or 84 Months Maintenance Service Schedule ❏...
Page 459 90,000 Miles (150,000 km) or 90 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ Replace the engine air cleaner filter. ❏ Inspect and replace PCV valve if necessary.† ❏ Change the manual transmission fluid if using your vehicle for any of the following: trailer towing, snow plowing, heavy loading, taxi, police, delivery service (commercial service), off-road, desert operation or more than 50% of your driving is at sustained high speeds during hot weather, above 90°F (32°C).
Page 460 458 MAINTENANCE SCHEDULES 96,000 Miles (160,000 km) or 96 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the engine air cleaner filter, replace if necessary.
Page 461 108,000 Miles (180,000 km) or 108 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the engine air cleaner filter, replace if necessary. ❏...
Page 462 460 MAINTENANCE SCHEDULES 120,000 Miles (200,000 km) or 120 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ Replace the engine air cleaner filter. ❏ Replace accessory drive belt(s). ❏ Inspect the brake linings, replace if necessary. ❏...
Page 463 126,000 Miles (210,000 km) or 126 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ Inspect the front & rear axle fluid, change if using your vehicle for police, taxi, fleet, off-road or frequent trailer towing. Odometer Reading Date Repair Order #...
Page 464 462 MAINTENANCE SCHEDULES 138,000 Miles (230,000 km) or 138 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. Odometer Reading Repair Order # Dealer Code Signature Authorized Chrysler Dealer 144,000 Miles (240,000 km) or 144 Months Maintenance Service Schedule ❏...
Page 465 150,000 Miles (250,000 km) or 150 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ Replace the engine air cleaner filter. ❏ Change the manual transmission fluid if using your vehicle for any of the following: trailer towing, snow plowing, heavy loading, taxi, police, delivery service (commercial service), off-road, desert operation or more than 50% of your driving is at sustained high speeds during hot weather, above 90°F (32°C).
Page 466 464 MAINTENANCE SCHEDULES † This maintenance is recommended by the manufacturer to the owner, but is not required to maintain emissions warranty. WARNING! • You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment.
Page 467: If You Need Consumer Assistance
IF YOU NEED CONSUMER ASSISTANCE CONTENTS Suggestions For Obtaining Service For Your Vehicle......467 Prepare For The Appointment .
Page 468 466 IF YOU NEED CONSUMER ASSISTANCE Department Of Transportation Uniform Tire Quality Grades ......473 Treadwear ......473 Traction Grades .
Page 469: Suggestions For Obtaining Service For Your Vehicle
SUGGESTIONS FOR OBTAINING SERVICE FOR YOUR VEHICLE Prepare For The Appointment If you’re having warranty work done, be sure to have the right papers with you. Take your warranty folder. All work to be performed may not be covered by the warranty.
Page 470: Chrysler Llc Customer Center
468 IF YOU NEED CONSUMER ASSISTANCE This is why you should always talk to an authorized dealer’s service manager first. Most matters can be re- solved with this process. • If for some reason you are still not satisfied, talk to the general manager or owner of the authorized dealer- ship.
Page 471: Customer Assistance For The Hearing Or Speech Impaired (Tdd/Tty)
Customer Assistance For The Hearing Or Speech Impaired (TDD/TTY) To assist customers who have hearing difficulties, the manufacturer has installed special TDD (Telecommuni- cation Devices for the Deaf) equipment at its customer center. Any hearing or speech impaired customer, who has access to a TDD or a conventional teletypewriter (TTY) in the United States, can communicate with the manufacturer by dialing 1–800–380–CHRY.
Page 472: Warranty Information (U.s. Vehicles Only)
470 IF YOU NEED CONSUMER ASSISTANCE We appreciate that you have made a major investment when you purchased the vehicle. An authorized dealer has also made a major investment in facilities, tools, and training to assure that you are absolutely delighted with the ownership experience.
Page 473: In Canada
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your authorized dealer, and the manufacturer.
Page 474 472 IF YOU NEED CONSUMER ASSISTANCE These comprehensive Service Manuals provide the information that students and professional technicians need in diagnosing/troubleshooting, problem solving, maintaining, servicing, and repairing Chrysler LLC vehicles. A complete working knowledge of the ve- hicle, system, and/or components is written in straightforward language with illustrations, diagrams, and charts.
Page 475: Department Of Transportation Uniform Tire Quality Grades
DEPARTMENT OF TRANSPORTATION UNIFORM TIRE QUALITY GRADES The following tire grading categories were established by the National Highway Traffic Safety Administration. The specific grade rating assigned by the tire’s manufacturer in each category is shown on the sidewall of the tires on your vehicle.
Page 476 474 IF YOU NEED CONSUMER ASSISTANCE Temperature Grades The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat, when tested under controlled conditions on a specified indoor laboratory test wheel.
Page 477 INDEX...
Page 478 476 INDEX ABS (Anti-Lock Brake System) ... . 203,314 Adding Fuel ......357 Air Cleaner, Engine (Engine Air Cleaner Filter) .
Page 479 Battery ....... 403 Emergency Starting ..... 388 Keyless Transmitter Replacement (RKE) .
Page 480 478 INDEX Child Seat ......64 Climate Control ......262 Clock .
Page 481 Disposal Engine Oil ......402 Used Coolant (Antifreeze) ....413 Door Locks .
Page 482 480 INDEX Fuel Requirements ....353,441 Jump Starting ......388 Oil .
Page 483 Fog Lights ......95,439 Fold and Tumble Rear Seat ....88 Folding Rear Seat .
Page 484 482 INDEX Hard Top, Modular ..... . 114 Hard Top Removal ..... . . 118 Hazard Warning Flasher .
Page 485 Jacking Instructions ..... . 385 Jump Starting ......388 Key, Programming .
Page 486 484 INDEX Exterior ......75 Fog ......95,439 Hazard Warning Flasher .
Page 487 Maintenance Schedule ....446 Malfunction Indicator Light (Check Engine) . . 209,397 Manual, Service ......471 Manual Transmission .
Page 488 486 INDEX Operator Manual (Owner’s Manual) ... . 6 Outside Rearview Mirrors ....82 Overheating, Engine .
Page 489 Refrigerant ......405 Release, Hood ......93 Reminder, Lights On .
Page 490 488 INDEX Seats ....... . . 83 Adjustment ......83 Easy Entry .
Page 491 Cold Weather ......276 Engine Block Heater ....279 Engine Fails to Start .
Page 492 490 INDEX Load Capacity ..... 335,336 Pressure Monitor System (TPMS) ... 347 Pressure Warning Light .
Page 493 Maintenance ..... . . 417,420 Manual ......279 Range Indicator .
Page 494 492 INDEX Windshield, Folding ..... . 185 Windshield Washers ....98,406 Fluid .
Page 495: Installation Of Radio Transmitting Equipment
INSTALLATION OF RADIO TRANSMITTING EQUIPMENT Special design considerations are incorporated into this vehicle’s electronic system to provide immunity to radio frequency signals. Mobile two-way radios and telephone equipment must be installed properly by trained person- nel. The following must be observed during installation. The positive power connection should be made directly to the battery and fused as close to the battery as possible.
