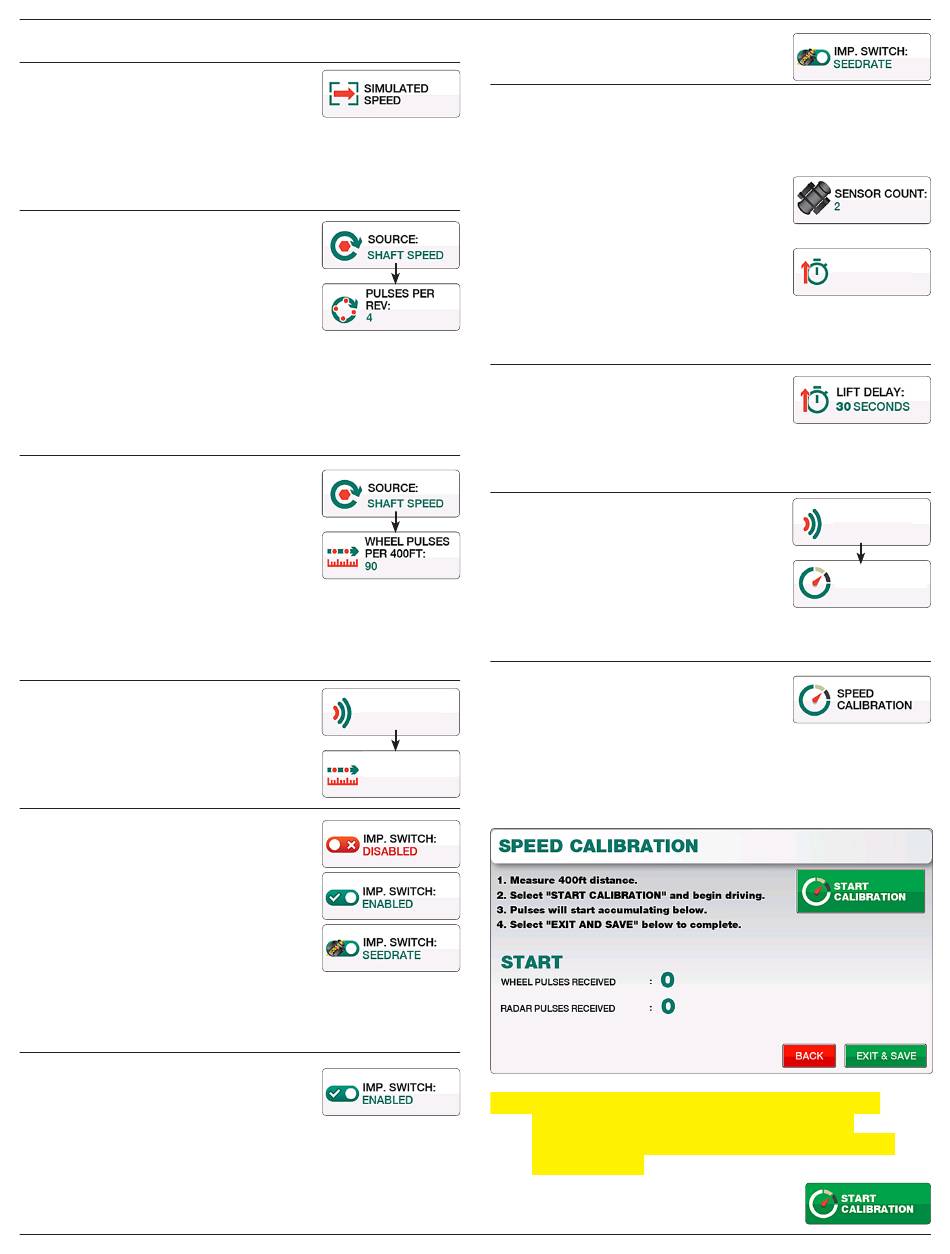

sIMuLATED sPEED

Allows you to enter a static speed into the
monitor without any other speed source.
For use in more unique conditions such as a
GPS/Radar failure, or other troubleshooting.

PuLsEs PER REVOLuTION

Available when "Shaft Speed" is selected.
Pulses per Rev (Revolution) are the number
of magnets the implement mounted speed
sensor sees in one revolution of the shaft
being monitored. For most applications this
number willl be 4.
To change, enter a new number into the keypad and select "Exit &
Save".

WHEEL PuLsEs PER 400fT

Available when "Shaft Speed" is selected. This
is the ground speed calibration number for a
implement mounted speed sensor.
The Default number is 90. To change, enter a
new number into the keypad and select "Exit
& Save". Increasing this number will cause the monitor to show a
slower MPH, decreasing it causes the MPH to increase.

RADAR PuLsEs PER 400fT

Available when "Radar" source is selected.
This is the ground speed calibration number
for a radar speed sensor.

IMPLEMENT sWITcH

The implement switch sensor is used for
in/out of motion detection. The lift sensor
is used when ground driven shaft rotation
cannot be used or a variable rate drive as
common on air seeders is being used.
Each button push toggles this setting
between "Disabled", "Enabled", and
"Seedrate".

IMPLEMENT sWITcH ON

When a "Lift Switch" sensor is learned
to the monitor, toggle the "Imp. Switch"
button to "Enabled".
LOUP ELECTRONICS • 1-877-489-5687 • WWW.LOUPELECTRONICS.COM
IMPLEMENT sWITcH
By sEEDRATE
When using the "Seedrate" mode, the monitor will wait to see
seed flow for a specified time accross a specified number of
population sensors before going in or out of motion.
Change the value for "Sensor Count" to
specify how many sensors of seedflow are
needed for in/out of motion.
Change the value for "Seed Delay" to specify
how long seedflow must be detected for in/
out of motion.

LIfT DELAy

When enabled, the Lift Delay specifies the
seconds given to make a turn. This value can
range between 1 and 99 seconds.
sIMuLATED sPEED
Available when "Simulated Speed" is
selected as the source. Use this field to enter
the static speed of your choice. The monitor
will continually display this speed at all
times until otherwise specified.

sPEED cALIBRATION

All new systems require a ground speed
SOURCE calibration to ensure accurate population
RADAR
readings, accurate area totals and accurate
ground speed readings. To complete the calibration, measure
RADAR PULSES
a course 400 ft long preferably on level ground with a start and
PER 400FT
15815
finish point. The drill must be in the down position throughout
this procedure.
Note: During the calibration the monitor is looking for
the number of pulses produced from the drill
mounted sensor or in the case of radar, the number
of radar pulses.
Select the "Start Calibration" button
1.
to begin.
SEED DELAY:
3 SECONDS
SOURCE
SIM. SPEED
SPEED:
5.0 MPH
