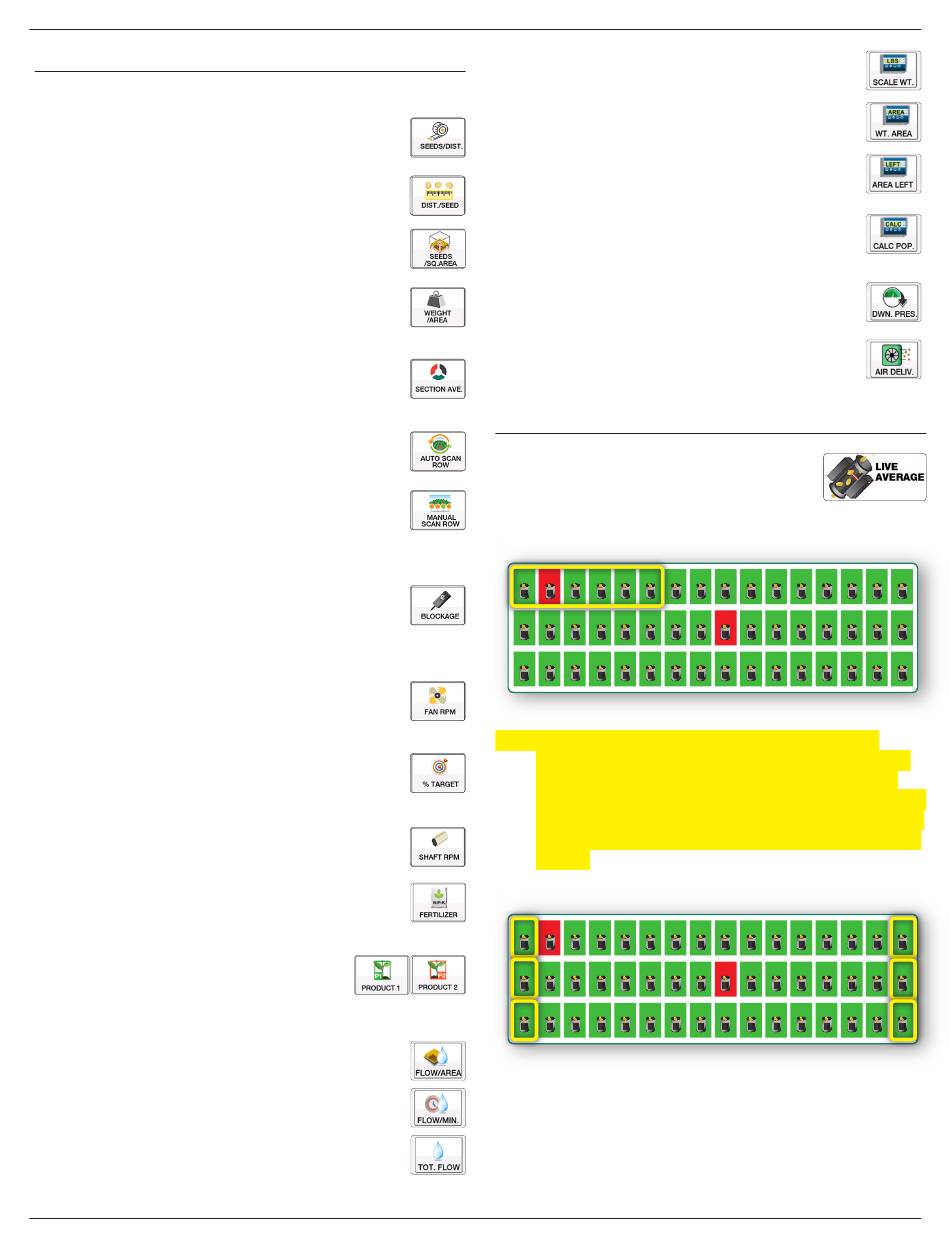

TOP DIsPLAy OPTIONs
Available options for readouts to display on the top screen
are as follows:
•
Seed/Distance: Displays the Seeds/Ft information.
Distance/Seed: Displays the Distance/Seed
•
information.
Seeds/Square Area: Displays the Seeds/Square Ft
•
information.
Weight/Acrea: Displays the LB/Acre information.
•
Ensure the correct "Seeds Per Pound" is defined in
the Crop Details.
•
Section Average: If sections are setup on your drill,
this will scroll through and display each section
average for the sensors active on that section.
Auto Scan Row: Scans through and displays
•
population for each individual seed sensor.
•
Manual Scan Row: Displays population for each
individual seed sensor. Manual selection using the
Up and Down arrows is needed to cycle through
each sensor.
•
Blockage: Displays the current status of blockage
sensors learned to the system. If no blockages are
detected status will display "Flow Open". Conversely
if any blocked runs are detect, the run number will be
displayed along with a Blocked status.
•
Fam RPM: Displays current RPM of any Fan
senosrs learned to the system.
% of Target: Displays the percentage of the current
•
seeds/acre reading in relation to the entered Target
Population.
Shaft RPM: Displays current RPM of any Shaft
•
sensors learned to the system.
Fertilizer: Displays status of sensors assigned to
•
monitring fertilizer flow. See Section 5.8 for more
information.
Product 1/2: If using Dual Products when
•
seeding Covercrop, autoscans between
sensors associated with Product 1 or 2. See
Section 5.8 for more information.
Liquid Flow/Area: When enabled from implement
•
settings, displays liquid flow per acres.
•
Liquid Flow/Min: Displays liquid flow per minute.
•
Total Liquid Flow: Displays total liquid flow
LOUP ELECTRONICS • 1-877-489-5687 • WWW.LOUPELECTRONICS.COM
Scale Weight: When using an external scale head,
•
displays total weight from the scale indicator.
Scale Weight/Area: Displays a Weight/Area
•
reading when using an external scale indicator.
Scale Area Left: Displays remaining area left based
•
on weight readings from external scale indicator.
Scale Calculated Population: Displays calculated
•
Seeds/Acre based on weight readings from external
scale indicator.
Down Pressure: Displays Down Pressure (PSI)
•
value when using a down pressure sensor.
•
Air Seed Delivery (ASD): Displays ASD status
when using certain Kinze Planters.
fLOW scREEN
By selecting the Sensor Icon in the upper left
of the main screen, the Elite will toggle to a Flow
Screen. This screen gives a flow status overview of
all Population and Blockage sensors learned.
1
2
3
4
5
17
18
19
20
21
33
34
35
36
37
Note: Population sensors are displayed according to the
Row Number they were learned as. Ex: If 6 population
sensors are learned as rows 1-6 (see above), they will
show as the first 6 icons with blockage sensors following.
Alternatively if they are learned as rows 1, 16, 17, 32, 33,
and 48 (see below); they will appear as such on the Flow
Screen.
1
2
3
4
5
17
18
19
20
21
33
34
35
36
37
To return to the main screen, tap anywhere on the screen.
6
7
8
9
10
11
12
13
22
23
24
25
26
27
28
29
38
39
40
41
42
43
44
45
6
7
8
9
10
11
12
13
22
23
24
25
26
27
28
29
38
39
40
41
42
43
44
45
14
15
16
30
31
32
46
47
48
14
15
16
30
31
32
46
47
48
5
