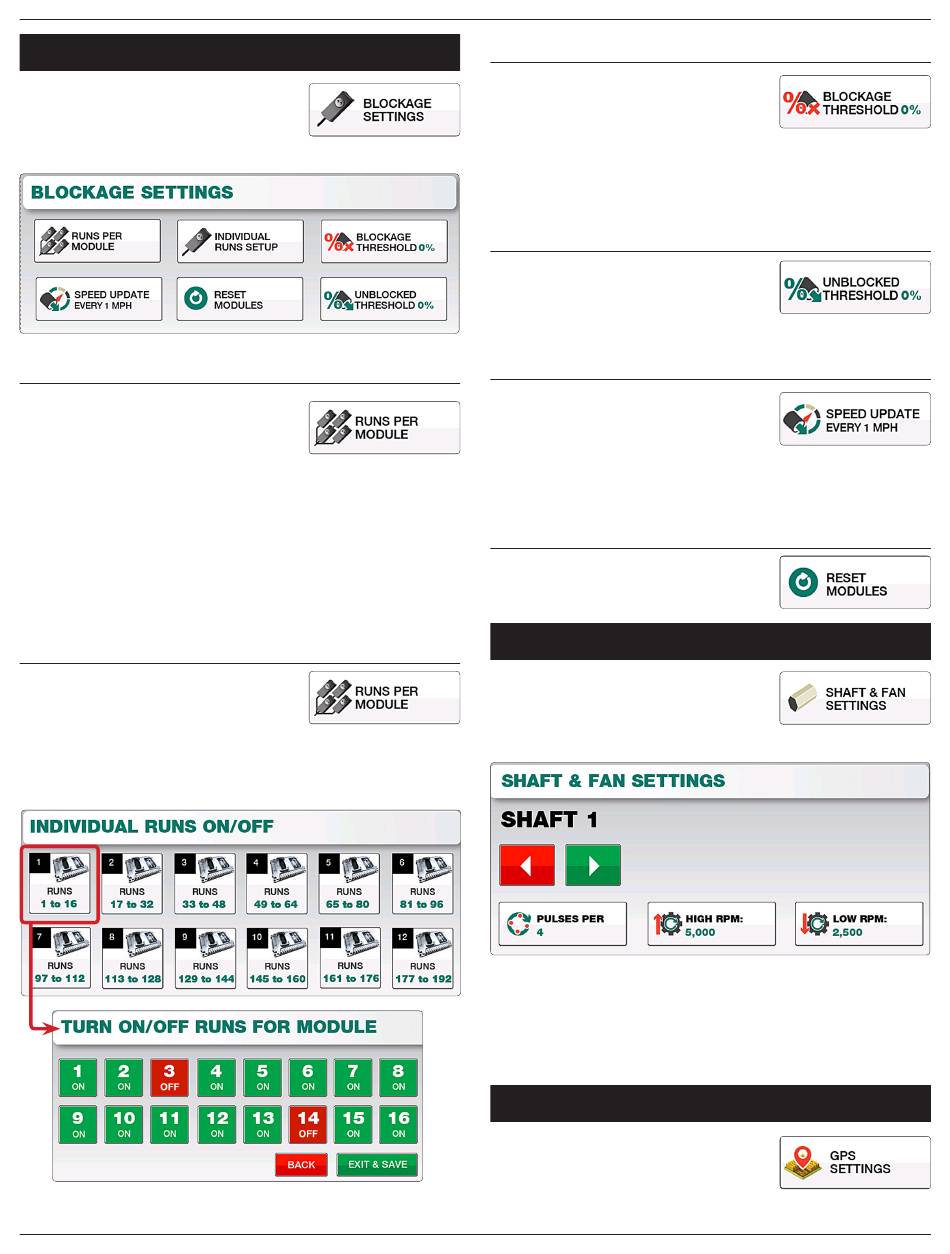

Blockage SeTTingS

Located by selecting "Menu" and
"Blockage Settings", this screen is used to
define how many runs are per module,
individual runs on/off, blockage thresholds and more.

RuNs PER MODuLE

The Runs Per Module screen is used to
define the number Blockage Sensors that
are connected to each Module. Simply
select the module you wish to change and
enter the appropriate number of runs associated with it.
The number of modules you can edit on this screen depends
on the number of modules learned for your particular drill, the
maximum number of modules being 12.
Default Runs Per Module = 16

INDIVIDuAL RuNs sETuP

The Individual Runs Setup screen allows
you to turn specific blockage sensors
associated with a module On or Off. Select
the module you wish to adjust and from the follwing screen
toggle the sensors of your choice to On or Off. When finished
select "Exit & Save".
12

BLOckAgE THREsHOLD

The Blockage Threshold defines the limit
of product flow the blockage sensors
need to see before an alarm is activated.
Lowering this number will require less product before an alarm
sounds while a higher number requires more product prior to an
alarm.

uNBLOckED THREsHOLD

The Unblocked Threshold is not changable
and is automatically linked to the Blockage
Threshold.

sPEED uPDATE

The Speed Update toggles between
"Auto", "1 MPH", and "2 MPH". Under
the "Auto" setting, blockage is calculated
in accordance to the current speed. Leave this setting as "Auto"
unless otherwise specified by Loup Electronics.

REsET MODuLEs

Resets all currently learned blockage
modules to their default factory settings.
ShaFT & Fan SeTTingS
Shaft & Fan Settings is located by selecting
"Menu" and "Shaft & Fan Settings", this
menu can only be accessed if at lead one
shaft or fan sensor is learned to the monitor's memory.
Within this menu, use the Left and Right arrow buttons to
navigate to the Shaft or Fan sensor you wish to modify. You can
then update the Pulses per Revolution, High RPM and Low RPM
alarm points for each sensor. Select "Exit & Save" to apply any
changes made.

gpS SeTTingS

Located by selecting "Menu" and "GPS
Settings" this menu defines any GPS
offsets, Baudrate, Speed corrections or the
current GPS status.
